Devoko 10x8 FT Resin Outdoor Storage Shed Instruction Manual

1. Úvod

Thank you for choosing the Devoko 10x8 FT Resin Outdoor Storage Shed. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage shed. Please read these instructions carefully and completely before beginning assembly or use. Keep this manual for future reference.

2. Bezpečnostní informace

• Požadavek na montáž: Assembly is required. Follow all manual instructions carefully.
• Těžké komponenty: Be cautious when handling heavy components during assembly. It is recommended that assembly be a práce pro dvě osoby.
• Místní předpisy: Before installation, please check your local Homeowners Association (HOA) policies and building codes to ensure that the shed can be built in your desired location.
• Osobní ochranné prostředky: Během montáže používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
• Pracovní oblast: Ensure your work area is clear, level, and free from obstructions.
• Děti a domácí mazlíčci: Abyste předešli nehodám, držte děti a domácí zvířata mimo prostor montáže.
• Bezpečná instalace: Ujistěte se, že je přístřešek bezpečně ukotvený k zemi, aby se při silném větru nepřevrátil.

3. Konec produktuview

The Devoko 10x8 FT Resin Outdoor Storage Shed is designed to provide durable and spacious storage for your outdoor equipment. Constructed from high-quality, double-layer thickened resin material, it offers excellent weather resistance and long-term use without fading. The shed features a floor for moisture isolation, a sloped roof to prevent rain and snow accumulation, and a lockable door for security. Natural light and ventilation are provided through multiple windows and an air vent.

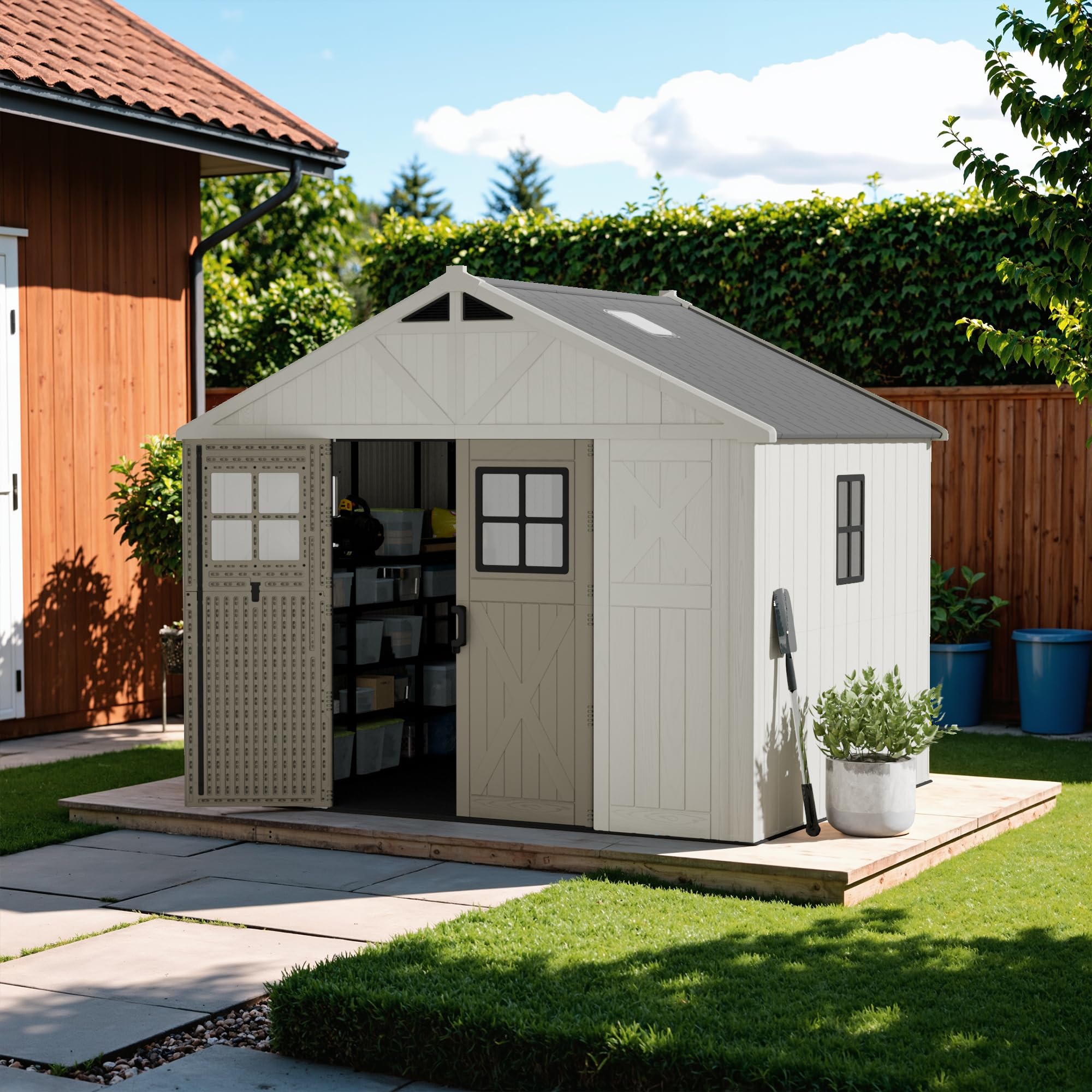

Obrázek 1: Vnější vzhled view of the Devoko 10x8 FT Resin Outdoor Storage Shed. This image shows the overall design, including the double doors, side window, and sloped roof.

4. Seznam dílů

Before beginning assembly, unpack all components and verify that all parts are present and undamaged. Refer to the detailed parts diagram included in your packaging for specific identification. Typical components include:

• Wall Panels (Front, Rear, Side)
• Roof Panels and Ridge Cap
• Podlahové panely
• Double Doors and Door Handles
• Okenní panely
• Ventilační mřížky
• Various Connectors and Fasteners

5. Nastavení a montáž

The Devoko storage shed features a unique foot Kick-It installation and a building block assembly method, which significantly reduces the number of screws and simplifies the process compared to traditional sheds. While designed for easier assembly, patience is key, and it is strongly recommended that two people work together. Assembly can take approximately 10 hours.

5.1 Příprava místa

1. Choose a level, solid surface for the shed. A concrete slab or a well-compacted gravel base is ideal.
2. Vyčistěte oblast od veškerých nečistot, kamenů nebo vegetace.
3. Zajistěte dostatečné odvodnění kolem místa, kde se nachází kůlna.

5.2 Floor Assembly

1. Lay out the floor panels according to the diagram in your specific instruction manual.
2. Connect the floor panels using the provided connectors, ensuring they interlock securely.
3. Verify the floor is square and level before proceeding.

5.3 Wall Panel Assembly

1. Begin by attaching the first wall panel to the floor base, following the 'foot Kick-It' method for secure placement.
2. Continue adding subsequent wall panels, interlocking them with each other and securing them to the floor.
3. Install window panels into their designated wall sections as you build up the walls.
4. Ensure all panels are firmly seated and aligned.

5.4 Roof Assembly

1. Assemble the roof support structure as per the manual's diagrams.
2. Place the roof panels onto the support structure, ensuring they overlap correctly to create the double sloped roof design.
3. Secure the roof panels and install the ridge cap.
4. Install any skylights or ventilation grilles into the roof sections.

5.5 Montáž dveří

1. Attach the double doors to the designated frame openings using the provided hinges.
2. Install the door handles and the locking mechanism.
3. Test the doors to ensure they open and close smoothly and the lock functions correctly.

5.6 Závěrečné kontroly

1. Review all connections to ensure they are secure.
2. Check for any gaps or misalignments that could compromise weather resistance.
3. Ensure the shed is stable and ready for use.

6. Návod k obsluze

6.1 Obsluha dveří

The shed features double hinged doors. To open, turn the handle and pull the doors outwards. To close, push the doors firmly shut until they latch. For security, use the integrated lockable design. Ensure the doors are fully closed and locked when the shed is unattended to protect your belongings.

6.2 Větrání

The shed is equipped with an air vent to promote circulation and reduce moisture accumulation. Ensure the vent is not blocked by stored items or debris to maintain optimal airflow.

7. Údržba

Regular maintenance will extend the life and appearance of your Devoko storage shed.

• Čištění: Clean the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals, as these can damage the resin material. Rinse thoroughly with clean water.
• Péče o střechu: Regularly clear the sloped roof of any accumulated leaves, snow, or debris to ensure proper drainage and prevent excessive weight.
• Door and Hinges: Lubricate door hinges annually with a silicone-based spray to ensure smooth operation. Check the door alignment and adjust if necessary.
• Větrání: Ensure the air vent remains clear and unobstructed to allow for proper air circulation.
• Strukturální integrita: Periodically inspect all connections and fasteners to ensure they remain tight and secure.

8. Řešení problémů

• Obtížnost při montáži: If you encounter difficulties, refer to the detailed diagrams in your specific manual. Remember that assembly is a two-person job and requires patience. Ensure all parts are correctly oriented before attempting to connect them.
• Moisture Inside the Shed: Check that the floor panels are properly interlocked and sealed to prevent ground moisture. Ensure the roof panels are correctly installed and the sloped design is effective in shedding water. Verify the air vent is clear for proper air circulation to reduce condensation.
• Dveře se špatně zavírají: Check for any obstructions in the door frame or hinges. Ensure the shed is built on a level surface, as an uneven base can cause door misalignment. Adjust hinges if necessary.
• Blednutí nebo změna barvy: The shed is made from UV-resistant resin. However, prolonged exposure to extreme sunlight can still affect color over many years. Regular cleaning can help maintain its appearance.

9. Specifikace

Obrázek 2: Rozměry nadview of the Devoko 10x8 FT Resin Outdoor Storage Shed. This diagram illustrates the external measurements, including length, width, and height, as well as door and window dimensions.

10. Záruka a podpora

For warranty information or technical support, please refer to the documentation included with your purchase or contact Devoko customer service directly. Keep your purchase receipt as proof of purchase.

Kontaktní údaje: Navštivte prosím oficiální stránky Devoko webNejnovější kontaktní údaje zákaznické podpory naleznete na webu nebo na vaší nákupní platformě.
