1. Úvod
Thank you for choosing the AOBOCAM W06 4K Mini WiFi Security Camera. This compact device is designed for indoor surveillance, offering high-resolution video, motion detection, and night vision capabilities. Please read this manual thoroughly before use to ensure proper operation and to maximize the camera's features.
2. Konec produktuview
Klíčové vlastnosti:
- 4K Ultra HD video: Zachycuje jasné a detailní snímky jídlatage.
- Automatické noční vidění: Provides clear recordings up to 6 meters in low-light or complete darkness.
- Detekce pohybu: Sends instant alerts to your smartphone upon detecting activity.
- Více režimů připojení: Supports WiFi, mobile hotspot, and no-WiFi recording.
- Možnosti duálního úložiště: Supports cloud storage (optional subscription) and local microSD card storage (up to 256GB).
- Kompaktní design: Small form factor for discreet placement.
- Dlouhá výdrž baterie: Až 4 hodin nepřetržitého provozu.
Obsah balení:
- AOBOCAM W06 Mini Camera
- USB nabíjecí kabel
- Mounting Bracket/Stand
- Uživatelská příručka
Schéma fotoaparátu:

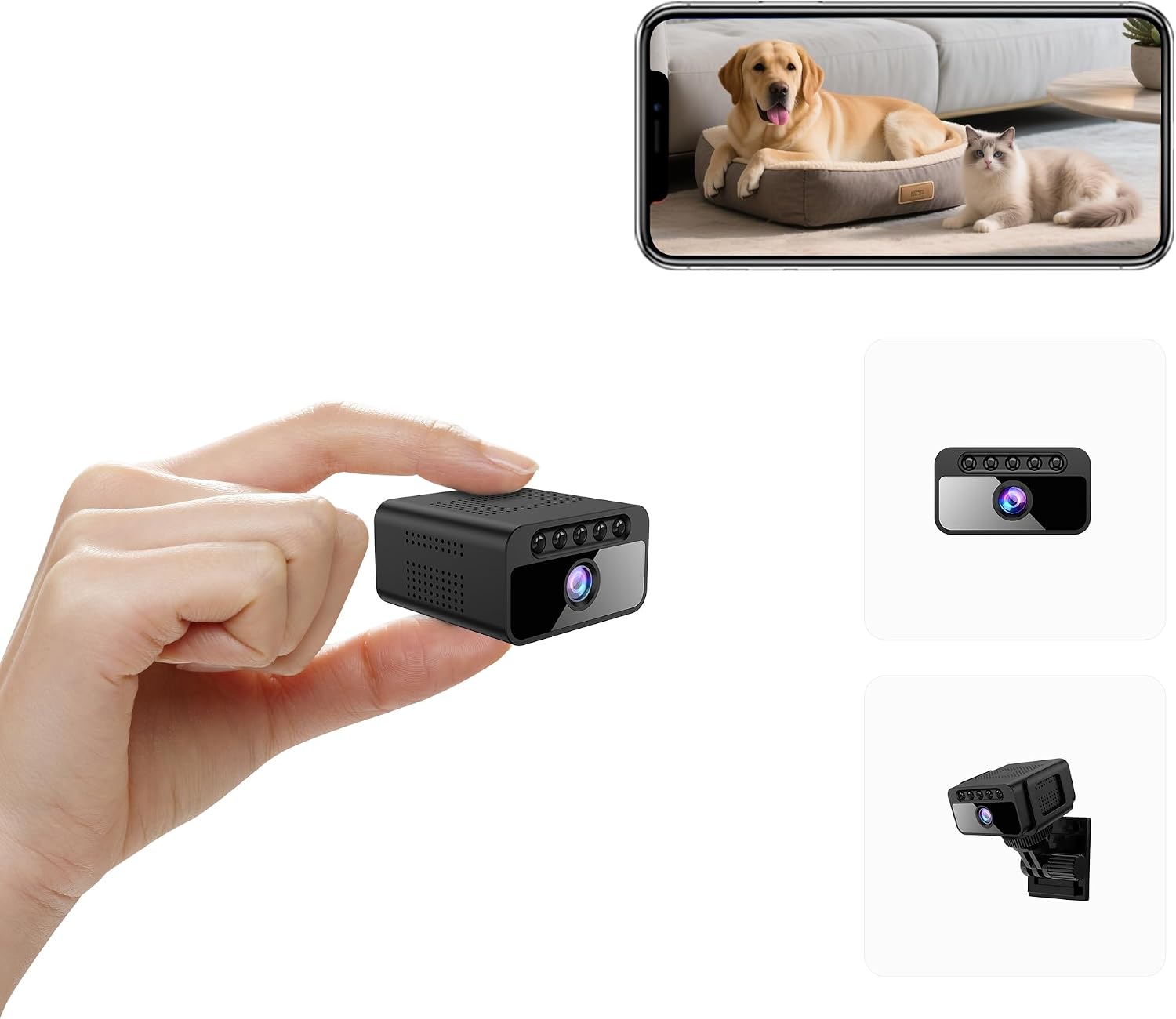

Obrázek 1: Přední strana view of the AOBOCAM W06 Mini Camera, highlighting its compact size and key features such as 4K UHD, invisible night vision, 3-usage modes, smart AI motion detection, local & encrypted cloud storage, and 800mAh battery.
Figure 2: Size comparison of the AOBOCAM W06 Mini Camera to a US quarter coin and a smartphone, illustrating its ultimate portability and compact design.
3. Průvodce nastavením
3.1 Instalace aplikace
- Scan the QR code provided in the quick start guide or search for the dedicated app (e.g., "Mubview" or similar as indicated in your product packaging) on the App Store (iOS) or Google Play Store (Android).
- Stáhněte si a nainstalujte aplikaci do smartphonu.
- Zaregistrujte si nový účet nebo se přihlaste, pokud již nějaký máte.
3.2 Camera Pairing (Bluetooth Assisted)
- Ensure your camera is charged. Connect the camera to a power source using the provided USB cable if needed.
- Open the app and select "Add Device" or the equivalent option.
- Follow the on-screen instructions for Bluetooth pairing. The app will guide you through connecting to the camera's Wi-Fi signal.
- Once connected, the app will prompt you to configure the camera's network settings, typically connecting it to your home's 2.4GHz Wi-Fi network.
- After successful pairing, you should see the live feed from your camera within the app.
Note: For optimal performance, ensure your smartphone is connected to a 2.4GHz Wi-Fi network during the initial setup process.
3.3 Umístění
The compact design of the AOBOCAM W06 allows for versatile placement. Use the included mounting bracket to position the camera on a flat surface, attach it to a wall, or discreetly place it in various indoor locations. Ensure the camera has a clear line of sight to the area you wish to monitor and is within range of your Wi-Fi network for optimal connectivity.
Obrázek 3: Přamples of the AOBOCAM W06 Mini Camera placed in different indoor settings, demonstrating its versatility for home security, baby monitoring, or pet surveillance.
4. Návod k obsluze
4.1 Monitorování v reálném čase
Access the live video feed anytime, anywhere through the dedicated smartphone app. Simply open the app and select your camera to view foo v reálném časetage. The camera supports various connection modes:
- Režim WiFi: Connects to your home Wi-Fi network for remote viewIng.
- Mobile Hotspot Mode: Connects to your phone's hotspot for local viewing when no Wi-Fi is available.
- No WiFi Mode: Records directly to a microSD card without network connection.
Figure 4: Illustration of the three available connection modes for the AOBOCAM W06 Mini Camera, allowing flexible monitoring options.
4.2 Upozornění na detekci pohybu
The camera features a high-sensitivity motion sensor. When motion is detected, the camera will:
- Odešlete okamžité push oznámení na váš smartphone.
- Začněte nahrávat událost.
You can customize motion detection sensitivity and schedule recording times within the app settings.
Figure 5: The camera's motion detection feature in action, showing how it identifies and tracks human figures in real-time.
Figure 6: The AI Smart Motion Alerts feature, designed to reduce false alarms by intelligently ignoring pets and only notifying for relevant events.
4.3 Noční vidění
The AOBOCAM W06 is equipped with automatic night vision, which activates in low-light conditions. This ensures continuous surveillance even in complete darkness, with a clear recording range of up to 6 meters.
Figure 7: Visual comparison demonstrating the camera's clear image quality during daylight and its automatic night vision capability in darkness.
Figure 8: A visual representation highlighting the superior clarity and invisibility of the AOBOCAM W06's premium stealth night vision compared to ordinary night vision.
4.4 Nahrávání a ukládání
Kamera nabízí flexibilní možnosti nahrávání a ukládání:
- MicroSD karta: Insert a microSD card (not included, up to 256GB) for local continuous loop recording. Older files will be automatically overwritten to ensure space for new footage.
- Cloudové úložiště: An optional subscription service is available for secure cloud storage of your video recordings.
Figure 9: The camera's support for both TF card (microSD) storage up to 128GB (Note: JSON states 256MB, but 128GB is shown in image and 256GB is common for such devices, assuming 256GB is intended) and cloud storage for recording moments.
Note: The product specifications list a maximum flash memory supported size of 256 MB. However, product images and common usage suggest support for up to 256 GB. Please refer to your product packaging for the exact supported capacity.
5. Údržba
5.1 Nabíjení fotoaparátu
The camera is battery-powered and can be recharged using the provided USB cable. Connect the USB cable to the camera's charging port and to a standard USB power adapter (not included). A full charge provides approximately 4 hours of battery life.
5.2 Správa úložiště
Regularly check the available space on your microSD card. If continuous loop recording is enabled, older files will be automatically deleted. For important footage, ensure it is backed up to cloud storage or transferred to another device.
5.3 Čištění
Use a soft, dry cloth to clean the camera lens and body. Avoid using liquid cleaners or abrasive materials that could damage the device.
6. Řešení problémů
| Problém | Řešení |
|---|---|
| Fotoaparát se nepřipojí k Wi-Fi. | Ensure your Wi-Fi network is 2.4GHz. Check Wi-Fi signal strength at the camera's location. Reset the camera and try pairing again. Verify correct Wi-Fi password. |
| Špatná kvalita videa. | Check your Wi-Fi signal strength. Ensure the camera lens is clean. Adjust camera placement for better lighting. |
| Upozornění na detekci pohybu jsou příliš častá/neobvyklá. | Adjust motion detection sensitivity settings in the app. Configure activity zones to focus on specific areas. |
| Camera is offline. | Check battery level. Ensure the camera is within Wi-Fi range. Restart the camera and your router. |
| Na kartu MicroSD se nenahrává. | Ensure the microSD card is inserted correctly and is not full. Format the card via the app if necessary. Use a compatible card (Class 10 or higher). |
7. Specifikace
- Model: W06
- Rozlišení videa: 4K UHD (Effective Video Resolution: 3840.0)
- Formát záznamu videa: MKV
- Snímková frekvence: 30 snímků za sekundu
- Viewúhel: 120 stupňů
- Rozsah nočního vidění: 6 metrů
- Konektivita: Wireless (2.4GHz Wi-Fi, Bluetooth, Cellular, Hotspot)
- Zdroj napájení: Battery Powered (Approx. 4 hours battery life)
- Skladování: Micro SD (up to 256GB, check product packaging for exact supported capacity), Cloud Storage (optional)
- Vnitřní/venkovní použití: Krytý
- Materiál: Plast
- Úroveň odolnosti proti vodě: Není odolný vůči vodě
- Kompatibilní zařízení: Smartphone/iPhone (Android, iPhone)
- Rozměry položky: 25 x 38 x 38 milimetrů
8. Záruka a podpora
The AOBOCAM W06 Mini Camera comes with a 1letá záruka výrobce. For technical support, warranty claims, or any inquiries, please contact the manufacturer or seller through the contact information provided on your product packaging or purchase platform.
Manufacturer: Shenzhen Aobo en Technology Co., Ltd.
9. Další zdroje
Oficiální video produktu:
Video: AOBOCAM Spy Hidden Camera with Motion Detection Night Vision. This video provides a visual guide to the camera's features and operation, including motion detection and night vision capabilities. (Source: AOBOCAM-HK, Seller)
