Casfuy W9 Enhanced KDF Multi-Layer Filtration Quiet Dog & Cat Water Fountain User Manual

Zavedení

Thank you for choosing the Casfuy W9 Enhanced KDF Multi-Layer Filtration Quiet Dog & Cat Water Fountain. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pet water fountain. Please read it thoroughly before use and retain it for future reference.

Důležité bezpečnostní pokyny

• Před použitím spotřebiče si přečtěte všechny pokyny.
• Do not immerse the power adapter or plug in water or other liquids.
• Supervise children when they are near the fountain.
• Nepoužívejte spotřebič, pokud má poškozený kabel nebo zástrčku, nebo pokud nefunguje správně nebo je jakkoli poškozen.
• Používejte pouze příslušenství doporučené nebo prodávané výrobcem.
• Nepoužívejte spotřebič k jinému účelu, než ke kterému je určen.
• Odpojte spotřebič, když jej nepoužíváte a před čištěním.
• Ensure the power cord is placed where it cannot be tripped over or pulled.
• Tento výrobek je určen pouze pro vnitřní použití.

Obsah balení

Zkontrolujte prosím, zda jsou všechny položky přítomny a v dobrém stavu:

• 1 x ABS Water Tank
• 1 x ABS Top Cover
• 1x vodní pumpa
• 1 x Pump Holder
• 1x Filtr s aktivním uhlím
• 1 x Filter Sponge
• 1 x nabíjecí kabel
• 1 x Adaptér
• 1 x Uživatelská příručka

Konec produktuview

The Casfuy W9 water fountain features a 2.5L capacity, dual flow modes, and an enhanced KDF multi-layer filtration system to provide clean and fresh water for your pets. Its quiet operation ensures a peaceful environment.

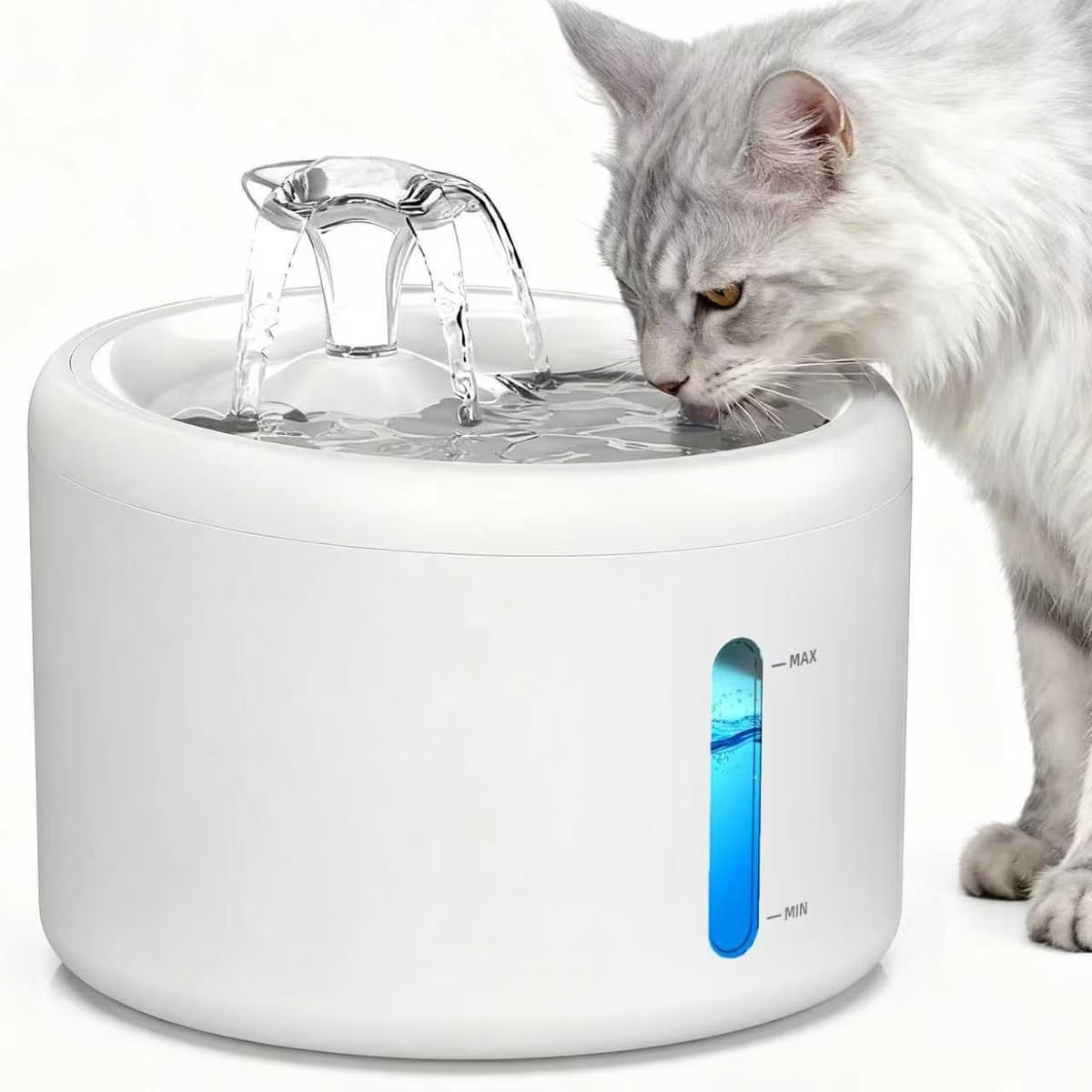

Image: The Casfuy W9 water fountain in use, showing its compact design and a cat drinking from it.

Image: Illustration of the two available water flow designs: a gentle waterfall and a bubbling spring, offering variety for pet preferences.

Pokyny pro nastavení

1. Čisté komponenty: Before first use, wash all parts of the fountain (except the pump and adapter) with water and mild soap. Rinse thoroughly.
2. Sestavte čerpadlo: Place the water pump into the pump holder. Ensure it is securely fitted.
3. Instalace filtru: Insert the filter sponge into its designated slot. Place the activated carbon filter into the filter tray.
4. Naplňte nádrž na vodu: Fill the ABS water tank with clean water up to the MAX indicator line. The fountain has a 2.5L (85oz) capacity. The clear vertical water window allows for easy monitoring of the water level.
5. Place Top Cover: Carefully place the ABS top cover onto the water tank, ensuring the pump's nozzle aligns with the water outlet on the cover.
6. Připojte napájení: Connect the charging cable to the pump and the adapter. Plug the adapter into a standard electrical outlet.
7. Choose Flow Mode: The fountain offers two flow modes: waterfall and bubbling spring. Adjust the top cover or nozzle to select your preferred mode. The 4° tilt base is designed to support a natural drinking posture for pets.

Image: The transparent water tank of the Casfuy W9 fountain, illustrating its 2.5L (85oz) capacity.

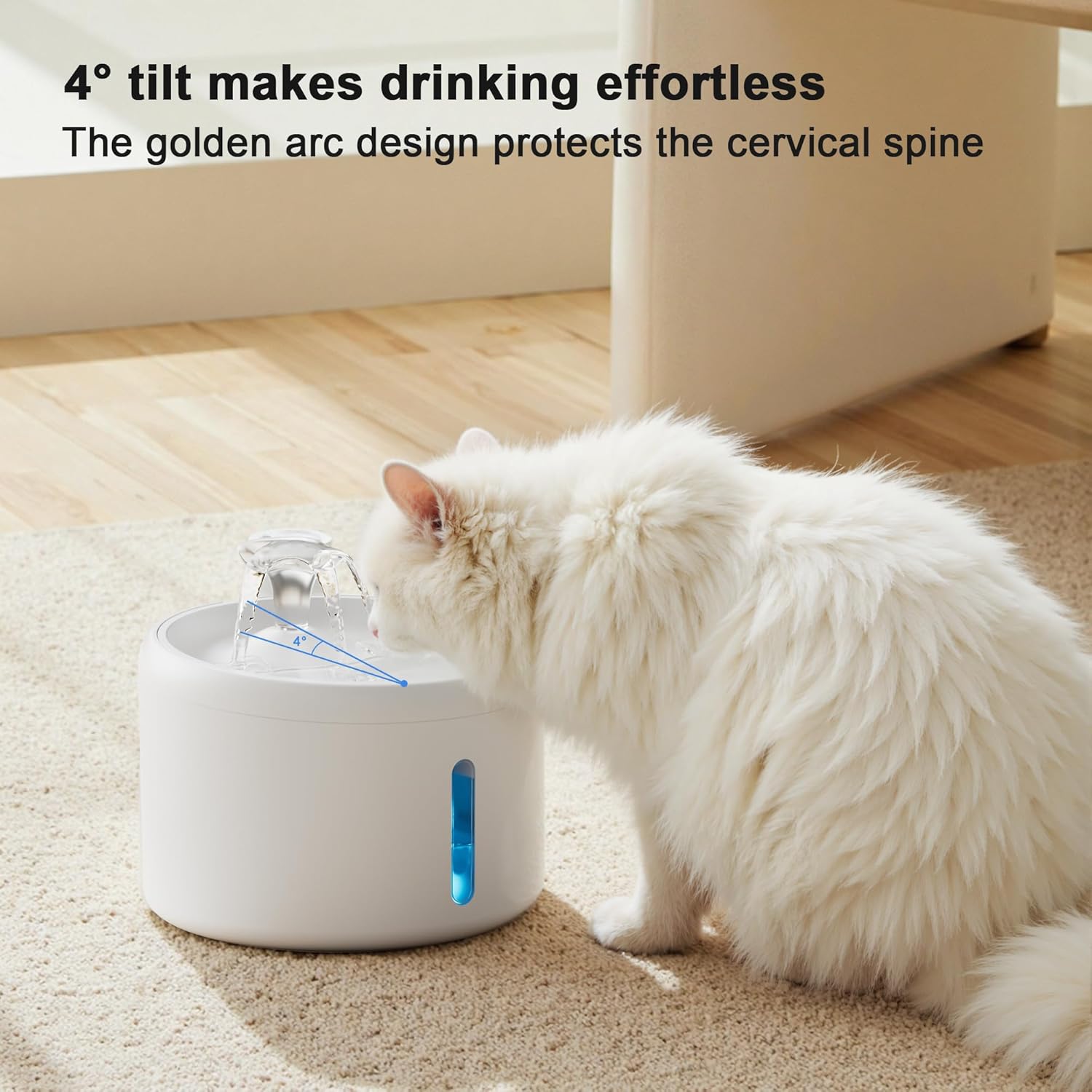

Image: A cat drinking from the Casfuy W9 fountain, demonstrating the ergonomic 4-degree tilt designed for comfortable pet posture.

Návod k obsluze

• Zapnutí: Once plugged in, the fountain will automatically start operating, circulating water.
• Hladina vody: Regularly check the water level through the clear window. Refill when the water level approaches the MIN indicator to prevent the pump from running dry.
• Režimy toku: The fountain provides two distinct water flow options. You can switch between the gentle waterfall and bubbling spring by adjusting the top nozzle component.
• Tichý provoz: The ultra-quiet pump operates at a low noise level (as low as 23dB), ensuring it does not disturb your pets or household.

Image: An illustration highlighting the ultra-silent operation of the Casfuy W9 water fountain, with noise levels below 23dB, ensuring a quiet environment.

Údržba

Čištění fontány

• Týdenní úklid: For optimal hygiene, clean the entire fountain at least once a week.
• Demontáž: Unplug the fountain, disassemble all components (tank, top cover, pump, filter tray).
• Mytí: Wash the tank, top cover, and filter tray with water and mild soap. The fountain is made from durable, BPA-free ABS plastic for easy cleaning.
• Čištění čerpadla: Clean the pump by removing the front cover and impeller. Rinse the impeller under running water to remove any debris or hair.
• Rinse and Reassemble: Rinse all components thoroughly to remove any soap residue. Reassemble the fountain as per the setup instructions.

Výměna filtru

The Casfuy W9 features an enhanced KDF multi-layer filtration system, including a high-density cotton layer, Kinetic Degradation Fluxion (KDF), activated carbon, and ion exchange resin, to ensure clean and healthy water.

Image: A detailed diagram illustrating the enhanced multi-layer filtration system of the Casfuy W9, including high-density cotton, KDF, activated carbon, and ion exchange resin layers.

• Filtr s aktivním uhlím: Replace the activated carbon filter every 2-4 weeks, or more frequently if you have multiple pets or if the water appears dirty.
• Filtrační houba: Replace the filter sponge every 1-2 months, or when it shows signs of wear or excessive debris.
• Proces výměny: Unplug the fountain, remove the top cover, and lift out the old filter. Insert a new filter, ensuring it is properly seated.

Odstraňování problémů

Specifikace

Záruka a podpora

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Casfuy webwebu. Uschovejte si účtenku jako doklad o koupi.
