Quictent 10x12FT Outdoor Storage Shed Workshop Shelter Instruction Manual

1. Úvod

Thank you for choosing the Quictent 10x12FT Outdoor Storage Shed Workshop Shelter. This manual provides essential information for the correct assembly, safe operation, and proper maintenance of your new storage solution. Please read these instructions thoroughly before beginning assembly or use to ensure safety and maximize the lifespan of your product.

This heavy-duty portable garage is designed to provide ample storage for riding mowers, garden equipment, tools, and can also serve as a small workshop or outdoor utility room. Its robust construction and weather-resistant features ensure your belongings are protected.

2. Bezpečnostní informace

Důležitá bezpečnostní opatření:

• Ensure proper anchoring with ratchet strap tensioners and ground stakes for wind resistance. Failure to do so may result in structural damage or personal injury.
• Maintain the rust-resistant framework in high-humidity environments to prevent corrosion. Regularly inspect poles for any signs of rust or damage.
• Use the UV-resistant fabric for protection against UV exposure and weather elements. Avoid exposing the fabric to sharp objects or excessive abrasion.
• Follow all setup and maintenance instructions for safe use. Do not modify the structure or use it for purposes other than intended.
• Always assemble with at least two adults.
• Clear snow accumulation from the roof promptly to prevent collapse.
• Do not use open flames or heating devices inside the shelter.

3. Seznam dílů

Before beginning assembly, verify that all components are present and undamaged. Refer to the packing list included with your product for a complete inventory. Key components include:

• Galvanized Steel Frame Poles and Connectors
• UV-Resistant Polyethylene Tarp (Main Cover)
• End Panels with Roll-Up Mesh Windows and Zipper Closures
• Ratchet Strap Tensioners
• Pozemní sázky
• Montážní materiál (šrouby, matice atd.)

Obrázek: Overview of the Quictent 10x12FT Outdoor Storage Shed, showing its main structure and cover.

4. Nastavení a montáž

Assembly typically requires two people. Follow the step-by-step instructions provided in the separate assembly guide for detailed diagrams and procedures. The general steps are outlined below:

1. Výběr webu: Choose a level area free from overhead obstructions and with good drainage.
2. Sestava rámu: Connect the galvanized steel poles using the provided connectors and hardware. Ensure all connections are secure.
3. Instalace krytu: Carefully drape the UV-resistant polyethylene tarp over the assembled frame. Ensure it is centered and aligned correctly.
4. End Panel Attachment: Attach the end panels, ensuring the roll-up mesh windows and zipper closures are correctly positioned.
5. Kotvení: Secure the structure to the ground using the ratchet strap tensioners and ground stakes. This is crucial for stability, especially in windy conditions. The curved foot base design enhances structural integrity against winds.

Image: Diagram illustrating the dimensions of the 10x12FT storage shed, including height, width, and length.

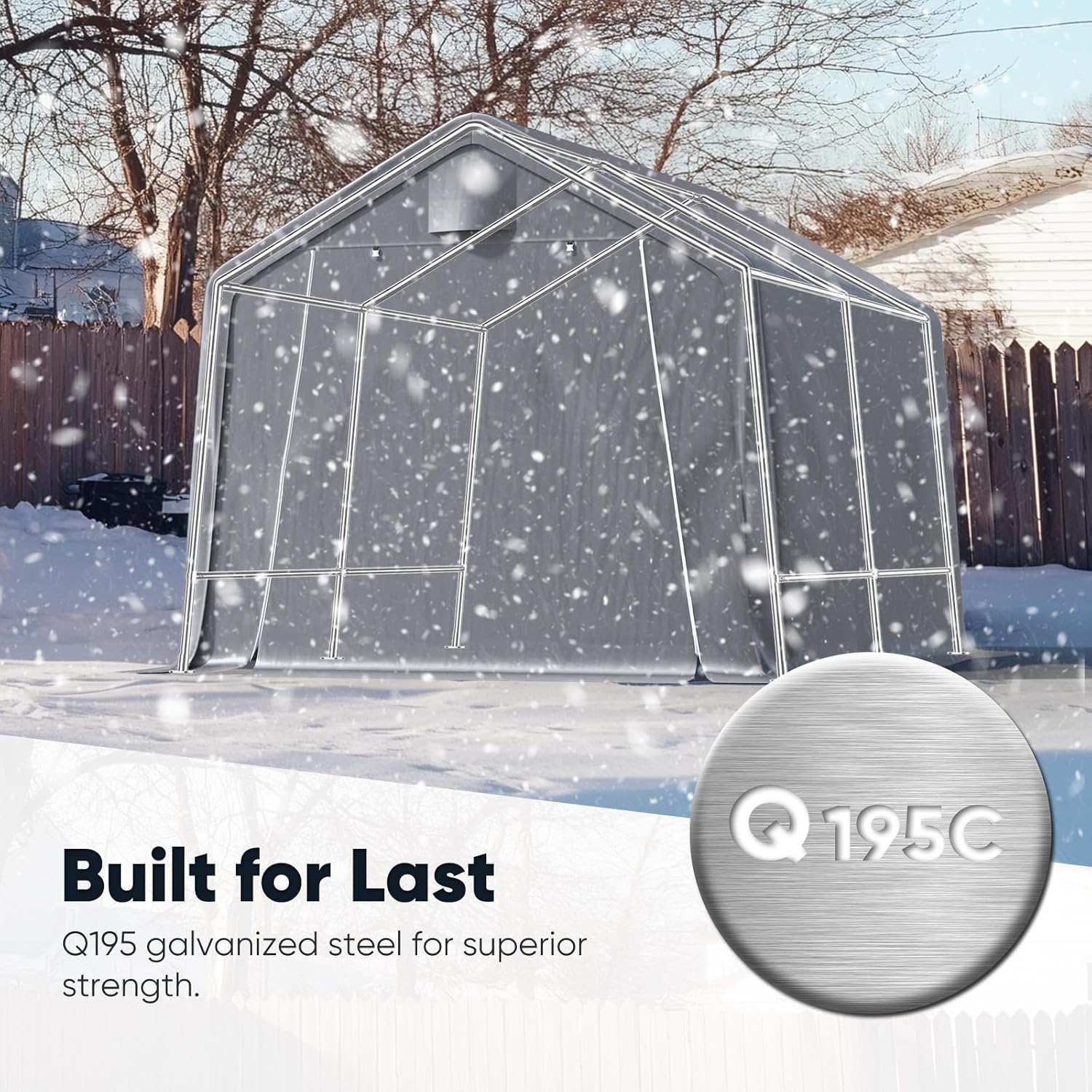

Image: Close-up of the Q195 galvanized steel frame, highlighting its robust construction designed for superior strength and durability.

5. Návod k obsluze

The Quictent storage shed is designed for ease of use and protection of your stored items.

• Přístup: Utilize the zipper closures on both end panels for easy entry and exit.
• Větrání: The roll-up mesh windows on each door, combined with the ceiling airflow channel, prevent condensation buildup and ensure proper air circulation. Roll them up during warm weather or when ventilation is needed, and secure them down during adverse conditions.
• Kapacita úložiště: The 10x12FT model provides 112 square feet of spacious storage, ideal for riding mowers, garden equipment, and other large items.

Obrázek: Interiér view of the shed demonstrating its ample storage capacity, capable of housing a riding mower, shelving, and various garden tools.

Image: Another interior view of the shed, showcasing organized storage with shelves, boxes, and garden equipment.

6. Údržba

Regular maintenance will extend the life and performance of your storage shed.

• Péče o kryt: The heavy-duty polyethylene tarp is UV-resistant and waterproof. Clean it periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners. Inspect for tears or damage and repair promptly to maintain waterproofing.
• Péče o rám: The galvanized steel poles have an anti-corrosion coating. Regularly check for any signs of rust, chipping, or peeling, especially in high-humidity environments. Touch up any exposed areas with rust-inhibiting paint if necessary.
• Kotevní systém: Periodically check the ratchet strap tensioners and ground stakes to ensure they remain secure, especially after strong winds or heavy precipitation. Re-tighten as needed.
• Odklízení sněhu: In areas with heavy snowfall, promptly remove snow accumulation from the roof to prevent excessive weight and potential structural damage.
• Větrání: Ensure the mesh windows and ceiling airflow channel are clear of debris to maintain proper ventilation and prevent condensation.

Image: Detail of the premium PE fabric, highlighting its waterproof and eco-friendly properties, designed for protecting valuables.

Image: Illustration showing airflow through the front and rear windows, demonstrating how the shed's ventilation system helps keep belongings dry and prevents condensation.

7. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat.

• Nestabilita kůlny: Ensure all frame connections are tight and the anchoring system (ratchet straps and ground stakes) is properly secured. Verify the shed is on level ground.
• Únik vody: Check the cover for any tears or punctures. Ensure the cover is properly tensioned and extends fully over the frame to allow water runoff.
• Kondenzace uvnitř: Confirm that the roll-up mesh windows and ceiling airflow channel are open and clear to allow for adequate ventilation.
• Problémy se zipy: Keep zippers clean and lubricated with a silicone-based spray if they become stiff. Avoid forcing them.
• Chybějící/poškozené díly: Refer to the "Warranty & Support" section for how to contact customer service for assistance.

8. Specifikace

9. Záruka a podpora

Quictent stands behind the quality of its products.

• Záruka: Covers and poles are supported for 12 months from the date of purchase. Lifetime support is provided for other accessories.
• Zákaznická podpora: If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Quictent customer service. You can typically find contact information on the seller's page or through the official Quictent webweb. Před kontaktováním podpory si prosím připravte číslo modelu (6606-1) a podrobnosti o nákupu.
