Zavedení
Thank you for choosing the Generic FWC556C Atomic Weather Clock. This device provides accurate time synchronized with the WWVB radio signal, displays indoor and outdoor temperatures, and offers a 12-hour weather forecast. Please read this manual thoroughly to ensure proper setup and operation of your new weather clock.
Vlastnosti produktu
- Atomová synchronizace času: Automatically receives WWVB radio signals for precise time and date, including automatic Daylight Saving Time (DST) adjustments.
- Velký LCD displej: Features a 14.6-inch display with 4.05-inch tall time digits for easy readability.
- Vnitřní a venkovní teplota: Monitors temperatures in both Celsius and Fahrenheit using a built-in sensor and a wireless outdoor sensor.
- 12hodinová předpověď počasí: Provides an accurate forecast based on barometric pressure trends, including frost alerts.
- Funkce budíku: Includes an alarm with a selectable 1 to 30-minute snooze feature.
- Více časových pásem: Selectable PST, MST, CST, EST time zones.
- Zobrazení kalendáře: Shows day, month, and week.
- Provoz na baterie: Main unit and wireless sensor are battery-powered for flexible placement.
- Dosah bezdrátového senzoru: Outdoor sensor transmits data up to 200 feet (60 meters) with an IPX4 splash-proof rating.
Obrázek: Overview of the multifunctional atomic weather clock display, highlighting atomic time, weather forecast, temperature, battery power, alarm, time zones, calendar, and DST.
Image: Visual representation of the clock's various functions including atomic time, alarm, calendar, weather forecast, indoor/outdoor temperature, Celsius/Fahrenheit, battery power, 12/24H format, and 4 time zones.
Obsah balení
- 1 x Atomic Weather Clock (Main Unit)
- 1 x Bezdrátový venkovní senzor
- 1 x Uživatelská příručka (Tento dokument)
Note: Batteries are not included. The main unit requires 4 AA batteries, and the wireless sensor requires 2 AAA batteries.
Nastavení
1. Instalace baterie
- Hlavní jednotka: Open the battery compartment on the back of the atomic weather clock. Insert 4 new AA batteries, observing the correct polarity (+/-). Close the compartment.
- Bezdrátový venkovní senzor: Open the battery compartment on the back of the wireless sensor. Insert 2 new AAA batteries, observing the correct polarity (+/-). Close the compartment.
The clock will power on and begin searching for the WWVB atomic time signal and the outdoor sensor signal.
Image: Diagram showing the battery compartments for the main clock unit (4xAA batteries) and the wireless outdoor sensor (2xAAA batteries).
2. Initial Synchronization and Time Zone Setting
- After battery installation, the clock will automatically attempt to receive the WWVB atomic time signal. This process may take several minutes to several hours, depending on your location and atmospheric conditions.
- During the initial setup, place the main unit near a window or in an open area for better signal reception.
- Once the atomic time signal is received, the clock will display the correct time and date.
- To set your time zone (PST, MST, CST, EST), refer to the operating instructions section for specific button presses.
Image: Illustration showing the atomic clock receiving WWVB radio signals from Colorado, ensuring accurate time, and demonstrating automatic Daylight Saving Time adjustments (Spring Forward and Fall Back).
3. Umístění bezdrátového venkovního senzoru
- Place the outdoor sensor and the main clock unit together for approximately 15 minutes to establish a strong initial connection.
- After pairing, place the outdoor sensor in a shaded outdoor area, away from direct sunlight and rain. This ensures accurate temperature readings and protects the sensor from harsh weather.
- Ensure the sensor is within the 200-foot (60-meter) transmission range of the main unit. Obstacles like thick walls or metal structures can reduce the effective range.

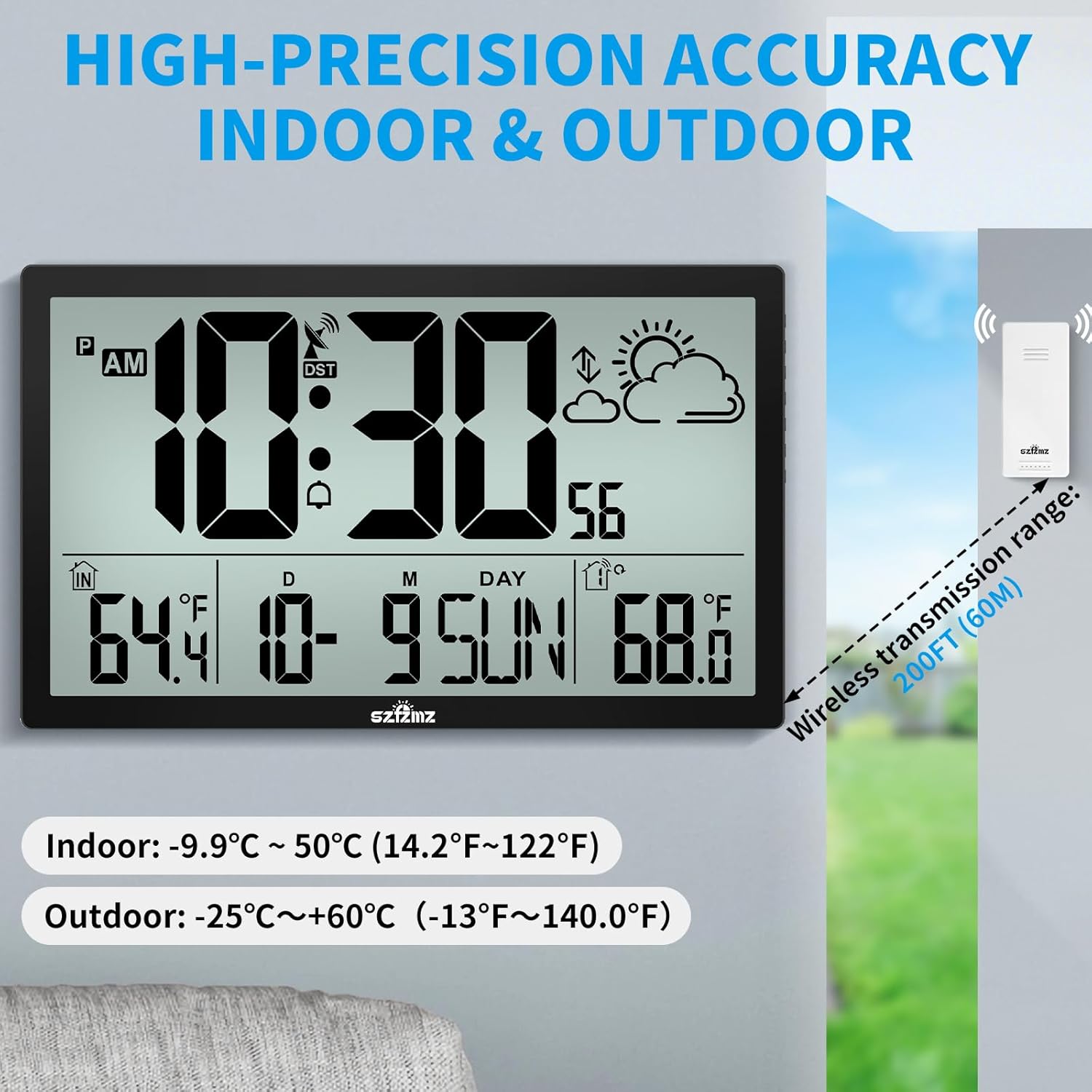

Image: The main clock display showing indoor and outdoor temperatures, with an arrow indicating the wireless transmission range of 200 feet (60 meters) from the outdoor sensor.
Image: Instructions for placing the outdoor sensor and wall clock together for 15 minutes to establish connection, then placing the sensor in a shaded outdoor area.
4. Způsoby instalace
- Umístění na počítači: Use the integrated bracket on the back of the clock to stand it upright on any flat surface.
- Montáž na stěnu: Utilize the three hanging holes on the back of the clock to securely mount it on a wall using appropriate screws (not included).
Image: Depicts the two installation methods for the clock: standing on a desk using its built-in stand and mounted on a wall.
Návod k obsluze
1. Zobrazení času a data
- The large digits display the current time.
- The date (month/day) and day of the week are shown below the time.
- 12/24hodinový formát: Press the '12/24H' button (location may vary, typically on the back or side) to switch between 12-hour (with AM/PM indicator) and 24-hour (military time) formats.
Image: Demonstrates the ability to switch between standard 12-hour (AM/PM) and 24-hour (military) time formats on the clock display.
2. Zobrazení teploty
- The display shows both indoor ('IN') and outdoor ('OUT') temperatures.
- Celsia/Fahrenheita: Press the '°C/°F' button (location may vary) to toggle between Celsius and Fahrenheit temperature units.
3. Předpověď počasí
- The weather forecast icon (e.g., sunny, cloudy, rainy, snowy) indicates the predicted weather for the next 8 hours.
- An ice alert symbol will appear and flash if the outdoor temperature is between 1.0°C to +2.9°C (30.2°F to 37.3°F).
Image: The clock display showing the weather forecast icon, indicating the predicted weather for the next 8 hours, along with various weather condition icons (sunny, slightly cloudy, cloudy, rainy, heavy rainy, snowy).
4. Budík a odložení
- Nastavení budíku: Refer to the specific buttons on your device (usually 'ALARM' or 'SET') to enter alarm setting mode. Adjust the hour and minute using the '+' and '-' buttons.
- Aktivace/deaktivace alarmu: Press the 'ALARM' button to turn the alarm on or off. An alarm icon will appear on the display when active.
- Funkce odložení: When the alarm sounds, press the 'SNOOZE' button (often a large button on top) to temporarily silence it. The alarm will sound again after the set snooze duration (1-30 minutes, configurable).
- The alarm sound gradually increases in volume.
Image: A person sleeping while the atomic clock displays an alarm icon and sound waves indicating the alarm is getting louder, highlighting the alarm and snooze features.
5. Letní čas (DST)
- The clock automatically adjusts for DST based on the WWVB signal.
- You can manually enable or disable the DST function if needed, typically by pressing a dedicated 'DST' button or through the settings menu. Ensure your time zone is correctly set for proper DST operation.
Image: Illustrates the automatic DST update feature with 'Spring Forward' (+1h) and 'Fall Back' (-1h) clock diagrams, emphasizing the ON/OFF option for DST.
Údržba
- Čištění: Hodiny a senzor otřete měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Výměna baterie: Replace batteries in both the main unit and the outdoor sensor when the low battery indicator appears on the display. Always replace all batteries at the same time with new ones.
- Péče o senzor: Ensure the outdoor sensor remains in a shaded, protected location to prolong its lifespan and maintain accuracy.
Image: Highlights the battery-powered nature of the clock and sensor, indicating extra-long battery use (12 months) and the presence of a low battery indicator on the display.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Clock not receiving atomic time signal (WWVB icon not solid) | Weak signal due to location, interference, or atmospheric conditions. | Move the clock closer to a window or to a different location. Ensure it is away from electronic devices that may cause interference. Allow up to 24 hours for synchronization. |
| Venkovní teplota se nezobrazuje nebo je nesprávná | Sensor out of range, low sensor batteries, interference, or sensor exposed to direct sunlight/rain. | Ensure sensor is within 200ft of the main unit. Replace sensor batteries. Relocate sensor to a shaded, protected area. Re-pair the sensor by removing batteries from both units, then reinserting them into the sensor first, then the main unit. |
| Nesprávný čas nebo datum | Atomic signal not received, incorrect time zone set, or DST setting incorrect. | Verify atomic signal reception. Check and adjust the time zone setting. Ensure DST is set correctly (ON/OFF) for your region. |
| Displej je tmavý nebo prázdný | Slabé baterie hlavní jednotky. | Replace all 4 AA batteries in the main unit with new ones. |
Specifikace
- Model: FWC556C
- Typ displeje: Digitální LCD
- Rozměry produktu: 14.6 cm Š x 8.9 cm V
- Napájení hlavní jednotky: 4 x AA baterie (nejsou součástí balení)
- Napájení venkovního senzoru: 2 x AAA baterie (nejsou součástí balení)
- Rozsah vnitřní teploty: -9.9 ° C ~ 50 ° C (14.2 ° F ~ 122 ° F)
- Rozsah venkovních teplot: -25 °C ~ +60 °C (-13 °F ~ 140.0 °F)
- Dosah bezdrátového přenosu: Až 60 metrů (200 stop) ve volném prostoru
- Outdoor Sensor Water Resistance: IPX4 (odolné proti stříkající vodě)
- Materiál: Plast
- Možnosti montáže: Wall mount or desktop stand
Image: The atomic clock display with key dimensions highlighted, showing its overall width of 14.6 inches and height of 8.9 inches, and the height of the time digits at 4.05 inches.
Záruka a podpora
Specific warranty information for the Generic FWC556C Atomic Weather Clock is not provided in this manual. For warranty details, technical support, or any questions regarding your product, please contact the seller or manufacturer directly through your purchase platform.
