Igloo Top Loading Water Cooler: Hot & Cold Dispenser Instruction Manual

1. Úvod

Thank you for choosing the Igloo Top Loading Water Cooler. This manual provides essential information for the safe and efficient operation of your new hot and cold water dispenser. Please read these instructions thoroughly before initial use and retain them for future reference.

2. Bezpečnostní informace

• Always place the water cooler on a firm, level surface to prevent tipping.
• Ensure the unit is positioned away from direct sunlight, heat sources, and areas with high humidity.
• Do not plug in the appliance until a water bottle is properly installed and water has filled the internal reservoirs. Operating the hot water function without water can cause damage.
• Allow the unit to stand upright for at least 4 hours before plugging it in to allow the compressor fluids to settle.
• The hot water dispenser features a child safety lock. Always engage this lock when not in use, especially in households with children, to prevent accidental burns.
• Keep children away from the hot water spigot.
• Only use 3 or 5-gallon water bottles with this dispenser.
• Neponořujte spotřebič, kabel ani zástrčku do vody nebo jiných kapalin.

3. Konec produktuview

The Igloo Top Loading Water Cooler provides convenient access to both hot and cold water. Key components and features include:

• Top-Loading Design: Easy placement of 3 or 5-gallon water bottles.
• Hot Water Spigot: Delivers steaming hot water for beverages and instant meals.
• Cold Water Spigot: Provides refreshing, ice-cold water.
• Dětská pojistka: Located on the hot water dispenser to prevent accidental activation.
• Vyjímatelná odkapávací miska: Catches spills and is easy to clean.
• Vypínače: Separate switches for hot and cold functions on the back of the unit for energy conservation.

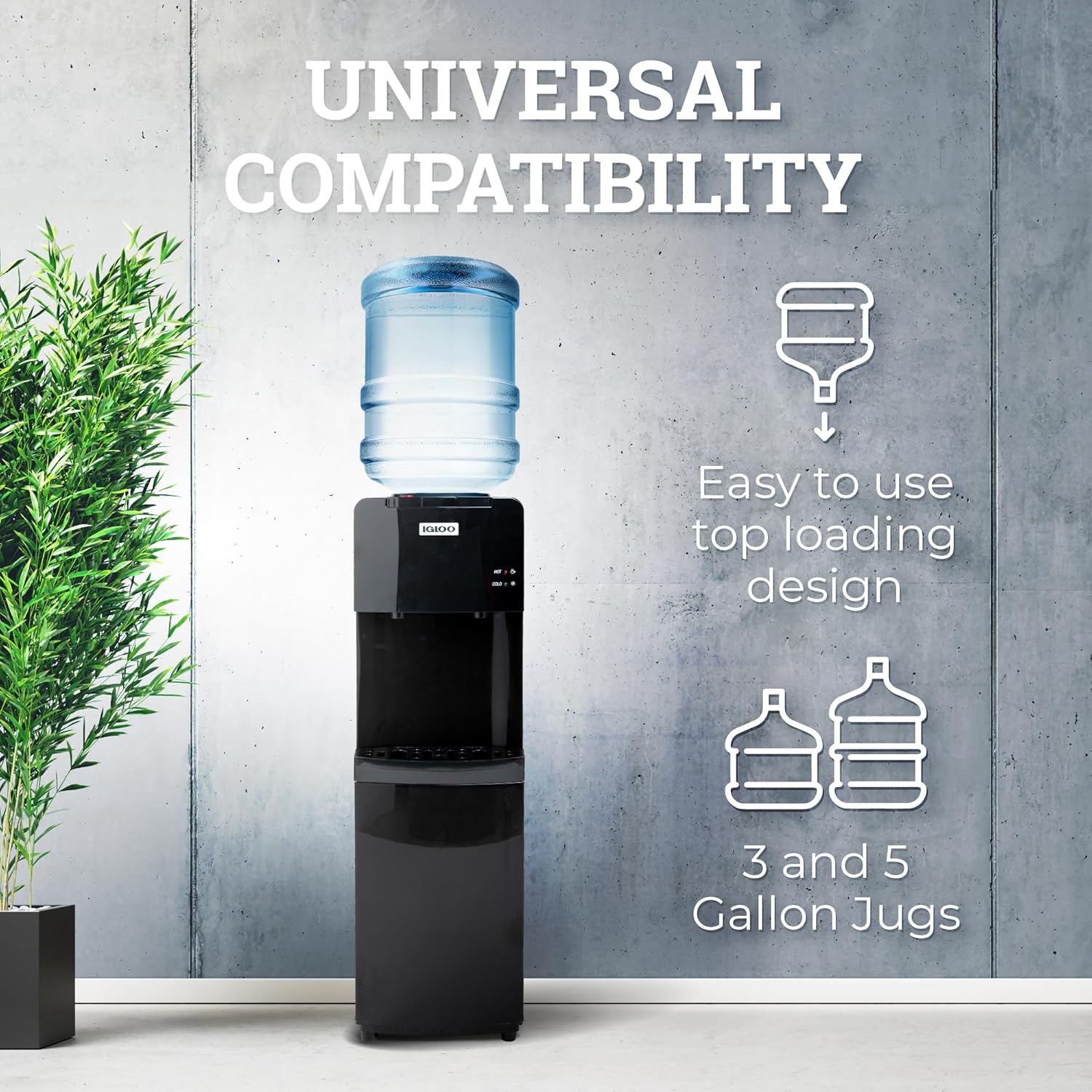

Figure 3.1: The Igloo water cooler demonstrating compatibility with 3 and 5-gallon water jugs.

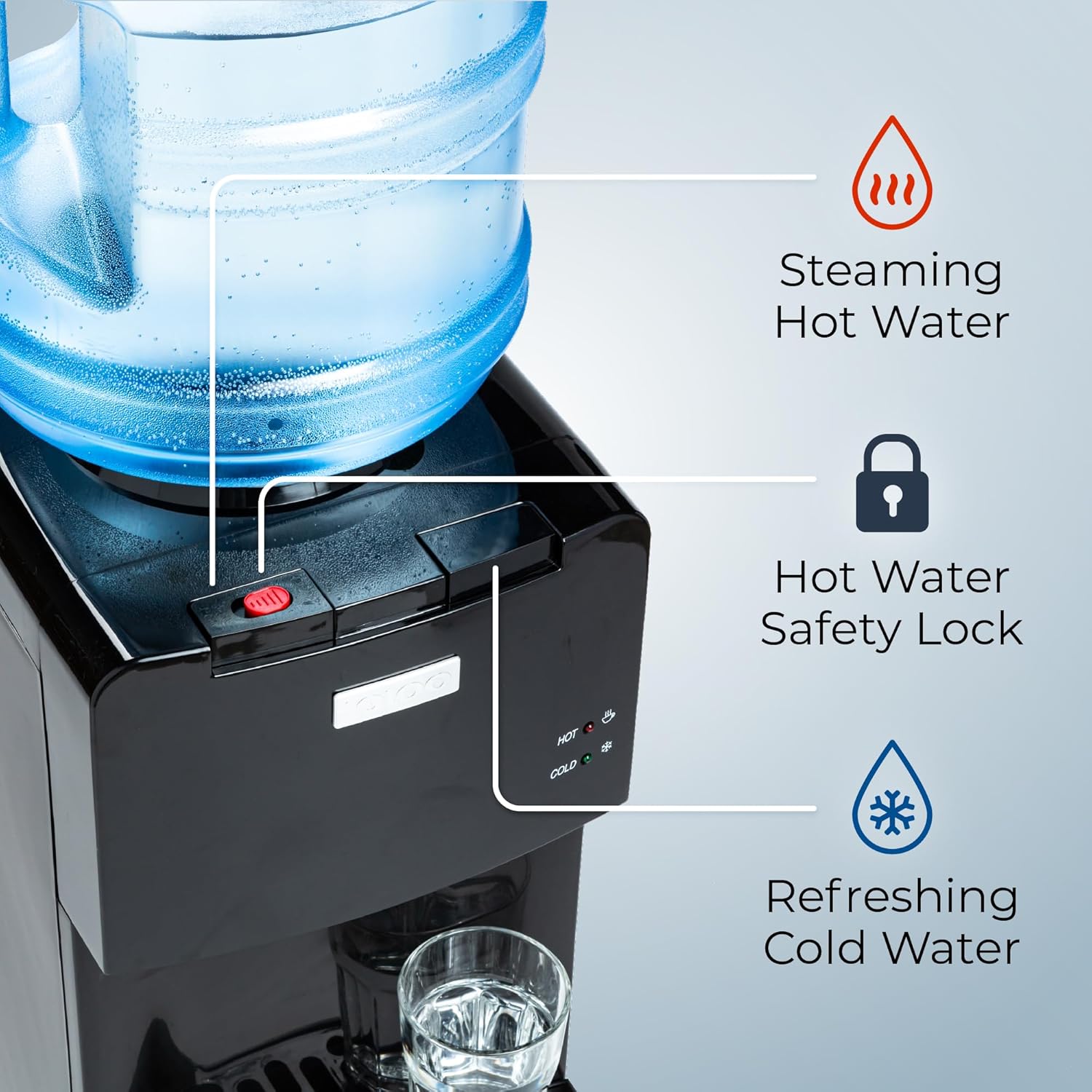

Figure 3.2: Detail of the hot and cold water spigots, including the child safety lock for hot water.

4. Nastavení

1. Rozbalte jednotku: Carefully remove the water cooler from its packaging. Inspect for any damage.
2. Umístění: Place the dispenser on a flat, stable, and level surface. Ensure there is adequate ventilation around the unit, especially at the back where the cooling components are located.
3. Počáteční čištění: Before first use, wipe down the exterior of the unit and the drip tray with a damp tkanina.
4. Instalace láhve na vodu: Remove the cap from a 3 or 5-gallon water bottle. Carefully lift the bottle and place it upright onto the support collar on top of the dispenser. Ensure the bottle is seated firmly and water begins to flow into the unit.
5. Naplňte systém: Place a cup under the cold water spigot and press the dispensing lever until water flows smoothly. Repeat this process for the hot water spigot (without pressing the child safety lock initially, just the lever, to ensure water fills the hot tank). This removes air from the system.
6. Připojte napájení: Zapojte napájecí kabel do uzemněné elektrické zásuvky.
7. Aktivace vytápění/chlazení: Locate the hot and cold power switches on the back of the unit. Turn them to the 'ON' position. The indicator lights on the front will illuminate.

Figure 4.1: Installing a water bottle on the top-loading dispenser.

Figure 4.2: Hot and cold power switches located on the back of the unit.

5. Návod k obsluze

Your Igloo water cooler is designed for simple and safe water dispensing.

• Výdej studené vody: Place your cup under the blue (cold) spigot. Press the blue dispensing lever to release cold water. Release the lever to stop the flow.
• Výdej horké vody: Place your cup under the red (hot) spigot. Simultaneously press the red child safety lock button and the red dispensing lever to release hot water. Release both to stop the flow. Caution: Hot water is extremely hot and can cause burns. Always use the child safety lock.

Figure 5.1: Red spigot for hot water and blue spigot for cold water.

Figure 5.2: Hassle-free dispensing for various cup sizes.

6. Údržba

Regular cleaning ensures optimal performance and hygiene of your water cooler.

• Čištění exteriéru: Vnější povrchy otřete měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• Čištění odkapávací misky: The drip tray is removable for easy cleaning. Simply slide it out, empty any collected water, wash with mild soap and water, rinse thoroughly, and replace.
• Internal Cleaning (Recommended Quarterly): For thorough cleaning, unplug the unit and remove the water bottle. Drain all water from both hot and cold tanks using the spigots and the drain plug at the back (if available). Clean the internal reservoirs with a mixture of water and white vinegar or a food-grade sanitizing solution. Rinse thoroughly with clean water multiple times before re-installing a fresh water bottle.

Obrázek 6.1: Vyjímatelná odkapávací miska pro snadné čištění.

7. Řešení problémů

If you encounter issues with your water cooler, refer to the following common problems and solutions:

8. Specifikace

• Model: IWCTL352CHBKD1
• Značka: Iglú
• Barva: Černý
• Materiál: Plast
• Kapacita: Supports 3 and 5 Gallon Water Bottles
• Rozměry (D x Š x V): 11.42 cm x 11.02 cm x 36.54 cm
• Hmotnost: 25.7 libry
• UPC: 810140677648

9. Záruka a podpora

Informace o záruce nebo technickou podporu získáte od oficiálního webnebo se obraťte na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případné reklamace.
