DATOUBOSS 6200W 48V Hybrid Solar Inverter Instruction Manual

1. Úvod a konecview

The DATOUBOSS 6200W 48V Hybrid Solar Inverter is a pure sine wave inverter designed to convert 48V DC power to 220/230V AC power. It integrates a 120A MPPT solar charge controller and supports a maximum PV array power of 8500W. This inverter is engineered for reliable performance in various applications, including RVs, camping boats, and home emergency power systems. It features advanced protection mechanisms and flexible operating modes to optimize solar energy utilization.

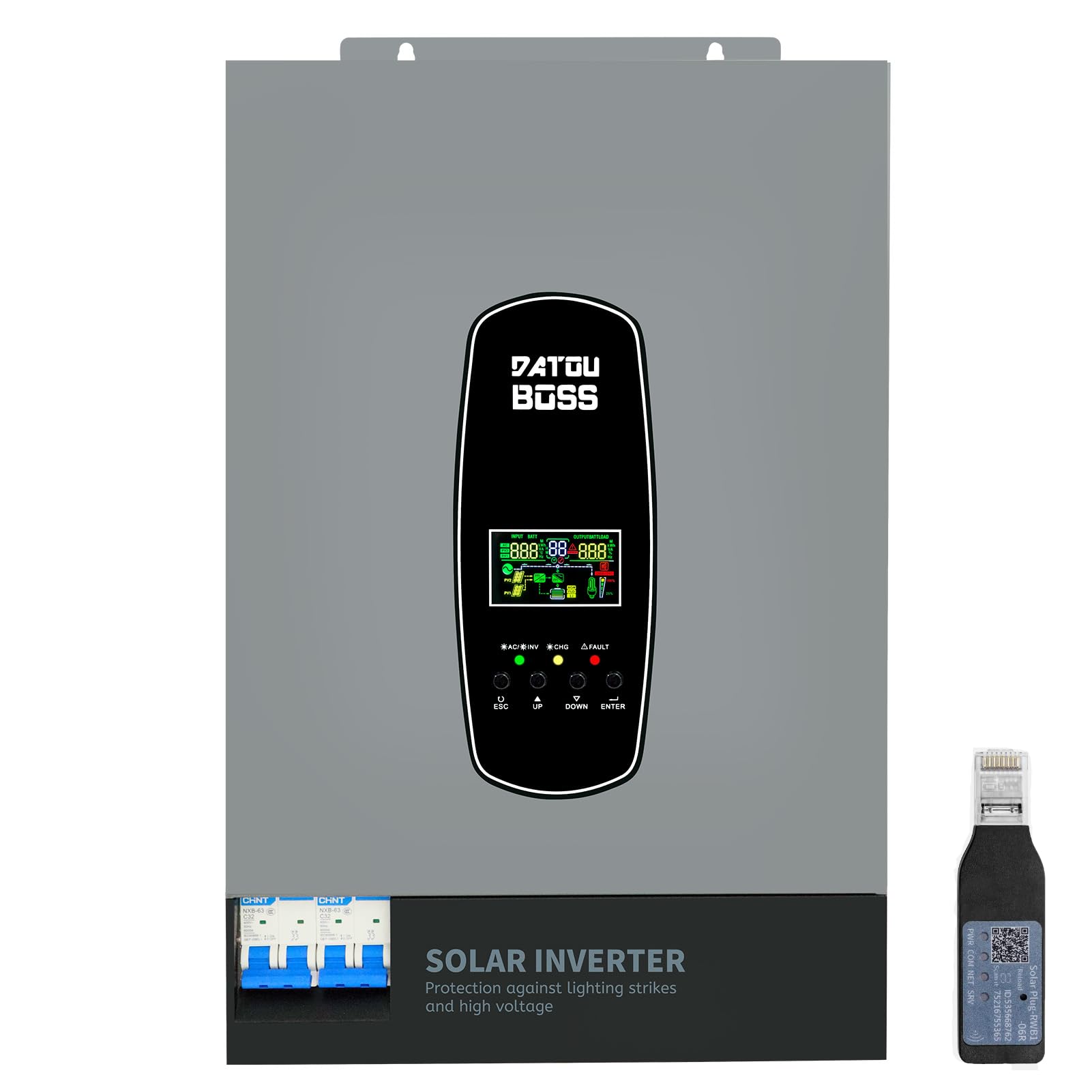

Image 1.1: The DATOUBOSS 6200W Hybrid Solar Inverter, highlighting its 6200W battery inverter output, 6500W PV inverter output, 120A MPPT charging, 8500W maximum PV input, and 60-500Vdc MPPT input voltage rozsah.

2. Bezpečnostní informace

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

• Profesionální instalace: Instalaci by měl provádět pouze kvalifikovaný personál.
• Větrání: Zajistěte dostatečné větrání kolem střídače, aby nedošlo k jeho přehřátí.
• Vystavení vodě: Nevystavujte měnič dešti, sněhu, stříkající vodě ani žádným kapalinám.
• Základy: Pro bezpečnost je nezbytné správné uzemnění.
• Nouzové vypnutí: Know how to quickly disconnect power in an emergency.
• Lightning and Surge Protection: This inverter includes enhanced lightning and overvoltage protection. Integrated safety switches at input and output further enhance safety against overload, short circuit, and surge hazards.

Image 2.1: The inverter features a new lightning-proof design, offering lightning and high-voltage protection, input and output safety switches, increased PV input current, improved inverter performance under PV, higher PV utilization, and EMI filtering.

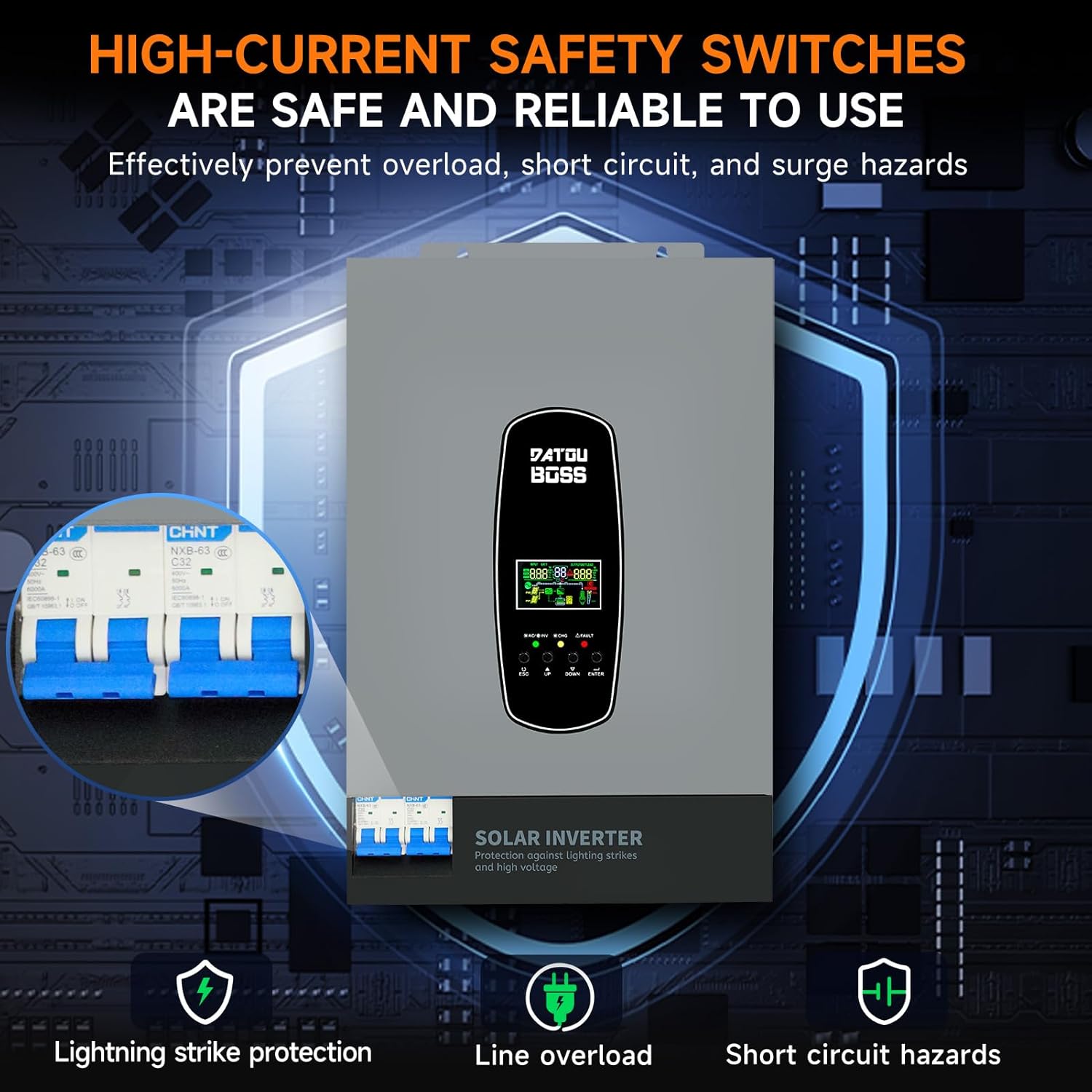

Image 2.2: High-current safety switches are integrated to effectively prevent overload, short circuit, and surge hazards, ensuring safe and reliable operation.

3. Vlastnosti produktu

• Výstup čisté sinusové vlny: Provides high-quality AC power suitable for sensitive electronics.
• Integrovaný MPPT regulátor nabíjení: Features a 120A MPPT solar charge controller for efficient solar power harvesting.
• Battery-Less Operation: Supports direct power supply to loads from PV array or AC source without requiring a battery connection.
• Ochranný systém BMS: Equipped with a Battery Management System for lithium batteries, preventing overcharge and deep discharge.
• Customizable Charging Modes: Offers three battery charging modes: Hybrid (solar and utility), Solar Limited, and Pure Solar.
• LCD displej a LED indikátory: Real-time system data and operating status are displayed on the LCD screen, complemented by 3 dynamic LED indicators. Error codes are shown for easy troubleshooting.
• EMI Filtering: Minimizes electromagnetic interference for stable operation.
• Komunikační port RS485: Enables communication with batteries for monitoring and optimized charging.

4. Popis vzhledu

The DATOUBOSS 6200W Hybrid Solar Inverter features a robust design with clearly labeled connection points and an intuitive user interface.

Image 4.1: This image provides a detailed view of the inverter's front, left, and right sides. The front panel includes an LCD display, status indicators, and control buttons (ESC, UP, DOWN, ENTER). The top panel shows AC input, BMS/RS485, AC output, RS232 Dry Contact, and PV input ports. The bottom features a safety switch and ground wire connection. The left and right sides show ventilation grilles.

• Přední panel: Features an LCD display for real-time data, status indicators (AC/INV, CHG, FAULT), and navigation buttons (ESC, UP, DOWN, ENTER).
• Top Connections: Includes terminals for AC input, AC output, PV input, BMS/RS485 communication, and RS232 Dry Contact.
• Spodní připojení: Equipped with a safety switch and a ground wire terminal.
• Strany: Designed with ventilation grilles for efficient heat dissipation.

5. Specifikace

Key technical specifications for the DATOUBOSS 6200W 48V Hybrid Solar Inverter:

Image 5.1: A close-up of the inverter's detailed parameters label, showing model DT4862L, capacity, PV and DC specifications, operating temperature, and protection degree.

6. Nastavení

Proper setup is crucial for the safe and efficient operation of your hybrid solar inverter. Always ensure all power sources are disconnected before making any connections.

1. Montáž: Choose a suitable location for mounting the inverter. It should be indoors, well-ventilated, and protected from direct sunlight, moisture, and extreme temperatures. Ensure sufficient clearance around the unit for airflow.
2. Základy: Připojte zemnící svorku měniče ke spolehlivému uzemnění.
3. Připojení baterie: Connect the battery bank to the inverter's battery terminals. Ensure correct polarity (positive to positive, negative to negative). Use appropriate cable gauges and fuses. The inverter supports 48V lithium batteries and includes a lithium battery activation function.
4. Připojení FV panelu: Connect the solar panel array to the PV input terminals. Verify that the PV voltage and current are within the inverter's specified operating range (60-500 VDC MPPT range, max 500 VDC open circuit voltage, max 27A input current). Ensure correct polarity.
5. Připojení vstupu střídavého proudu (elektrická síť/generátor): Connect the AC utility grid or a compatible generator to the AC input terminals.
6. Připojení AC výstupu (zátěže): Connect your AC loads (appliances, circuits) to the AC output terminals.
7. Communication Connections (Optional): If using, connect the RS485 port to a compatible battery or monitoring device. The WiFi module (if included) can be connected for remote monitoring.
8. Závěrečné kontroly: Double-check all connections for tightness and correct polarity. Ensure all safety switches are in the OFF position before powering on.

7. Provoz

Once the inverter is properly installed and all connections are secure, you can begin operation.

1. Zapnutí: Turn on the battery breaker first, then the PV array breaker, and finally the AC input breaker (if connected). Switch the inverter's main power ON/OFF switch to the 'ON' position.
2. LCD displej: The LCD screen will illuminate, displaying system data such as input voltage, výstupní objemtage, battery status, and load percentage. Use the 'UP' and 'DOWN' buttons to navigate through different display screens and the 'ENTER' button to confirm selections.
3. LED indikátory: Observe the three LED indicators:
   • AC/INV: Indicates AC input status or inverter operation.
   • CHG: Indikuje stav nabíjení baterie.
   • CHYBA: Illuminates if an error occurs. Refer to the LCD for specific error codes.
4. Setting Charging Modes: The inverter allows customization of battery charging modes:
   • Hybridní nabíjení: (Default) Utilizes both solar energy and AC utility power for charging.
   • Solar Limited Charge: Prioritizes solar charging, using AC utility only when solar is insufficient.
   • Pure Solar Charge: Charges batteries exclusively from solar power.
   These settings can be adjusted via the LCD menu.
5. Battery-Less Mode: The inverter can operate without a battery connected, directly powering loads from the PV array or AC source. This mode can be configured through the system settings.
6. Sledování: Regularly check the LCD display for system status and performance. If a WiFi module is installed, use the dedicated application for remote monitoring.

8. Údržba

Regular maintenance ensures the longevity and optimal performance of your DATOUBOSS Hybrid Solar Inverter.

• Čištění: Keep the inverter clean and free from dust. Use a dry cloth to wipe the exterior. Ensure ventilation openings are not blocked.
• Kontroly připojení: Periodically inspect all electrical connections for tightness and signs of corrosion. Tighten any loose connections.
• Kontrola baterie: If using batteries, regularly check their terminals for corrosion and ensure they are clean and secure. Monitor battery health via the inverter's display or communication port.
• Podmínky prostředí: Ensure the inverter remains in a suitable environment, free from excessive heat, cold, or humidity.
• Aktualizace firmwaru: Zkontrolujte výrobce webNavštivte webové stránky, kde najdete veškeré dostupné aktualizace firmwaru, abyste zajistili, že váš střídač bude mít nejnovější funkce a opravy chyb.

9. Řešení problémů

Tato část obsahuje pokyny pro řešení běžných problémů. V případě složitých problémů kontaktujte technickou podporu.

10. Záruka a podpora

DATOUBOSS is committed to providing high-quality products and customer satisfaction.

• Životnost: This product is designed for a 10-year lifespan.
• Záruka: A 5-year guarantee covers manufacturing defects and malfunctions under normal use.
• Zákaznická podpora: We offer 24-hour response for technical inquiries and support.
• Servis: Local warehouses are available for efficient service and parts.

Image 10.1: Visual representation of DATOUBOSS's commitment to product quality and customer service, including a 10-year lifespan, 5-year guarantee, 24-hour response, and local warehouses.

For further assistance or to report an issue, please contact DATOUBOSS customer service through the official channels provided with your purchase.
