Zavedení
Thank you for choosing the Minthouz 35W Dual-Port GaN Fast Charger. This compact and efficient charger is designed to provide rapid charging for a wide range of devices, including smartphones, tablets, and more. Featuring GaN technology and multiple safety protections, it offers a reliable and convenient charging solution for both home and travel.
The Minthouz 35W Dual-Port GaN Fast Charger and its retail packaging.
Vlastnosti produktu
- High Performance Charging: Offers up to 35W PD charging via USB-C and 30W fast charging via USB-A when used individually. Supports 15W dynamic charging when both ports are used simultaneously.
- Vícenásobná ochrana: Vybaveno přepětímtage, nadproud, podvoltage, short-circuit, overcharge, and overheat protection for device and user safety.
- Univerzální kompatibilita: Supports PD3.0, QC4+, FCP, SCP, AFC, PPS, BC1.2/DCP, and Apple2.4 protocols, ensuring compatibility with various phones, tablets, earphones, and smartwatches.
- Kompaktní a přenosné: Mini size with a foldable plug for easy storage and portability, ideal for travel.
- Technologie GaN: Utilizes a GaN chip for a smaller, lighter design without compromising power or generating excessive heat.
The charger incorporates a high-grade GaN chip and multiple protection mechanisms for safe operation.
Nastavení
- Vybalte nabíječku: Opatrně vyjměte nabíječku z obalu.
- Extend the Prongs: The charger features a foldable plug. Gently pull out the prongs until they lock into place.
- Připojte k elektrické zásuvce: Zapojte nabíječku do standardní zásuvky ve zdi.
- Prepare Device Cable: Obtain a compatible USB charging cable for your device (not included).
The charger features foldable prongs for compact storage and travel convenience.
Návod k obsluze
Nabíjení jedním portem:
- For optimal fast charging, connect your device to either the USB-C port (up to 35W PD) or the USB-A port (up to 30W) using a compatible cable.
- Ensure your device and cable support the fast charging protocol for maximum speed.
A smartphone charging from the 35W USB-C port, reaching 80% in 40 minutes.
Nabíjení pomocí dvou portů:
- To charge two devices simultaneously, connect one device to the USB-C port and another to the USB-A port.
- When both ports are in use, the charger provides 15W dynamic charging shared between the two devices.
The charger can simultaneously charge two devices, such as a smartphone and wireless earbuds, with 15W shared power.
Power output distribution for single-port and dual-port charging scenarios.
Údržba
- Čištění: Před čištěním odpojte nabíječku ze zásuvky. K otření povrchu použijte suchý, měkký hadřík. Nepoužívejte tekuté čisticí prostředky ani aerosoly.
- Skladování: When not in use, fold the prongs for compact storage. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Zacházení: Zabraňte pádu nabíječky ani jejímu vystavení silným nárazům. Nepokoušejte se nabíječku rozebírat ani upravovat.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Zařízení se nenabíjí | Loose connection, incompatible cable, power outlet issue, device fault. | Ensure cable is securely connected to both charger and device. Try a different cable or power outlet. Verify device compatibility. |
| Pomalá rychlost nabíjení | Cable does not support fast charging, multiple devices connected, device not supporting fast charging. | Use a high-quality cable that supports fast charging. If charging two devices, note that power is shared (15W per port). Ensure your device supports the charger's fast charging protocols. |
| Nabíječka je teplá | Normální provoz během nabíjení s vysokým výkonem. | A slight warmth is normal. If the charger becomes excessively hot, disconnect it immediately and contact support. |
Specifikace
- Model: 35W
- Vstupní objemtage: 120 voltů
- Celkový počet portů USB: 2 (1x USB-C, 1x USB-A)
- Wattage: 35W (max.)
- USB-C Output (Single Port): Až 35W PD
- USB-A Output (Single Port): Až 30W
- Výstup s dvojitým portem: 15W shared (dynamic charging)
- Speciální funkce: Fast Charging, GaN Technology, Foldable Plug
- Rozměry: 5.59 x 3.94 x 1.93 palce (rozměry balení)
- Hmotnost položky: 0.035 unce
- Výrobce: Shenzhen Ruiyuan Industrial co.,LTD
- certifikace: 3C, CE, FCC, ROHS, UKCA, UL, DOE Level VI

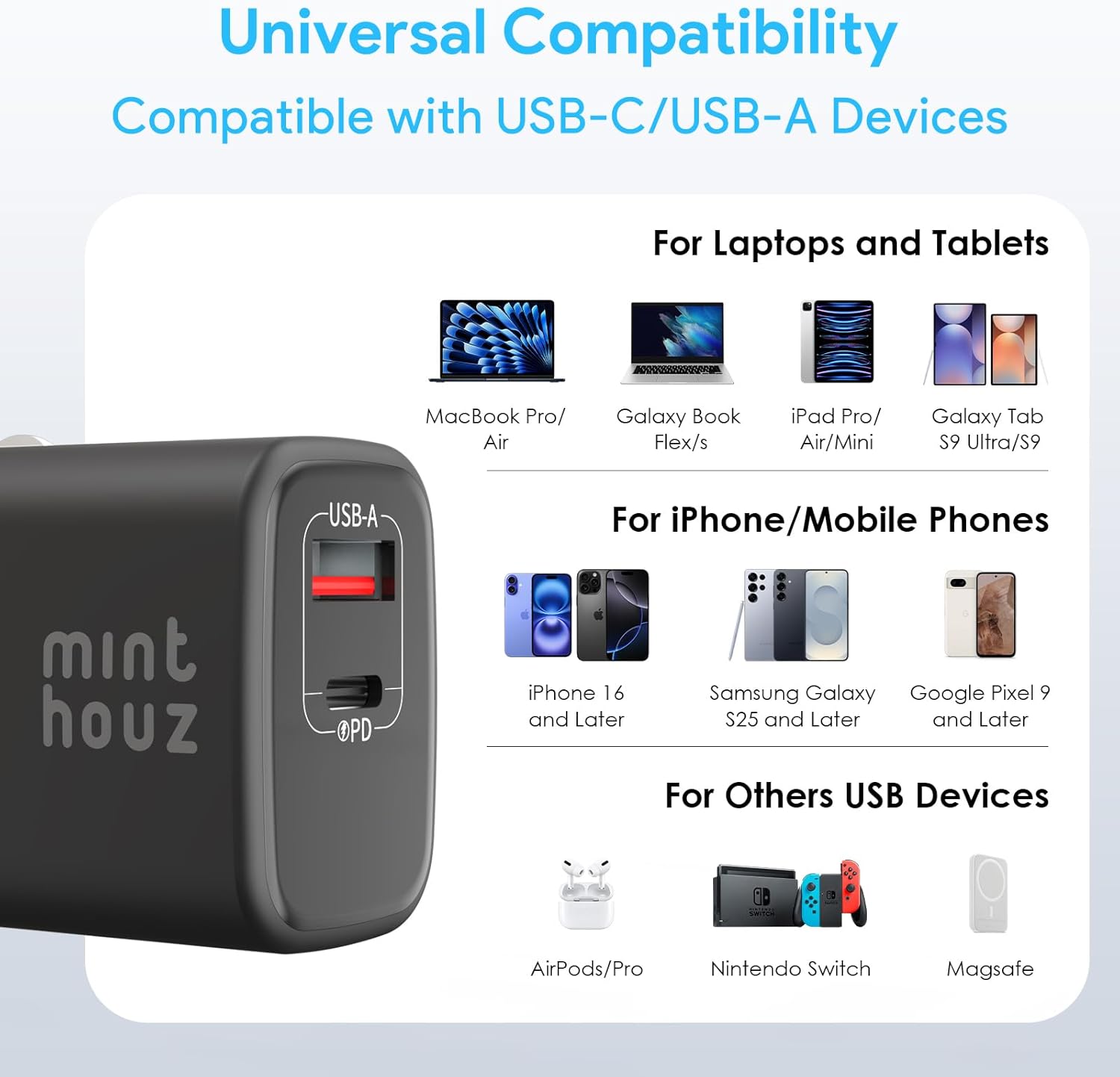

The charger offers universal compatibility with a wide range of USB-C and USB-A devices.
Záruka a podpora
For warranty information or technical support, please refer to the contact details provided in the product packaging or visit the official Minthouz webmísto. Uschovejte si doklad o koupi pro případ záručních reklamací.
Zahrnuté komponenty: Uživatelská příručka
