1. Úvod
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your EAPRO Tron 6500 5.5kVA 48V MPPT Solar Inverter. Please read this manual thoroughly before installation and use, and retain it for future reference.
The EAPRO Tron 6500 is a high-capacity hybrid solar inverter designed for both residential and commercial applications. It features a 105A MPPT charge controller, supporting up to 5120W solar panel input, and is capable of running heavy loads such as 1.5-ton AC units, washing machines, refrigerators, or 2HP submersible pumps.
Image: EAPRO Tron 6500 Solar Inverter integrated into a home solar power system.
Image: Appliances supported by the EAPRO Tron 6500 inverter.
2. Bezpečnostní informace
Důležité bezpečnostní pokyny:
- Read all instructions and cautionary markings on the unit and in this manual before installation or operation.
- Instalaci musí provést kvalifikovaný personál v souladu se všemi místními elektrotechnickými předpisy a předpisy.
- Nerozebírejte měnič. Uvnitř nejsou žádné součásti, které by mohl uživatel opravit. Veškerý servis svěřte kvalifikovanému servisnímu personálu.
- Ensure proper ventilation around the inverter to prevent overheating. Maintain adequate clearance from walls and other objects.
- Disconnect all power sources (solar, battery, and AC grid) before performing any maintenance, cleaning, or wiring.
- Use appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, during installation and maintenance.
- This inverter is designed for indoor use in a dry, well-ventilated area. Avoid exposure to water, high humidity, corrosive environments, or direct sunlight.
- Ensure the inverter is properly grounded to prevent electrical shock.
3. Vlastnosti produktu
The EAPRO Tron 6500 inverter offers advanced features for efficient and reliable solar power management:
- High-Capacity Performance: 5.5kVA / 5350VA output for powering demanding loads.
- 105A MPPT Charge Controller: Ultra-efficient solar energy conversion, supporting up to 5120W solar panel input with 195V Voc.
- Smart RTC-Based Solar Priority Modes (SL-1 to SL-4): Intelligent management of solar and grid usage for optimized energy savings.
- Customizable Battery Charging: Supports 48V battery banks with adjustable charging current (5-50A).
- Komplexní ochrana: Includes short circuit, overload, reverse polarity, and overheat cutoff for enhanced safety.
- Real-Time LCD Monitoring: Digital display for AC voltage, battery level, solar usage (kWh), load percentage, and protection alerts.
- Výstup čisté sinusové vlny: Ensures compatibility with sensitive electronics and appliances.
- Lithium & Tubular Battery Support: Advanced energy storage compatibility for various battery types.
- Režim hibernace: Conserves energy during periods of low demand or inactivity.
- Dual Channel MPPT: Advanced solar charge controller technology for maximum power point tracking.
- Maximum Grid Power Saving: Achieved through a dedicated "Power Saving" function.
- Solar PV Reverse Protection: Safeguards against incorrect solar panel polarity.
- Nadproudová ochrana: Electronic protection for charging circuits.
Image: Front panel of the EAPRO Tron 6500 inverter.
Image: 105A Advanced MPPT Solar Controller features.
Image: Smart Hybrid Solar Technology integration.
Image: High Power 5350VA Output capabilities.
4. Nastavení a instalace
Proper installation is critical for the safe and efficient operation of your inverter. Ensure all connections are secure and correctly polarized.
4.1. Vybalení a kontrola
Carefully unpack the inverter and inspect it for any signs of damage. Report any damage to your supplier immediately.
4.2. Místo montáže
Vyberte místo montáže, které je:
- Indoors, dry, and well-ventilated.
- Protected from direct sunlight, rain, and dust.
- Away from flammable materials and corrosive substances.
- Accessible for wiring, operation, and maintenance.
- Strong enough to support the inverter's weight (approximately 30 kg).
4.3. Připojení přesview
Image: Rear panel connections of the EAPRO Tron 6500 inverter.
- AC Input MCB: Main circuit breaker for AC input from the grid.
- Negative Battery Wire (-VE BATT): Connects to the negative terminal of the 48V battery bank.
- Positive Battery Wire (+VE BATT): Connects to the positive terminal of the 48V battery bank.
- Solar Connector: Connects to the solar panel array (PV input).
- Přemostění: Allows switching between inverter mode and direct AC grid bypass mode.
- AC Input/Output Terminal: Connects to the AC grid input and provides AC output to connected loads.
- Chladicí ventilátor: Ensures proper heat dissipation for optimal performance.
4.4. Wiring Procedure
Follow these steps for wiring. Ensure all power sources are disconnected before starting:
- Připojení baterie: Connect the 48V battery bank to the designated positive and negative battery terminals. Ensure correct polarity and secure connections.
- Připojení solárního panelu: Connect the solar panel array to the solar connector. Verify the PV input voltage (Voc) is within the specified range (up to 195V).
- Připojení AC vstupu: Connect the AC grid supply to the AC Input MCB and the AC Input/Output Terminal.
- Připojení výstupu střídavého proudu: Connect your household or office loads to the AC Input/Output Terminal.
- Základy: Ensure the inverter chassis is properly grounded to an earth ground according to local electrical codes.
Caution: Incorrect wiring can cause severe damage to the inverter and pose a serious safety hazard. Always double-check all connections and polarity before powering on the system.
5. Návod k obsluze
5.1. Zapnutí/vypnutí
- Zapnutí: Ensure all connections are secure. First, switch on the battery breaker, then the solar array breaker (if applicable), and finally the AC Input MCB. The inverter will initiate its startup sequence and the LCD will display operational status.
- Vypnutí: First, switch off the AC Input MCB, then the solar array breaker, and finally the battery breaker. Allow the inverter to fully shut down before disconnecting any cables.
5.2. Provozní režimy
The EAPRO Tron 6500 features Smart RTC-Based Solar Priority Modes (SL-1 to SL-4) to optimize energy usage based on your preferences:
- SL-1 (Solar First): Prioritizes solar power for loads and battery charging. The grid is used only when solar power is insufficient.
- SL-2 (Battery First): Prioritizes battery power for loads. The battery is charged from solar, then from the grid if necessary.
- SL-3 (Grid First): Prioritizes grid power for loads. Solar power is primarily used to charge the battery.
- SL-4 (Hybrid Mode): Intelligent switching between solar, battery, and grid based on real-time clock settings and load demand for maximum efficiency.
Refer to the inverter's LCD display and control buttons for selecting and configuring these modes according to your energy management strategy.
5.3. Bypass Operation
The bypass switch allows you to switch the load directly to the AC grid, bypassing the inverter's internal circuitry. This is useful for performing maintenance on the inverter or in case of an inverter malfunction. Ensure the inverter is completely powered off before engaging or disengaging the bypass switch.
6. Display and Monitoring
The real-time LCD provides comprehensive system information, allowing you to monitor the inverter's performance and status:
Image: Inverter LCD display showing monitoring parameters.
- AC síťový svtage: Displays the incoming grid voltage.
- Output Load (%): Shows the current load connected to the inverter as a percentage of its maximum capacity.
- Vstup baterie Voltage: Udává aktuální objtage of the connected battery bank.
- Battery Charge/Discharge (Bar Graph): Provides a visual representation of battery charging or discharging activity.
- Solar kWh Used: Tracks the total solar energy consumed by the system.
- Solar Charging Status: Indicates if solar charging is currently active.
- Protection Alerts: Displays warnings or error codes for system issues, such as overload or high temperature.
7. Údržba
Regular maintenance ensures optimal performance, efficiency, and longevity of your EAPRO Tron 6500 inverter.
- Čištění: Periodically clean the exterior of the inverter and cooling fan vents with a dry, soft cloth. Ensure all power is off before cleaning to prevent electrical hazards.
- Kontroly připojení: Annually inspect all electrical connections (battery, solar, AC input, AC output) for tightness, corrosion, and signs of wear. Tighten any loose connections and clean corroded terminals.
- Kontrola baterie: For lead-acid batteries, regularly check electrolyte levels and specific gravity. Keep battery terminals clean and free of corrosion. Follow battery manufacturer's maintenance guidelines.
- Větrání: Ensure the area around the inverter remains clear and well-ventilated. Do not block the cooling fan or air vents.
- Aktualizace firmwaru: Check the official EAPRO website periodically for any available firmware updates. Follow the provided instructions carefully for installation if recommended.
8. Řešení problémů
This section provides solutions to common operational issues. For problems not listed here, or if the issue persists, please contact EAPRO customer support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Měnič se nezapíná | No battery power; Battery disconnected or low voltage; AC input not present. | Zkontrolujte připojení baterie a objtage; Ensure AC input MCB is on; Verify battery breaker is closed. |
| Žádný AC výstup | Overload; Short circuit on output; Inverter fault; Bypass mode active. | Reduce connected load; Check for short circuits in wiring; Check LCD for error codes; Verify bypass switch is in inverter mode. |
| Battery not charging from solar | Insufficient solar input (e.g., cloudy weather); Solar panels disconnected or faulty; MPPT controller fault. | Check solar panel connections and sunlight conditions; Verify PV input voltage on LCD; Ensure solar breaker is on. |
| Alarm přetížení | Connected load exceeds inverter's rated capacity. | Immediately reduce the number of connected appliances or their power consumption. |
| Alarm vysoké teploty | Poor ventilation; Blocked cooling fan or vents; High ambient temperature. | Ensure adequate airflow around the inverter; Clean cooling fan vents; Relocate inverter to a cooler area if possible. |
9. Specifikace
Detailed technical specifications for the EAPRO Tron 6500 inverter:
9.1. Obecné specifikace
- Značka: EAPRO
- Název modelu: EGLM1P650048SOLAR
- Doporučená použití: Domácí kancelář
- Zdroj napájení: Solární a bateriové napájení
- Rozměry položky (D x Š x V): 36L x 51.5W x 47.7H centimetrů
- Hmotnost položky: 30 kg
- Typ displeje: LCD
- Barva: Žluť

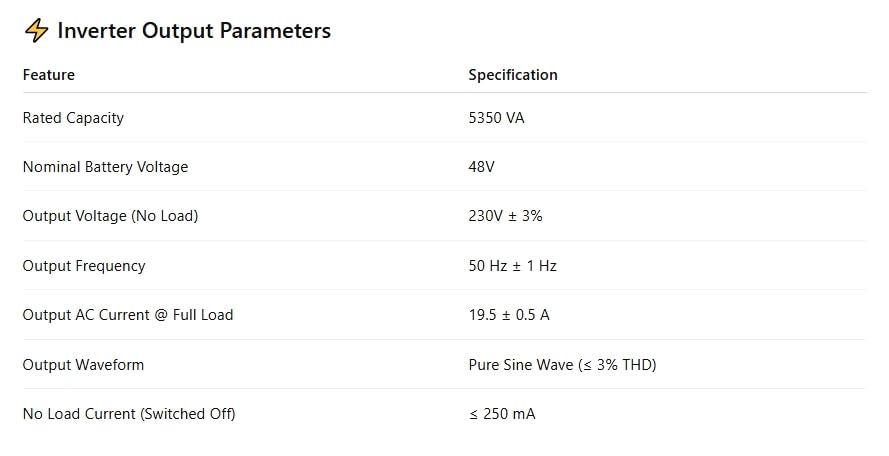

9.2. Inverter Output Parameters
Image: Inverter Output Parameters.
| Funkce | Specifikace |
|---|---|
| Jmenovitá kapacita | 5350 VA |
| Nominální baterie Voltage | 48V |
| Výstupní objemtage (bez zátěže) | 230 V ± 3% |
| Výstupní frekvence | 50 Hz ± 1 Hz |
| Output AC Current @ Full Load | 19.5 ± 0.5 A |
| Výstupní průběh | Pure Sine Wave (≤ 3% THD) |
| No Load Current (Switched Off) | ≤ 250 mA |

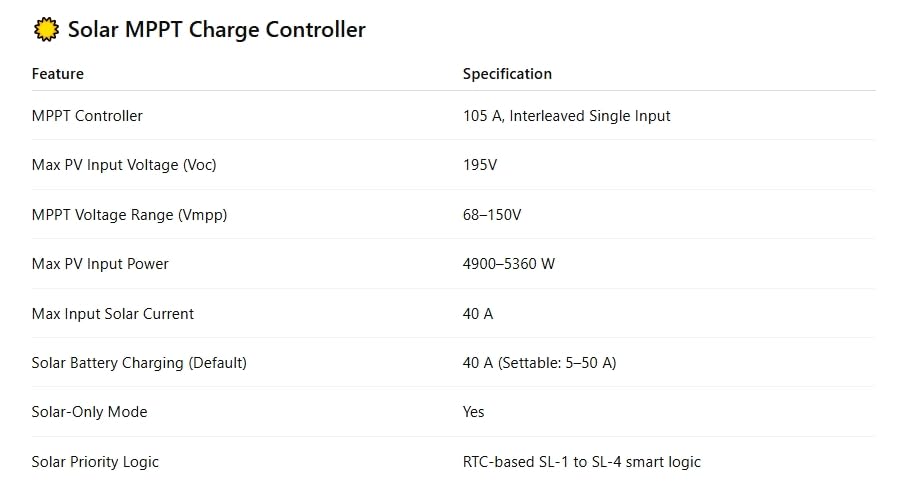

9.3. Solar MPPT Charge Controller Specifications
Image: Solar MPPT Charge Controller Specifications.
| Funkce | Specifikace |
|---|---|
| Ovladač MPPT | 105 A, Interleaved Single Input |
| Max PV Input Voltage (Voc) | 195V |
| MPPT svtage Range (Vmpp) | 68–150 V |
| Maximální FV příkon | 4900–5360 W |
| Max Input Solar Current | 40 A |
| Solar Battery Charging (Default) | 40 A (Settable: 5–50 A) |
| Solar-Only Mode | Ano |
| Solar Priority Logic | RTC-based SL-1 to SL-4 smart logic |

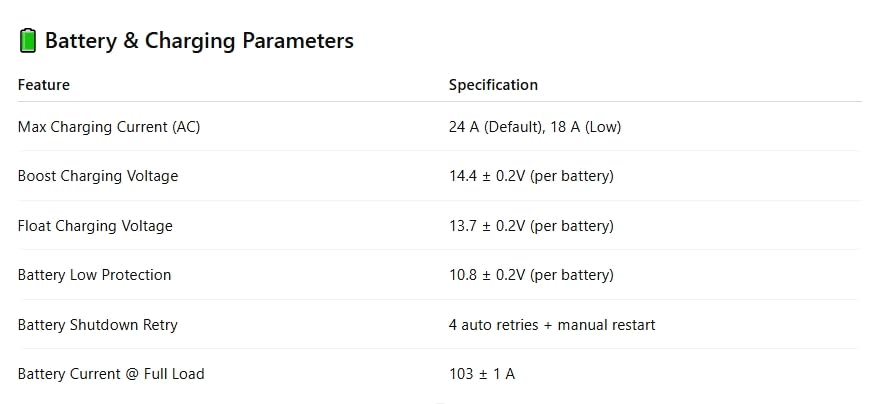

9.4. Battery & Charging Parameters
| Funkce | Specifikace |
|---|---|
| Kapacita baterie | 4 Amp hodiny (Note: This value appears unusually low for a 48V system and may be a data entry error in the source. Please refer to your battery's specifications.) |
| Maximální nabíjecí proud (AC) | 24 A (Default), 18 A (Low) |
| Boost Charging Voltage | 14.4 ± 0.2V (per battery) |
| Float Charging Voltage | 13.7 ± 0.2V (per battery) |
| Battery Low Protection | 10.8 ± 0.2V (per battery) |
| Battery Shutdown Retry | 4 auto retries + manual restart |
| Battery Current @ Full Load | 103 ± 1 A |
10. Informace o záruce
The EAPRO Tron 6500 Solar Inverter comes with a manufacturer's warranty. Please refer to the warranty card included with your product for full terms and conditions and registration details.
- Záruka na produkt: 24 Months (2 Years) from the date of purchase.
- Doba dostupnosti náhradních dílů v EU: 3 roky.
For warranty claims or service, please contact EAPRO customer support with your purchase details and product serial number.
11. Zákaznická podpora
For technical assistance, service requests, or any inquiries regarding your EAPRO Tron 6500 Solar Inverter, please contact EAPRO customer support using the following channels:
- Telefon: +91-8650115000
- WhatsApp: +91-9068563156
- E-mail: info@eapro.in
- Webmísto: www.eapro.in
Complaint Registration Timings: Monday to Saturday, 9:00 AM to 6:00 PM. Please note that service is not available on Sundays and national holidays.
