Electactic 30-inch Electric Fireplace (Model RFH-3001LC) User Manual

1. Bezpečnostní informace

Please read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death.

• This electric fireplace is ETL certified, ensuring compliance with safety standards.
• Always plug the fireplace directly into a grounded 120V, 15 Amp circuit. Do not use with an extension cord or power strip.
• Do not operate the fireplace if the cord or plug is damaged, or if the heater malfunctions or has been dropped or damaged in any manner.
• Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace and away from the sides and rear.
• The fireplace features built-in overheating protection. If the heater overheats, it will automatically shut off. Unplug the unit and allow it to cool for 10-15 minutes before restarting.
• Nevkládejte ani nedovolte, aby se cizí předměty dostaly do ventilačních nebo výfukových otvorů, protože by to mohlo způsobit úraz elektrickým proudem, požár nebo poškození ohřívače.
• Pokud je jakýkoli ohřívač používán dětmi nebo osobami se sníženými fyzickými, smyslovými nebo duševními schopnostmi, nebo v jejich blízkosti, je nutný pečlivý dohled.
• The glass panel remains cool to the touch during operation, providing a safe environment for children and pets.

Figure 1: Safety features including cool-to-touch glass and overheating protection, ensuring safety around children and pets.

2. Konec produktuview

The Electactic 30-inch Electric Fireplace (Model RFH-3001LC) offers both aesthetic appeal and functional heating. This unit is designed for either recessed or wall-mounted installation, providing flexibility for various room designs. It features realistic flame effects with adjustable colors and brightness, along with two heat settings for optimal comfort and energy efficiency.

Klíčové vlastnosti:

• Realistické efekty plamene: Features ultra-realistic faux log bed, resin birch logs, and shimmering crystals. Enjoy 12 adjustable flame colors and 12 glowing ember bed options.
• Dual Heating Modes: Offers 750W and 1500W heat settings, suitable for supplemental zone heating up to 400 square feet.
• Tichý provoz: Operates at below 38 decibels, ensuring minimal noise disruption.
• Bezpečnostní certifikace: ETL Certificate Approved with built-in overheating protection.
• Flexibilní instalace: Designed for recessed wall mounting, but can also be hung on the wall.
• Dálkové ovládání: Full functionality accessible via the included remote control.
• Funkce časovače: Allows for automatic shut-off after a set period.

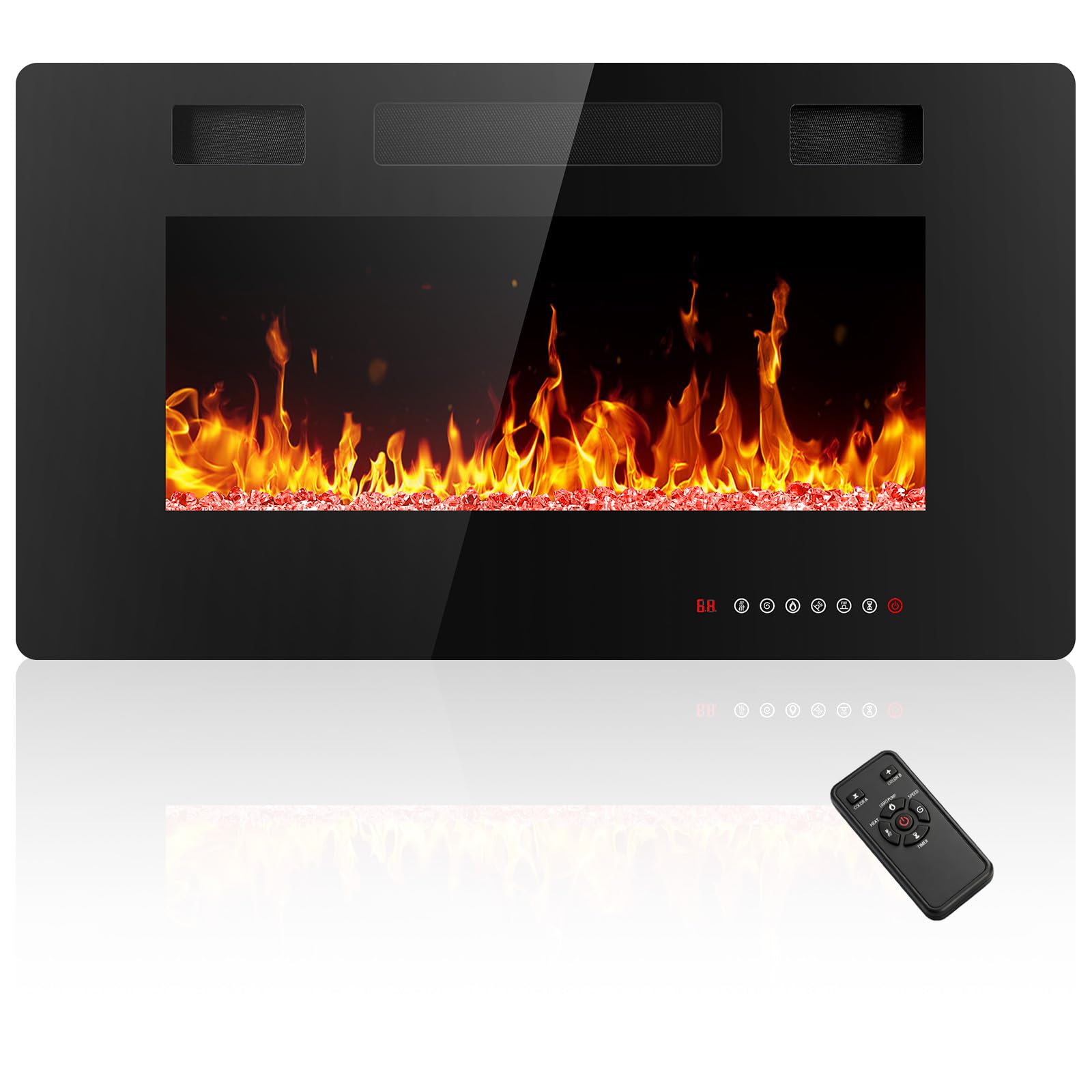

Figure 2: The Electactic 30-inch electric fireplace, showcasing its modern design and flame effects.

3. Nastavení a instalace

The Electactic 30-inch electric fireplace can be installed in two primary ways: recessed into a wall or surface wall-mounted. A complete installation kit with tools and step-by-step instructions is included with your purchase.

3.1 Rozměry produktu

Before installation, ensure you have adequate space for the unit. The overall dimensions are 30 inches (width) x 3.86 inches (depth) x 18.11 inches (height).

Figure 3: Detailed product dimensions for the 30-inch electric fireplace, including measurements for recessed installation.

• Celkové rozměry: 30 cm (Š) x 3.86 cm (H) x 18.11 cm (V)
• Recessed Opening Dimensions: Approximately 24.31" - 29.13" (W) x 16.93" - 17.72" (H) x 3.15" - 3.54" (D). Refer to the diagram for precise measurements.
• Ensure the air inlet is at least 2.5 inches away from any wall or obstruction to allow for proper airflow.

3.2 Způsoby instalace

Choose between recessed or wall-mounted installation based on your preference and wall structure. Both methods require careful measurement and secure fastening.

Obrázek 4: Přamples of wall-mounted and recessed installation options for the electric fireplace.

Instalační videonávod:

For detailed step-by-step instructions, refer to the included physical manual. Always ensure the power is disconnected before beginning any installation work.

4. Provoz

Your Electactic electric fireplace can be operated using the control panel on the unit or the included remote control.

4.1 Zapnutí/vypnutí

• Stisknutím tlačítka napájení na ovládacím panelu nebo dálkovém ovladači zapnete nebo vypnete jednotku.
• The flame effect will activate automatically when the unit is powered on.

4.2 Nastavení efektů plamene

Customize the visual ambiance with a variety of flame and ember bed color options.

Figure 5: Available flame and ember bed color options for personalized ambiance.

• Use the "Flame Color" button on the remote or control panel to cycle through 12 different flame colors.
• Use the "Ember Bed Color" button to select from 12 glowing ember bed options.
• Adjust the flame brightness using the dedicated brightness control, offering 5 levels.

4.3 Heater Function

The fireplace provides supplemental heating for areas up to 400 square feet. The heater and flame effects can operate independently.

Figure 6: Illustration of the fireplace's heating capabilities, including air flow and coverage.

• Press the "Heater" button to activate the heating function.
• Toggle between 750W (low heat) and 1500W (high heat) settings as needed.
• The heater operates quietly, typically below 38 decibels.

Figure 7: The fireplace's whisper-quiet operation ensures a peaceful environment.

Product Features Video:

4.4 Funkce časovače

The integrated timer allows you to set the fireplace to automatically shut off after a specified duration, from 30 minutes to 9 hours.

• Press the "Timer" button on the remote control to cycle through available timer settings.
• The display will show the selected duration before automatically turning off.

5. Údržba

Regular maintenance ensures optimal performance and longevity of your electric fireplace. Always disconnect power before performing any maintenance.

5.1 Čištění

• Skleněný panel: Otřete skleněný panel měkkým, damp cloth. Do not use abrasive cleaners or spray liquids directly onto the glass.
• Vnější povrchy: Vnější povrchy otírejte prach měkkým, suchým hadříkem.
• Větrací otvory: Periodically vacuum or wipe the air inlet and outlet vents to prevent dust buildup, which can affect heating efficiency.

5.2 Skladování

If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location. It is recommended to keep the original packaging for storage.

6. Řešení problémů

If you encounter issues with your Electactic electric fireplace, refer to the following common troubleshooting steps:

7. Specifikace

8. Záruka a podpora

8.1 Omezená záruka

This Electactic electric fireplace comes with a limited warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of coverage. The warranty typically covers manufacturing defects and malfunctions under normal use.

8.2 Zákaznická podpora

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Electactic customer support. Contact information can typically be found on the product packaging, the official Electactic webstránky nebo záruční list.

When contacting support, please have your model number (RFH-3001LC) and purchase date readily available.
