WORKPROX 20V Cordless Brad Nailer Kit Instruction Manual

Zavedení

This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your WORKPROX 20V Cordless Brad Nailer Kit. Please read and understand all instructions before using the tool to ensure safe and efficient operation.

Bezpečnostní informace

Always follow basic safety precautions when using power tools to reduce the risk of injury.

• Používejte ochranu očí: Vždy používejte ochranné brýle schválené dle ANSI nebo ochranné brýle s bočními štíty.
• Udržujte ruce čisté: Never place hands or other body parts in the path of the fastener or near the discharge area.
• Odpojit napájení: Před prováděním úprav, výměnou příslušenství nebo uložením nářadí vždy vyjměte baterii.
• Pracovní oblast: Udržujte pracovní prostor čistý a dobře osvětlený. Nepořádek nebo tmavé prostory vedou k nehodám.
• Správné spojovací prvky: Use only 18GA staples (3/4"–1-9/16") and brad nails (3/4"–2") as specified for this tool.
• Materiálová kompatibilita: This tool is designed for wood, upholstery, and soft materials only. Do not use it on metal, concrete, or for tacking to walls.
• Safety Contact Tip: The tool will not fire unless the safety contact tip is pressed firmly against the work surface. Do not bypass or disable this safety feature.
• Zabraňte náhodnému výstřelu: Keep fingers off the trigger when not actively fastening.

Konec produktuview

Familiarize yourself with the components of your WORKPROX 20V Cordless Brad Nailer Kit.

Obraz: Detailed diagram showing the various parts of the WORKPROX 20V Cordless Brad Nailer, including the cylinder, trigger, LED lighting, depth adjustment wheel, battery, belt clip, LED indicator, nail viewer window, magazine, and single/contact firing knob.

Zahrnuté komponenty:

• WORKPROX 20V Cordless Brad Nailer
• 2.0Ah dobíjecí baterie
• Battery Charger (USB-C)
• 1000 x 18GA Staples (3/4"–1-9/16")
• 1000 x 18GA Brad Nails (3/4"–2")
• Návod k použití

Nastavení a příprava

Nabíjení a instalace baterie

The 2000mAh Lithium-Ion battery provides power for your nailer. Ensure it is fully charged before initial use.

1. Connect the USB-C charger to the battery. The battery features an LED digital display to show the charge status.
2. Allow approximately 2 hours for a full charge if the battery is completely depleted.
3. To install the battery, align the battery pack with the receptacle on the tool handle and slide it in until it clicks securely into place.
4. Chcete-li baterii vyjmout, stiskněte tlačítko pro uvolnění na baterii a vysuňte ji ven.

Obraz: The 20V 2.0Ah battery, highlighting its Type-C fast charge port, LED digital display for charge status, and its capability to function as a portable power bank.

Loading Fasteners (Nails and Staples)

This 2-in-1 tool is compatible with 18GA staples and brad nails. The 100-fastener capacity magazine minimizes reloads.

Obraz: A quick 3-step guide demonstrating how to load fasteners: 1. Press the release button and pull down the magazine cover. 2. Load nails/staples into the magazine track with points facing down. 3. Press and hold the release button until the magazine clicks and locks.

1. Press the magazine release button and pull down the magazine cover.
2. Insert a strip of 18GA staples or brad nails into the magazine track. Ensure the points of the fasteners are facing downwards. For nails, load them all the way to the left towards the driving tip. For staples, load them all the way to the right of the slide.
3. Push the magazine cover back until it clicks and locks into place.

Obraz: The WORKPROX nailer demonstrating its compatibility with 18GA staples (max length 1-9/16") and 18GA brad nails (max length 2").

Návod k obsluze

Selecting Firing Mode

The nailer offers two firing modes for different applications:

• Single Firing Mode: For precise fastening. Press the safety contact tip against the workpiece, then pull the trigger.
• Režim spouštění kontaktu: For higher efficiency and rapid, continuous nailing. Hold the trigger, then press the safety contact tip against the workpiece. The tool will fire each time the tip makes contact.

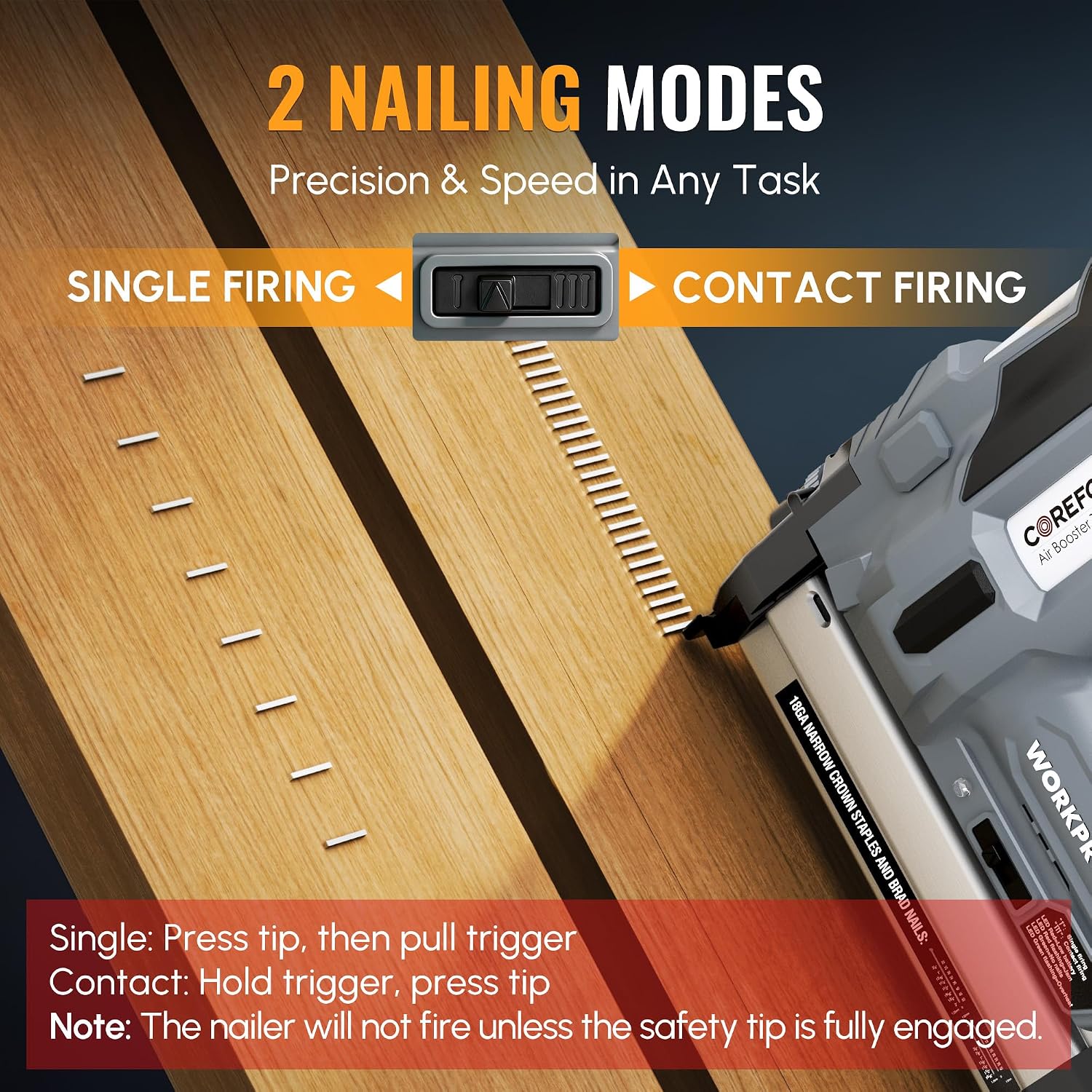

Obraz: Illustration of the two nailing modes: Single Firing (press tip, then pull trigger) for precision, and Contact Firing (hold trigger, then press tip) for speed. A note reiterates that the nailer will not fire unless the safety tip is fully engaged.

Adjusting Nail Depth

The adjustable nail depth feature allows you to adapt to different material thicknesses and desired fastener protrusion.

• Locate the depth adjustment wheel on top of the tool.
• Rotate the wheel to adjust the driving depth. Turn it one direction for deeper penetration and the other for shallower.
• Před zahájením práce na projektu vyzkoušejte na kousku materiálu, abyste dosáhli požadované hloubky.

Obraz: The WORKPROX nailer illustrating the adjustable nail depth feature, allowing users to set fasteners deeper or shallower into the material. The image also highlights the built-in LED lighting for improved visibility.

Using the LED Indicators

The tool is equipped with LED indicators to provide important status updates:

• Červená na: Indicates low battery. Recharge the battery.
• Červená bliká: Indicates nails are jammed. Refer to the "Clearing Nail Jams" section.
• Zelená svítí: Indicates no nails in the magazine. Reload fasteners.

Obraz: The WORKPROX nailer displaying its LED status indicators (Red On: Low battery, Red Flashing: Nails jammed, Green On: No nails) and the nail viewer window (Red: Without nails, Black: With nails) for clear monitoring of tool status.

Safety Contact Tip

The safety contact tip is a critical safety feature designed to prevent accidental firing. The tool will only operate when the tip is pressed firmly against the work surface.

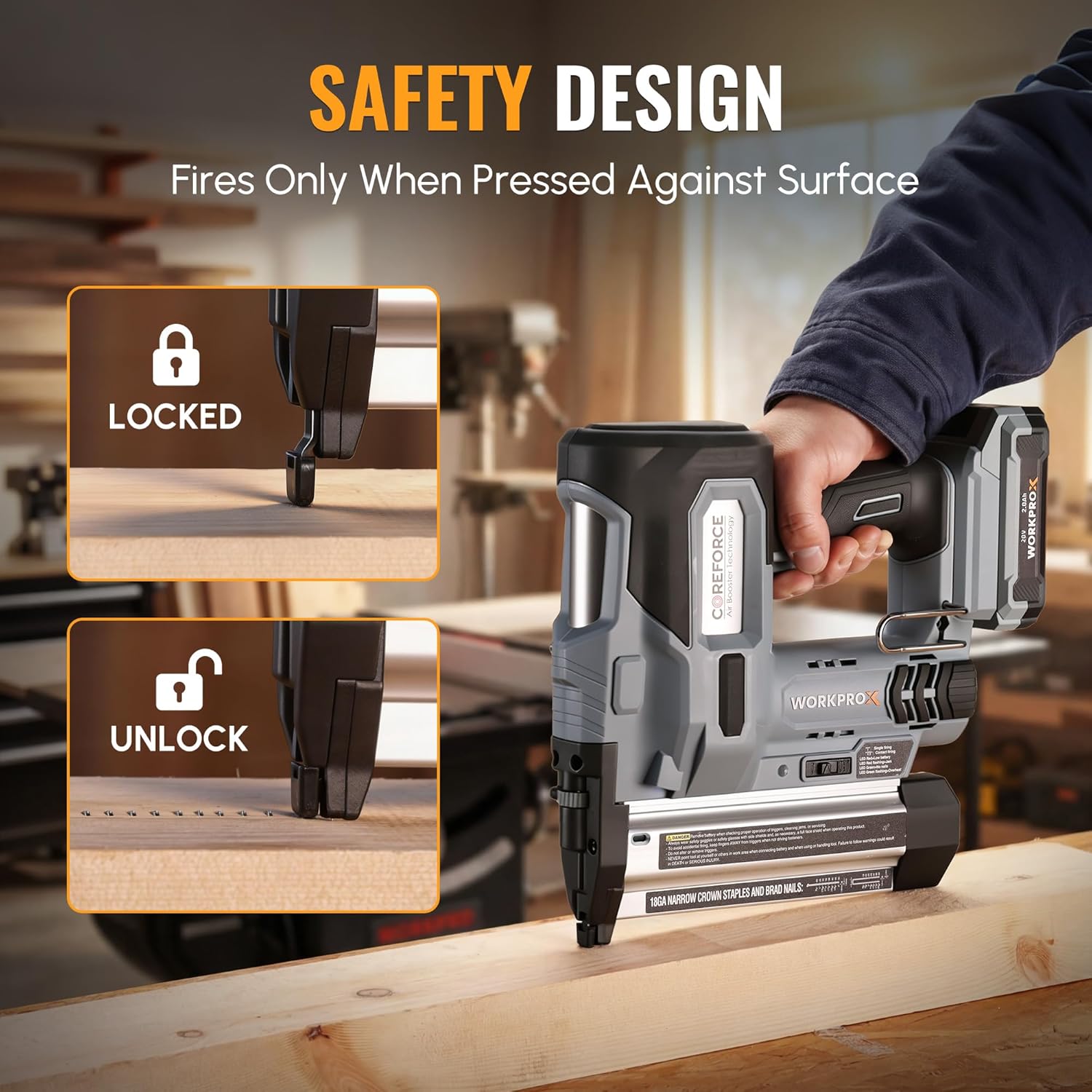

Obraz: The WORKPROX nailer illustrating its safety design, showing the tool in a 'locked' state when the tip is not engaged and an 'unlocked' state when pressed against a surface, allowing it to fire.

Údržba

Clearing Nail Jams

If the LED indicator flashes red, it signifies a nail jam. Follow these steps to safely clear the jam:

Obraz: A visual guide for easy nail jam clearing: 1. Red flashing LED indicates a nail jam. 2. Remove the battery. 3. Open the magazine. 4. Remove the jammed nails/staples.

1. Okamžitě vyjměte baterii z nástroje.
2. Open the magazine by pressing the release button and pulling down the cover.
3. Carefully remove any bent or jammed fasteners from the magazine track and the firing mechanism. Use pliers if necessary, but avoid forcing components.
4. Zásobník bezpečně zavřete a znovu vložte baterii.

Generální úklid

Pravidelné čištění pomáhá udržovat výkon nástroje a prodlužuje jeho životnost.

• Ensure the battery is removed before cleaning.
• K otření vnější strany nástroje použijte čistý a suchý hadřík.
• Remove any sawdust or debris from the magazine and firing area using compressed air or a small brush.
• Nepoužívejte drsné chemikálie ani abrazivní čisticí prostředky.

Odstraňování problémů

V této tabulce naleznete běžné problémy a jejich řešení.

Technické specifikace

Key technical details for the WORKPROX 20V Cordless Brad Nailer Kit.

Záruka a zákaznická podpora

WORKPRO products are manufactured to high-quality standards. For warranty information, product registration, or technical assistance, please contact WORKPRO customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official WORKPRO webwebu nebo kontaktujte jejich zákaznickou podporu.
