1. Úvod
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Quictent 6x8FT Garden Tool Shed Storage Shelter, Model 6603-3. This heavy-duty portable garage is designed to provide a secure and protected space for storing lawn mowers, garden tools, outdoor equipment, and other items, helping to keep your backyard organized and clutter-free.
Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation of the shelter.

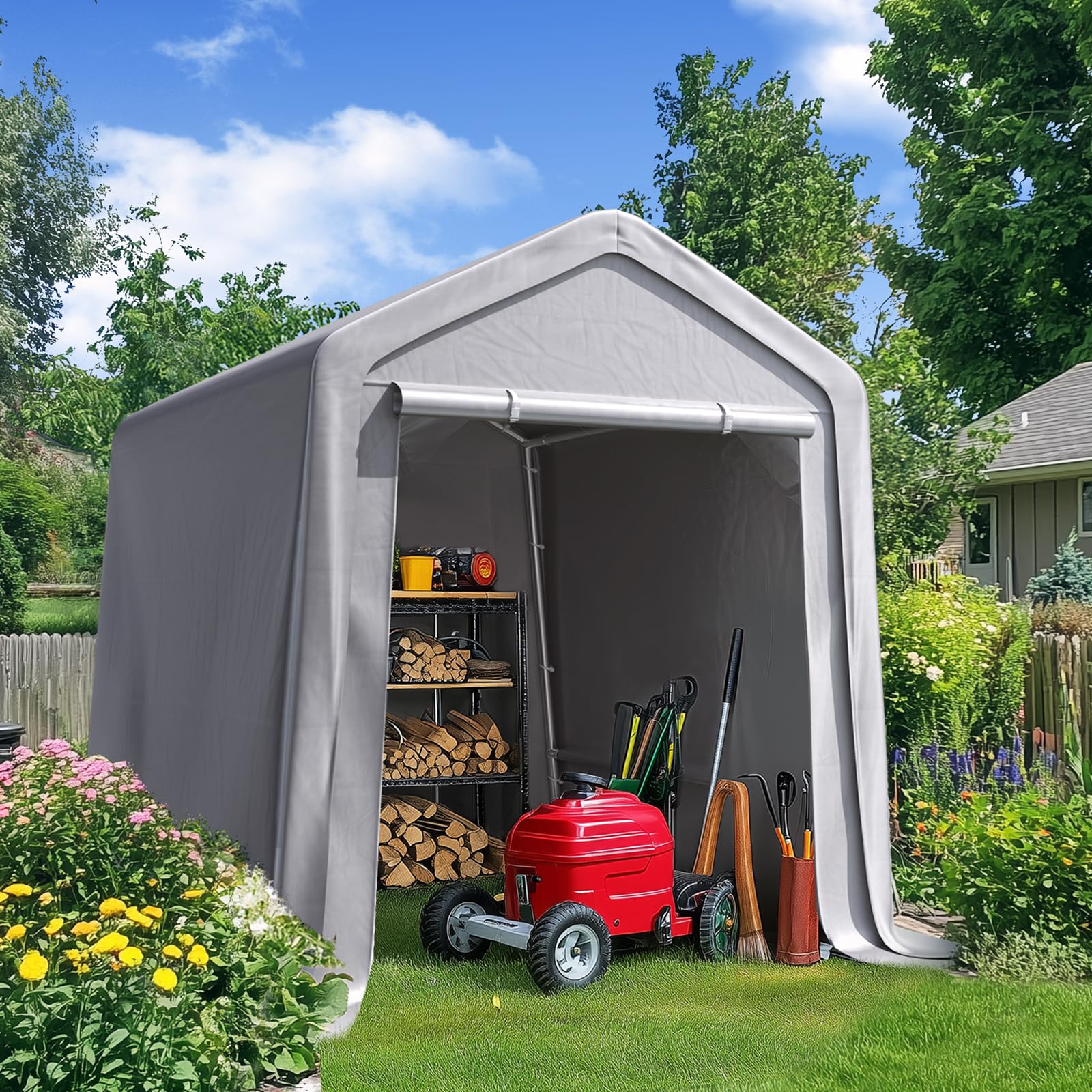

Image 1.1: The Quictent 6x8FT Garden Tool Shed Storage Shelter.
2. Bezpečnostní informace
Adherence to the following safety guidelines is crucial for preventing damage to the shelter and ensuring user safety:
- Always secure the shelter to the ground using the provided stakes and ratchet strap tensioners, especially during windy conditions. Failure to do so may result in structural damage or personal injury.
- Avoid prolonged exposure of the shelter to direct sunlight to minimize UV damage to the cover fabric.
- Keep flammable items away from heat sources and never leave them unattended while inside the shelter.
- Always follow local fire safety regulations.
- Ensure the shelter is set up on a level surface to maintain structural integrity.
- Regularly inspect all components for wear or damage, particularly after severe weather. Replace damaged parts immediately.
3. Obsah balení
Verify that all components are present and undamaged before beginning assembly. The package typically includes:
- Galvanized Steel Frame Poles
- Spojky/Klouby
- Polyethylene Tarp Cover (UV-resistant, waterproof)
- Roll-Up Mesh Window Panels (integrated into door)
- Hřebíky/kůly do země
- Bouncy Cords/Ratchet Strap Tensioners
- Montážní materiál (šrouby, matice atd.)
Note: All components are typically shipped in one box. In some cases, boxes may arrive at different times.
4. Nastavení a montáž
Assembly requires careful attention to detail. It is recommended to have at least two people for efficient and safe setup. Refer to the included diagram for specific part identification.
4.1 Sestavení rámu
- Vybalte všechny komponenty rámu a rozložte je. Identifikujte každou část podle montážního schématu.
- Begin by assembling the base frame on a level surface. Connect the horizontal and vertical poles using the appropriate connectors.
- Continue building the frame upwards, connecting the roof trusses and ridge poles. Ensure all connections are secure. The frame is constructed from galvanized steel with an anti-corrosion coating for durability.
- Tighten all bolts and fasteners once the entire frame is erected, but do not overtighten to avoid stripping.
Image 4.1: Illustration of the rust-resistant galvanized steel framework.
4.2 Instalace krytu
- Carefully unfold the polyethylene tarp cover. This heavy-duty fabric is UV-resistant and waterproof.
- Drape the cover over the assembled frame, ensuring it is centered and evenly distributed.
- Secure the cover to the frame using the provided bouncy cords or straps, starting from the corners and working towards the center. Ensure a snug fit to prevent flapping in the wind.
- Attach the end panels, ensuring the zippers are aligned for proper closure.
Image 4.2: The premium PE fabric is waterproof and eco-friendly.
4.3 Anchoring the Shelter
- Once the frame and cover are in place, anchor the shelter firmly to the ground using the ground nails/stakes and ratchet strap tensioners at all four corners.
- Ensure the anchors are driven deep into the ground for maximum stability.
- Tighten the ratchet straps to create tension, securing the shelter against wind and other environmental factors.
Image 4.3: The windproof reinforcement system ensures stability.
5. Návod k obsluze
5.1 Accessing the Shelter
The shelter features zippered closures on both ends for easy access. Simply unzip the desired end panel to open the entrance. When not in use, ensure both ends are fully zipped to protect contents from weather and debris.
5.2 Větrání
The shelter is equipped with roll-up mesh windows on the door and a ceiling airflow channel. To prevent condensation buildup and ensure proper air circulation, roll up the mesh windows as needed. This is particularly useful when storing items that require ventilation, such as lawn mowers or other tools that may emit fumes or moisture.
Image 5.1: Front and rear windows allow for effective ventilation, keeping belongings dry.
Image 5.2: The roll-up mesh window design prevents condensation buildup.
5.3 Úložná kapacita
The 6x8FT dimensions provide ample storage space for various items. Organize your tools and equipment efficiently to maximize the shelter's capacity.
Image 5.3: The shelter offers spacious storage for all your essentials.
6. Údržba
Regular maintenance will extend the lifespan of your Quictent storage shelter.
- Čištění: Clean the polyethylene tarp cover periodically with mild soap and water. Avoid harsh chemicals or abrasive brushes that could damage the UV coating. Rinse thoroughly and allow to air dry completely before zipping up.
- Kontrola rámu: Annually, or after severe weather, inspect the galvanized steel frame for any signs of rust, bending, or damage. Ensure all connections remain tight.
- Anchor Check: Regularly check the ground nails/stakes and ratchet strap tensioners to ensure they are securely fastened and the shelter remains taut. Re-tighten as necessary.
- Odklízení sněhu: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive weight and potential collapse.
7. Řešení problémů
This section addresses common issues you might encounter with your storage shelter.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Shelter instability / flapping in wind | Insufficient anchoring; loose straps; improper assembly. | Ensure all ground stakes are fully driven and ratchet straps are taut. Verify all frame connections are secure. Re-check assembly steps. |
| Water pooling on roof / leaks | Cover not taut; improper frame assembly; damage to cover. | Adjust cover tension. Verify frame is correctly assembled and not sagging. Inspect cover for tears and repair if necessary. |
| Condensation inside shelter | Nedostatek ventilace. | Utilize the roll-up mesh windows and ceiling airflow channel to improve air circulation. Ensure items stored are dry. |
| Difficulty zipping/unzipping | Fabric tension; debris in zipper. | Ensure the shelter is not overly taut, which can strain zippers. Clean any debris from the zipper teeth. Apply a silicone-based lubricant if needed. |
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Klidný |
| Číslo modelu | 6603-3 |
| Velikost | 6'X8' (approximately 7.97 ft length, 6.10 ft width, 5.84 ft height at eaves, 7.12 ft peak height) |
| Barva | Stříbrně šedá |
| Materiál rámu | Galvanized Steel (Alloy Steel) with anti-corrosion coating |
| Materiál krytu | UV-resistant Polyethylene Tarp with double-stitched seams |
| Úroveň odolnosti proti vodě | Vodě odolný |
| UV ochrana | UPF 50+ (95% UV blockage) |
| Větrání | 1 mesh roll-up window on door + ceiling airflow channel |
| Doporučená použití | Storage for lawn mowers, garden tools, outdoor equipment, motorcycles, ATVs, furniture. |
Image 8.1: Product dimensions for the 6x8FT storage shelter.
9. Záruka a podpora
Quictent offers comprehensive support for your storage shelter:
- Poles and Tarps: Enjoy 1-year support on poles and tarps from the date of purchase.
- Joints, Ground Nails, and Bouncy Cords: Lifetime support is provided for these accessory components.
- Výměna příslušenství: Contact customer support for any accessory replacement needs.
For any questions, concerns, or support requests, please contact the seller, Brandline, directly. Their customer service team is available to assist you.
You can typically find seller contact information on your purchase platform or by visiting the Quictent Store.
