PARUUNTYS M5 Self-Cleaning Litter Box User Manual

Zavedení

Thank you for choosing the PARUUNTYS M5 Self-Cleaning Litter Box. This automatic litter box is designed to simplify cat care by providing an open-top, self-cleaning solution with advanced safety features and smart app control. It is suitable for multiple cats and aims to maintain a clean and odor-free environment in your home.

Image: The PARUUNTYS M5 Self-Cleaning Litter Box, showcasing its design and the accompanying mobile application interface.

Vlastnosti produktu

• Open-Top Design: Features a spacious 16.5”×16.5” entrance for comfortable cat access and exit, promoting a welcoming environment.
• Dual Safety Technology: Equipped with 4 weight-activated sensors and 3 high-precision infrared detectors to pause operation instantly upon detecting a cat's presence, ensuring safety.
• Chytré ovládání APP: Allows remote management of cleaning routines, scheduling waste disposal, and tracking litter usage trends via a mobile application (requires 2.4G WiFi).
• 10.5L Sealed Waste Bin: A large capacity, odor-locking waste compartment minimizes the frequency of emptying and helps maintain a fresh home environment.
• Leak-Proof & Reusable Design: Reinforced edges and a removable, washable liner prevent spills and facilitate easy cleaning and maintenance.
• Litter Compatibility: Optimized for bentonite, mineral, and mixed litters. Not suitable for tofu or crystal litter.
• Tichý provoz: Designed to operate quietly, ensuring minimal disturbance to your household.

Image: Visual representation of the litter box's key features, including open-top design, large capacity, self-cleaning, safety, weight measurement, and app control.

Průvodce nastavením

1. Rozbalte jednotku: Opatrně vyjměte všechny součásti z obalu. Ujistěte se, že jsou všechny díly přítomny a nepoškozené.
2. Umístění: Place the litter box on a flat, stable surface in a location accessible to your cat. Ensure it is near a power outlet and within range of a 2.4G WiFi network for app connectivity.
3. Instalace odpadkového pytle: Open the waste bin drawer located at the bottom front of the unit. Line the waste bin with a compatible litter bag.
4. Přidat odpadky: Pour clumping cat litter (bentonite, mineral, or mixed litters are recommended) into the main drum. Do not overfill; ensure the litter level is below the MAX line indicated inside the drum.


   Image: Illustration of compatible litter types for the PARUUNTYS M5, including bentonite, mixed, and mineral litters.

5. Připojení napájení: Connect the power adapter to the litter box and plug it into a wall outlet. The unit will power on.
6. Stažení aplikace a připojení:
   • Download the companion app (e.g., Tuya Smart or Smart Life app) from your device's app store.
   • Zaregistrujte se nebo se přihlaste ke svému účtu.
   • Follow the in-app instructions to add the PARUUNTYS M5 litter box. Ensure your phone is connected to a 2.4G WiFi network during the pairing process.
   • Press and hold the Wi-Fi button on the litter box for 3 seconds until you hear a "beep" sound, indicating it's ready to connect.


   Image: A user interacting with the mobile application to control the PARUUNTYS M5 litter box.

Návod k obsluze

Automatické čištění

The PARUUNTYS M5 is designed to automatically clean after your cat uses it. The built-in sensors detect when your cat has exited the litter box and initiate a cleaning cycle after a set delay (configurable via the app). The internal mechanism sifts the litter, depositing waste into the sealed waste bin below.

Ruční ovládání

You can manually control the litter box using the buttons on the unit or through the mobile app.

• On-Unit Buttons:
  • Tlačítko Wi-Fi: Stisknutím a podržením po dobu 3 sekund vstoupíte do režimu párování.
  • Empty Button: Press and hold for 3 seconds to initiate a full emptying cycle of the litter.
  • Tlačítko Clean: Press for 1 second to start a cleaning cycle.
• Ovládání aplikace: The mobile app provides comprehensive control:
  • Activate auto-cleaning or manual cleaning cycles.
  • Schedule specific cleaning times.
  • Monitor litter usage trends and cat weight.
  • Receive alerts for a full waste bin or other operational statuses.

Bezpečnostní funkce

The PARUUNTYS M5 prioritizes your cat's safety with its dual sensor system. If a cat approaches or enters the unit during a cleaning cycle, the system will immediately pause operation to prevent any injury. Cleaning will resume once the cat has left the vicinity.

Image: The PARUUNTYS M5 litter box highlighting its multiple security protection sensors, including infrared and weight sensors, designed to detect a cat's activity.

Údržba

Vyprázdnění odpadkového koše

The 10.5L sealed waste bin should be emptied regularly, depending on the number of cats and their usage. The app will notify you when the bin is full. To empty:

1. Ujistěte se, že jednotka není v čisticím cyklu.
2. Pull out the waste bin drawer from the front of the unit.
3. Tie off the used litter bag and dispose of it.
4. Place a new litter bag in the waste bin and slide the drawer back into place.

Čištění jednotky

Pravidelné čištění zajišťuje optimální výkon a hygienu.

• Čištění bubnu: The internal drum can be wiped down with a damp cloth and mild, pet-safe detergent. Ensure it is completely dry before reassembly.
• Washable Liner: The included liner is washable for easy cleaning and reuse. Remove it from the drum, wash with water and mild soap, rinse thoroughly, and air dry before placing it back.
• Čištění exteriéru: Otřete vnější část jednotky měkkým, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo nadměrné množství vody.

Odstraňování problémů

Specifikace

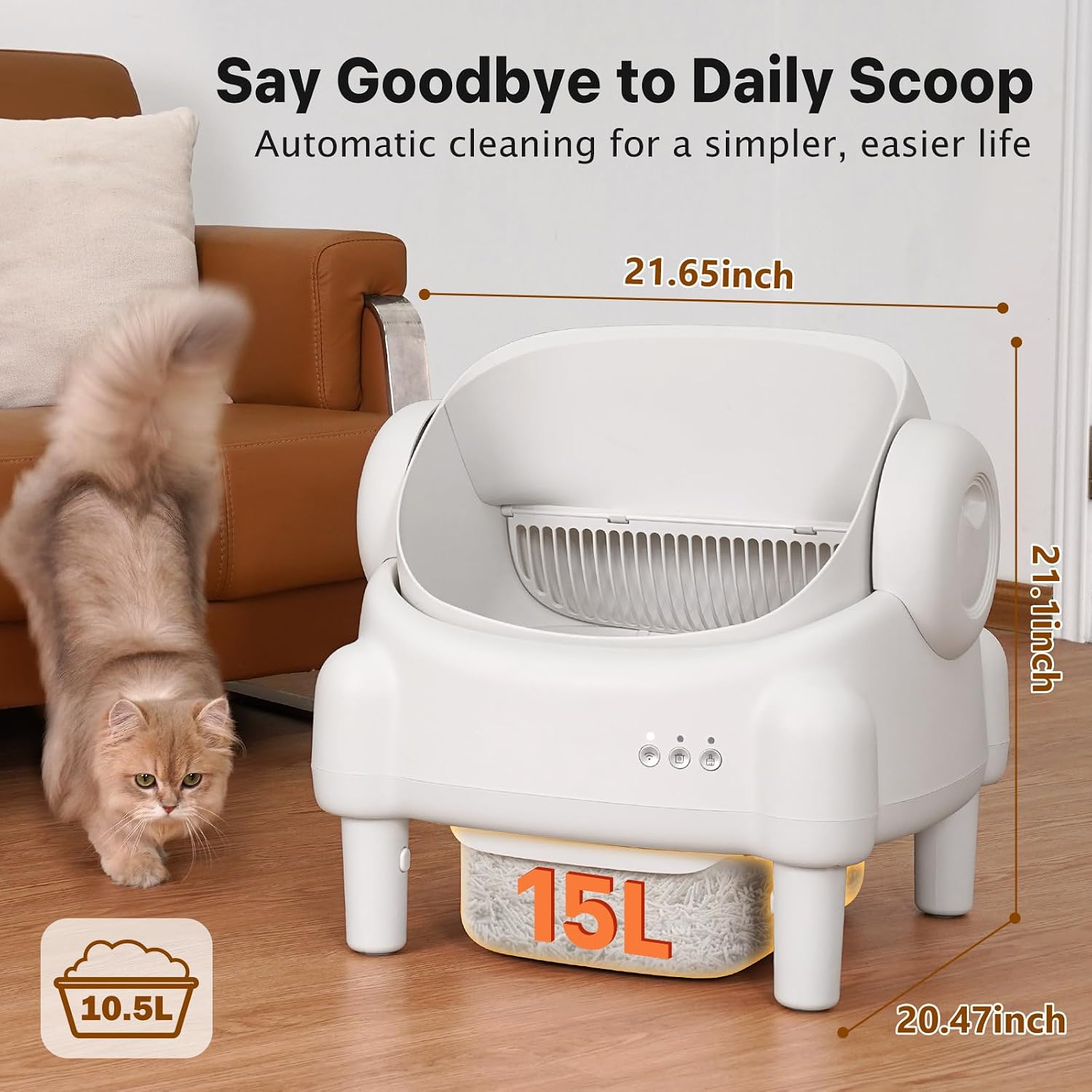

Image: The PARUUNTYS M5 litter box with its key dimensions (length, width, height) and waste bin capacity highlighted.

Záruka a podpora

For warranty information, technical support, or any questions regarding your PARUUNTYS M5 Self-Cleaning Litter Box, please contact PARUUNTYS customer service. Refer to the product packaging or the official PARUUNTYS webstránky pro kontaktní údaje.
