GarveeLife Smith Machine Home Gym All in One Instruction Manual

1. Důležité bezpečnostní informace

Before operating the GarveeLife Smith Machine Home Gym, please read and understand all instructions and warnings in this manual. Failure to follow these instructions may result in serious injury or property damage.

• Před zahájením jakéhokoli cvičebního programu se poraďte s lékařem.
• Ensure all parts are correctly assembled and tightened before each use. Regularly inspect the machine for loose parts or wear.
• Během provozu udržujte děti a domácí zvířata mimo dosah zařízení.
• Do not exceed the maximum weight capacity of 2200 lbs for the overall machine. Specific component capacities are detailed in the Specifications section.
• Use proper form and technique for all exercises. If you experience pain or discomfort, stop immediately.
• Always use safety spotter arms when performing exercises that could result in injury if the weight is dropped.
• Maintain a clear area around the machine free from obstructions.

2. Konec produktuview

The GarveeLife Smith Machine Home Gym All in One is a versatile fitness solution designed for comprehensive strength training. It integrates multiple workout stations into a single robust unit, suitable for home use.

This machine combines the functionalities of a squat rack, power cage, Smith machine, cable crossover, cable station, and pull-up station. It features dual pulley systems, allowing for individual or co-training workouts. Pre-drilled holes for resistance bands and various attachments enhance its utility for diverse training needs.

Figure 2.1: The GarveeLife Smith Machine Home Gym, showcasing its comprehensive design with various attachments and weight storage.

2.1 Klíčové vlastnosti:

• Dual Pulley Systems: Allows for independent or simultaneous use, ideal for training with a partner.
• Multifunkční design: Integrates a squat rack, power cage, Smith machine, cable station, and pull-up station.
• Vylepšená stabilita: Constructed from 50MM x 50MM steel tubing with 2MM thickness and 12 connecting triangle pieces.
• Smooth Cable Operation: Equipped with commercial-grade PU cables, PU pulleys, solid steel rails, and liner bearings for quiet and efficient movement.
• Adjustable Height Positions: 15 adjustable height positions for the cable machine to accommodate various exercises.
• Resistance Band Compatibility: Includes 4 band pegs to enhance weight workouts.

2.2 Součásti balení:

The package includes the main Smith machine frame and the following attachments:

• Smith bar
• Dip bar
• Dual pulley systems
• Leg hold-down attachment
• Long lat bar
• A pair of cable handles
• Lat stahovací lišta
• Kabelová lišta
• Bicep rope
• And other necessary hardware for assembly.

Figure 2.2: Detailed diagram illustrating the various labeled components and features of the Smith Machine.

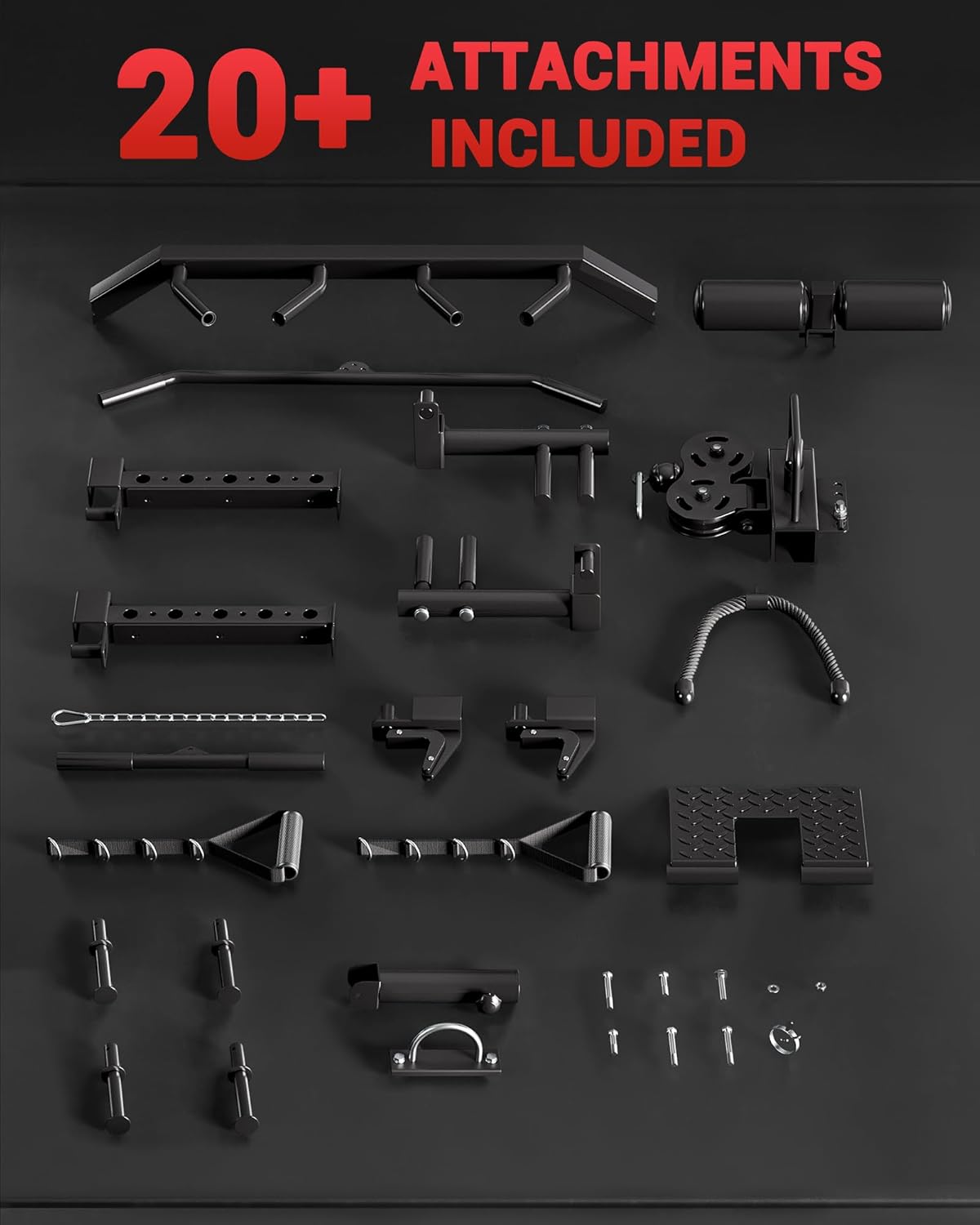

Figure 2.3: A visual representation of the more than 20 attachments that come with the GarveeLife Smith Machine, providing versatility for various exercises.

3. Nastavení a montáž

The GarveeLife Smith Machine Home Gym is shipped in multiple boxes. It is highly recommended to have at least one friend assist you with the assembly process, and ensure you have the necessary tools ready. Detailed installation instructions are provided within the packaging to guide you step-by-step.

Carefully unpack all components and verify against the parts list in the included manual. Organize parts by type to streamline the assembly. Pay close attention to the orientation of each piece as indicated in the diagrams.

Begin by assembling the main frame, ensuring all bolts are securely tightened but not over-tightened until the entire frame is aligned. Proceed with attaching the pulley systems, bars, and other accessories as per the manual's sequence. Double-check all connections before the first use.

Figure 3.1: An illustration detailing the dimensions of the Smith Machine (87.2" H x 70.9" L x 48" W) and highlighting its upgraded heavy-duty steel construction with 2MM thickness.

4. Návod k obsluze

The GarveeLife Smith Machine offers a wide range of exercises for a full-body workout. Familiarize yourself with each station and its adjustments before beginning your routine.

4.1 Smith Machine Operation:

• To use the Smith bar, load desired weight plates onto the sleeves.
• Position yourself correctly under the bar. Unrack the bar by rotating it slightly to disengage the safety hooks.
• Perform your exercise with controlled movements. To re-rack, rotate the bar back into the safety hooks at the desired height.
• Always utilize the adjustable safety stoppers to prevent the bar from descending too low, providing a safe range of motion.

Obrázek 4.1: Detail view highlighting the smooth training experience provided by the No. 45 solid steel rails and 4 liner bearings, ensuring quiet and durable operation.

4.2 Cable System Usage:

• Attach desired handles or bars to the dual pulley systems.
• Adjust the pulley height using the quick-release pins to one of the 15 available positions for exercises like lat pull-downs, cable flys, rows, and bicep curls.
• Ensure the weight stack pin is fully inserted into the desired weight.

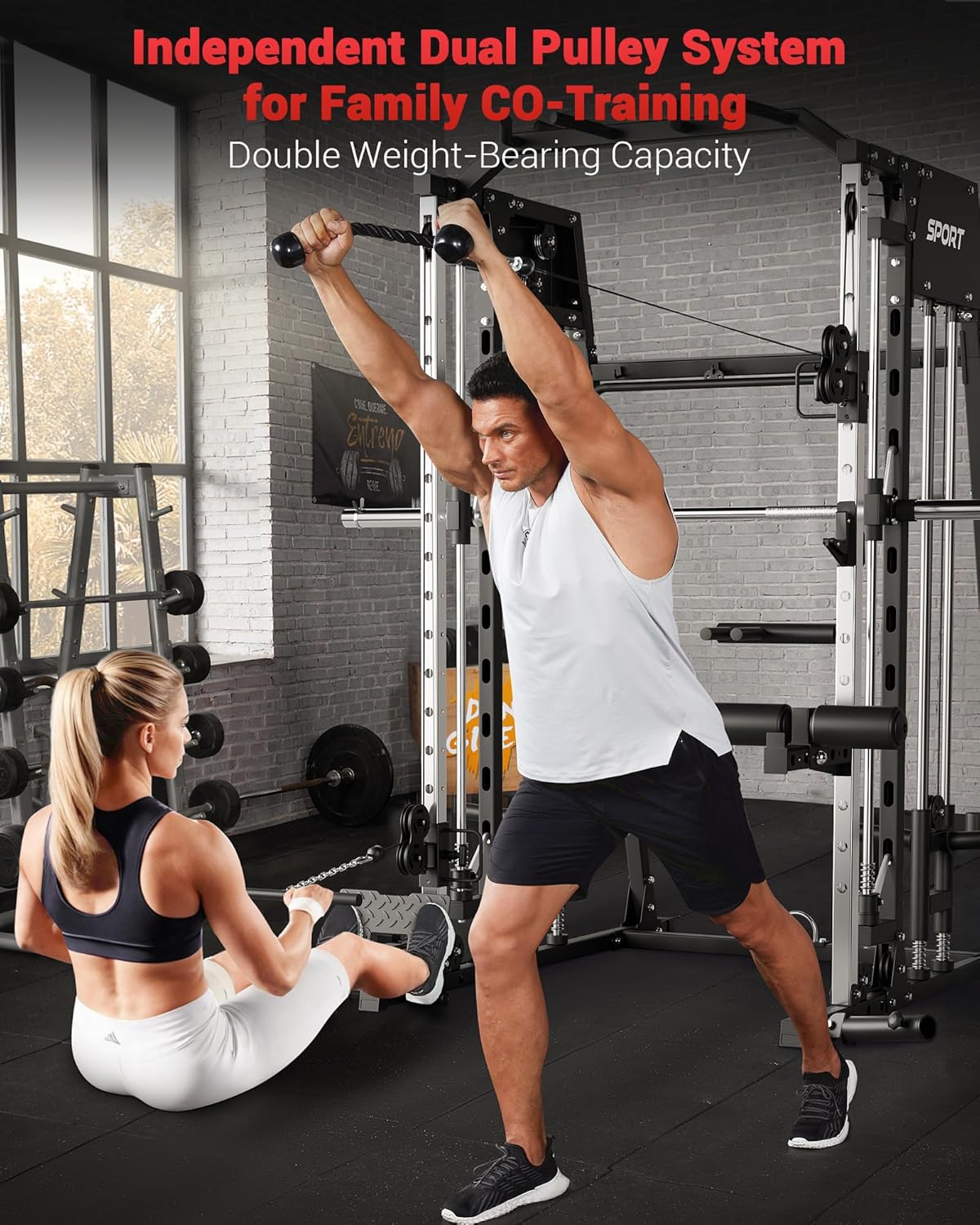

Figure 4.2: Two individuals utilizing the independent dual pulley system for co-training, demonstrating the machine's double weight-bearing capacity.

Obrázek 4.3: Detailní view of the commercial-grade cable crossover system, featuring wear-resistant PU cables, 7 strands of steel wire for higher hardness, and durable PU reinforced pulleys.

4.3 Other Stations:

• Pull-up Station: Use the wide and narrow grip pull-up bar for various back and arm exercises.
• Stanice pro ponoření: Attach the dip bar for triceps and chest dips.
• Leg Hold-Down: Utilize the leg hold-down attachment for exercises like lat pull-downs to stabilize your lower body.
• Band Pegs: Attach resistance bands to the 4 band pegs for added resistance during squats, deadlifts, or other exercises.

Obrázek 4.4: Kolážová výstavaasing the versatility of the GarveeLife Smith Machine, demonstrating various exercises such as squats, battle rope waves, T-bar rows, pull-ups, low rows, and chest flys.

Figure 4.5: An individual performing dips on the machine, with an overlay highlighting the maximum weight capacities for various components, including 1000 lbs for J-hooks and 700 lbs for safety spotter arms.

5. Údržba

Regular maintenance is crucial to ensure the longevity and safe operation of your GarveeLife Smith Machine Home Gym.

• Denní úklid: Otřete stroj reklamouamp Po každém použití setřete hadříkem, abyste odstranili pot a prach. Nepoužívejte abrazivní čisticí prostředky.
• Týdenní kontrola: Check all nuts, bolts, and connections for tightness. Re-tighten any loose fasteners.
• Kontrola lanka a kladky: Inspect cables for fraying or wear. Ensure pulleys move smoothly and are free of debris. Lubricate moving parts with a silicone-based lubricant if necessary.
• Bar and Sleeve Maintenance: Keep the Smith bar and weight plate sleeves clean. If any part of the bar feels rough or sticky, clean it thoroughly.
• Skladování: Store the machine in a dry environment to prevent rust. Utilize the integrated storage hooks and weight storage pins for attachments and plates to keep your workout area tidy.

6. Řešení problémů

This section addresses common issues you might encounter during assembly or use of your Smith Machine.

7. Specifikace

8. Záruka a zákaznická podpora

GarveeLife provides a 1letý poprodejní servis for your Smith Machine Home Gym. This warranty covers manufacturing defects and ensures your product functions as intended under normal use.

If you experience any issues, have questions regarding installation, or require assistance with missing or damaged parts, please do not hesitate to reach out to our customer support team. Contact information (phone and email) is included in the product packaging.

Our team is dedicated to providing satisfactory solutions and aims for a 24-hour email response time. We recommend referring to the attached manual for step-by-step instructions during installation and having tools ready for assembly.
