1. Úvod

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your V-Guard Luxecube Avo 10 Litre Analog Water Heater. Please read these instructions carefully before using the appliance and retain them for future reference.

The V-Guard Luxecube Avo water heater is designed to provide hot water efficiently, featuring Advanced Thermocline Technology (ATT) for enhanced performance and energy savings. Its robust construction ensures durability and reliability.

2. Důležité bezpečnostní informace

Vždy dodržujte následující bezpečnostní pokyny, abyste předešli zranění nebo poškození spotřebiče:

• Elektrická bezpečnost: Ensure the water heater is connected to a properly grounded electrical outlet. Do not use extension cords.
• Tlak vody: This water heater is suitable for high-rise buildings and can handle water pressure up to 0.8 MPa (8 bar).
• Ochrana proti přehřátí: The unit is equipped with a dual overheat protection system, including an advanced thermostat and a thermal cut-out mechanism.
• Uvolnění tlaku: A 5-in-1 multi-function safety valve is integrated to prevent excessive pressure build-up, vacuum formation, and reverse water flow.
• Zapojení: Internal wiring uses silicone-grade material for enhanced safety and longevity.
• Instalace: Installation should only be performed by qualified personnel. Refer to the installation section for details.
• Děti a zranitelné osoby: Tento spotřebič není určen k používání osobami se sníženými fyzickými, smyslovými nebo duševními schopnostmi nebo s nedostatkem zkušeností a znalostí, pokud nejsou pod dohledem nebo pokud jim nebyly poskytnuty pokyny k používání spotřebiče osobou odpovědnou za jejich bezpečnost.

3. Konec produktuview

The V-Guard Luxecube Avo water heater combines advanced technology with a sleek design to provide efficient hot water.

Klíčové vlastnosti:

• Advanced Thermocline Technology (ATT): Delivers up to 38% more hot water by minimizing mixing of hot and cold water within the tank.
• Energetická účinnost: Features high-density, extra-thick PUF insulation for maximum heat retention and energy savings. It is also environmentally friendly with CFC-free material.
• Durable Tank: The inner tank is fortified with titanium-infused vitreous enamel coating, protecting against hard water and corrosion.
• Efficient Heating Element: Equipped with a nickel-enriched Incoloy 800 heating element, designed to withstand tough water conditions and ensure fast, efficient heating.
• Luxe Glow Illumination: A unique dual-color indicator that glows green during heating and red on standby.

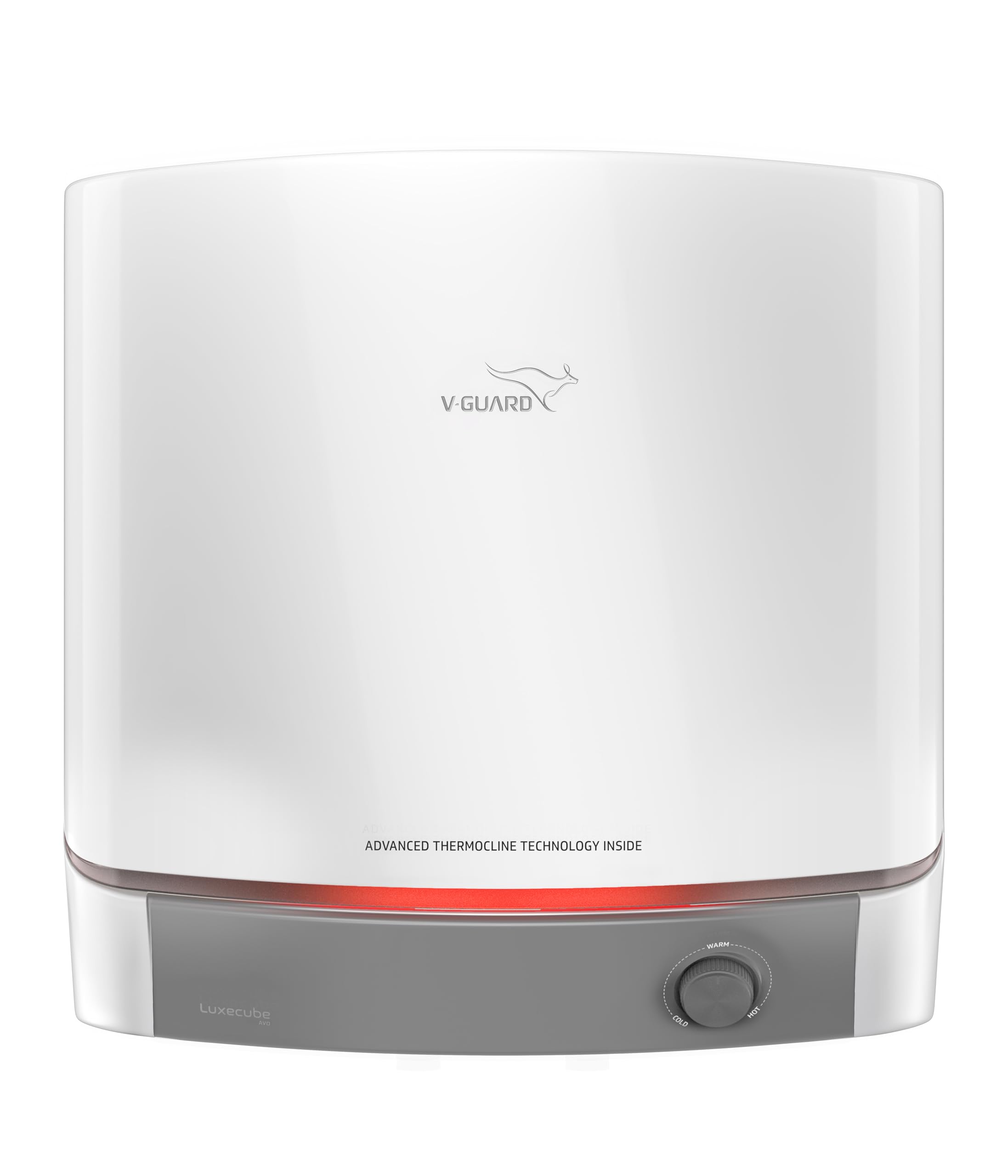

Obrázek: Přední strana view of the V-Guard Luxecube Avo 10 Litre Analog Water Heater.

Zahrnuté komponenty:

• 1 Number Electric Water Heater
• 1 Number Wall Mounting Kit
• 1 Number Multi Function Valve

4. Nastavení a instalace

For optimal performance and safety, professional installation is highly recommended. V-Guard offers free PAN India installation at all serviceable PIN codes.

Kroky instalace (obecné pokyny):

1. Výběr webu: Choose a suitable wall location for mounting, ensuring it is sturdy enough to support the weight of the water heater when full. Ensure adequate clearance for maintenance.
2. Montáž: Use the provided wall mounting kit to securely attach the water heater to the wall.
3. Vodovodní přípojky: Connect the inlet and outlet pipes. The Luxecube Avo comes with free durable stainless-steel inlet and outlet pipes (1.5 ft × 2) provided during installation. Ensure all connections are watertight.
4. Safety Valve Installation: Install the multi-function safety valve on the inlet pipe as per the instructions provided by the technician.
5. Plnění nádrže: Before connecting to power, open a hot water tap in your home and allow the water heater tank to fill completely until water flows steadily from the tap. Close the hot water tap.
6. Elektrické připojení: Connect the water heater to a dedicated, grounded electrical outlet.

Poznámka: Angle cock/control valve and nipple connectors are not included in the product package and will be provided by the service technician during installation.

Image: Map illustrating nationwide service coverage for installation.

5. Návod k obsluze

Počáteční spuštění:

1. Ensure the tank is completely filled with water (refer to Setup section).
2. Plug the power cord into the electrical outlet or switch on the dedicated power supply.
3. The Luxe Glow indicator will illuminate, showing the current status.

Ovládání teploty:

The Luxecube Avo 10 Litre Analog model features a manual temperature control knob located on the front panel. Rotate the knob to set your desired water temperature. The adjustable thermostat range is typically between 35°C and 75°C.

Luxe Glow Indicator:

• Zelené světlo: Indicates that the water heater is actively heating the water.
• Červené světlo: Indicates that the water heater is on standby, meaning the water has reached the set temperature and the heating element is off.

Image: Close-up of the Luxe Glow indicator on the water heater, showing its dual-color functionality.

6. Údržba

Pravidelná údržba zajistí dlouhou životnost a efektivní provoz vašeho ohřívače vody.

• Čištění: Periodically wipe the exterior of the water heater with a soft, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
• odvodnění: If the water heater is not going to be used for an extended period, or if there is a risk of freezing, it is advisable to drain the tank. Consult a qualified technician for this procedure.
• Kontrola anodové tyče: The magnesium anode rod helps protect the tank from corrosion. It should be inspected and replaced periodically by a service technician, especially in areas with hard water.
• Kontrola pojistného ventilu: The pressure relief valve should be checked annually by a qualified technician to ensure it is functioning correctly.

For any complex maintenance or repairs, always contact authorized V-Guard service personnel.

7. Řešení problémů

Než se obrátíte na zákaznický servis, znovuview následující běžné problémy a jejich možná řešení:

If the problem persists after attempting these solutions, please contact V-Guard customer support.

8. Specifikace

Image: Diagram showing the dimensions (356mm x 357mm x 325mm) and coverage details of the V-Guard Luxecube Avo water heater.

9. Záruka a podpora

Záruční krytí:

• 7 roky: On the Inner Tank
• 4 roky: On the Heating Element
• 2 roky: On the Product

Uschovejte si prosím doklad o koupi pro případ reklamace.

Zákaznická podpora:

For installation, service, or any queries regarding your V-Guard Luxecube Avo water heater, please contact V-Guard customer service.

Výrobce: V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala, India

Packer Contact Information: V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala, India

V-Guard offers free PAN India installation at all serviceable PIN codes.
