HOMCOM 3-Tier Rolling Tool Cart Instruction Manual

Zavedení

Thank you for choosing the HOMCOM 3-Tier Rolling Tool Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your new utility cart. Please read these instructions thoroughly before use and retain them for future reference.

This versatile cart is designed for organizing and transporting tools and supplies in various environments such as garages, workshops, and warehouses. It features three spacious tiers, side pegboard panels with hooks, and durable construction for a maximum weight capacity of 200 lbs.

Bezpečnostní informace

• Maximální nosnost: Do not exceed the maximum weight capacity of 200 lbs (90.7 kg). Distribute weight evenly across the shelves.
• Shromáždění: Assemble the cart on a flat, stable surface. Ensure all parts are securely fastened before use.
• Stabilita: Avoid placing heavy items on upper shelves without counterbalancing weight on lower shelves to prevent tipping.
• Hnutí: Always engage the brakes on the locking casters when the cart is stationary to prevent unintended movement.
• Povrch: Use the cart on level surfaces. Avoid uneven terrain or inclines that could cause the cart to tip or roll uncontrollably.
• Děti: Keep children away from the cart during assembly and use. This is not a toy.
• Údržba: Regularly inspect the cart for loose fasteners, damaged wheels, or other signs of wear. Replace or repair damaged parts immediately.

Obsah balení

Před zahájením montáže ověřte, zda jsou přítomny všechny součásti. Pokud některé součásti chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.

Figure 1: The product is delivered in one package.

• 3 x Shelf Trays
• 4 x svislé podpěrné sloupky
• 2 x Side Pegboard Panels
• 4 x Universal Wheels (2 with brakes)
• 10 x háčky
• 6 x Removable Partitions
• Assembly Hardware (screws, caps)
• Návod k použití

Obrázek 2: Rozložené view of cart components, highlighting shelves, side panels, hooks, and wheels.

Nastavení a montáž

Follow these steps to assemble your HOMCOM 3-Tier Rolling Tool Cart. A rubber mallet may be helpful for securing connections.

1. Připevněte kola: Insert the four universal wheels into the designated holes on the bottom shelf. Ensure the two wheels with brakes are installed on the same side for easier access. Press firmly until they click into place.
2. Install Lower Posts: Insert the four vertical support posts into the corner holes of the bottom shelf. Ensure they are fully seated.
3. Umístěte prostřední polici: Carefully align the middle shelf with the top of the lower support posts and press down firmly until it locks into place.
4. Install Upper Posts: Insert the remaining four vertical support posts into the corner holes of the middle shelf.
5. Připevněte horní polici: Align the top shelf with the upper support posts and press down firmly to secure it.
6. Install Side Pegboard Panels: Align the grooves on the side pegboard panels with the corresponding slots on the vertical support posts. Slide the panels down until they are securely in place. Note: Ensure the grooves on the posts are facing each other to properly slide the pegboard panels.
7. Add Hooks and Partitions: Insert the provided hooks into the pegboard panels as desired. Place the removable partitions into the shelf trays to create customized storage compartments.
8. Závěrečná kontrola: Verify that all connections are secure and the cart is stable before loading any items.

Figure 3: Contextual image of assembly, showing a person preparing to use the cart.

Návod k obsluze

• Načítání košíku: Distribute tools and supplies evenly across the three shelves. Place heavier items on lower shelves to enhance stability. Utilize the side pegboard panels and hooks for hanging frequently used tools.
• Přesun vozíku: Release the brakes on the two locking casters. Grip the cart firmly and push or pull it to your desired location. The universal wheels allow for 360-degree movement.
• Zajištění vozíku: Once the cart is in position, engage the brakes on the two locking casters to prevent accidental movement.
• Using Partitions: The removable partitions can be adjusted or removed to accommodate items of various sizes, helping to keep your tools organized and prevent them from shifting during transport.

Figure 4: The cart's universal wheels provide easy 360-degree movement.

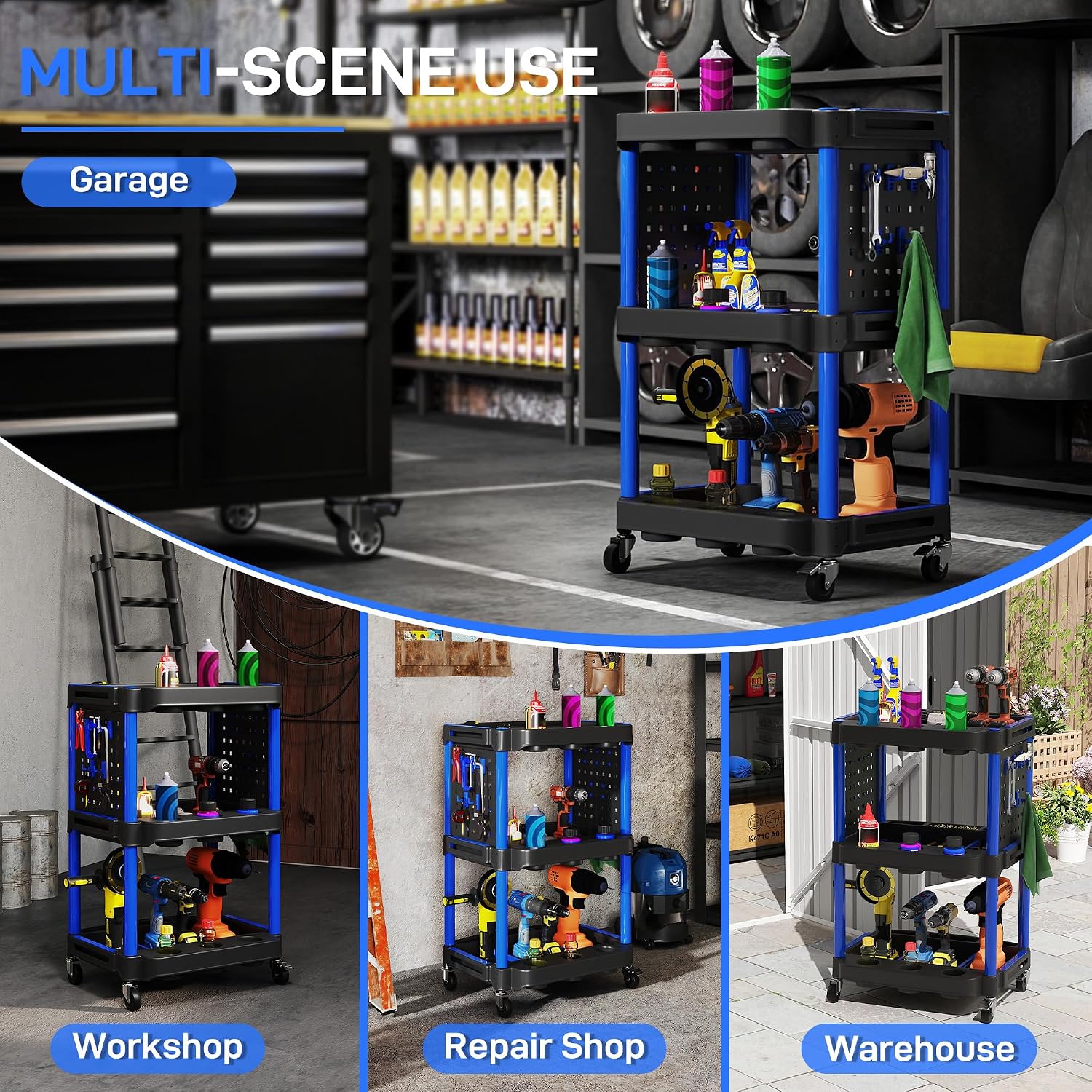

Figure 5: The cart is suitable for multi-scene use in garage, workshop, repair shop, and warehouse environments.

Údržba

• Čištění: Wipe down the cart surfaces with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the plastic.
• Kontrola kol: Periodically check the wheels for debris, hair, or other obstructions that could hinder smooth movement. Clean as necessary.
• Kontrola upevňovacích prvků: Ensure all assembly connections remain tight. Re-tighten any loose screws or connections to maintain stability.
• Rozložení hmotnosti: Always adhere to the maximum weight capacity and distribute loads evenly to prevent stress on the cart's structure and wheels.

Odstraňování problémů

Specifikace

Figure 6: Key dimensions and weight capacity of the tool cart.

Záruka a podpora

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official HOMCOM webwebu. Uschovejte si účtenku jako doklad o koupi.

Výrobce: Aosom LLC

Značka: HOMCOM
