1. Úvod
Thank you for choosing the TopMate ES32 Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric trike. Please read it thoroughly before first use to ensure optimal performance and safety.
2. Bezpečnostní informace
Vaše bezpečnost je prvořadá. Dodržujte následující pokyny:
- Always wear a helmet and appropriate safety gear when operating the scooter.
- Seznamte se s místními dopravními předpisy a předpisy týkajícími se elektrických koloběžek.
- Důležité: After the tire becomes larger, the center of gravity becomes higher. Please reduce your speed when turning to maintain stability.
- It is recommended that people under 60 years old use this electric scooter.
- Driving an electric scooter requires basic balancing capabilities. If you are new to scooters, practice in a safe, open area.
- Neovládejte skútr pod vlivem alkoholu nebo drog.
- Vyhněte se jízdě v silném dešti, sněhu nebo na zledovatělém povrchu.
- Před každou jízdou se ujistěte, že jsou všechny komponenty bezpečně upevněny.
3. Konec produktuview
The TopMate ES32 is a versatile 3-wheel electric scooter designed for adults, offering portability and ease of use.
Klíčové vlastnosti:
- Upgraded Tires & Rear Axle: 10-inch pneumatic tires improve road passing ability and legroom.
- Easy to Carry & LED Display: Foldable design, weighing only 15.68kg (34.57lb), supports up to 100KG (220.5lb). Features an upgraded clear LED screen.
- Key Switch & Durable Battery: Physical key switch for battery control. Built-in 18650 power lithium battery (UN38.3 certified, 270Wh) offers 25-30 km (15.53-18.64 miles) endurance with 3-4 hours charging.
- Reverse Function & Adjustable Three Gear Speed: Speeds up to 3 mph (1st gear), 7 mph (2nd gear), and 15 mph (3rd gear). Includes a button-controlled reverse function (up to 3 mph).
Schéma komponent:

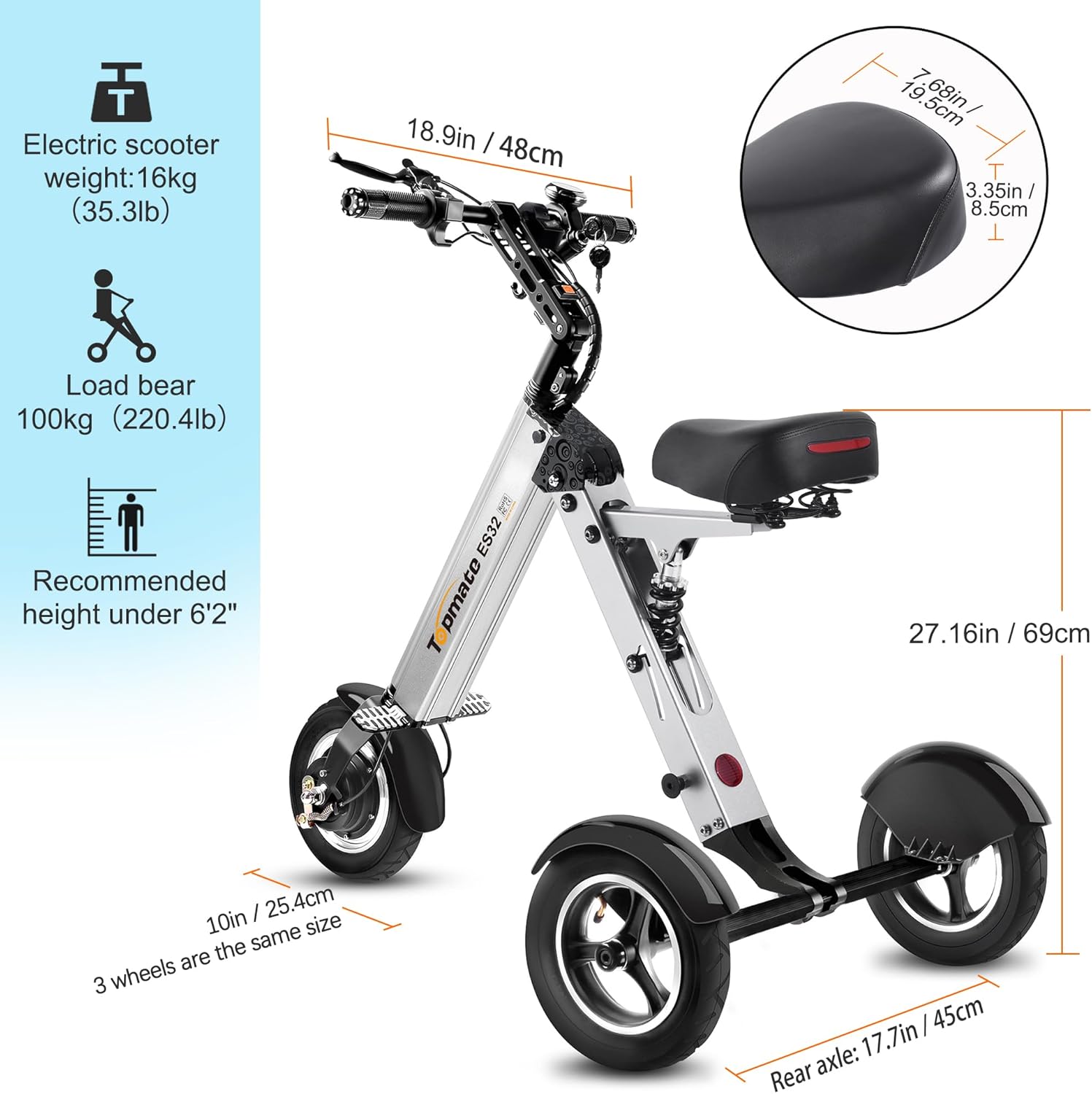

Figure 3.1: TopMate ES32 Electric Scooter with key dimensions and weight capacity. Note the 10-inch wheels and 17.7-inch rear axle.
Obrázek 3.2: Strana view of the TopMate ES32 Electric Scooter, highlighting its compact and modern design.
4. Nastavení
The ES32 electric scooter comes pre-assembled and ready to ride. Follow these steps to expand and prepare it for use:
Rozložení koloběžky:
- Lift the Seat: Step 1, lift the seat up to its highest point. Step 2, lower it down to lock it into position.
- Merge Scooter Bodies: Bring the two main bodies of the scooter together until they lock directly.
- Unfold Front Section: Push the front folding switch and rotate the front section to the other side synchronously until it clicks into place.
Figure 4.1: Visual guide for unfolding the scooter, demonstrating how to lift the seat, merge the body, and unfold the front section.
Video Guide: Unfolding and Initial Setup
Video 4.1: This video demonstrates the easy expansion and unfolding process of the TopMate ES32 Electric Scooter, showing how to prepare it for riding.
5. Návod k obsluze
Learn how to operate your TopMate ES32 Electric Scooter safely and efficiently.
Startování skútru:
- Vložte klíč do zapalování a otočte jím do polohy „ON“.
- The LED display will illuminate, showing power, speed, and mileage.
Adjusting Speed Gears:
The scooter features three adjustable speed gears:
- 1. rychlostní stupeň: Speed up to 3 mile/h (5 km/h) - Suitable for turning and low-speed maneuvers.
- 2. rychlostní stupeň: Speed up to 7 mile/h (11 km/h) - Medium speed mode suitable for daily driving.
- 3. rychlostní stupeň: Speed up to 15 mile/h (24 km/h) - High speed mode, pay attention to safe driving.
Figure 5.1: Close-up of the handlebar showing the speed gear selector (I, II, III) and the LED display with speed and mileage indicators.
Použití funkce Reverse:
The ES32 includes a convenient reversing function:
- Locate the reversing button on the handlebar.
- Press the button to switch between forward and reverse. The reverse gear speed is up to 3 mile/h (4.8 km/h).
Video Guide: Operation and Features
Video 5.2: This video demonstrates the various operating features of the TopMate ES32, including speed adjustments, adapting to different road conditions, and the easy-to-use reverse function.
6. Údržba
Proper maintenance ensures the longevity and performance of your TopMate ES32 Electric Scooter.
Nabíjení baterie:
- The scooter is equipped with a 36V 7.5Ah (270Wh) lithium polymer battery.
- Charging duration is approximately 3-4 hours.
- Locate the charging port on the scooter body. Ensure the port is clean and dry before connecting the charger.
- Use only the original charger provided with your scooter.
- Nepřebíjejte baterii. Po dokončení nabíjení odpojte nabíječku.
Figure 6.1: Illustration of the scooter's battery and the location of the charging port.
Obecná péče:
- Pravidelně kontrolujte tlak v pneumatikách a v případě potřeby je dofukujte.
- Keep the scooter clean. Wipe down surfaces with a damp hadříkem. Nepoužívejte vysokotlaké vodní trysky.
- Inspect brakes and cables periodically for wear and tear.
- Pokud koloběžku nepoužíváte, skladujte ji na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot.
7. Řešení problémů
This section addresses common issues you might encounter with your TopMate ES32 Electric Scooter.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Koloběžka se nezapne | Battery is low or depleted; Key not fully inserted/turned; Power switch off. | Charge the battery; Ensure key is fully turned to 'ON'; Check physical power switch. |
| Snížený dojezd/výkon | Low tire pressure; Overloaded; Battery degradation; Riding uphill frequently. | Inflate tires to recommended pressure; Do not exceed weight limit; Consider battery replacement if old; Adjust riding style. |
| Neobvyklé zvuky | Loose components; Debris in wheels; Brake issues. | Check all bolts and screws; Inspect wheels for foreign objects; Adjust or clean brakes. |
| Brzdy nejsou účinné | Opotřebované brzdové destičky; uvolněné brzdové lanko. | Zkontrolujte a v případě opotřebení vyměňte brzdové destičky; upravte napnutí brzdového lanka. |
Pokud narazíte na problémy, které zde nejsou uvedeny, nebo pokud řešení problém nevyřeší, kontaktujte prosím zákaznickou podporu.
8. Specifikace
Detailed technical specifications for the TopMate ES32 Electric Scooter.
| Specifikace | Detail |
|---|---|
| Značka | TopMate |
| Název modelu | ES32 |
| Barva | Stříbrná bílá |
| Věkové rozmezí (popis) | Dospělý |
| Speciální funkce | Lehký |
| Hmotnostní limit | 220.5 liber (100 kg) |
| Počet kol | 3 |
| Materiál kola | Pryž |
| Materiál rámu | Hliník |
| Velikost kola | 10 palce |
| Typ kola | Pneumatický |
| Styl brzdy | Front Braking |
| Kapacita baterie | 36V 7.5Ah (270Wh) |
| Doba nabíjení | 3-4 hodin |
| Endurance Distance | 25–30 km (15.53–18.64 mil) |
9. Záruka a podpora
Your TopMate ES32 Electric Scooter comes with a manufacturer's warranty and dedicated customer support.
Informace o záruce:
Součástí produktu je a 2-letá záruka from the manufacturer, TopMate. Please retain your proof of purchase for warranty claims.
Zákaznická podpora:
For any questions, technical assistance, or warranty claims, please contact the seller, NIPAITechnology, through the Amazon platform or refer to the contact information provided with your purchase. They will be able to assist you with product-specific inquiries and support.
