Alomejor Electric Bike Speed Controller Kit (48V 25A 1200W) - User Manual

1. Konec produktuview

The Alomejor Electric Bike Speed Controller Kit is designed to enhance the performance and control of your electric bike or scooter. This dual-drive controller system provides precise power management, improved durability, and a smoother riding experience. It is engineered for stability and longevity, supporting speeds up to 60km/h (depending on motor specifications).

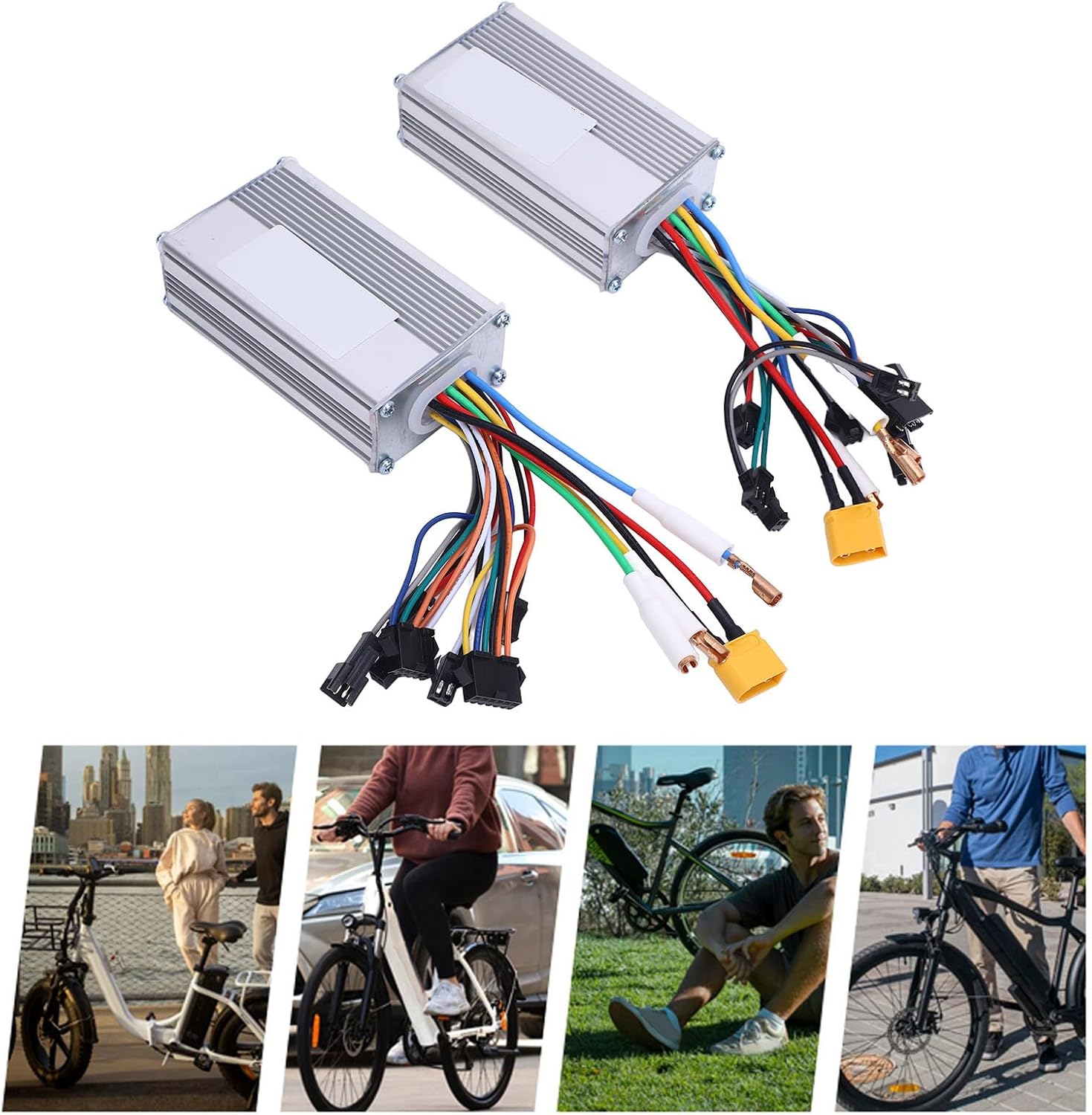

Obrázek 1.1: Konecview of the Alomejor Electric Bike Speed Controller Kit and its application on electric bikes and scooters.

Klíčové vlastnosti:

• Dual Drive System: Includes front and rear drive controllers for comprehensive power management.
• Vysoký výkon: Operates at 48V 25A with a 1200W capability, ensuring efficient power delivery.
• Zvýšená odolnost: Constructed with aluminum alloy and PCB for long-lasting stability and resistance to wear.
• Přesné ovládání: Manages power output effectively for safe and reliable operation in various environments.
• Integrovaný displej: Comes with a display panel for monitoring key operational parameters.
• Komplexní sada: Includes all necessary components for a complete upgrade, such as controllers, display, and central control harness.

Image 1.2: The complete Alomejor dual drive controller kit, showing all included components.

2. Obsah balení

Please verify that all items listed below are present in your package. If any components are missing or damaged, please contact customer support.

• Front Drive Controller (1 unit)
• Rear Drive Controller (1 unit)
• Display Panel (1 unit)
• Central Control Harness (1 unit)
• Accessories (3 units, typically connectors and mounting hardware)

Image 2.1: All components included in the Alomejor Electric Bike Speed Controller Kit.

3. Nastavení a instalace

This section provides general guidelines for installing the Alomejor Electric Bike Speed Controller Kit. Professional installation is recommended if you are unfamiliar with electric bike wiring. Ensure the electric bike's power is completely off before beginning installation.

Bezpečnostní opatření:

• Always disconnect the battery before working on electrical components.
• Používejte vhodné bezpečnostní vybavení, včetně rukavic a ochrany očí.
• Ujistěte se, že všechna připojení jsou bezpečná a řádně izolovaná, aby se zabránilo zkratu.
• Do not modify the controllers or wiring harness.

Kroky instalace:

1. Mount the Controllers: Securely mount the front and rear drive controllers to the frame of your electric bike or scooter. Ensure they are protected from water and physical damage.
2. Připojení vodičů motoru: Connect the motor phase wires (usually three thick wires) from your front and rear motors to the corresponding ports on each controller. Match colors carefully.
3. Připojení vodičů Hallova senzoru: Connect the Hall sensor wires (usually five thinner wires) from your motors to the controllers. These provide feedback on motor position.
4. Připojte napájecí zdroj: Connect the main power wires from your battery (positive and negative) to the central control harness, and then to the controllers. Ensure correct polarity.
5. Install Display Panel: Mount the display panel on your handlebars in an easily viewable position. Connect its wiring to the central control harness.
6. Připojení dalšího příslušenství: Connect any other accessories such as throttle, brake levers, and pedal assist sensor (PAS) to the central control harness as per your bike's configuration.
7. Zabezpečení všech připojení: Double-check all connections for tightness and proper insulation. Use zip ties or cable management solutions to keep wires tidy and secure.
8. Počáteční zapnutí: Reconnect the battery and power on the system. Observe the display for any error codes and test basic functions at a low speed in a safe environment.

Image 3.1: The controller kit components, highlighting the importance of secure and safe connections during installation.

4. Návod k obsluze

Once installed, the Alomejor Electric Bike Speed Controller Kit provides intuitive control over your electric bike's propulsion.

Funkce zobrazovacího panelu:

The display panel provides real-time information and allows for adjustment of certain parameters. Refer to the specific display model's manual for detailed button functions. Common functions include:

• Zapnutí/vypnutí: Obvykle dlouhé stisknutí tlačítka napájení.
• Zobrazení rychlosti: Shows current speed (km/h or mph).
• Úroveň baterie: Indikuje zbývající nabití baterie.
• Úroveň asistence: Adjusts the level of motor assistance (e.g., 1-5).
• Trip Distance/Odometer: Displays current trip distance or total distance traveled.
• Kódy chyb: Alerts to system malfunctions.

Riding with the Controller:

1. Zapnutí: Turn on the electric bike's battery and then the display panel.
2. Vyberte úroveň asistence: Use the display controls to select your desired pedal assist level. Higher levels provide more motor power.
3. Throttle Operation (if applicable): If your bike has a throttle, gently twist or press it to engage motor power without pedaling. Use with caution, especially at higher assist levels.
4. brzdění: The controllers are designed to cut motor power when brake levers are engaged, ensuring safety.
5. Displej monitoru: Keep an eye on your speed, battery level, and any error messages during your ride.

Image 4.1: The controller kit enables powerful and efficient operation of your electric bike.

5. Údržba

Proper maintenance ensures the longevity and optimal performance of your Alomejor Electric Bike Speed Controller Kit.

• Pravidelná kontrola: Periodically check all wiring connections for looseness, corrosion, or damage. Ensure controllers are securely mounted.
• Čištění: Keep the controllers and display panel clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or excessive water.
• Ochrana proti vlhkosti: While the controllers are designed to be durable, avoid prolonged exposure to heavy rain or submersion in water. Ensure all cable entries are sealed.
• Řízení teploty: Ensure the controllers have adequate airflow to prevent overheating, especially during prolonged high-power operation.
• Správa kabelů: Ensure cables are routed safely, away from moving parts and sharp edges, to prevent wear and tear.

Image 5.1: The durable construction of the controller kit benefits from regular maintenance to ensure long-term performance.

6. Řešení problémů

This section addresses common issues you might encounter with your electric bike controller kit.

Důležitá poznámka: If you are unable to resolve an issue, do not attempt further repairs. Contact qualified service personnel or Alomejor customer support.

7. Specifikace

8. Informace o záruce

The Alomejor Electric Bike Speed Controller Kit comes with a manufacturer's warranty.

• Záruční doba: 90 dnů od data nákupu.
• Krytí: Tato záruka se vztahuje na vady materiálu a zpracování při běžném používání.
• Vyloučení: The warranty does not cover damage caused by improper installation, misuse, accidents, unauthorized modifications, or normal wear and tear.
• Proces reklamace: To make a warranty claim, please retain your proof of purchase and contact Alomejor customer support.

9. Zákaznická podpora

For further assistance, technical support, or warranty inquiries, please contact Alomejor customer service.

• Online podpora: Visit the official Alomejor store on Amazon for product information and support resources.Alomejor Amazon Store
• Číslo modelu: Alomejorgpsanm5c67
• ASIN: B0F6YK9SHZ
