1. Úvod
The Ambition C1 Wireless Tattoo Pen Machine is designed for both beginners and professional artists, offering a comfortable and efficient tattooing experience. This manual provides detailed instructions for the safe and effective use, maintenance, and troubleshooting of your device. Please read this manual thoroughly before operating the machine.
2. Bezpečnostní informace
- This device is intended for professional tattoo artists or supervised beginner practice. It is not intended for self-tattooing.
- Always use sterile, single-use tattoo cartridge needles.
- Ensure all equipment that comes into contact with skin or ink is properly sterilized according to industry standards.
- Keep the machine dry. Do not immerse it in water or any other liquid. The machine is not water resistant.
- Store the machine and accessories out of reach of children.
- Před čištěním nebo prováděním jakékoli údržby odpojte napájení.
3. Obsah balení
Your Ambition C1 Tattoo Kit typically includes:
- Ambition C1 Wireless Tattoo Pen Machine
- Dvě baterie s kapacitou 1900 mAh
- Nabíjecí kabel USB-C
- RCA Adapter (for wired operation)
- Additional accessories (e.g., practice skin, various needles, grip tape - total of 40 pieces)
4. Konec produktuview a funkce
The Ambition C1 machine is crafted from aviation-grade aluminum alloy, ensuring durability and ergonomic comfort during long sessions.
Image: Ambition C1 Tattoo Machine highlighting its key specifications including length, weight, grip diameter, adjustable stroke, battery capacity, battery life, charging time, voltage range, motor type, and compatibility.

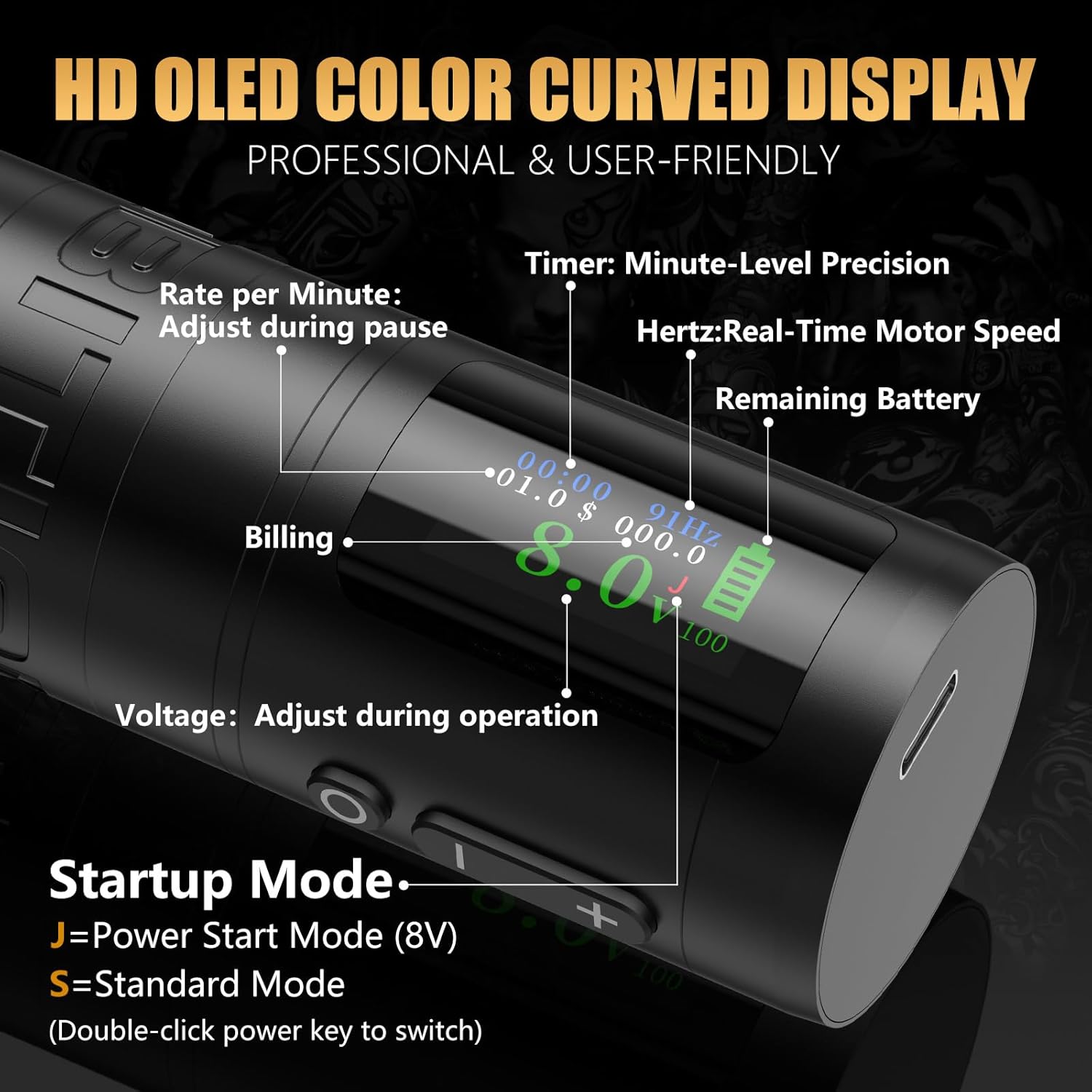

Image: Close-up of the HD OLED Color Curved Display on the Ambition C1, showing indicators for Rate per Minute, Timer, Hertz (Real-Time Motor Speed), Remaining Battery, Billing, and Voltage adjustment during operation. It also illustrates the Startup Modes: J (Power Start Mode at 8V) and S (Standard Mode), switchable by double-clicking the power key.

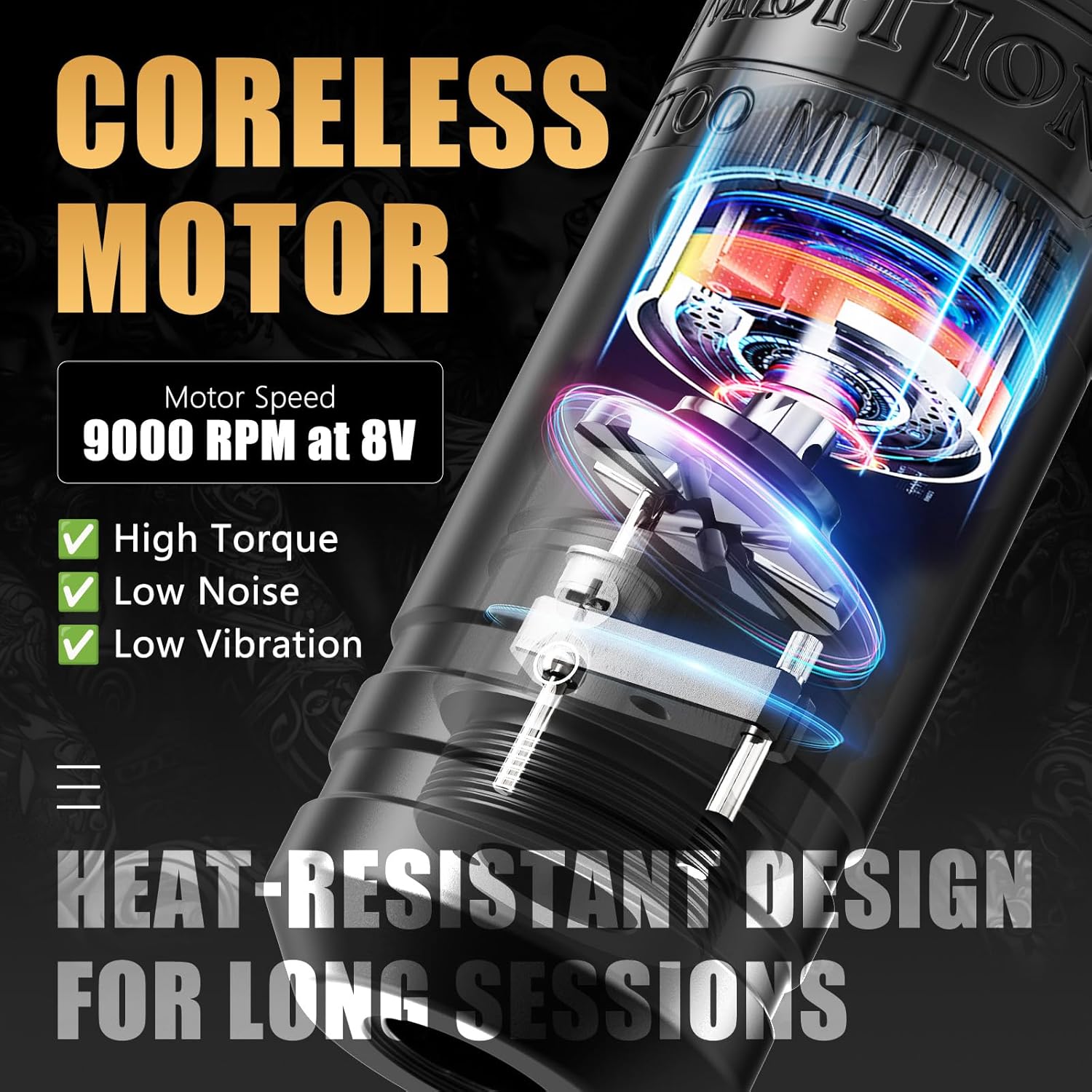

Image: Diagram illustrating the internal Coreless Motor of the Ambition C1 Tattoo Machine, emphasizing its 9000 RPM speed at 8V, high torque, low noise, low vibration, and heat-resistant design for long sessions.
Image: The Ambition C1 Tattoo Machine demonstrating its 7 Adjustable Strokes feature, ranging from 2.0mm to 4.2mm. Arrows indicate the rotation for adjustment, highlighting its versatility for various tattoo designs and techniques like lining, shading, and coloring.
Image: Two Ambition C1 Tattoo Machines, one in wireless configuration and one with an RCA adapter, illustrating its Dual Mode Wired/Wireless capability. It highlights the inclusion of a Free RCA Adapter for compatibility with traditional power supplies and wireless RCA power banks.
Klíčové vlastnosti:
- Ergonomický design: 135mm length, 34mm grip diameter, and 237g balanced weight for comfortable handling.
- Bezjádrový motor: Ultra-quiet operation with high torque, low noise, and minimal vibration (9000 RPM at 8V).
- Adjustable Stroke: 7 settings from 2.0mm to 4.2mm for versatile tattooing techniques.
- Systém s dvojitou baterií: Two 1900mAh batteries provide 6-8 hours of continuous operation per battery.
- HD OLED displej: Clear display for voltage, battery life, Hertz, timer, and startup mode.
- Rychlé nabíjení USB-C: Convenient and quick charging in approximately 2-2.5 hours.
- Duální režim: Operates wirelessly with the integrated battery or wired via the included RCA adapter.
5. Nastavení
5.1 Nabíjení baterie

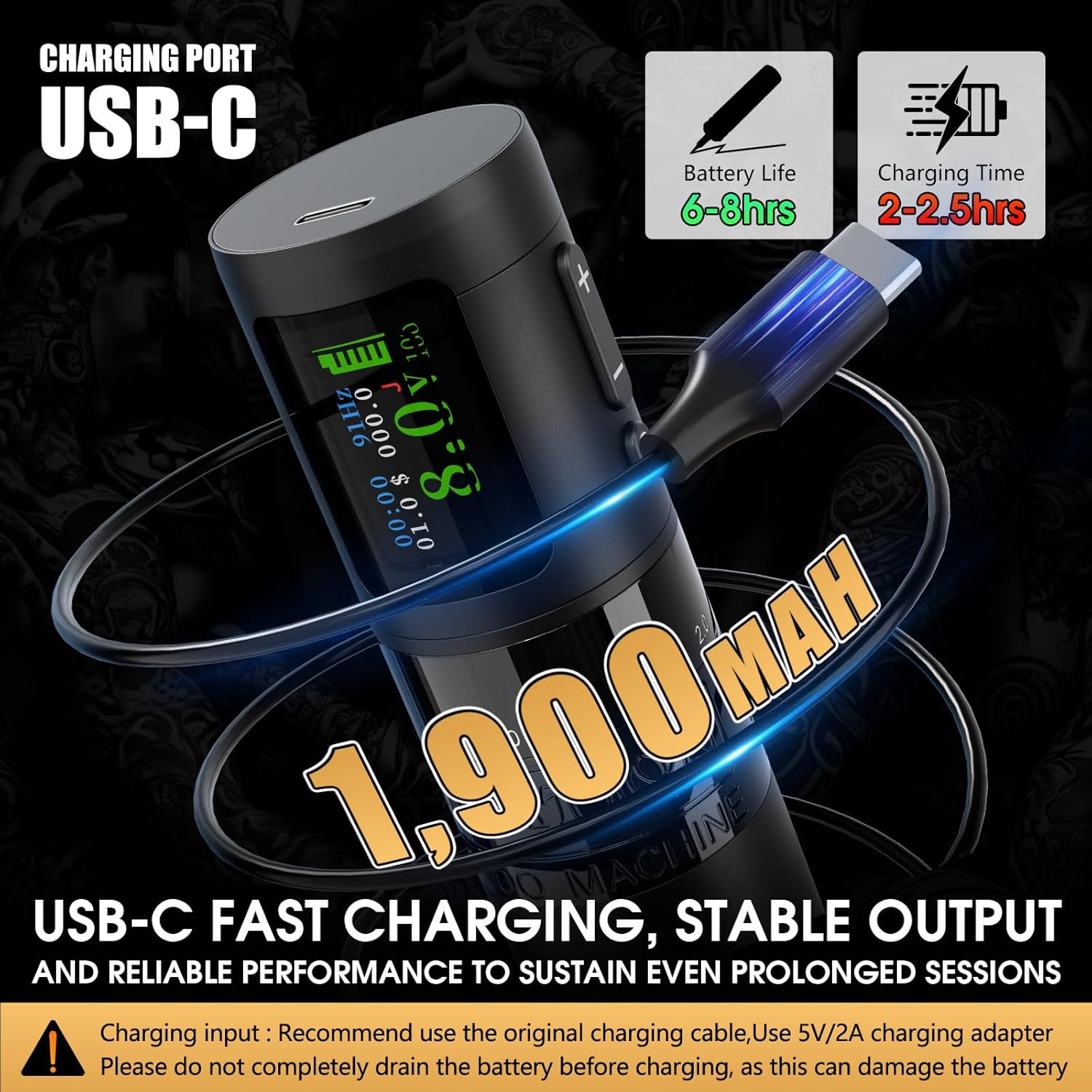

Image: The Ambition C1 Tattoo Machine connected via USB-C for fast charging, emphasizing its 1900mAh battery, 6-8 hours battery life, and 2-2.5 hours charging time. A warning advises using the original charging cable and a 5V/2A adapter, and not to completely drain the battery.
- Connect the provided USB-C charging cable to the charging port on the machine.
- Plug the other end of the USB-C cable into a 5V/2A charging adapter (not included).
- The OLED display will indicate the charging status. A full charge typically takes 2-2.5 hours.
- It is recommended not to completely drain the battery before recharging to prolong battery life.
5.2 Installing a Cartridge Needle
- Ujistěte se, že je stroj vypnutý.
- Carefully insert a sterile tattoo cartridge needle into the machine's grip.
- Twist the cartridge gently until it locks securely into place.
5.3 Adjusting Needle Depth
- Rotate the grip of the machine clockwise or counter-clockwise to adjust the needle depth to your desired setting.
6. Návod k obsluze
6.1 Zapnutí/vypnutí
- To turn on: Press and hold the power button (located below the display) for a few seconds until the display illuminates.
- To turn off: Press and hold the power button again for a few seconds until the display turns off.
6.2 Nastavení hlasitostitage
- Once powered on, use the '+' and '-' buttons (located on the side of the machine) to increase or decrease the voltage.
- Voltage range is 4V to 12V, displayed on the OLED screen.
6.3 Adjusting Stroke
- The Ambition C1 features 7 adjustable stroke settings (2.0mm, 2.3mm, 2.6mm, 3.0mm, 3.4mm, 3.8mm, 4.2mm).
- Rotate the adjustable stroke ring on the machine body to select your desired stroke length.
6.4 Startup Modes
- The machine has two startup modes: 'J' (Jumpstart Mode) and 'S' (Standard Mode).
- Chcete-li přepínat mezi režimy, dvakrát klikněte na tlačítko napájení.
- Jumpstart Mode (J): Provides an initial 8V boost to help push larger needle groupings.
- Standard Mode (S): Starts at the set voltage without an initial boost.
7. Údržba
7.1 Čištění
- After each use, wipe the exterior of the machine with a clean, damp tkanina.
- For disinfection, use an appropriate surface disinfectant spray on the exterior, avoiding direct contact with internal components or ports.
- Do not use abrasive cleaners or immerse the machine in any liquid.
7.2 Skladování
- Store the machine in its original packaging or a protective case when not in use.
- Keep it in a cool, dry place away from direct sunlight and extreme temperatures.
7.3 Péče o baterii
- Charge the batteries regularly, even if the machine is not used frequently.
- Před nabíjením se vyhněte úplnému vybití baterie.
- If storing for an extended period, charge the battery to approximately 50-70% capacity.
8. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stroj se nezapne | Baterie je vybitá nebo není správně připojena. | Plně nabijte baterii. Ujistěte se, že je baterie bezpečně připojena. |
| Inconsistent power or weak performance | Low battery, loose connections, or dirty components. | Ensure the battery is fully charged. Check all connections. Clean the machine as per maintenance instructions. |
| Nadměrné vibrace nebo neobvyklý hluk | Cartridge needle not properly seated, or internal obstruction. | Ensure the cartridge needle is securely locked in place. Inspect for any visible obstructions. If the issue persists, contact customer support. |
| Displej nefunguje | Battery issue or display malfunction. | Ensure the battery is charged. If the problem continues, contact customer support. |
9. Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | Ctižádost |
| Model | C1 |
| Materiál | Hliníková slitina letecké třídy |
| Délka | 135 mm |
| Průměr rukojeti | 34 mm |
| Hmotnost položky | 237g (machine only), 445g (package weight) |
| Motor | Coreless Motor (9000 RPM at 8V) |
| Nastavitelný zdvih | 7 settings (2.0mm, 2.3mm, 2.6mm, 3.0mm, 3.4mm, 3.8mm, 4.2mm) |
| Kapacita baterie | 1900 mAh (na baterii) |
| Životnost baterie | 6-8 hours (per battery) |
| Doba nabíjení | Přibližně 2-2.5 hodiny |
| svtage Dosah | 4V-12V |
| Nabíjecí port | USB-C |
| Úroveň odolnosti proti vodě | Není odolný vůči vodě |
| Number of Pieces (Kit) | 40 |
| UPC / GTIN | 810174731927 |
10. Záruka a podpora
The Ambition C1 Wireless Tattoo Pen Machine comes with a manufacturer's warranty. For specific warranty terms, technical support, or service inquiries, please refer to the warranty card included in your package or contact Ambition customer service directly through their official website or the platform where you purchased the product. Please retain your proof of purchase for warranty claims.
