Konec produktuview
This automatic foam soap dispenser is designed for hands-free operation, promoting hygiene in various environments such as bathrooms, public toilets, and hospitals. It features a built-in LCD temperature display and a quick 0.25-second dispense time. The device is rechargeable via USB and incorporates an anti-leak design.
Key features include a 320ml capacity, 3-level foam volume control, and a high-sensitivity sensor for efficient and hygienic soap distribution.

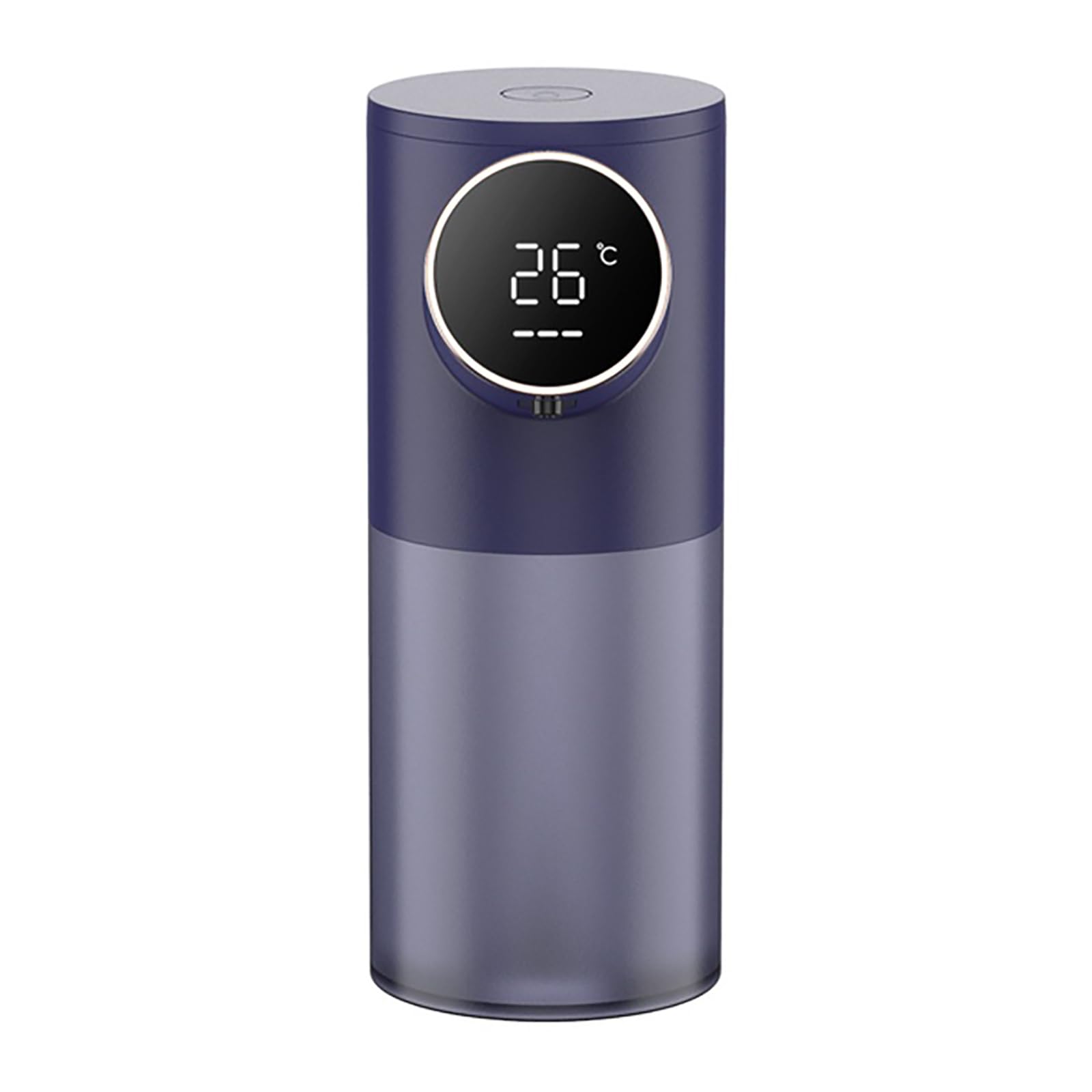

Image: The Automatic Soap Dispenser showing its dimensions (187mm height, 75mm width) and the LCD screen displaying 26°C. A USB-C charging cable is also visible.
Obsah balení
- 1 x Automatic Soap Dispenser
- 1 x USB kabel (typu C)
Note: Soap fluid is not included in the package.
Pokyny pro nastavení
- Nabíjení zařízení: Before first use, fully charge the dispenser using the provided Type-C USB cable. Connect the cable to the dispenser's charging port and a suitable USB power adapter (not included). The display will indicate charging status. A full charge provides up to three months of standby time.
- Filling with Soap:
- Gently twist and remove the top cap of the dispenser.
- Pour foam soap directly into the 320ml reservoir. If using liquid soap, dilute it with water at a ratio of 1:3 to 1:5 (soap to water) for optimal foaming. Stir gently.
- Replace the top cap, ensuring it is securely twisted to prevent leaks.
- Umístění: Place the dispenser on a flat, stable surface in your desired location. Ensure the sensor area is clear of obstructions.
Návod k obsluze
- Zapnutí/vypnutí: Press and hold the power button (usually located on the top or back) for a few seconds to turn the dispenser on or off. The LCD screen will illuminate when powered on.
- Dispensing Foam: Place your hand under the nozzle. The high-sensitivity sensor will detect your hand, and foam will be dispensed automatically within 0.25 seconds.
- Adjusting Foam Volume: Tap the power button briefly to cycle through the 3-level foam volume settings (0.7ml, 0.85ml, 1ml). The current level may be indicated on the LCD display or by a light indicator.
- Checking Temperature: The built-in high-sensitive temperature sensor continuously monitors the environmental temperature. Tap the top button to view the current temperature on the LCD display.
- Úroveň baterie: The LCD display also shows the remaining power level. Recharge the device when the battery indicator is low.
Údržba
- Čištění exteriéru: Otřete vnější část dávkovače měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky ani neponořujte zařízení do vody.
- Čištění trysky: Pokud se tryska ucpe, jemně ji otřeteamp cloth. Do not use sharp objects to clear the nozzle.
- Doplňování: When refilling, ensure no water enters the battery compartment or charging port. Always secure the top cap tightly after refilling.
- Skladování: If storing the dispenser for an extended period, ensure it is clean, dry, and fully charged. Store in a cool, dry place.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Dávkovač se nezapne. | Slabá baterie nebo není nabitá. | Charge the dispenser fully using the provided USB cable. |
| Nevydává se žádná pěna. |
|
|
| Foam volume is inconsistent. | Incorrect soap dilution or low battery. | Adjust soap dilution. Ensure the dispenser is fully charged. |
| Zobrazení teploty je nepřesné. | Environmental factors or sensor issue. | Ensure the dispenser is not exposed to direct heat sources or extreme cold. If the issue persists, contact support. |
Specifikace
- Hlavní materiál: ABS plast
- Kapacita vodní nádrže: 320 ml
- Rozměry: 7.5 cm (Š) x 10.8 cm (H) x 18.7 cm (V)
- Kapacita baterie: 1500 XNUMX mAh
- Napájení: Type-C rechargeable
- Dispense Time: 0.25 sekund
- Foam Volume Control: 3 levels (0.7ml, 0.85ml, 1ml)
- Číslo modelu: A-1
Záruka a podpora
This product is manufactured by Generic. For warranty information or technical support, please refer to the retailer's return policy or contact the seller directly through your purchase platform. Keep your purchase receipt for any warranty claims.
