Generic PCIe 3.0 x8 to Quad M.2 NVMe SSD Adapter Card

1. Úvod

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Generic PCIe 3.0 x8 to Quad M.2 NVMe SSD Adapter Card. This adapter card is designed to expand your system's storage capabilities by allowing the connection of up to four M.2 NVMe SSDs through a single PCIe 3.0 x8 slot. It features a PLX 8747 switch chipset for efficient data management and includes an active cooling fan to maintain optimal operating temperatures.

Please read this manual thoroughly before installation and use to ensure proper setup and to maximize the performance and longevity of your device.

2. Bezpečnostní informace

• Před instalací nebo demontáží jakýchkoli vnitřních součástí vždy vypněte počítač a odpojte jej od zdroje napájení.
• Wear an anti-static wrist strap to prevent electrostatic discharge (ESD) damage to the adapter card and other computer components.
• Handle the adapter card by its edges to avoid touching sensitive components.
• Zajistěte dostatečné větrání uvnitř skříně počítače, abyste zabránili přehřátí.
• Nevystavujte zařízení vlhkosti nebo extrémním teplotám.

3. Obsah balení

Please verify that all items are present and in good condition upon opening the package. If any items are missing or damaged, contact your vendor for assistance.

• PCIe 3.0 x8 to Quad M.2 NVMe SSD Adapter Card
• Full-height bracket (pre-installed)
• Low-profile bracket (optional, may be included)
• Mounting screws for M.2 SSDs
• Uživatelská příručka (tento dokument)

4. Konec produktuview

The Generic PCIe 3.0 x8 to Quad M.2 NVMe SSD Adapter Card is designed for high-performance storage expansion. It features a PLX 8747 switch, enabling independent operation of up to four M.2 NVMe SSDs without relying on motherboard PCIe bifurcation. The card supports M.2 SSDs of 2242, 2260, and 2280mm lengths and includes an active cooling fan for thermal management.

Obrázek 4.1: Nahoře view of the PCIe 3.0 x8 to Quad M.2 NVMe SSD Adapter Card.

Obrázek 4.2: Úhlové view highlighting the cooling fan and M.2 NVMe SSD slots.

Klíčové vlastnosti:

• PCIe 3.0 x8 Interface: Provides high-bandwidth data transfer.
• PLX 8747 Switch Chipset: Ensures high-performance, non-blocking switch fabric with full line rate on all ports.
• Quad M.2 NVMe SSD Support: Connects up to four M.2 NVMe SSDs simultaneously.
• Versatile Form Factor Support: Compatible with 2242, 2260, and 2280mm M.2 SSDs.
• Active Cooling Fan: Maintains optimal operating temperatures for sustained performance.
• Nezávislý provoz: Does not rely on PCIe bifurcation from the CPU or PCH.
• Kompatibilita operačního systému: Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later.

5. Nastavení a instalace

5.1 Kontrolní seznam před instalací

• Ensure your computer has an available PCIe 3.0 x8 or larger slot.
• Confirm your operating system is compatible (Windows 10/11, Windows 2016 Server, Linux Kernel 3.3+).
• Připravte si potřebné nástroje: křížový šroubovák, antistatický náramek.

5.2 Installing M.2 NVMe SSDs onto the Adapter Card

1. Carefully align your M.2 NVMe SSD with an available M.2 slot on the adapter card. The keying (notch) on the SSD must match the slot.
2. Gently insert the M.2 SSD into the slot at a slight angle (approximately 30 degrees) until it is fully seated.
3. Press the SSD down towards the adapter card and secure it with the provided mounting screw. Repeat for additional SSDs.

5.3 Installing the Adapter Card into Your Computer

1. Vypněte počítač a odpojte napájecí kabel.
2. Otevřete skříň počítače.
3. Locate an available PCIe 3.0 x8 or larger slot on your motherboard. Remove the corresponding expansion slot cover from the computer case.
4. Carefully align the adapter card's PCIe connector with the motherboard's PCIe slot.
5. Apply even pressure to both ends of the adapter card until it is fully seated in the slot. Ensure the metal bracket is flush with the case opening.
6. Secure the adapter card's bracket to the computer case with a screw.
7. Zavřete skříň počítače a znovu připojte napájecí kabel.

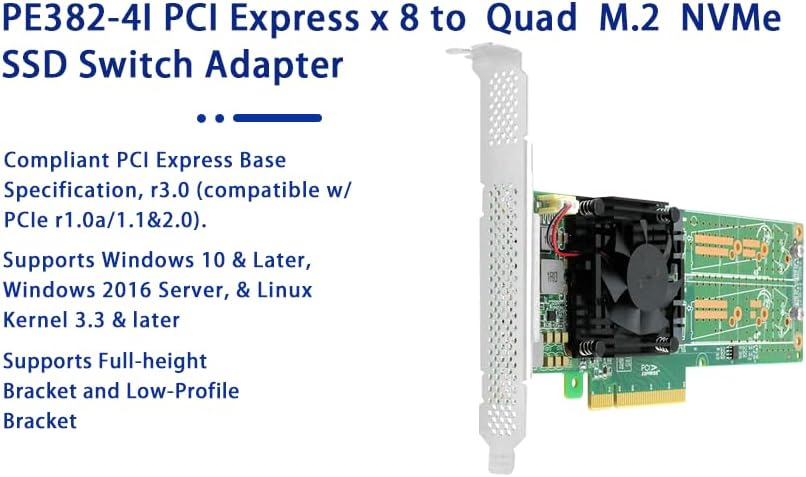

Figure 5.1: Adapter card showing full-height bracket and supported operating systems.

6. Návod k obsluze

6.1 První zapnutí

After physical installation, power on your computer. The operating system should detect the new hardware. For Windows, the M.2 NVMe SSDs will typically appear as uninitialized drives in Disk Management. For Linux, they will appear as new block devices.

6.2 Initializing and Formatting SSDs

Before use, new SSDs must be initialized and formatted. Refer to your operating system's documentation for detailed steps:

• Windows: Open 'Disk Management', right-click on the uninitialized disk, select 'Initialize Disk', choose MBR or GPT partition style, then create and format new volumes.
• Linux: Používejte utility jako fdisk, gpartednebo mkfs to partition and format the new block devices.

6.3 Instalace ovladače

Modern operating systems typically include native NVMe drivers. No additional drivers are usually required for the adapter card itself. If an SSD is not recognized, ensure your operating system is up-to-date and check the SSD manufacturer's website for specific drivers.

7. Údržba

7.1 chladicí ventilátor

The adapter card includes an active cooling fan. Periodically inspect the fan for dust accumulation. If dust buildup is significant, carefully clean the fan blades with compressed air while the computer is powered off and disconnected from the power source. Do not obstruct the fan's airflow.

7.2 Obecná péče

• Ensure your computer's internal environment is clean and free of excessive dust.
• Avoid physical shock or vibration to the computer, especially when operating.

8. Řešení problémů

8.1 Adapter Card Not Detected

• Zkontrolujte slot PCIe: Ensure the adapter card is fully seated in a compatible PCIe 3.0 x8 or larger slot. Try a different PCIe slot if available.
• Moc: Verify the computer's power supply is adequate for all installed components.
• Nastavení BIOSu/UEFI: Check your motherboard's BIOS/UEFI settings to ensure the PCIe slot is enabled and configured correctly. Some motherboards may have specific settings for NVMe devices.

8.2 M.2 NVMe SSDs Not Recognized

• Sedadla SSD: Ensure each M.2 NVMe SSD is properly seated and secured in its slot on the adapter card.
• Initialization/Formatting: New SSDs must be initialized and formatted by the operating system before they appear as usable storage. Refer to Section 6.2.
• Kompatibilita SSD: Verify that your M.2 SSDs are NVMe type. This adapter card does not support SATA M.2 SSDs.
• Operační systém: Ensure your operating system is compatible and up-to-date.

8.3 Problémy s výkonem

• PCIe Slot Speed: Ensure the adapter card is installed in a PCIe 3.0 x8 or faster slot to achieve optimal performance. Using a slower slot (e.g., x4) will limit bandwidth.
• Chlazení: Verify the cooling fan is operating correctly and is free of obstructions. High temperatures can throttle SSD performance.
• Systémové zdroje: Ensure your system's CPU and RAM are not bottlenecks for storage operations.

9. Specifikace

Obrázek 9.1: Rozměry produktu.

10. Informace o záruce

For specific warranty terms and conditions, please refer to the manufacturer's official webnebo se obraťte na prodejce. Uschovejte si doklad o koupi pro případ reklamace.

11. Technická podpora

If you encounter issues not covered in this manual or require further assistance, please contact the manufacturer or your vendor's technical support department. Provide your product model number (STC PE382-4IL-47) and a detailed description of the problem.
