Uživatelská příručka k elektrickému kráječi masa iBELL MS2330MN

Zavedení

Thank you for choosing the iBELL MS2330MN Electric Meat Slicer. This heavy-duty appliance is designed for efficient and precise slicing, chopping, and mincing of various food items, including boneless meat, bread, cheese, and vegetables. Featuring a powerful 1000W motor and a durable stainless steel blade, this slicer ensures consistent results and ease of use. Please read this manual thoroughly before operation to ensure safe and optimal performance.

Figure 1: The iBELL MS2330MN Electric Meat Slicer, showcasing its robust design and a piece of meat ready for slicing.

Bezpečnostní opatření

Vždy dodržujte následující bezpečnostní pokyny, abyste předešli zranění nebo poškození spotřebiče:

• Před použitím si přečtěte všechny pokyny.
• Keep hands clear of the blade at all times. Use the food pusher/safety guard.
• Před čištěním, montáží nebo demontáží se ujistěte, že je spotřebič odpojený od sítě.
• Neponořujte motorovou jednotku do vody nebo jiné kapaliny.
• Supervise children closely if they are near the appliance.
• Do not operate the slicer with a damaged cord or plug.
• Place the slicer on a stable, flat, and dry surface.
• Tento spotřebič je určen pouze pro použití v domácnosti.

Nastavení a montáž

Before first use, carefully unpack all components and ensure nothing is missing or damaged. The package includes the main slicer unit, a safety guard, a user manual, and a warranty card.

1. Remove all packaging materials and protective films from the slicer.
2. Wipe down all parts that will come into contact with food using a damp tkanina.
3. Place the slicer on a clean, stable, and dry countertop. Ensure there is adequate space around the unit for safe operation.
4. Attach the safety guard (food pusher) to the carriage. Ensure it slides smoothly.

Figure 2: The adjustable safety guard, essential for safe operation and guiding food during slicing.

Návod k obsluze

Follow these steps for effective and safe operation of your iBELL meat slicer:

1. Připravit jídlo: Ensure food items are boneless and of a suitable size to fit on the carriage. For best results, slightly chill meats before slicing.
2. Úprava tloušťky: Use the customizable slicer adjustment knob to select your desired slice thickness, ranging from 0mm (paper-thin) to 15mm.
3. Místo Jídlo: Position the food item firmly against the food guide plate and the safety guard on the sliding carriage.
4. Zapnutí: Plug the slicer into a grounded electrical outlet. Turn on the appliance using the power switch.
5. Plátek: While the blade is rotating, gently push the sliding carriage back and forth, guiding the food towards the rotating blade using the safety guard. Apply even pressure.
6. Sbírejte plátky: Nakrájené potraviny budou padat na sběrnou misku nebo na povrch pod čepelí.
7. Vypnout: Once slicing is complete, turn off the appliance and unplug it from the power outlet. Wait for the blade to come to a complete stop before handling.

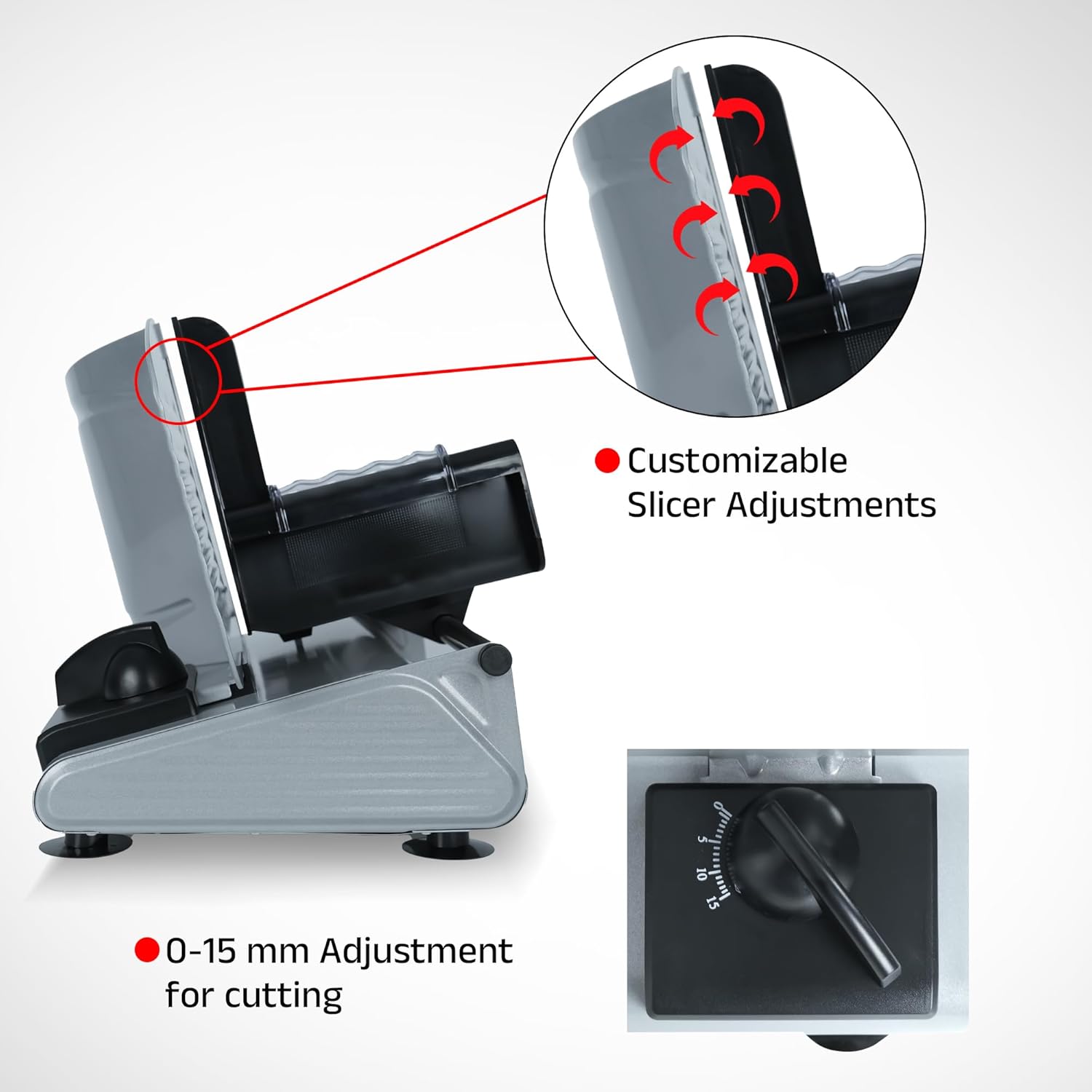

Figure 3: The thickness adjustment knob allows for precise control over slice thickness from 0-15mm.

Figure 4: The iBELL MS2330MN is a multipurpose slicer, capable of handling boneless meat, bread, cheese, and various vegetables.

Údržba a čištění

Regular cleaning and maintenance will prolong the life of your slicer and ensure hygienic operation.

• Vždy odpojte ze zásuvky: Ensure the slicer is unplugged from the power outlet before cleaning.
• Čištění čepele: Carefully remove the blade (refer to specific instructions in the included user manual for blade removal if applicable, as this model's manual is not provided). Wash the blade with warm, soapy water. Use caution as the blade is extremely sharp.
• Čištění příslušenství: All removable accessories, such as the food carriage and safety guard, can be washed with warm, soapy water. Rinse thoroughly and dry completely.
• Tělo stroje: The main machine body should be wiped clean with a damp tkanina. Neponořujte motorovou jednotku do vody.
• Sušení: Před opětovnou montáží nebo uložením kráječe se ujistěte, že jsou všechny díly zcela suché.
• Skladování: Store the slicer in a clean, dry place, away from direct sunlight and moisture.

Odstraňování problémů

If you encounter issues with your iBELL MS2330MN Electric Meat Slicer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact iBELL customer support.

Specifikace

Figure 5: Product dimensions of the iBELL MS2330MN Electric Meat Slicer.

Záruka a podpora

Your iBELL MS2330MN Electric Meat Slicer comes with a comprehensive warranty and dedicated support.

• Záruční doba: The product includes a 6 Months Standard Warranty. An additional 6 Months Warranty can be obtained upon registration. Registration must be completed within 30 days from the date of purchase.
• Zahrnuté komponenty: The product package contains a Safety Guard, this User Manual, and a Warranty Card. Please retain your purchase receipt for warranty claims.
• Výrobce / dovozce: Innovative Technologies, Fida's Building, Thottumugham P.O, Aluva, Kerala - 683105.
• Zákaznická podpora: For any queries, assistance, or warranty claims, please contact:
  • Telefon: 1800 2020 260
  • E-mail: connect@ibellstore.com

Figure 6: Warranty details for the iBELL MS2330MN Electric Meat Slicer.
