1. Úvod

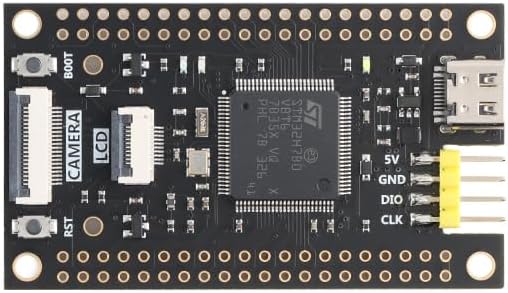

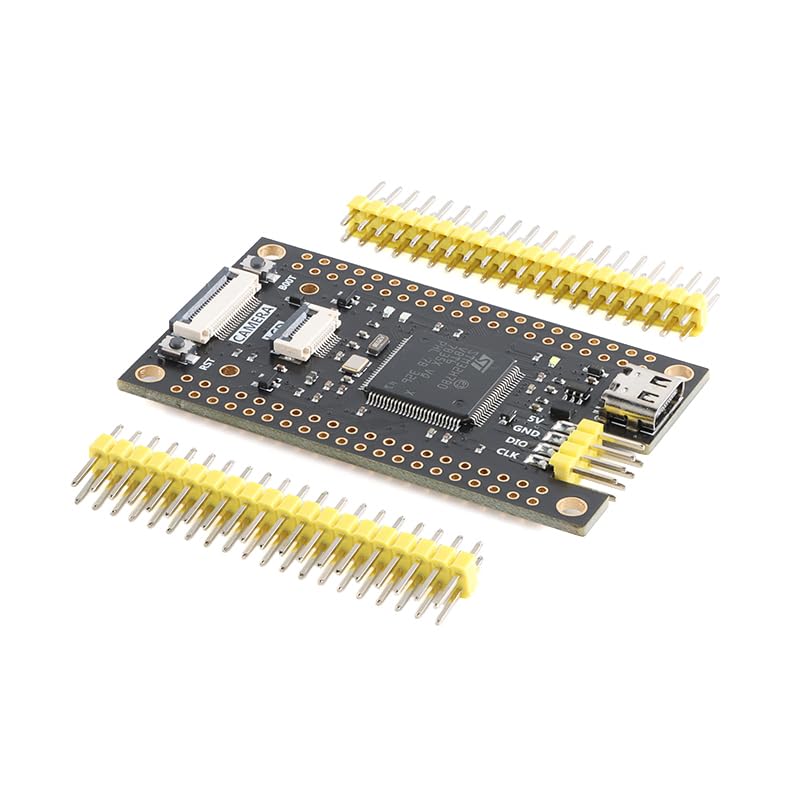

This manual provides essential information for the proper setup, operation, and maintenance of your EC Buying STM32H7B0VBT6 Core Board. This development board is designed around the STM32H7B0 microcontroller, offering high performance for various embedded applications, including camera and display modules.
2. Nastavení
Follow these steps to set up your STM32H7B0VBT6 Core Board:
- Připojení napájení: Connect the board to a power source using the Type-C USB interface. Ensure the power supply meets the board's voltage požadavky.
- Instalace ovladače: Install necessary USB drivers on your computer if the board is not automatically recognized. Refer to the official STMicroelectronics documentation for specific driver details.
- Vývojové prostředí: Set up your preferred Integrated Development Environment (IDE), such as STM32CubeIDE or Keil MDK, and configure it for the STM32H7B0 microcontroller.
- Periferní integrace: For applications requiring display or camera functionality, connect your SPI LCD or camera module to the dedicated interfaces on the board. The board features 73 IO ports for extensive customization and peripheral integration.
- Externí paměť: If utilizing the 8M byte W25Q64 external memory, ensure it is properly connected and configured within your software project.
3. Návod k obsluze
The STM32H7B0VBT6 Core Board is designed for efficient development with several user-friendly features:
- Bootloader Access: To enter bootloader mode, press and hold the BOOT button while powering on or resetting the board. This allows for easy firmware flashing.
- Resetovací funkce: The RST button allows for a hardware reset of the microcontroller, restarting the program execution.
- Uživatelské tlačítko: A dedicated user button is available for custom application input, configurable within your firmware.
- LED indikátor: An onboard LED provides visual feedback, often used for power indication, status, or debugging purposes.
- Programování: Utilize the Type-C USB interface for programming and debugging. The board operates at a 280MHz main frequency, leveraging 128K Flash and 1.4M SRAM for robust application development.
4. Údržba
To ensure the longevity and optimal performance of your STM32H7B0VBT6 Core Board, observe the following maintenance guidelines:
- Podmínky prostředí: Operate the board within its specified temperature range of -30°C to 80°C. Avoid exposure to extreme humidity, dust, or corrosive environments.
- Čištění: V případě potřeby desku jemně očistěte měkkým, suchým kartáčem nebo stlačeným vzduchem, abyste odstranili prach. Nepoužívejte kapaliny ani abrazivní materiály.
- Konektivita: Ensure all connections, especially the Type-C USB and peripheral connectors, are secure and free from damage.
- Aktualizace firmwaru: Regularly check for and apply firmware updates for the STM32H7B0 microcontroller and associated libraries to benefit from performance improvements and bug fixes.
5. Řešení problémů
If you encounter issues with your STM32H7B0VBT6 Core Board, consider the following:
- Není napájení/LED dioda nesvítí:
- Verify the Type-C USB cable is securely connected to both the board and the power source.
- Ensure the power source is functional and provides adequate voltage.
- Deska nebyla počítačem rozpoznána:
- Check USB cable integrity.
- Confirm that the correct USB drivers are installed on your computer.
- Zkuste jiný port USB nebo počítač.
- Chyba při nahrávání firmwaru:
- Ensure the board is in bootloader mode (if required by your programming method).
- Verify your IDE settings and programmer configuration are correct for the STM32H7B0.
- Check for any error messages from the IDE or programming tool.
- Peripheral Malfunction (LCD/Camera):
- Confirm all connections to the peripheral are correct and secure.
- Verify that your firmware correctly initializes and communicates with the peripheral.
- Consult the peripheral's datasheet and exampkód.
For more complex issues, refer to the official STMicroelectronics documentation for the STM32H7B0 microcontroller or seek assistance from the EC Buying support team.
6. Specifikace
Key technical specifications for the STM32H7B0VBT6 Core Board:
| Funkce | Detail |
|---|---|
| Název modelu | STM32H7B0VBT6 |
| Rychlost CPU | 280 MHz |
| Flash paměť | 128 kB |
| Paměť SRAM | 1.4 MB |
| Externí paměť | 8 MB W25Q64 (QSPI) |
| IO porty | 73 |
| Konektivita | USB Type-C |
| Rozhraní | SPI LCD, Camera Interface |
| Provozní teplota | -30 °C až 80 °C |
| Operating System (Compatible) | FreeRTOS |
| Značka procesoru | STMicroelectronics |
| Kompatibilní zařízení | Cameras, Computers (PCs, laptops, tablets), Smartphones |
7. Informace o záruce
EC Buying warrants this product against defects in materials and workmanship for a period of 30 days from the original date of purchase. This warranty does not cover damage caused by accident, misuse, abuse, improper installation, unauthorized repair or modification, or external causes such as but not limited to power fluctuations or lightning strikes. For warranty claims, please retain your proof of purchase and contact customer support.
8. Zákaznická podpora
For technical assistance, troubleshooting, or general inquiries regarding your EC Buying STM32H7B0VBT6 Core Board, please visit the EC Buying store on Amazon or contact their customer service directly through the platform. Ensure you have your product model number (STM32H7B0VBT6) and purchase details ready when contacting support.
