Dishwasher Water Inlet Valve Instruction Manual

1. Úvod

This manual provides essential information for the installation, operation, and maintenance of the Generic Dishwasher Water Inlet Valve, model DU1300XTVQ8. This component is designed to control the flow of water into your dishwasher during wash cycles. Proper installation and care ensure optimal performance and longevity of your appliance.

2. Bezpečnostní informace

WARNING: Before attempting any repair or installation, always disconnect power to the dishwasher at the circuit breaker and turn off the water supply to prevent electric shock or water damage.

• Používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochranné brýle.
• Ujistěte se, že pracovní prostor je suchý a dobře osvětlený.
• Pokud si nejste jisti některým krokem, poraďte se s kvalifikovaným technikem pro spotřebiče.
• Udržujte děti a domácí zvířata mimo pracovní oblast.

3. Kompatibilita

This water inlet valve is compatible with a wide range of dishwasher models from various brands. Please verify your dishwasher's model number against the list below to ensure compatibility.

Kompatibilní modely Whirlpool: DU1055XTVS8, DU1055XTVSA, DU1055XTVT6, DU1055XTVT7, DU1055XTVT8, DU1055XTVTA, DU1300XTVB6, DU1300XTVB7, DU1300XTVB8, DU1300XTVQ6, DU1300XTVQ7, DU1300XTVQ8, 7DU1100XTSQ5, 7DU1100XTSS5, 7GU3800XTVY6, 7WDF530PAYM0, 7WDF530PAYM1, 7WDF530PAYM2, 7WDF530PAYM3, 7WDF530PAYM4, 7WDF530PAYM5, 7WDF530PAYM6, 7WDF530PAYM7, DP1040XTXB4, DP1040XTXB6, DP1040XTXQ4, DP1040XTXQ6, DU1010XTXB3, DU1010XTXB5, DU1010XTXD3, DU1010XTXD5, DU1010XTXQ3, DU1010XTXQ5, DU1010XTXT3, DU1010XTXT5, DU1014XTXB3, DU1014XTXB4, DU1014XTXB5, DU1014XTXD3, DU1014XTXD4, DU1014XTXD5, DU1014XTXQ3, DU1014XTXQ4, DU1014XTXQ5, DU1014XTXT3, DU1014XTXT4, DU1014XTXT5, DU1015XTXB3, DU1015XTXB4, DU1015XTXB5, DU1015XTXD3, DU1015XTXD4, DU1015XTXD5, DU1015XTXQ3, DU1015XTXQ4, DU1015XTXQ5, DU1015XTXS3, DU1015XTXS4, DU1015XTXS5, DU1015XTXT3, DU1015XTXT4, DU1015XTXT5, DU1030XTXB3, DU1030XTXB4, DU1030XTXB5, DU1030XTXQ3, DU1030XTXQ4, DU1030XTXQ5, DU1030XTXS3, DU1030XTXS4, DU1030XTXS5, DU1030XTXT3, DU1030XTXT4, DU1030XTXT5, DU1055XTVB6, DU1055XTVB7, DU1055XTVB8, DU1055XTVBA, DU1055XTVD6, DU1055XTVD7, DU1055XTVD8, DU1055XTVDA, DU1055XTVQ6, DU1055XTVQ7, DU1055XTVQ8, DU1055XTVQA, DU1055XTVS6, DU1055XTVS7, DU1055XTVS8, DU1055XTVSA, DU1055XTVT6, DU1055XTVT7, DU1055XTVT8, DU1055XTVTA, DU1300XTVS6, DU1300XTVS7, DU1300XTVS8, DU1300XTVT6, DU1300XTVT7, DU1300XTVT8, DU1301XTVB5, DU1301XTVQ5, DU1301XTVS5, DU1301XTVT5, DU1345XTVB5, DU1345XTVQ5, GU3000XTXB3, GU3000XTXQ3, GU3000XTXS3, GU3200XTXB4, GU3200XTXQ4, GU3200XTXY4, KDTE204DSS0.

Kompatibilní modely Kenmore: 66514043K010, 66514043K014, 66514043K015, 66514312N410, 66514312N411, 66514312N412, 66514312N413, 66514313N410, 66514313N411, 66514313N412, 66514313N413, 66514319N410, 66514319N411, 66514319N412, 66514319N413, 66514422N510, 66514422N511, 66514423N510, 66514423N511, 66514429N510, 66514429N511, 66514502N020, 66514503N020, 66514509N020, 66514522N610, 66514522N611, 66514523N610, 66514523N611, 66514529N610, 66514529N611, 66514542N710, 66514542N711, 66514543N710, 66514543N711, 66514545N710, 66514545N711, 66514549N710, 66514549N711, 66514552N610, 66514553N610, 66514559N610, 66514562N610, 66514562N611, 66514563N610, 66514563N611, 66514565N610, 66514565N611, 66514569N610, 66514569N611, 66514572N610, 66514572N611, 66514572N612, 66514573N610, 66514573N611, 66514573N612, 66514579N610, 66514579N611, 66514579N612, 66515023K110, 66515023K112, 66515023K113, 66515112K210, 66515112K211, 66515112K212, 66515112K213, 66515112K214, 66515112K215, 66515112K216, 66515112K217, 66515112K218, 66515113K210, 66515113K211, 66515113K212, 66515113K213, 66515113K214, 66515113K215, 66515113K216, 66515113K217, 66515113K218, 66515114K210, 66515114K211, 66515114K212, 66515114K213, 66515114K214, 66515114K215, 66515114K216, 66515114K217, 66515114K218, 66515119K210, 66515119K211, 66515119K212, 66515119K213, 66515119K214, 66515119K215, 66515119K216, 66515119K218, 66515692K210, 66515692K211, 66515692K212, 66515693K210, 66515693K211, 66515693K212, 66515699K210, 66515699K211, 66515699K212, 66517152K210, 66517152K211, 66517152K212, 66517152K213, 66517152K214, 66517152K215, 66517152K217, 66517159K210, 66517159K211, 66517159K212, 66517159K213, 66517159K214, 66517159K215, 66517159K217, 66517382N710, 66517383N710, 66517389N710, 66517482N710, 66517489N710, 66517742K013, 66517742K014, 66517742K015, 66517742K016, 66517749K013, 66517749K014, 66517749K015, 66517749K016.

Compatible Amana Models: ADB1100AWB0, ADB1100AWB1, ADB1100AWB2, ADB1100AWB3, ADB1100AWB4, ADB1100AWB5, ADB1100AWS0, ADB1100AWS1, ADB1100AWS2, ADB1100AWS3, ADB1100AWS4, ADB1100AWS5, ADB1100AWW0, ADB1100AWW1, ADB1100AWW2, ADB1100AWW3, ADB1100AWW4, ADB1100AWW5, ADB1300AFB0, ADB1300AFB1, ADB1300AFS0, ADB1300AFS1, ADB1300AFW0, ADB1300AFW1, ADB1400AGB0, ADB1400AGB1, ADB1400AGB3, ADB1400AGS0, ADB1400AGS1, ADB1400AGS2, ADB1400AGS3, ADB1400AGW0, ADB1400AGW1, ADB1400AGW3, ADB1400AMB0, ADB1400AMS0, ADB1400AWB3, ADB1400AWB4, ADB1400AWB5, ADB1400AWD3, ADB1400AWD4, ADB1400AWD5, ADB1400AWQ3, ADB1400AWQ4, ADB1400AWQ5, ADB1400AWS3, ADB1400AWS4, ADB1400AWS5, ADB1400AWW3, ADB1400AWW4, ADB1400AWW5, ADB1400PYB0, ADB1400PYB1, ADB1400PYB2, ADB1400PYB3, ADB1400PYB4, ADB1400PYB5, ADB1400PYB6, ADB1400PYD0, ADB1400PYD1, ADB1400PYD2, ADB1400PYD3, ADB1400PYD4, ADB1400PYS0, ADB1400PYS1, ADB1400PYS2, ADB1400PYS3, ADB1400PYS4, ADB1400PYS5, ADB1400PYS6, ADB1400PYW0, ADB1400PYW1, ADB1400PYW2, ADB1400PYW3, ADB1400PYW4, ADB1400PYW5, ADB1400PYW6, ADB1500ADB1, ADB1500ADB2, ADB1500ADB3, ADB1500ADB4, ADB1500ADS1, ADB1500ADS2, ADB1500ADS3, ADB1500ADS4, ADB1500ADW1, ADB1500ADW2, ADB1500ADW3, ADB1500ADW4, ADB1600AWB4, ADB1600AWD4, ADB1600AWQ4, ADB1600AWS4, ADB1600AWW4.

Compatible Magic Chef Models: CDB7000AWB3, CDB7000AWB4, CDB7000AWB5, CDB7000AWS3, CDB7000AWS4, CDB7000AWS5, CDB7000AWW3, CDB7000AWW4, CDB7000AWW5.

Compatible Crosley Models: CUD6710XB3, CUD6710XQ3.

Compatible Ikea Models: IDF320PAFW0, IDF320PAFW1, IDF330PAGW0, IUD3100BW0, IUD3100BW1, IUD3100BW2, IUD3100BW3, IUD3100BW4, IUD3100BW5, IUD6100BB0, IUD6100BB1, IUD6100BB2, IUD6100BB3, IUD6100YW0, IUD6100YW1, IUD7070DS0, IUD7070DS1, IUD7070DS2, IUD7070DS3, IUD8000WQ4, IUD8000WQ5, IUD8000WS4, IUD8000WS5, IUD8100YS0, IUD8100YS1, IUD8100YS2, IUD8100YS3, IUD8100YS4, IUD9500WX4, IUD9750WS4.

Compatible Inglis Models: IWU98664, IWU98665, IWU98760, IWU98761.

4. Konec produktuview

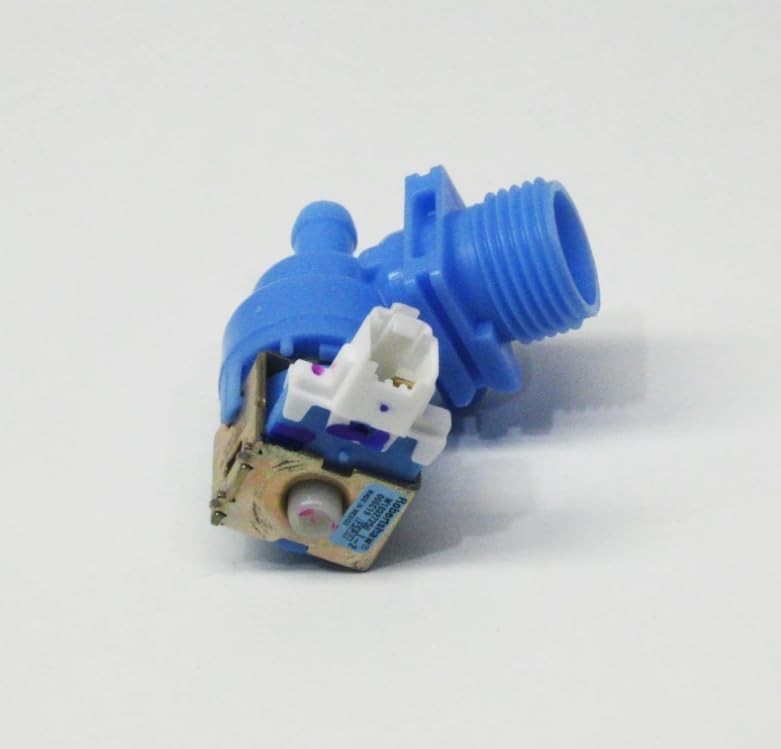

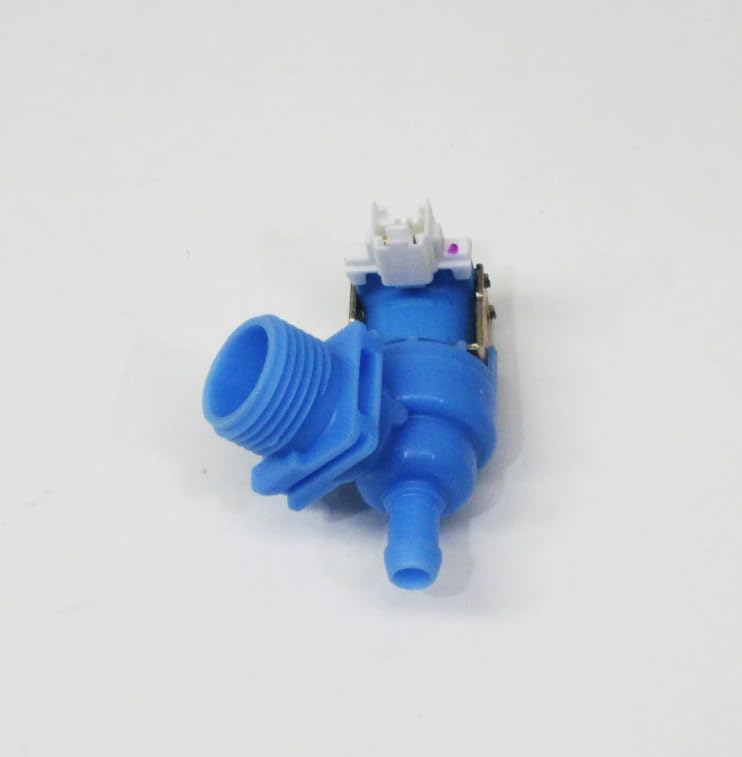

The dishwasher water inlet valve is a critical component that regulates the flow of water into the dishwasher tub. It typically consists of an electromagnetic solenoid that opens and closes a valve in response to electrical signals from the dishwasher's control board. It also includes a screen filter to prevent debris from entering the dishwasher.

5. Instalace (Nastavení)

This section outlines the general steps for replacing a dishwasher water inlet valve. Specific steps may vary slightly depending on your dishwasher model. Always refer to your dishwasher's service manual for detailed instructions.

1. Odpojit napájení: Vyhledejte v domácnosti rozvaděč s jističi a vypněte jistič, který napájí myčku. Zkuste myčku zapnout a ověřte, zda je napájení vypnuté.
2. Vypněte přívod vody: Locate the water shut-off valve for the dishwasher, typically under the sink, and turn it off.
3. Přístup k ventilu: Depending on your dishwasher model, you may need to pull the dishwasher out from under the counter or remove the lower access panel to reach the water inlet valve.
4. Vypusťte zbytkovou vodu: Place a shallow pan or towels under the valve area to catch any residual water when disconnecting hoses.
5. Odpojení hadic a kabeláže: Carefully disconnect the water supply hose from the old valve. Disconnect the water outlet hose (if applicable) and the electrical wiring harness from the solenoid. Note the orientation of the wiring for reinstallation.
6. Demontáž starého ventilu: Odšroubujte nebo uvolněte starý přívodní ventil vody z jeho montážního držáku.
7. Instalace nového ventilu: Secure the new water inlet valve to the mounting bracket. Ensure it is firmly in place.
8. Znovu připojte hadice a kabeláž: Reconnect the water supply hose to the new valve's inlet, ensuring a tight, leak-free connection. Reconnect the water outlet hose (if applicable) and the electrical wiring harness to the solenoid.
9. Obnovení vody a elektřiny: Turn the water supply back on and check for any leaks around the connections. Once confirmed dry, restore power to the dishwasher at the circuit breaker.
10. Testovací provoz: Run a short wash cycle to ensure the dishwasher fills with water correctly and that there are no leaks.

6. Principy fungování

The water inlet valve operates as an electrically controlled switch for water flow. When the dishwasher's control board sends an electrical signal to the valve's solenoid, it energizes, opening the valve and allowing water to enter the dishwasher. When the desired water level is reached or the cycle progresses, the control board de-energizes the solenoid, causing the valve to close and stop the water flow.

7. Údržba

Regular maintenance of the water inlet valve is generally not required. However, if you experience issues with water filling, consider the following:

• Check Inlet Screen: The water inlet valve typically has a small mesh screen at its inlet to filter out sediment from the water supply. If water flow is restricted, turn off the water supply, disconnect the inlet hose, and inspect this screen for clogs. Clean it gently with a brush if necessary.
• Zkontrolujte netěsnosti: Periodically check the connections around the water inlet valve for any signs of leaks. Tighten connections if needed, but do not overtighten.

8. Řešení problémů

If your dishwasher is experiencing water-related issues, the water inlet valve may be a contributing factor. Here are some common problems and potential solutions:

• Dishwasher Not Filling with Water:
  Možné příčiny: Clogged inlet screen, faulty solenoid, no water pressure, or electrical issue.
  Řešení: Check water supply, clean inlet screen, test solenoid for continuity (requires a multimeter and technical knowledge).
• Dishwasher Fills Slowly:
  Možné příčiny: Partially clogged inlet screen, low water pressure.
  Řešení: Clean inlet screen, check household water pressure.
• Dishwasher Overfills or Continuously Fills:
  Možné příčiny: Faulty water inlet valve (stuck open), faulty float switch.
  Řešení: Replace the water inlet valve if it's not closing properly. Inspect the float switch for obstructions.
• Water Leaks from Valve Area:
  Možné příčiny: Loose connections, cracked valve housing, worn seals.
  Řešení: Tighten connections, replace the valve if housing is cracked or seals are damaged.

For complex issues, it is recommended to consult a professional appliance repair technician.

9. Specifikace

10. Záruka a podpora

Specific warranty information for this Generic Dishwasher Water Inlet Valve is not provided in the product details. Please refer to the retailer or manufacturer for any warranty claims or technical support inquiries.
