Generic UP1200+ 8-Channel LiPo/LiHV UAV Drone Battery Charger Instruction Manual

1. Úvod

Thank you for choosing the Generic UP1200+ 8-Channel LiPo/LiHV Battery Charger. This advanced charger is designed for UAV and drone batteries, offering high power output, multiple charging modes, and intelligent balancing capabilities. Please read this manual thoroughly before operating the device to ensure safe and efficient use.

2. Bezpečnostní pokyny

• Nabíječku vždy používejte v dobře větraném prostoru, mimo dosah hořlavých materiálů.
• Zajistěte vstupní objtage (AC 110V or 220V) matches your local power supply.
• Nikdy nenechávejte nabíječku během provozu bez dozoru.
• Only charge LiPo/LiHV batteries with this device. Charging other battery types may cause damage or fire.
• Verify battery cell count (2-6S) and capacity before charging.
• Do not short-circuit the charging ports.
• Chraňte nabíječku před vodou, vlhkostí a extrémními teplotami.
• In case of malfunction, disconnect power immediately and contact support.

3. Konec produktuview

The UP1200+ is an 8-channel intelligent charger featuring a 3.2-inch HD color display for clear status monitoring. It supports LiPo/LiHV batteries from 2S to 6S and offers various charging modes.

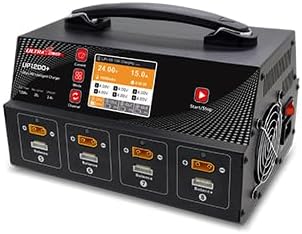

Obrázek 3.1: Přední view of the UP1200+ charger, showing the display, control buttons, and four charging ports.

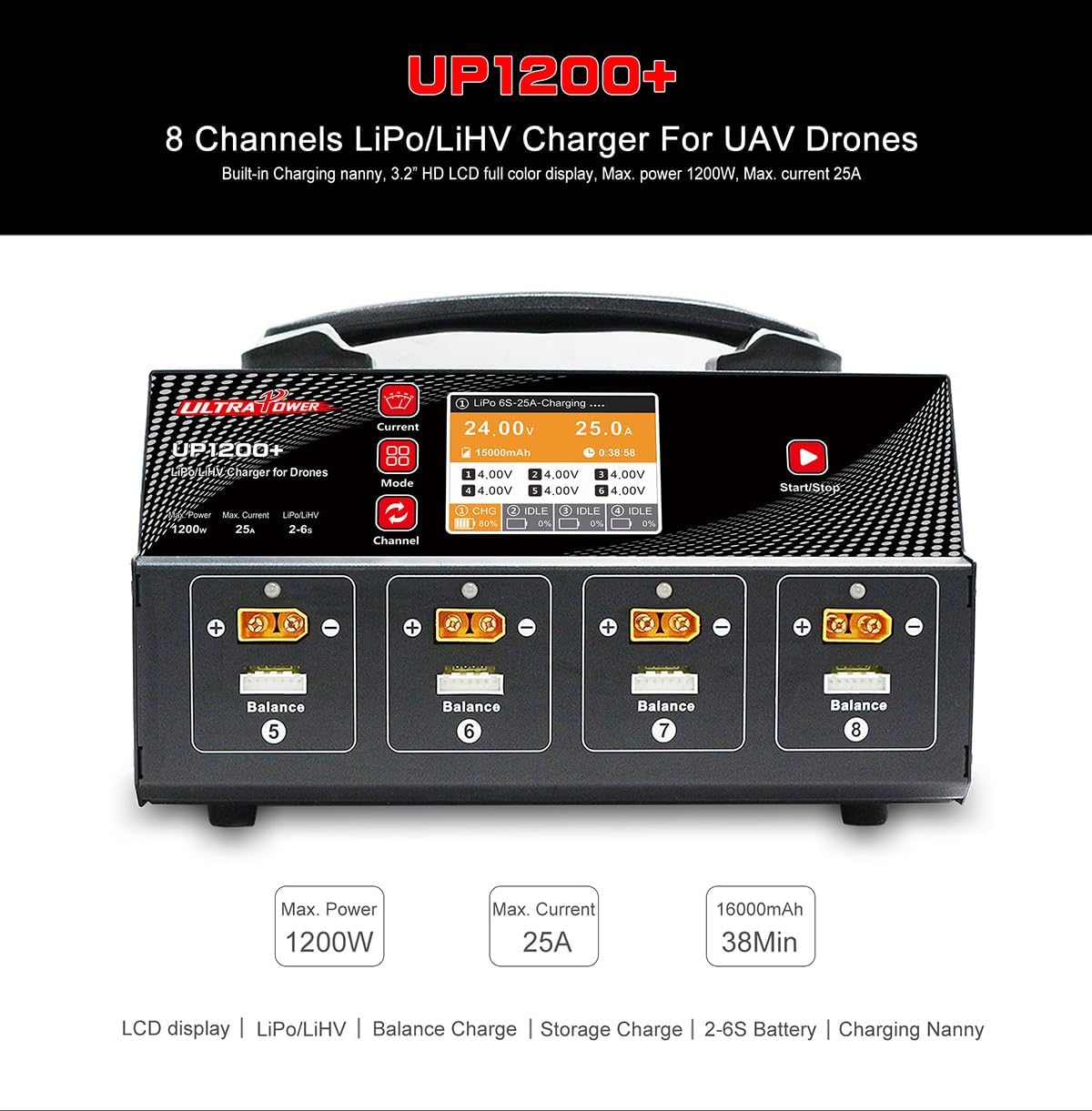

Obrázek 3.2: Nadview of the UP1200+ charger, highlighting its 8 channels, 1200W max power, 25A max current, and 3.2-inch HD color display.

Klíčové vlastnosti:

• 8 nezávislé kanály: Capable of charging up to 8 batteries simultaneously.
• Charging Nanny Function: Automatically proceeds to the next batch of batteries once the current batch is fully charged.
• Vysoký výstupní výkon: Total charge power of 1200W (2x600W) and max current of 25A.
• Všestranná podpora baterií: Compatible with LiPo/LiHV batteries from 2S to 6S.
• Více pracovních režimů: Charge, Fast Charge, and Storage modes.
• PFC Protection System: Ensures stable and safe power delivery.
• Automatic Balance Charging: Vyrovnává objem buněktage at 1.5A/cell to extend battery life.

Obrázek 3.3: The UP1200+ charger connected to 8 batteries, demonstrating its multi-channel capability and the 'Charging Nanny' feature for sequential charging.

4. Nastavení

1. Vybalte nabíječku: Carefully remove the UP1200+ charger and all accessories from its packaging.
2. Umístění: Place the charger on a stable, non-flammable surface in a well-ventilated area. Ensure adequate space around the charger for airflow.
3. Připojení napájení: Connect the appropriate AC power cord (110V or 220V, depending on your region) to the charger's AC input port and then to a suitable wall outlet.
4. Počáteční zapnutí: Flip the power switch to the 'ON' position. The display should illuminate, indicating the charger is ready.

5. Návod k obsluze

5.1 Connecting Batteries

Connect your LiPo/LiHV batteries to the charging ports. Each port supports both the main discharge lead and the balance lead. Ensure correct polarity and secure connections.

5.2 Navigace na displeji

The 3.2-inch HD color display provides real-time information on charging status, battery voltage, current, and capacity. Use the control buttons (Mode, Start/Stop, Channel) to navigate menus and adjust settings.

Obrázek 5.1: The charger's display showing a battery in the process of charging (left) and a fully charged battery (right), indicating voltage, proud, kapacita a objem jednotlivých článkůtages.

5.3 Selecting Charging Parameters

1. Vyberte kanál: Use the 'Channel' button to select the desired charging port.
2. Vyberte typ baterie: Ensure 'LiPo' or 'LiHV' is selected based on your battery.
3. Vyberte pracovní režim: Press the 'Mode' button to cycle through 'Charge', 'Fast Charge', and 'Storage' modes.
4. Set Charge Current: Adjust the charge current (5A/10A/15A/20A/25A) according to your battery's specifications. It is recommended not to exceed 1C for standard charging.
5. Zahájit nabíjení: Once all parameters are set, press the 'Start/Stop' button to begin the charging process. The display will show real-time charging data.

5.4 Balance Charging

The UP1200+ automatically performs balance charging with a balance current of 1.5A per cell. This ensures that all cells within the battery pack maintain equal voltage, which is crucial for battery health and longevity.

Obrázek 5.2: The UP1200+ charger is widely used for charging batteries for various applications, including agricultural drones and industrial UAVs.

6. Údržba

• Čištění: Pravidelně čistěte vnější povrch nabíječky měkkým, suchým hadříkem. Nepoužívejte rozpouštědla ani abrazivní čisticí prostředky.
• Větrání: Ensure the cooling fans and vents are free from dust and obstructions to prevent overheating.
• Skladování: Pokud nabíječku nepoužíváte, skladujte ji na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot.
• Kontrola kabelů: Periodically inspect all cables and connectors for signs of wear or damage. Replace any damaged components immediately.

7. Řešení problémů

7.1 Charger Not Powering On

• Check if the power cord is securely connected to both the charger and the wall outlet.
• Ověřte, zda je zásuvka ve zdi funkční.
• Ensure the power switch on the charger is in the 'ON' position.

7.2 Charging Not Starting

• Confirm that the battery is correctly connected to both the main and balance ports.
• Check if the correct battery type (LiPo/LiHV) and cell count (2-6S) are selected.
• Ensure the charge current is set appropriately.
• Press the 'Start/Stop' button to initiate charging.

7.3 Display Error Messages

• Refer to the on-screen message for specific error codes. Common errors include 'Connection Error' (check battery connections) or 'Voltage Error' (battery voltage outside safe range).
• If an error persists, disconnect the battery and power cycle the charger.

8. Specifikace

Obrázek 8.1: Detailed specifications and physical layout of the UP1200+ charger, including input/output ports and cooling fan.

9. Záruka a podpora

This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact your retailer. For technical support, troubleshooting assistance, or spare parts, please contact the manufacturer or your authorized dealer.
