EVERCROSS BOT U8 Robotic Pool Cleaner User Manual

1. Úvod

Thank you for choosing the EVERCROSS BOT U8 Robotic Pool Cleaner. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

The EVERCROSS BOT U8 is a state-of-the-art, cordless robotic pool cleaner designed to efficiently clean the floor, walls, and waterline of your swimming pool. With intelligent navigation and multiple cleaning modes, it ensures a pristine pool environment with minimal effort.

2. Bezpečnostní informace

Vždy dodržujte následující bezpečnostní opatření, abyste předešli zranění nebo poškození produktu.

• Do not operate the cleaner if the pool is occupied.
• Před připojením nabíječky se ujistěte, že je nabíjecí port zcela suchý.
• Používejte pouze originální nabíječku dodanou se zařízením.
• Keep the cleaner out of reach of children and pets when not in use or charging.
• Nepokoušejte se čistič rozebírat ani opravovat sami. Kontaktujte kvalifikovaný servisní personál.
• Avoid operating the cleaner in water temperatures outside the recommended range (typically 10°C - 35°C).
• Remove large debris from the pool manually before operating the cleaner to prevent blockages.

3. Konec produktuview

The EVERCROSS BOT U8 is designed for comprehensive pool cleaning. Below are its key components and features.

Figure 3.1: EVERCROSS BOT U8 Robotic Pool Cleaner, showing its compact and robust design.

3.1 Klíčové vlastnosti

• Efektivní čištění: Capable of cleaning up to 200㎡ pool area, effectively removing dust, sand, leaves, and hair.
• Více režimů čištění: Offers Floor Only, Wall Only, Waterline Only, and Automatic (combined) cleaning modes.
• Dlouhá výdrž baterie: 5100 mAh lithium battery provides up to 120 minutes of runtime.
• Rychlé nabíjení: Plně se nabije za 4-5 hodiny.
• Inteligentní navigace: Advanced path planning ensures thorough and efficient cleaning.
• Automatické dokování: Returns to the pool edge when battery is low for easy retrieval.
• IPX8 Vodotěsnost: Designed to operate safely up to 5 meters deep.
• Track-Driven System: Allows climbing walls without angle limitations.
• Large Filter Capacity: 6 L debris basket with 180 µm precision filter.

3.2 Komponenty

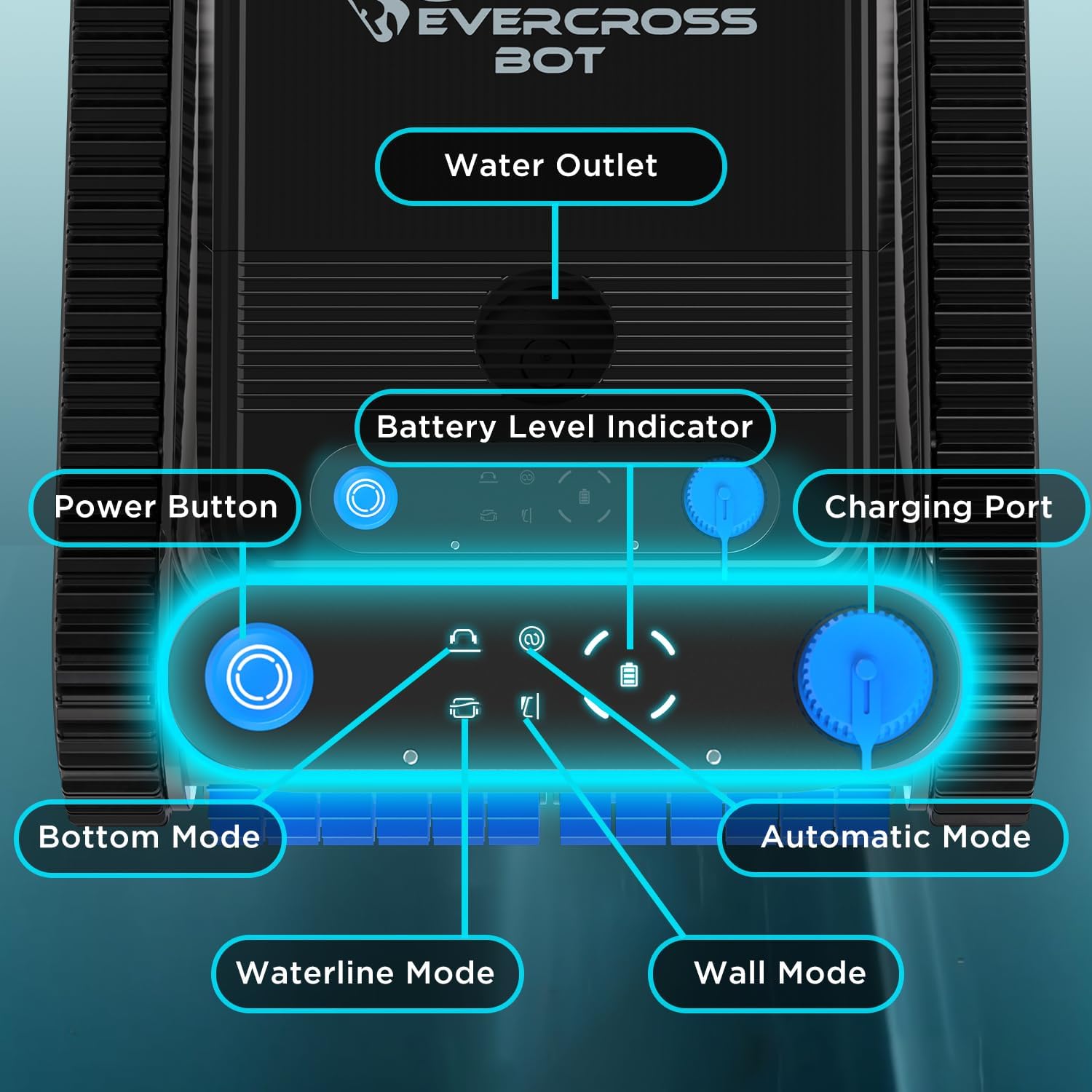

Obrázek 3.2: Nahoře view of the EVERCROSS BOT U8, highlighting the control panel with Power Button, Battery Level Indicator, Charging Port, Water Outlet, and mode selection buttons (Bottom Mode, Waterline Mode, Wall Mode, Automatic Mode).

• Hlavní jednotka: The robotic cleaner itself.
• Nabíječka: Pro dobíjení interní baterie.
• Retrieval Hook: Tool to easily pull the robot out of the water.
• Filtrační koš: Internal compartment for collecting debris.
• Štětce: Bottom brush for scrubbing surfaces.
• Skladby: For movement and climbing.

4. Nastavení

Before using your EVERCROSS BOT U8 for the first time, follow these steps:

1. Vybalte čistič: Carefully remove all components from the packaging. Ensure all accessories (main unit, charger, retrieval hook, manual) are present.


   Figure 4.1: Contents of the EVERCROSS BOT U8 package, including the robot, charger, and manual.

2. Počáteční poplatek: Locate the charging port on the cleaner. Ensure it is dry. Connect the charger to the cleaner and then to a power outlet. The battery level indicator will show charging status. A full charge takes approximately 4-5 hours.


   Figure 4.2: Visual representation of the robot operating in waterline mode, with an overlay showing battery capacity (5100mAh), charging time (4-5 hours), battery life (120 minutes), and IPX8 rating.
3. Připravte bazén: Remove any large debris, toys, or obstacles from the pool before placing the cleaner in the water.

5. Návod k obsluze

Operating your EVERCROSS BOT U8 is simple and straightforward.

5.1 Spuštění čističe

1. Zapnutí: Press and hold the power button on the cleaner for a few seconds until the indicator lights turn on.
2. Vyberte režim čištění:
   • Bottom Mode: For cleaning the pool floor only.
   • Režim zdi: For cleaning pool walls.
   • Režim vodorysky: For cleaning the pool's waterline.
   • Automatický režim: For combined cleaning of floor, walls, and waterline. This is the recommended default mode for comprehensive cleaning.
   Press the corresponding mode button to select your desired cleaning cycle.
3. Místo v bazénu: Gently submerge the cleaner into the pool. Ensure it sinks completely and no air bubbles are trapped. The cleaner will begin its cycle automatically.


   Figure 5.1: A user demonstrating the simple process of placing the EVERCROSS BOT U8 into the pool after selecting a cleaning mode.

5.2 Proces čištění

The U8 robot utilizes intelligent path planning to ensure efficient coverage of your pool. It will navigate systematically to clean the selected areas.

Figure 5.2: Illustration of the intelligent path planning, showing the robot's systematic movement for thorough cleaning of the pool floor and walls.

Figure 5.3: Depiction of the robot's ability to clean walls, waterline, and bottom, enabled by its intelligent, wireless, and crawler design.

5.3 Vyzvednutí vysavače

When the cleaning cycle is complete or the battery is low, the robot will automatically dock itself near the edge of the pool for easy retrieval.

1. Automatické dokování: The robot will move to the nearest pool edge.
2. Použijte vyhledávací hák: Use the provided retrieval hook to gently pull the cleaner out of the water.


   Figure 5.4: A user demonstrating the retrieval of the EVERCROSS BOT U8 from the pool using the provided hook, highlighting the robot's automatic docking feature when the battery is low.

3. Vypnout: Once out of the water, press and hold the power button to turn off the cleaner.

6. Údržba

Regular maintenance ensures optimal performance and extends the lifespan of your EVERCROSS BOT U8.

6.1 Čištění filtračního koše

It is crucial to clean the filter basket after each use, especially if the pool was very dirty.

1. Otevřete kryt: Locate and open the top cover of the cleaner.
2. Vyjměte filtrační koš: Opatrně vyjměte filtrační koš.
3. Vyprázdněte trosky: Zlikvidujte nasbírané nečistoty.
4. Opláchněte filtr: Filtrační koš důkladně propláchněte zahradní hadicí, dokud neodstraníte všechny nečistoty.


   Figure 6.1: A user demonstrating the process of cleaning the 6L dirt container and 180 µm filter, showing collected leaves, hair, sand, and dust.

5. Znovu nainstalujte filtr: Place the clean filter basket back into the cleaner and close the cover securely.

6.2 Obecná péče a skladování

• Po každém použití opláchněte vnější povrch čističe čistou vodou, abyste odstranili veškeré bazénové chemikálie nebo nečistoty.
• Čistič skladujte na chladném a suchém místě, mimo dosah přímého slunečního záření a extrémních teplot.
• Ensure the cleaner is completely dry before storing or charging.
• For long-term storage, charge the battery to approximately 50% and recharge every three months to maintain battery health.

7. Řešení problémů

If you encounter issues with your EVERCROSS BOT U8, refer to the table below for common problems and solutions.

Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.

8. Specifikace

Figure 8.1: Diagram showing the dimensions of the EVERCROSS BOT U8: 43cm length, 40cm width, and 21.5cm height.

9. Záruka a podpora

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official EVERCROSS BOT webUschovejte si účtenku jako doklad o koupi pro případ reklamace.

Kontaktní údaje:

• For technical assistance, troubleshooting, or spare parts, please contact EVERCROSS BOT customer service.
• Refer to the contact details provided in your product documentation.
