LiitoKala LII-PD4 Universal Smart Battery Charger User Manual

1. Úvod

This user manual provides detailed instructions for the safe and efficient operation of your LiitoKala LII-PD4 Universal Smart Battery Charger. The LII-PD4 is designed for charging various types of rechargeable batteries with intelligent features and multiple safety protections. Please read this manual thoroughly before using the charger to ensure proper function and longevity of your device and batteries.

Figure 1: LiitoKala LII-PD4 Battery Charger and accessories.

2. Bezpečnostní opatření

Always adhere to the following safety guidelines to prevent damage to the charger, batteries, or personal injury:

• Use only compatible battery types and sizes as specified in this manual.
• Nepokoušejte se nabíjet nedobíjecí baterie.
• Při vkládání baterií dbejte na správnou polaritu.
• Avoid short circuits, overcharging, and reverse connections. The charger includes built-in protections, but user vigilance is crucial.
• Do not expose the charger to water, high temperatures, or direct sunlight.
• Uchovávejte mimo dosah dětí a domácích zvířat.
• Odpojte nabíječku od zdroje napájení, pokud ji nepoužíváte nebo během čištění.

Figure 2: Built-in safety protection functions of the LII-PD4 charger.

3. Vlastnosti produktu

• Smart Universal Charger: Compatible with Li-ion / IMR / LiFePO4 (26650, 20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440) and NiMH/Cd (AA, AAA, SC, C) batteries. Note: Cannot charge 1.5V AA/AAA batteries.
• Multi-Power Input: Supports AC cable 110-240V 50/60Hz (included) and optional 12V 1A adapter.
• Nezávislé nabíjecí sloty: Four independent charging slots with microcomputer management system.
• Intelligent Auto-Set Current: Automatically sets charging current to 500mA / 1000mA / 2000mA. 2000mA is fixed only for slot #4 when used alone.
• Bezpečnostní ochrany: Features overcharge, over-discharge, short circuit, reverse connection protection, and intelligent bad battery identification.
• LCD displej: Large screen displays charging voltage, charging current, charging time, battery type, and battery power percentage.

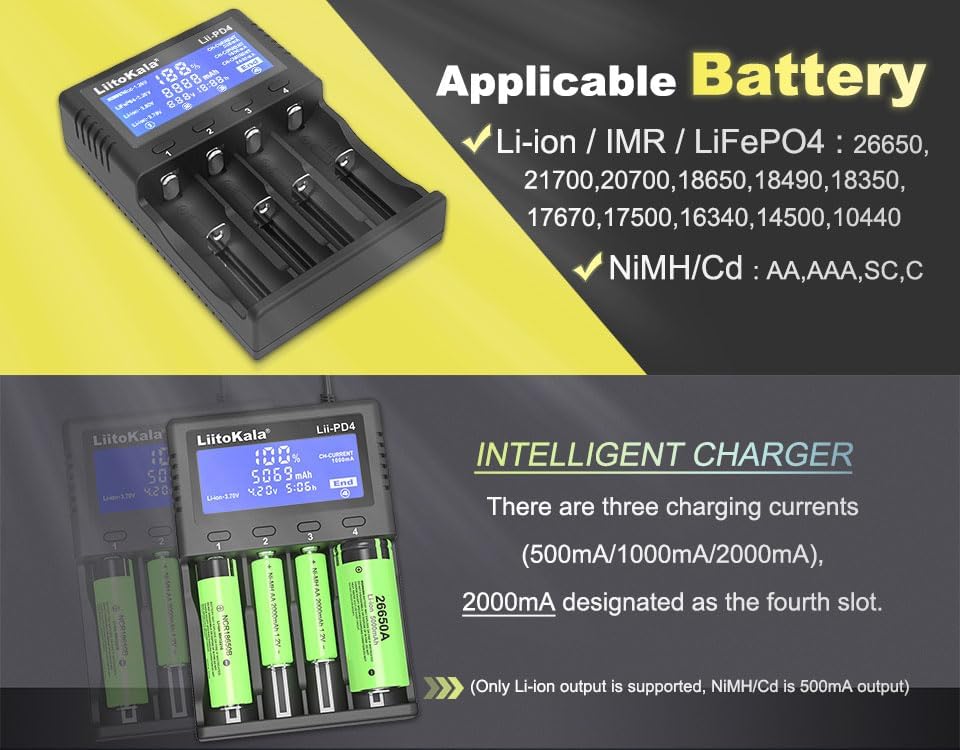

Obrázek 3: Přesview of compatible battery types and intelligent charging features.

4. Nastavení

To set up your LiitoKala LII-PD4 charger:

1. Vybalte všechny součásti z krabice.
2. Connect the provided AC power cable (110-240V 50/60Hz) to the charger's input port and then to a wall outlet. Alternatively, use a 12V 1A adapter (not included) for DC power.
3. The LCD display will illuminate, indicating the charger is ready for use.

Figure 4: Power input options for the LII-PD4 charger.

5. Návod k obsluze

Follow these steps to charge your batteries:

1. Vložte baterie: Carefully insert one or more compatible rechargeable batteries into the charging slots, ensuring correct polarity (+ and - ends match the markings on the charger). The charger will automatically detect the battery type (Li-ion 3.7V, Ni-MH/Cd 1.2V) and begin charging. For LiFePO4 3.2V and Li-ion 3.8V (IMR) batteries, manual selection may be required using the corresponding slot button.
2. Nabíjení monitoru: The LCD display will show real-time charging information, including:
   • Battery type (e.g., NiMH/NiCd-1.2V, LiFePO4-3.2V, Li-ion-3.80V, Li-ion-3.70V)
   • Procento nabíjenítage (%)
   • Accumulated charge (mAh)
   • Aktuální svtage (V)
   • Doba nabíjení (h)
   • Charging current (CH-CURRENT: 500mA, 1000mA, 2000mA)
3. Nabíjecí proud: The charger intelligently auto-sets the current. Note that the 2000mA charging current is exclusively available for slot #4 when it is the only slot in use. If multiple slots are used, the current will adjust accordingly (e.g., 1000mA for two batteries, 500mA for three or four).
4. Dokončení: Charging is complete when the LCD display shows "End" for the respective slot and the battery percentage reaches 100%. Remove batteries promptly after charging is complete.

Figure 5: Batteries inserted into the LII-PD4 charger, displaying charging status.

6. Údržba

To ensure optimal performance and extend the lifespan of your charger:

• Clean the charger regularly with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Keep the charging slots free from dust and debris.
• Pokud nabíječku nepoužíváte, skladujte ji na chladném a suchém místě mimo dosah přímého slunečního záření a vlhkosti.
• Zabraňte pádu na zem nebo vystavení nabíječky silným nárazům.

7. Řešení problémů

If you encounter issues with your LiitoKala LII-PD4 charger, refer to the following common problems and solutions:

8. Specifikace

9. Co je zahrnuto

Your LiitoKala LII-PD4 package includes:

• 1x LiitoKala LII-PD4 4-Slot Battery Charger
• 1x US PLUG (AC Power Cable 110-240V 50/60Hz)
• 1x Car Cable (12V)
• 1x Uživatelská příručka

Figure 6: Items included in the LII-PD4 package.

10. Záruka a podpora

LiitoKala products are manufactured with high-quality standards. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official LiitoKala webmísto. Uschovejte si doklad o koupi pro případ záručních reklamací.

Pro další pomoc můžete také kontaktovat prodejce přímo prostřednictvím platformy, kde byl produkt zakoupen.
