Alliskeys Smart Key Fob Replacement for Toyota Corolla 2023-2025

1. Úvod

This manual provides comprehensive instructions for the Alliskeys Smart Key Fob Replacement, designed for Toyota Corolla models from 2023 to 2025. Please read this guide thoroughly before attempting installation or programming to ensure proper function and compatibility.

2. Kompatibilita a ověření

This smart key fob is compatible with Toyota Corolla vehicles manufactured between 2023 and 2025 that feature a push-button ignition system. To ensure correct compatibility, verify the following details against your original key fob:

• ID FCC: HYQ14FBW
• Čísla dílů: 8990H-AQ010 or 8990H-02470
• Board Number: 231451-2561
• Confirm that the button layout and style match your original key.

Image showing the Alliskeys smart key fob and its compatibility with Toyota Corolla 2023-2025 models. The image highlights the need to verify FCC ID, Part Number, and Board Number.

Visual guide detailing five steps for verifying key fob compatibility, including matching FCC ID, Part Number, Board Number, button style, and confirming push-button ignition.

3. Klíčové vlastnosti

The Alliskeys Smart Key Fob offers the following features:

• Pre-installed battery and electronics for immediate use after programming.
• Functions for locking and unlocking vehicle doors.
• Integrated trunk release button.
• Panic alarm function for security.
• Maximum transmission distance of up to 100 meters.
• Durable key shell, scratch-resistant, and drop-resistant design.

Detailní view of the Alliskeys key fob, showing its internal circuit board, battery type (Panasonic CR2032), chip (Hitag AES/4A), frequency (312-314MHz), and button functions (Lock, Unlock, Trunk, Panic).

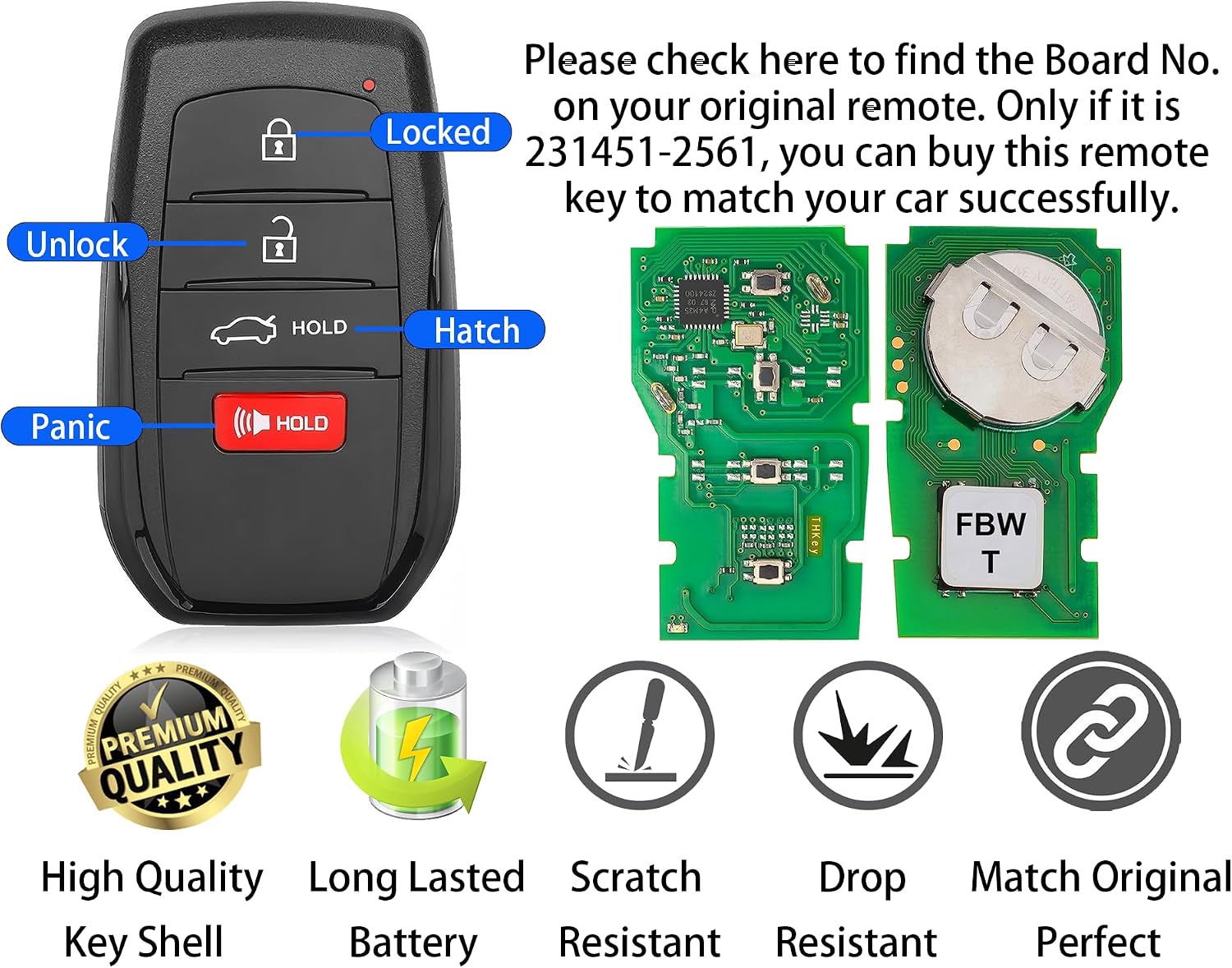

Close-up of the Alliskeys smart key fob buttons (Lock, Unlock, Hold for Trunk, Hold for Panic) and a view of the internal circuit board with board number 231451-2561. Icons below indicate high quality, long-lasting battery, scratch resistance, drop resistance, and original match.

4. Nastavení a programování

Programming of this smart key fob requires specialized equipment and knowledge. Self-programming is not possible.

• Professional Programming: Take your new smart key fob to a qualified automotive locksmith or an authorized dealership for programming. Ensure they can program a key with FCC ID HYQ14FBW and Board No. 231451-2561.
• Key Blade Cutting: The included key blade is uncut. It must be cut by a professional locksmith to match your vehicle's emergency key.
• Důležité: Confirm that the remote programming can be successfully performed for your specific vehicle before having the key blade cut.

Image illustrating the uncut key blade and the internal components of the key fob, emphasizing that a professional locksmith or dealer is required for both key cutting and programming.

5. Provoz

Once programmed, the smart key fob operates similarly to your original vehicle key. Ensure you are within range of your vehicle for optimal performance.

• Tlačítko zámku: Press once to lock all vehicle doors.
• Tlačítko odemknutí: Press once to unlock all vehicle doors.
• Tlačítko pro uvolnění kufru: Press and hold to open the vehicle's trunk.
• Panické tlačítko: Stisknutím a podržením aktivujete alarm vozidla.

6. Údržba

Proper care and maintenance will extend the life of your smart key fob.

• Výměna baterie: The key fob uses a Panasonic CR2032 battery. When the battery is low, the transmission range may decrease, or the key fob may stop functioning. To replace, carefully open the key fob casing and replace the CR2032 battery, ensuring correct polarity.
• Obecná péče: Avoid exposing the key fob to extreme temperatures, direct sunlight for prolonged periods, or moisture. Do not drop the key fob or subject it to strong impacts.

7. Řešení problémů

If you experience issues with your smart key fob, consider the following:

• Klíčenka nereaguje: Check the battery. If the battery is low or depleted, replace it. Ensure you are within the effective range of the vehicle.
• Vehicle Not Starting (Push-Button Ignition): If the key fob is not detected, try holding it closer to the push-button start. If the issue persists, the key fob may need reprogramming or the battery may be critically low.
• Inconsistent Range: A weak battery is a common cause for reduced range. Replace the battery if necessary. Environmental factors can also affect range.
• Key Fob Not Programming: Ensure the locksmith or dealership has the correct equipment and information for your specific vehicle and key fob model. Verify all compatibility details (FCC ID, Part Number, Board Number) again.

8. Specifikace

Detailed specifications for the Alliskeys Smart Key Fob Replacement:

Screenshot of a transponder cloning device displaying electronic testing of a key fob for signal functionality and compliance with FCC regulations, ensuring reliability.

9. Obsah balení

Balíček obsahuje:

• 1 x Alliskeys Smart Key Fob (with pre-installed battery and electronics)
• 1 x Uncut Key Blade

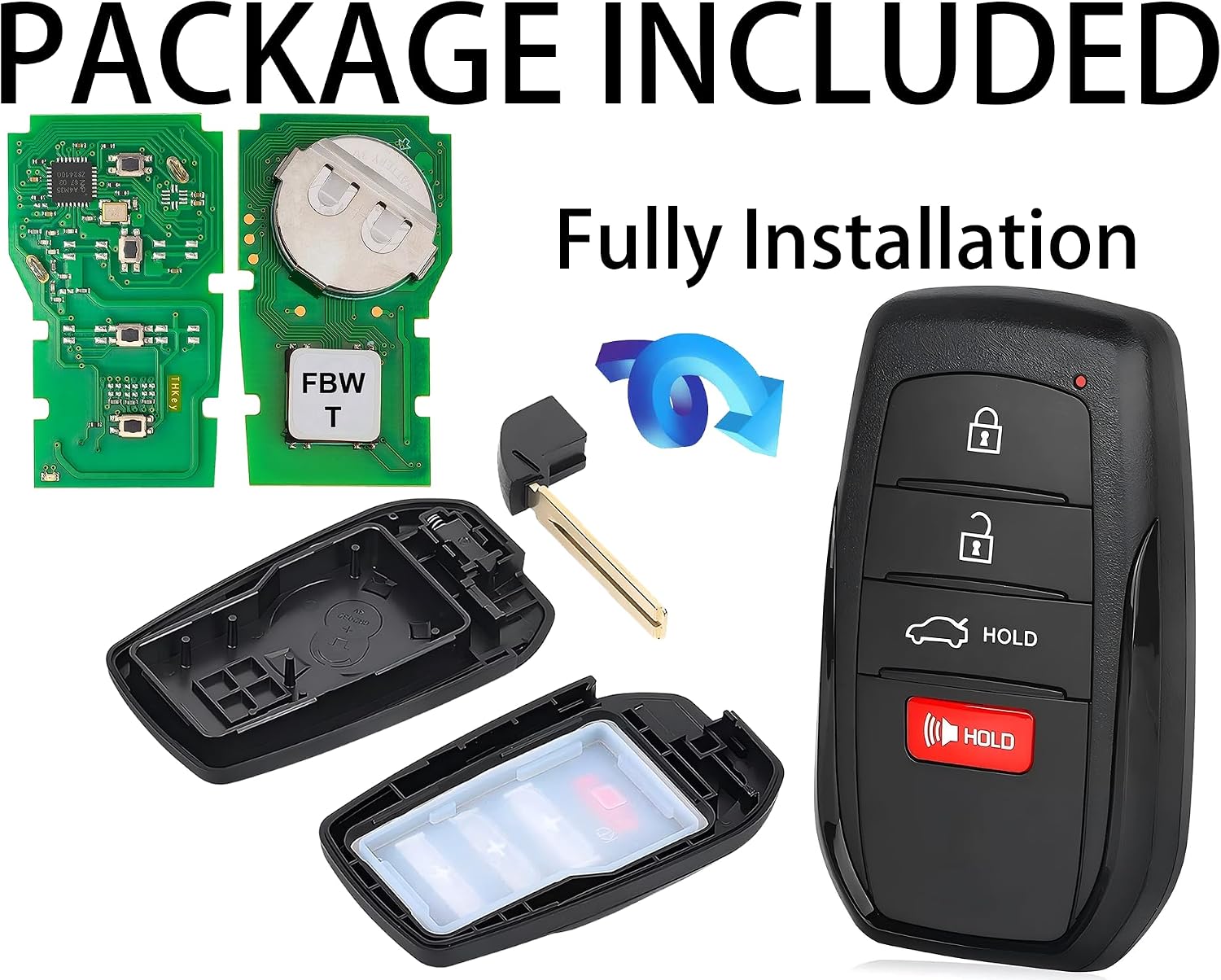

Image showing the disassembled components of the Alliskeys smart key fob, including the outer casing, internal circuit board, and the uncut key blade, representing the package contents.

10. Podpora a záruka

For any questions or assistance, please contact Alliskeys customer support. This product includes a 90-day refund or replacement policy from the date of purchase. If the remote does not function as expected for any reason, please contact us for support.
