EUHOMY 5.0 Cu.Ft Chest Freezer Instruction Manual

Důležité bezpečnostní informace

Please read all instructions carefully before using your new EUHOMY Chest Freezer. Keep this manual for future reference. Failure to follow these safety instructions may result in fire, electric shock, or injury.

• Elektrická bezpečnost: Ensure the freezer is connected to a properly grounded 115V/60Hz power outlet. Do not use extension cords or ungrounded adapters.
• Větrání: Allow adequate space around the freezer for proper air circulation (at least 4 inches on sides and back). Do not block ventilation openings.
• Hořlavé materiály: V tomto spotřebiči neskladujte výbušné látky, jako jsou aerosolové plechovky s hořlavým hnacím plynem. Udržujte hořlavé materiály a výpary mimo dosah mrazničky.
• Bezpečnost dětí: Tento spotřebič není určen pro použití osobami (včetně dětí) se sníženými fyzickými, smyslovými nebo duševními schopnostmi nebo nedostatečnými zkušenostmi a znalostmi, pokud na ně nedohlíží osoba odpovědná za jejich bezpečnost nebo jim nebyla poskytnuta instrukce ohledně používání spotřebiče. Děti by měly být pod dohledem, aby bylo zajištěno, že si se spotřebičem nebudou hrát.
• Likvidace: Dispose of the appliance according to local regulations for flammable refrigerants and blowing gas. Remove the door before disposal to prevent child entrapment.
• Moving the Freezer: Always unplug the freezer before moving it. Allow the freezer to stand upright for at least 24 hours after transport before plugging it in to allow refrigerants to settle.

Konec produktuview

The EUHOMY 5.0 Cu.Ft Chest Freezer is designed for efficient and quiet food storage. It features a compact design with a large internal capacity, adjustable thermostat, and convenient accessories.

Figure 1: Internal features of the EUHOMY 5.0 Cu.Ft Chest Freezer, highlighting the internal LED light, removable inner basket, and curved bottom expansion design for maximum capacity.

• Compact Size, Large Capacity: Occupies a small footprint (3.8 ft²) while offering 5.0 cu.ft of storage.
• Efektivní chlazení: Utilizes a high-performance R600a compressor for energy efficiency (approx. 0.60kWh/day) and low noise operation (38dB).
• Nastavitelný termostat: 7-stage knob for precise temperature control from -7.6°F to 10°F.
• Promyšlený design: Includes 2 removable mesh baskets, a hovering top door (45°-85°), and a bottom drainage port for easy defrosting.
• Power-Off Storage: High-density foam insulation and an insulated door seal maintain temperature for extended periods during power outages.

Figure 2: Included accessories: two inner baskets, one ice shovel, one water plug, and the user manual.

Pokyny pro nastavení

1. Rozbalení: Carefully remove all packaging materials, including the foam base and any tape. Keep packaging materials out of reach of children.
2. Umístění:
   • Choose a stable, level location away from direct sunlight and heat sources (e.g., stove, heater).
   • Ensure adequate ventilation: leave at least 4 inches (10 cm) of space around the sides and back of the freezer.
   • Mraznička je určena pro volně stojící instalaci.


   Figure 3: Dimensions and suitable placement areas for the freezer.

3. Vyrovnání: Adjust the leveling feet at the bottom of the freezer to ensure it is stable and level. This helps reduce vibration and noise.
4. Počáteční pohotovostní režim: After placing the freezer, allow it to stand upright for at least 24 hours before plugging it into a power outlet. This allows the refrigerant to settle, preventing potential damage to the cooling system.
5. Připojení napájení: Zapojte mrazák do vyhrazené, uzemněné elektrické zásuvky 115 V/60 Hz.
6. První použití: Before storing food, allow the freezer to operate for 2-3 hours on a medium setting to reach the desired temperature.

Návod k obsluze

Regulace teploty

The freezer features a 7-stage adjustable thermostat knob located on the front panel. Turn the knob to select the desired temperature setting.

• "0": Off (Freezer is turned off)
• "1": Warmest setting (approximately 10°F)
• "7": Coldest setting (approximately -7.6°F)

Každý stage adjusts the temperature by approximately 2°F. Refer to the guide below for recommended settings based on food type.

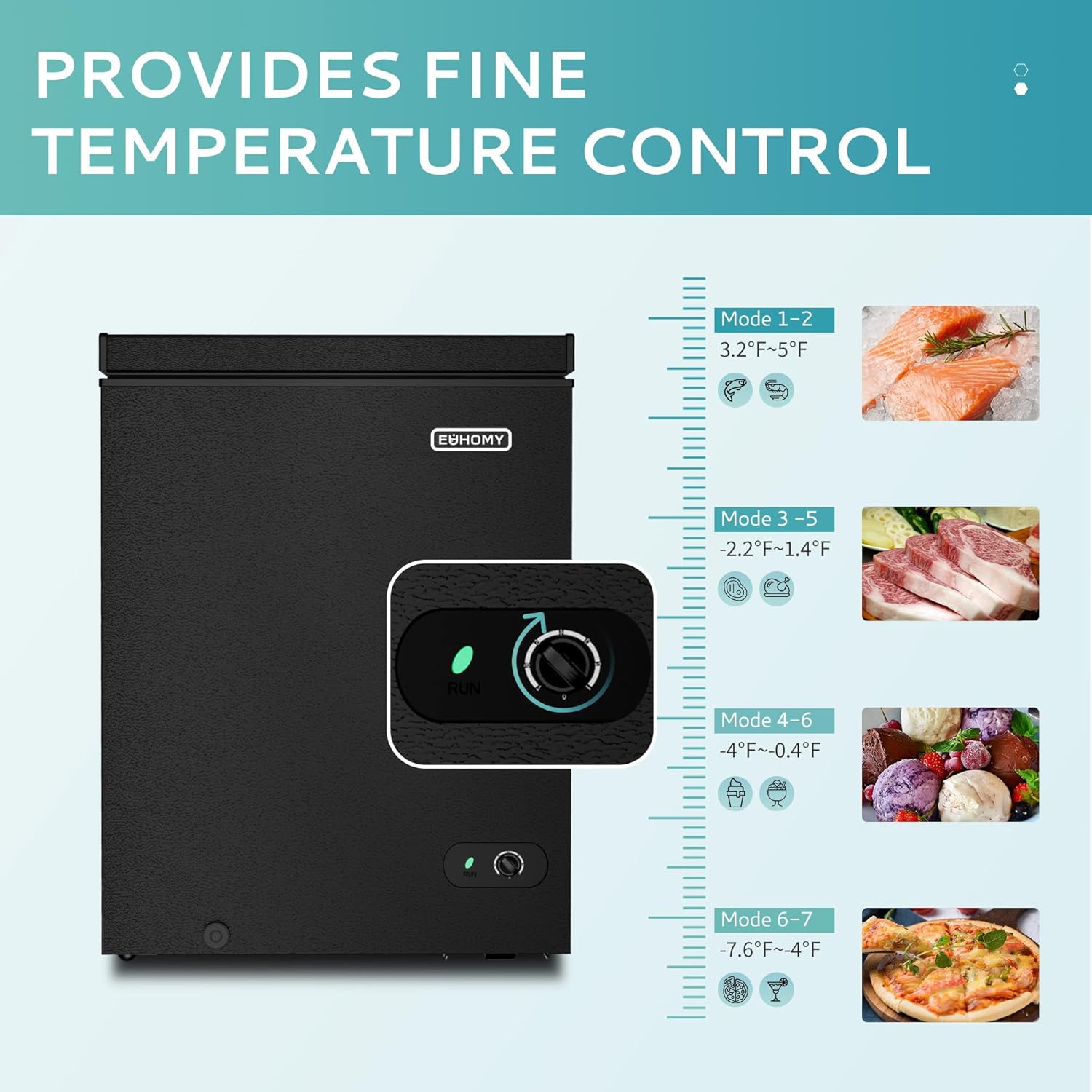

Figure 4: Thermostat settings and corresponding temperature ranges for various food items.

Tipy pro skladování potravin

• Use the removable baskets for organizing smaller items and frequently accessed foods.
• Ensure food is properly sealed to prevent freezer burn and odor transfer.
• Avoid overloading the freezer, as this can hinder air circulation and cooling efficiency.
• The hovering hinge allows the door to stay open between 45° and 85°, making loading and unloading easier.

Obrázek 5: Přample food capacities for the 5.0 Cu.Ft freezer.

Údržba

Čištění

• Před čištěním vždy odpojte mrazák ze zásuvky.
• Vnitřek vyčistěte roztokem jemného čisticího prostředku a teplé vody. Důkladně otřete dosucha.
• The exterior can be cleaned with a soft cloth and mild soap.
• Do not use abrasive cleaners, sharp objects, or harsh chemicals, as they can damage surfaces.

Rozmrazování

Defrost the freezer when the ice layer reaches about 0.2 inches (5 mm) thick. Frequent defrosting improves efficiency.

1. Odpojte mrazničku od elektrické zásuvky.
2. Vyjměte všechny potraviny a uložte je do jiného mrazáku nebo chladničky.
3. Open the freezer lid and remove the drain plug located at the bottom of the freezer. Place a shallow pan or towel underneath the drain to collect water.
4. Allow the ice to melt naturally. You can speed up the process by placing bowls of hot water inside the freezer (do not use sharp objects to chip ice).
5. Po rozmrazení vnitřek důkladně vyčistěte a osušte.
6. Replace the drain plug, plug in the freezer, and allow it to cool for a few hours before returning food.

Figure 6: Key design elements including the water drain for easy defrosting.

Odstraňování problémů

Než kontaktujete zákaznický servis, zkontrolujte prosím následující běžné problémy a jejich řešení:

Specifikace

Záruka a podpora

Záruka: This EUHOMY Chest Freezer comes with a 1-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

Zákaznická podpora: For any questions, concerns, or technical assistance, please contact the EUHOMY professional and efficient service team. Refer to the contact information provided on the product packaging or the official EUHOMY webmísto.
