X-Sense Wireless Interconnected Smoke and Carbon Monoxide Alarm System

Zavedení

This user manual provides essential information for the installation, operation, and maintenance of your X-Sense Wireless Interconnected Smoke Alarm (SD20-W), Combination Smoke and Carbon Monoxide Detector (SC07-W), and Remote Controller (RC01) system. This bundle is designed to provide comprehensive home protection by ensuring that when one alarm is triggered, all interconnected alarms sound, alerting you to potential dangers throughout your home.

Obsah balení

Po otevření balení se prosím ujistěte, že jsou všechny součásti přítomny a v dobrém stavu:

• 6 x X-Sense SC07-W Wireless Interconnected Combination Smoke and Carbon Monoxide Alarms
• 3 x X-Sense SD20-W Wireless Interconnected Smoke Alarms
• 1 x X-Sense RC01 Remote Controller
• Montážní konzoly, šrouby a hmoždinky pro každý alarm
• Uživatelská příručka (tento dokument)

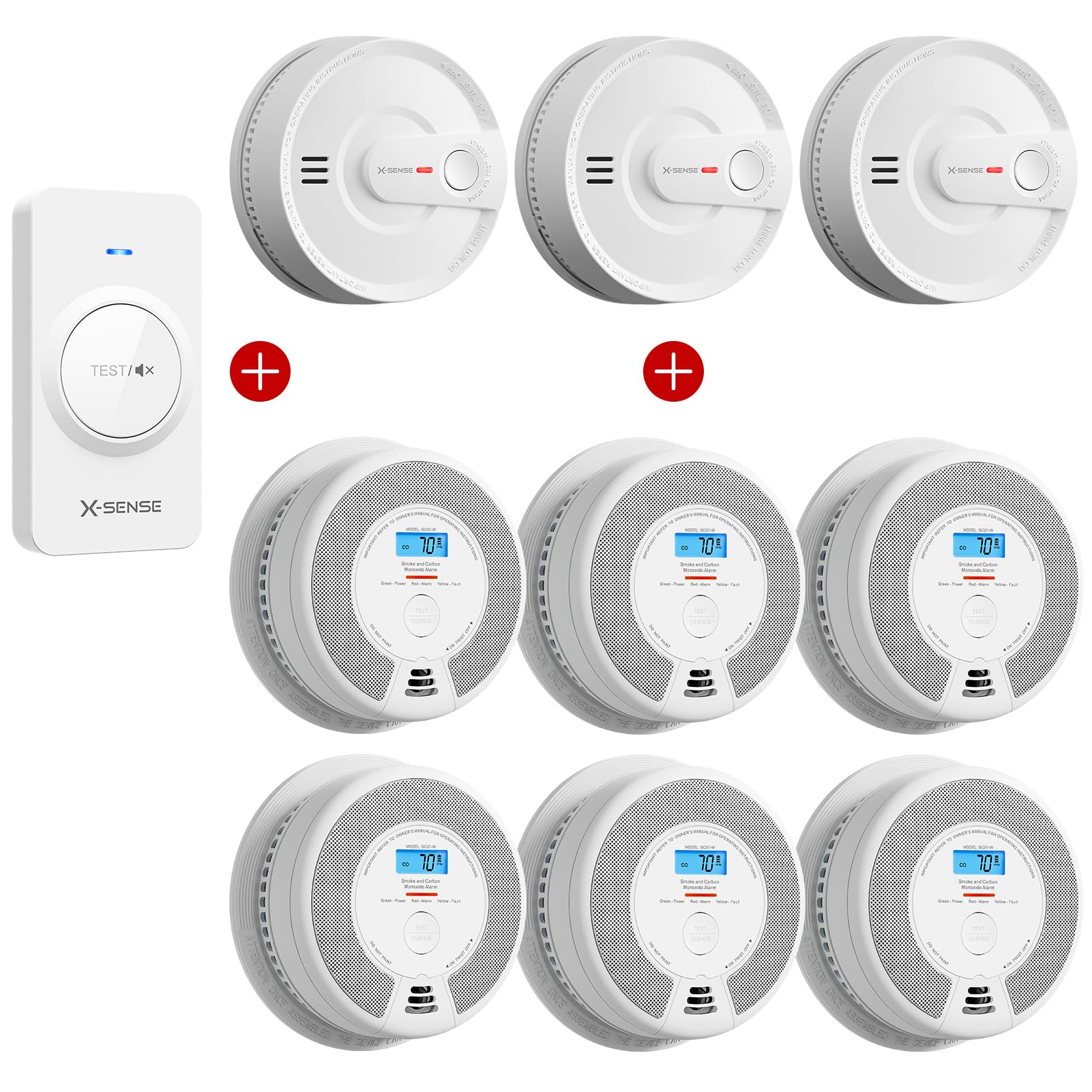

Obrázek 1: Contents of the X-Sense Wireless Interconnected Alarm System bundle. This image displays the white rectangular remote controller on the left, three round, white smoke alarms (SD20-W) at the top right, and six round, white combination smoke and carbon monoxide detectors (SC07-W) with LCD screens below them. Plus signs indicate the combination of these components in the bundle.

Konec produktuview

X-Sense SD20-W Smoke Alarm

The SD20-W is a wireless interconnected smoke detector designed to detect smoke and alert occupants. Its housing is constructed from flame-retardant and high-temperature resistant ABS material, ensuring durability and safety. It features a test/silence button and an LED indicator for status updates.

X-Sense SC07-W Combination Smoke and Carbon Monoxide Detector

The SC07-W is a wireless interconnected alarm that detects both smoke and carbon monoxide (CO). It includes an LCD display that shows real-time CO levels (from 30 to 999 ppm), battery level, and working status. This alarm also features a test/silence button and LED indicators.

Dálkový ovladač X-Sense RC01

The RC01 remote controller provides a convenient way to test all interconnected alarms and mute false alarms without needing to physically reach each unit. This is particularly useful for alarms installed in high or hard-to-reach locations.

Nastavení a instalace

Výběr umístění

• Install smoke alarms on every level of your home, including basements, and in every sleeping area.
• Install carbon monoxide alarms on every level of your home and near sleeping areas.
• Avoid installing alarms near windows, doors, or vents where drafts could interfere with detection.
• Keep alarms at least 20 feet (6 meters) away from combustion sources like furnaces, water heaters, and space heaters.

Mounting the Alarms

1. Vyberte vhodné místo pro montáž na strop nebo stěnu.
2. Use the mounting bracket as a template to mark the drill holes.
3. Vyvrtejte otvory a vložte do nich hmoždinky.
4. Attach the mounting bracket to the ceiling/wall using the provided screws.
5. Zarovnejte alarm s montážním držákem a otáčejte jím ve směru hodinových ručiček, dokud nezapadne na místo.

Propojovací alarmy

Your X-Sense alarms are designed for wireless interconnection, allowing all alarms to sound when one detects a hazard. Up to 24 X-Sense Link+ wireless alarms can be linked via radio frequency.

1. Ensure all alarms are powered on.
2. On one alarm (the primary alarm), press the test/silence button three times quickly. The LED indicator will flash rapidly, indicating it's in pairing mode.
3. Within 60 seconds, press the test/silence button on each subsequent alarm twice quickly. The LED indicator on these alarms will also flash rapidly.
4. Once all alarms are paired, press the test/silence button on the primary alarm once to exit pairing mode.
5. Test the interconnection by pressing the test/silence button on any one alarm. All interconnected alarms should sound.

Pairing the Remote Controller (RC01)

1. Ensure the remote controller has a working battery.
2. On any interconnected alarm, press the test/silence button three times quickly to enter pairing mode.
3. Within 60 seconds, press the "TEST/X" button on the remote controller once. The remote's LED will flash, and the alarm's LED will confirm pairing.
4. Press the test/silence button on the alarm once to exit pairing mode.
5. Test the remote by pressing its "TEST/X" button. All interconnected alarms should sound.

Operating Your Alarms

Testování alarmů

It is recommended to test your alarms weekly to ensure proper operation.

• Manuální test: Press and hold the test/silence button on any alarm until it sounds. All interconnected alarms should also sound.
• Vzdálený test: Press the "TEST/X" button on the RC01 remote controller. All interconnected alarms should sound.

Silencing Alarms (Hush Mode)

In case of a false alarm (e.g., from cooking fumes), you can temporarily silence the alarms.

• Ruční ztišení: Press the test/silence button on the alarming unit.
• Remote Silence: Press the "TEST/X" button on the RC01 remote controller.

The alarm will enter hush mode for approximately 9 minutes. If the smoke or CO concentration remains high after this period, the alarm will reactivate.

Understanding LED Indicators and LCD Display (SC07-W)

• Zelená LED: Normální provoz.
• Červená LED: Alarm condition (smoke or CO detected).
• Žlutá LED: Fault or low battery.
• SC07-W LCD Display: Shows real-time CO concentration in PPM (parts per million) when CO is detected. Also displays battery level and operational status.

Údržba

Cleaning Your Alarms

Clean your alarms at least once a month to remove dust and debris that could interfere with their operation.

• Použijte měkký, damp cloth to wipe the exterior of the alarm.
• Gently vacuum around the alarm's vents and openings using a soft brush attachment.
• Do NOT use cleaning solvents or sprays directly on the alarm.
• Do NOT paint the alarm.

Životnost baterie

The SD20-W and SC07-W alarms are equipped with a 10-year sealed lithium battery, designed to last the entire lifespan of the alarm. The RC01 remote controller uses a replaceable battery (typically a CR2032 coin cell). Replace the remote's battery when its indicator light dims or it becomes unresponsive.

Odstraňování problémů

Specifikace

Důležité bezpečnostní informace

• Never ignore any alarm. Ignoring an alarm can result in injury or death.
• Test your alarms weekly.
• Do not paint the alarms. Paint can clog the sensing chambers and prevent the alarm from operating properly.
• Do not attempt to repair the alarm yourself. Refer to qualified service personnel.
• This alarm is not intended to replace proper installation, use, and maintenance of fuel-burning appliances, including appropriate ventilation and exhaust systems.
