Zavedení
This manual provides detailed instructions for the installation, operation, and maintenance of your SIXTOP Double Din Car Stereo. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
1. Nastavení
1.1 Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- SIXTOP Double Din Car Stereo Unit
- Universal Bare Wire Harness
- Zadní View Fotoaparát
- Dálkové ovládání
- Mikrofon (MIC)
- Kabel kamery
- Hlavice antény
- Uživatelská příručka (tento dokument)
- 2 Din Frame
Obrázek: Overview of the SIXTOP Double Din Car Stereo package contents, showing the main unit, remote control, rear camera, various cables (camera, horn, power), antenna head, microphone, user manual, and 2 Din frame.
1.2 Rozměry a instalace
The universal 7-inch dual din radio is designed to fit most cars. Before installation, measure your car's center console to ensure compatibility.
- Velikost obrazovky: 178mm (L) x 100mm (H) / 7.0 inches (L) x 4.0 inches (H)
- Velikost instalace: 178 mm (D) x 100 mm (V) x 70 mm (H)
A frame is included to assist with fitting the unit into your car's dashboard opening.
Image: Detailed diagram showing the dimensions of the car stereo unit (178mm x 100mm x 70mm) and a visual list of accessories such as the remote, rear camera, microphone, and various cables.
1.3 Schéma zapojení
Connect the universal bare wire harness according to your vehicle's wiring. It is recommended to consult a professional for installation if you are unfamiliar with car audio wiring.
Image: Comprehensive wiring diagram illustrating connections for the car stereo, including speaker outputs (Purple, Grey, White, Green wires), power connections (+12V, ACC, Ground), steering wheel control, and the rear camera input.
1.4 Instalace zadní kamery
The included waterproof 12 LED rear view camera provides a clear reversing image. Install the camera on your license plate holder or a suitable location at the rear of your vehicle.
- Connect the camera's video output cable to the 'CAMIN' input on the stereo unit.
- Connect the camera's power cable to the vehicle's reversing light power source (positive pole) and ground (negative pole).
- Connect the reversing control wire (marked 'Back' on the power cord) to the positive pole of the reversing light. This enables automatic switching to the camera view při couvání.
Obrázek: Displej autorádia zobrazující zadní část view camera feed with colored parking assist lines, indicating the camera's functionality during reversing.
2. Návod k obsluze
2.1 Bezdrátové CarPlay / Android Auto
This unit supports both wired and wireless CarPlay for iPhone and Android Auto for Android phones.
- Ujistěte se, že je v telefonu povoleno Bluetooth.
- Connect your phone to the stereo via Bluetooth or USB cable.
- Select the 'Carplay' or 'Android Auto' application on the stereo's touchscreen.
- The stereo will synchronize your phone's messages, calls, navigation, and music applications.
- Voice assistant control is supported.
Image: The car stereo screen displaying both Apple CarPlay (left) and Android Auto (right) interfaces, showing various compatible applications like maps, music, and messaging.
2.2 Funkce zrcadlového propojení
The Mirror Link function allows you to project your iPhone or Android phone screen onto the stereo display via a wired USB connection.
- Connect your phone to the stereo using a USB cable.
- Select the 'Phonelink' application on the stereo.
- Your phone's screen content will be mirrored on the stereo, allowing for real-time viewing of videos or navigation.
Image: A smartphone screen displaying a car racing game is mirrored onto the car stereo's display via a wired connection, demonstrating the Mirror Link feature.
2.3 Provoz FM rádia
Access FM radio to listen to broadcasts, news, and weather information.
- V hlavní nabídce vyberte aplikaci „Rádio“.
- Pomocí funkce skenování vyhledejte dostupné stanice nebo ručně nalaďte frekvenci.
- Uložte si své oblíbené stanice do předvoleb pro rychlý přístup.

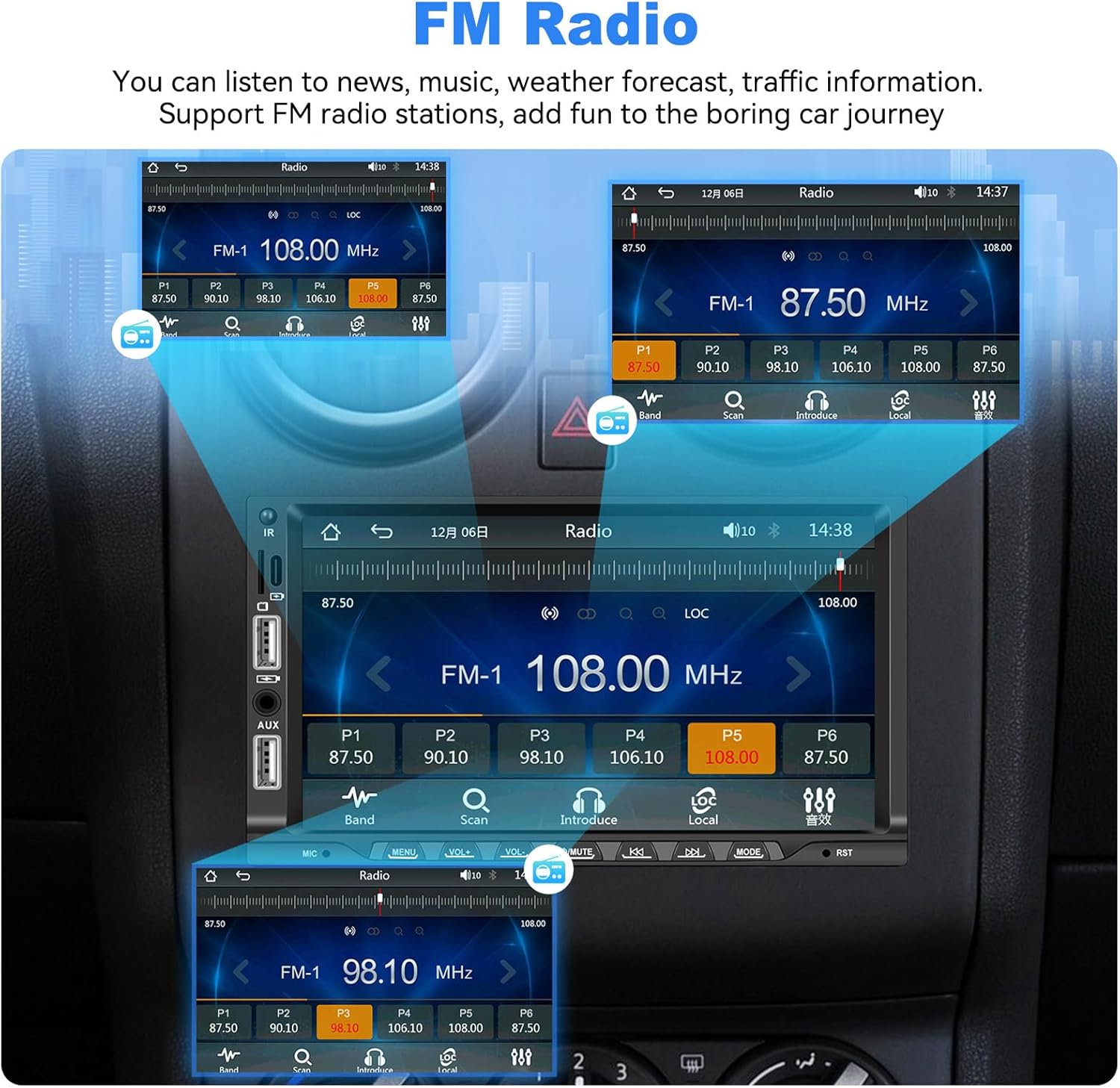

Image: The car stereo display showing the FM radio interface with frequency display, scan options, and multiple preset buttons for storing radio stations.
2.4 Bluetooth 5.1 Připojení
The built-in Bluetooth 5.1 module supports hands-free calls and music playback.
- Enable Bluetooth on your mobile phone and search for the stereo unit.
- Pair your phone with the stereo.
- Once connected, you can make/receive calls, play music, and access your phone book directly from the stereo.
Image: The car stereo display showing the Bluetooth interface, including a dial pad for making calls, contact list access, and controls for Bluetooth music playback.
2.5 Ovládání na volantu (SWC)
Control the car audio functions using your vehicle's steering wheel buttons for convenience and safety.
- Access the 'Steering Wheel Control' settings in the stereo's menu.
- Follow the on-screen instructions to program your steering wheel buttons to control functions like volume, track skipping, and mode selection.

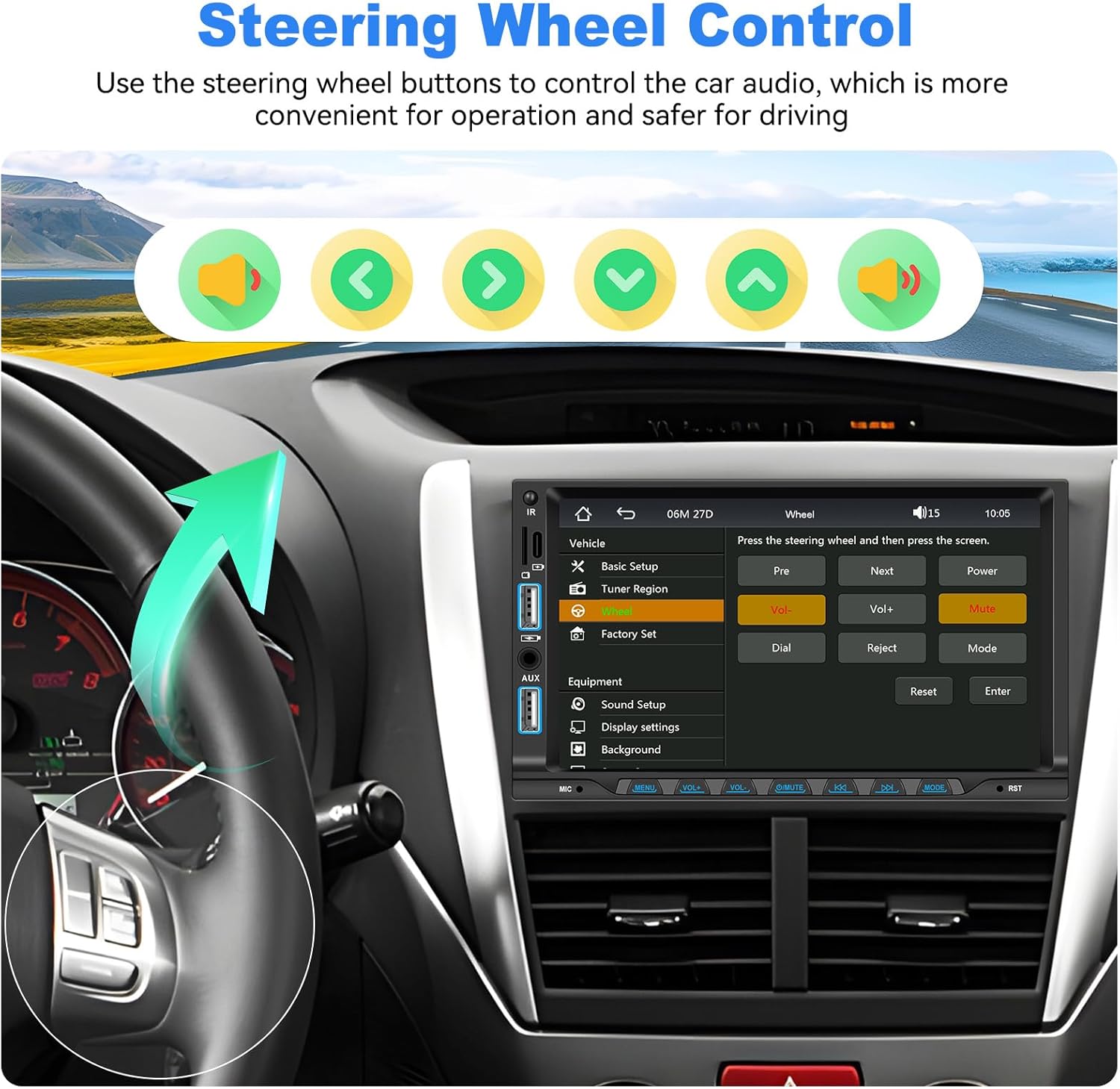

Image: The car stereo screen displaying the Steering Wheel Control setup menu, where users can assign functions to their vehicle's steering wheel buttons.
2.6 Audio Equalizer (EQ) Adjustment
Adjust sound effects and balance speaker volume to customize your audio experience.
- Navigate to the 'Sound Setup' or 'EQ' menu.
- Adjust settings for bass, treble, and balance (front/rear, left/right) to suit your preferences.
2.7 USB Ports & TF/AUX Input
The unit features USB ports, a TF card slot, and an AUX input for various media playback and phone charging.
- Vstup USB: Supports media playback from USB drives and phone charging.
- Slot na kartu TF: Supports media playback from TF (MicroSD) cards.
- Vstup AUX: Připojte externí zvuková zařízení pomocí 3.5mm audio kabelu.
Image: Visual representation of the USB, TF card, and AUX input options, along with an illustration of a phone being charged via USB.
2.8 Colorful Button Lights
Customize the aesthetic of your car stereo by selecting from seven different button backlight colors.
- Access the 'Display Settings' or 'Button Light' menu.
- Choose your preferred color to match your car's interior or personal style.
3. Údržba
3.1 Čištění jednotky
To maintain the clarity of the touchscreen and the overall appearance of the unit:
- K otření obrazovky a vnějších povrchů použijte měkký, suchý hadřík, který nepouští vlákna.
- Na odolné šmouhy lehceamphadřík vodou nebo čisticím prostředkem na obrazovky.
- Nepoužívejte abrazivní čisticí prostředky, rozpouštědla nebo agresivní chemikálie, protože by mohly poškodit obrazovku a povrchovou úpravu.
3.2 Aktualizace softwaru
Pravidelně kontrolujte informace od výrobce website or contact customer support for information on available software updates. Updates can improve performance, add new features, or fix bugs.
4. Řešení problémů
Pokud narazíte na problémy s autorádiem, podívejte se na následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádná síla | Nesprávné zapojení; Spálená pojistka; Problém s baterií vozidla | Check power connections (B+, ACC, GND). Verify vehicle fuses. Ensure vehicle battery is charged. |
| Žádný zvuk | Speaker wiring incorrect; Volume too low; Mute function active | Check speaker connections. Increase volume. Deactivate mute. Check EQ settings. |
| Screen unresponsive or unclear | Software glitch; Screen protector interference; Low contrast setting | Restart the unit. Ensure screen is clean. Adjust brightness/contrast in settings. |
| CarPlay/Android Auto se nepřipojuje | Bluetooth/USB connection issue; Phone compatibility; App not updated | Ensure Bluetooth is on and paired. Try a different USB cable. Update phone OS and CarPlay/Android Auto apps. |
| Zadní kamera se nezobrazuje | Camera wiring incorrect; 'Back' trigger wire not connected | Verify camera power and video connections. Ensure the 'Back' wire is correctly connected to the reversing light. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.
5. Specifikace
- Číslo modelu: 202205
- Značka: SIXTOP
- Velikost obrazovky: 7 palců
- Velikost instalace: 178 mm x 100 mm x 70 mm
- Technologie připojení: Bluetooth 5.1, USB Type A, USB Type-C, TF Card, AUX Input
- Speciální vlastnosti: Built-In Bluetooth, FM Tuner, Music Streaming, Rear View Camera Input, Wireless CarPlay and Android Auto, Wired Mirror Link, EQ Adjustment, Colorful Button Lights, Steering Wheel Control
- Kompatibilní zařízení: Smartphone
- Režim výstupu zvuku: Stereo
- Konfigurace kanálu prostorového zvuku: 4.0
- Výstupní výkon: 180 wattů (45 wattů na kanál)
- Podpora kódování videa: MKV, AVI, TS, TP, MP4, M4V
- Podpora formátů zvuku: AVI, WAV, WMA
- Způsob ovládání: Dotyková obrazovka
- Země původu: Čína
6. Informace o záruce
This SIXTOP Double Din Car Stereo comes with a 1-letá záruka from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the product packaging or contact customer support.
