Merax Modern Farmhouse Masivní dřevěná skříňka Murphy Uživatelská příručka

Konec produktuview

The Merax Modern Farmhouse Solid Wood Murphy Cabinet Bed is a versatile and space-saving furniture solution designed for modern living. This innovative piece functions as a stylish cabinet and easily converts into a comfortable full-size bed, making it ideal for guest rooms, small apartments, or multi-functional spaces. It features a rustic design with a minimalistic look, allowing it to blend seamlessly with various decor styles. Constructed from sturdy manufactured wood, it ensures stability and durability for long-term use. Additionally, the unit includes integrated storage drawers, providing convenient space for bedding or other items.

Image: The Merax Murphy Cabinet Bed shown in its fully extended bed configuration, ready for use.

Důležité bezpečnostní informace

Please read and adhere to the following safety guidelines to ensure safe operation and longevity of your Murphy Cabinet Bed:

• Foundation and Mattress: Do not use the bed without a proper foundation or mattress.
• Hmotnostní limit: Nepřekračujte doporučenou maximální hmotnost 600 liber.
• Ochrana proti vlhkosti: Keep the bed frame dry to prevent structural damage or mold growth.
• Shromáždění: Vždy pečlivě dodržujte montážní pokyny, abyste zajistili stabilitu a zabránili zřícení.
• Body sevření: Be cautious of pinch points and sharp edges during assembly and use, especially when converting the unit.

Montáž a nastavení

Your Merax Murphy Cabinet Bed is designed for straightforward assembly. All necessary tools and a step-by-step instruction guide are included with your purchase. It is recommended to have two adults for assembly to ensure safety and efficiency.

Montážní krokyview:

1. Rozbalení a uspořádání: Carefully unpack all components and verify against the parts list in the instruction guide. Organize parts by type and size.
2. Sestavení rámu skříně: Begin by assembling the main cabinet frame according to the provided diagrams. Ensure all connections are secure.
3. Instalace zásuvek: Assemble and install the storage drawers into their designated slots within the cabinet.
4. Attach Bed Frame Components: Connect the foldable bed frame components to the cabinet structure.
5. Konečné úpravy: Once assembled, ensure all parts are tightly secured and the bed mechanism operates smoothly.

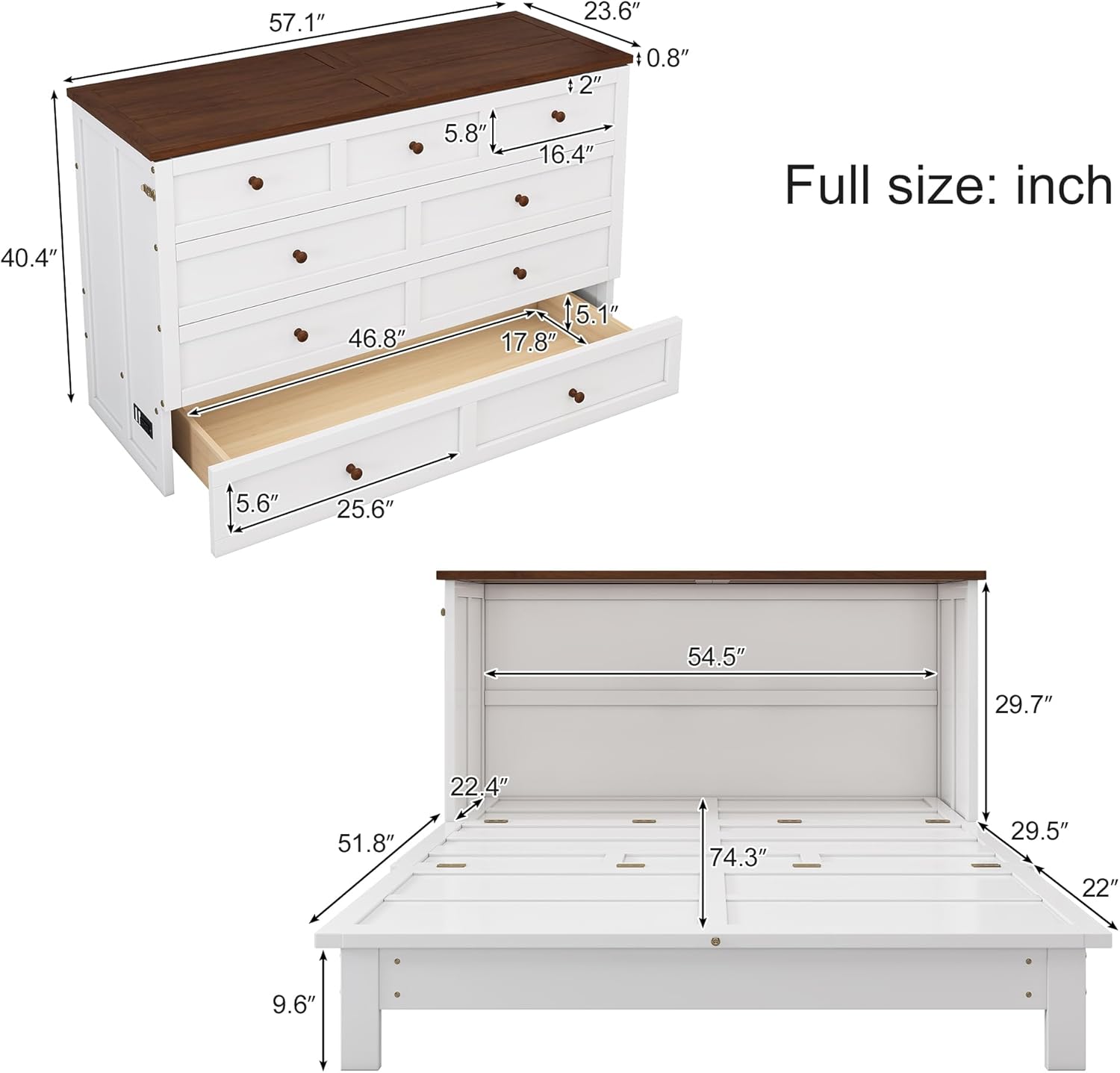

Image: Detailed dimensional diagram of the Murphy Cabinet Bed, illustrating measurements for both the cabinet and the extended bed frame.

Image: Visual guide for assembly, showing the initial steps of setting up the cabinet structure (Steps 1 and 2).

Image: Visual guide for assembly, showing the later steps of installing the bed frame and drawers (Steps 3 and 4).

Operace

The Merax Murphy Cabinet Bed is designed for easy conversion between a cabinet and a bed, maximizing your living space.

Přeměna na postel:

1. Vyčistit oblast: Ujistěte se, že prostor před skříní je volný a bez překážek.
2. Otevřená skříňka: Gently pull the front panel of the cabinet outwards. The bed frame will begin to unfold.
3. Prodloužení nohou: As the bed unfolds, the support legs will automatically extend. Ensure they are fully locked into place for stability.
4. Poloha matrace: Adjust the mattress if necessary to ensure it is centered on the frame.

Converting to Cabinet:

1. Odstraňte ložní prádlo: Remove any pillows, blankets, or heavy bedding that might obstruct the folding mechanism.
2. Fold Bed Frame: Gently lift the foot of the bed and push it inwards towards the cabinet. The support legs will retract.
3. Zavřít kabinet: Continue pushing the bed frame until it fully retracts into the cabinet. Close the front panel securely.

Používání úložných zásuvek:

The integrated storage drawers provide convenient space for storing bed linens, pillows, or other items. Simply pull the drawer handles to open and push to close. Ensure drawers are fully closed before converting the bed.

Image: The Murphy Cabinet Bed in its compact cabinet form, showcasing one of the integrated storage drawers pulled open.

Údržba a péče

To maintain the appearance and longevity of your Merax Murphy Cabinet Bed, follow these care instructions:

• Čištění: For general cleaning, wipe surfaces with a dry cloth. For more stubborn marks, a damp Lze použít hadřík a poté ihned suchý hadřík, aby se zabránilo poškození vlhkostí.
• Vyhněte se agresivním chemikáliím: Do not use abrasive cleaners, strong chemicals, or solvents, as these can damage the wood finish.
• Pravidelná kontrola: Periodically check all screws and fasteners to ensure they remain tight. Retighten as needed to maintain structural integrity.
• Podmínky prostředí: Avoid placing the bed in direct sunlight or near heat sources, which can cause warping or fading. Maintain a stable room temperature and humidity.

Odstraňování problémů

If you encounter any issues with your Merax Murphy Cabinet Bed, refer to the following common problems and solutions:

• Obtížnost sestavení: If assembly proves challenging, ensure all parts are correctly identified and oriented according to the instruction manual. Double-check that all hardware is used in the correct locations. Sometimes, a slight adjustment or loosening of screws before final tightening can help align components. Refer to the step-by-step guide carefully.
• Bed Not Folding/Unfolding Smoothly: Check for any obstructions around the mechanism or within the cabinet. Ensure no bedding is caught in the folding parts. Verify that all hinges and moving parts are clean and free of debris. Do not force the mechanism; if resistance is met, re-examine the setup.
• Lepení zásuvek: Ensure the drawer slides are clean and free of dust or debris. Check that the drawers are properly aligned on their tracks. Avoid overloading drawers, as excessive weight can cause them to stick.
• Nestabilní rám: If the bed feels wobbly, re-check all connections and ensure all screws and bolts are fully tightened. Verify that the bed is placed on a flat, level surface.

Pokud problémy přetrvávají i po vyzkoušení těchto řešení, obraťte se na zákaznickou podporu s žádostí o další pomoc.

Specifikace produktu

Záruka a podpora

Merax offers various protection plans for your product. Please refer to the product listing or contact customer service for details on available 2-Year and 3-Year Protection Plans, as well as Complete Protect options.

For any questions, concerns, or assistance with assembly or product operation, please do not hesitate to contact Merax customer service representatives. You can typically find contact information on the product packaging or the official Merax webmísto.

For returns, a 30-day easy return policy is generally available. Please check your purchase details for specific return instructions.
