Zavedení
Thank you for choosing the MARK ADLER Xeno 7.6 Electric Dual Motor Desk Frame. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new height-adjustable desk frame. Please read this manual carefully before installation and use to ensure proper function and safety.
Bezpečnostní informace
Abyste předešli zranění nebo poškození produktu, dodržujte prosím následující bezpečnostní pokyny:
- Nepřekračujte maximální nosnost 80 kg (176 lb).
- Ensure all cables are properly routed and secured to avoid entanglement during height adjustments.
- Během provozu držte děti a domácí zvířata v dostatečné vzdálenosti od stolu.
- Use the anti-collision system with caution to prevent damage or injury.
- Do not place hands or other body parts near moving parts of the frame.
- Only use the desk frame indoors in a dry environment.
- If any unusual sounds or movements occur, immediately stop operation and consult the troubleshooting section or contact support.
Nastavení a montáž
The MARK ADLER Xeno 7.6 desk frame requires assembly. It is recommended that two people assemble the desk frame for ease and safety.
Obsah balení
Before starting assembly, verify that all components are present. The package includes the electric dual motor desk frame, control panel, and necessary mounting hardware. A desktop is not included and must be purchased separately.
Montážní kroky
- Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu a položte je na čistý, měkký povrch, abyste zabránili poškrábání.
- Assemble Legs and Crossbars: Attach the lifting columns to the feet and then connect the crossbars. Ensure all screws are tightened securely.
- Instalace motorů a řídicí jednotky: Mount the dual motors and the control box according to the diagrams. Connect all motor and power cables to the control box.
- Připojení ovládacího panelu: Secure the control panel to the desired location on the desk frame, typically on the front edge.
- Připojit plochu: Place your chosen desktop (120-150 cm width recommended) onto the assembled frame. Secure the desktop to the frame using appropriate screws. The frame supports both left and right-hand L-shaped configurations.
- Správa kabelů: Route all cables neatly using cable ties or clips to prevent them from interfering with the desk's movement.
- Připojit příslušenství: Install the included headphone hook and bag holder as desired.
Image: MARK ADLER Xeno 7.6 Desk Frame layout showing dimensions and components. The frame is adjustable from 72 cm to 118 cm in height, and accommodates desktops from 105 cm to 150 cm in width on the main section, and 108 cm on the return section, with a depth of 58 cm.

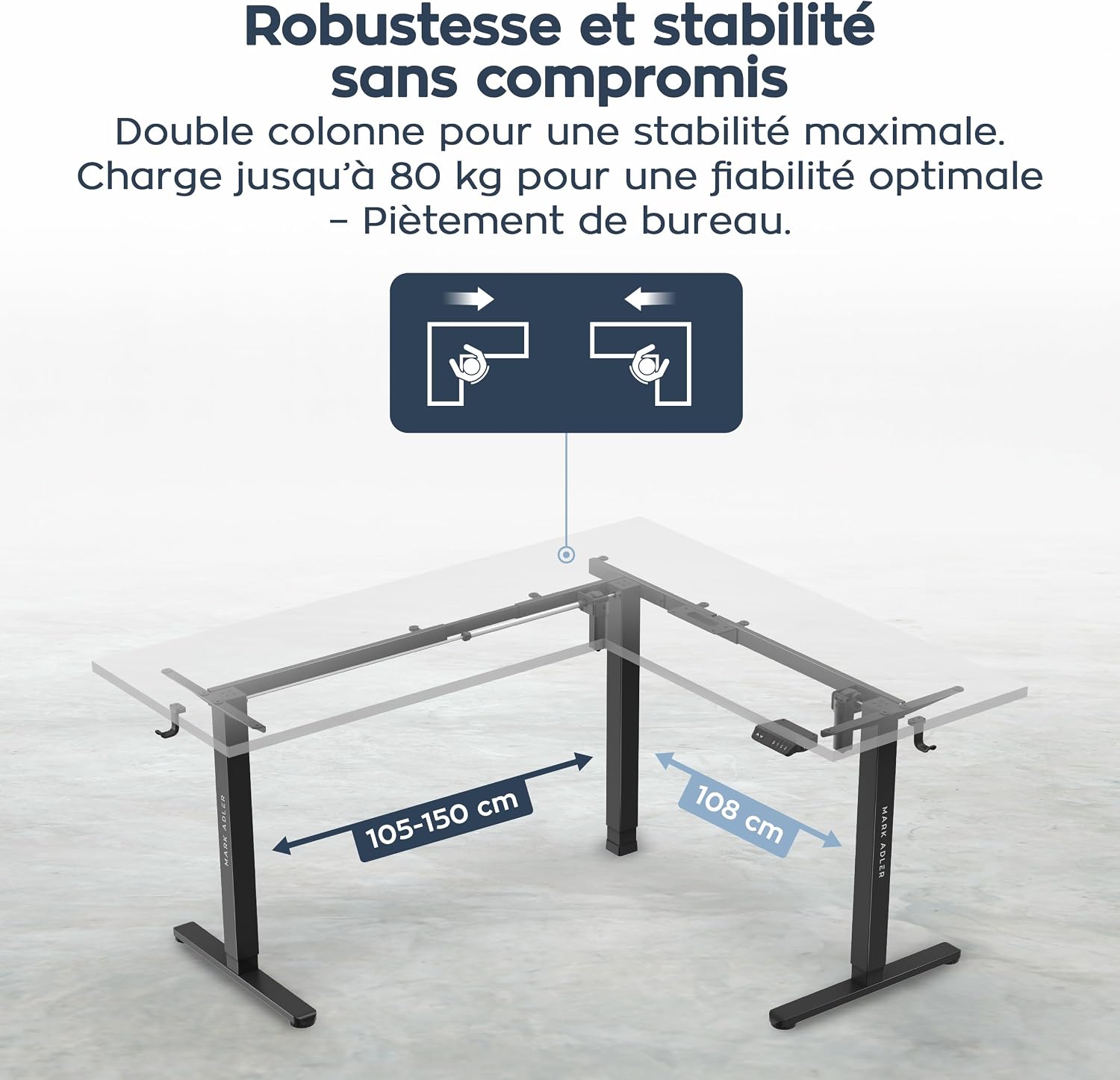

Image: Diagram illustrating the robust and stable construction of the MARK ADLER Xeno 7.6 desk frame, highlighting its dual column design and adjustable width for different desktop sizes.
Návod k obsluze
The MARK ADLER Xeno 7.6 desk frame features an intuitive control panel for easy height adjustment and memory functions.
Funkce ovládacího panelu
Image: Close-up of the MARK ADLER Xeno 7.6 control panel, showing the up/down arrows, memory buttons (1, 2, 3), and integrated USB and USB-C charging ports.
- Nastavení výšky: Použijte ▲ (Nahoru) a ▼ (Dolů) arrow buttons to manually adjust the desk height. The height range is from 72 cm to 118 cm.
- Předvolby paměti: The control panel has three programmable memory positions (1, 2, 3).
- Uložení výšky: Nastavte stůl do požadované výšky. Stiskněte tlačítko „S“ button, then press one of the number buttons (1, 2nebo 3) within 3 seconds. The display will show "S-" followed by the number to confirm.
- Pro vyvolání uložené výšky: Jednoduše stiskněte odpovídající číselné tlačítko (1, 2nebo 3). Stůl se automaticky přesune do uložené polohy.
- USB nabíjecí porty: The integrated USB and USB-C ports allow you to conveniently charge your devices directly from the desk.
Image: Graphic illustrating the height adjustment range of the MARK ADLER Xeno 7.6 desk frame, from 72 cm to 118 cm, emphasizing the smooth transition between sitting and standing positions.
Údržba
Regular maintenance ensures the longevity and optimal performance of your MARK ADLER Xeno 7.6 desk frame.
- Čištění: Rám stolu otřete měkkým hadříkemamp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, která by mohla poškodit povrchovou úpravu.
- Kontrola kabelu: Periodically inspect all cables for wear or damage. Ensure they are securely connected and not pinched.
- Utažení šroubů: Occasionally check and tighten any loose screws, especially after initial assembly and a few weeks of use.
- Mazání: The lifting columns are generally maintenance-free. Do not apply lubricants unless specifically instructed by the manufacturer.
Odstraňování problémů
If you encounter issues with your desk frame, refer to the following common problems and solutions.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stůl se nehýbe. | Power cable disconnected, control box error, overload. | Check power connection. Unplug and replug the power cord. Reduce load if exceeding 80 kg. Perform a reset (see below). |
| Uneven movement or noise. | Loose connections, uneven load, obstruction. | Check all screws and connections. Ensure weight is evenly distributed. Remove any obstructions. |
| Funkce paměti nefunguje. | Memory not properly set, power interruption. | Re-program the memory positions. Perform a reset. |
| Zobrazený chybový kód. | Specifická systémová chyba. | Refer to the specific error code in the full manual (if available) or contact customer support. Often, a reset can resolve temporary errors. |
Resetujte postup
If the desk is not functioning correctly, a reset may resolve the issue.
- Odpojte napájecí kabel ze zásuvky.
- Počkejte alespoň 30 sekund.
- Zapojte napájecí kabel zpět do zásuvky ve zdi.
- Stiskněte a podržte ▼ (Dolů) button until the desk reaches its lowest position and slightly retracts, then stops. This indicates a successful reset.
Specifikace
| Funkce | Detail |
|---|---|
| Značka | MARK ADLER |
| Číslo modelu | Xeno 7.6 |
| Design stolu | Computer Desk (L-shaped frame) |
| Barva | Černý |
| Materiál | Kov (rám) |
| Rozsah nastavení výšky | 72 cm - 118 cm (28.3 palce - 46.5 palce) |
| Recommended Desktop Width | 120 cm - 150 cm (main section) |
| Hloubka | 58 cm (22.8 palců) |
| Maximální nosnost | 80 kg (176 lb) |
| Motory | Duální motorový systém |
| Paměťové pozice | 3 programovatelné pozice |
| Speciální funkce | Electric height adjustment, Ergonomic, Memory function, USB & USB-C ports, Headphone hook, Bag holder |
| Montáž Vyžadována | Ano (doporučují se 2 osoby) |
| Země původu | Čína |
Záruka
The MARK ADLER Xeno 7.6 Electric Dual Motor Desk Frame comes with a Omezená záruka. Please refer to the warranty card included with your product or contact MARK ADLER customer support for specific terms and conditions. This warranty typically covers manufacturing defects and malfunctions under normal use.
Podpora
For further assistance, technical support, or warranty claims, please contact MARK ADLER customer service.
- Online podpora: Visit the official MARK ADLER webweb s nejčastějšími dotazy, dalšími zdroji a kontaktními formuláři.
- E-mail: Viz obal produktu nebo oficiální webweb s e-mailovou adresou zákaznické podpory.
- Telefon: Viz obal produktu nebo oficiální webweb s telefonními čísly zákaznické podpory.
When contacting support, please have your product model number (Xeno 7.6) and purchase information readily available.
