ECD Germany 16L Electronic Security Safe Instruction Manual

Zavedení

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your ECD Germany 16L Electronic Security Safe. Please read this manual thoroughly before using the safe to ensure proper functionality and security. Keep this manual for future reference.

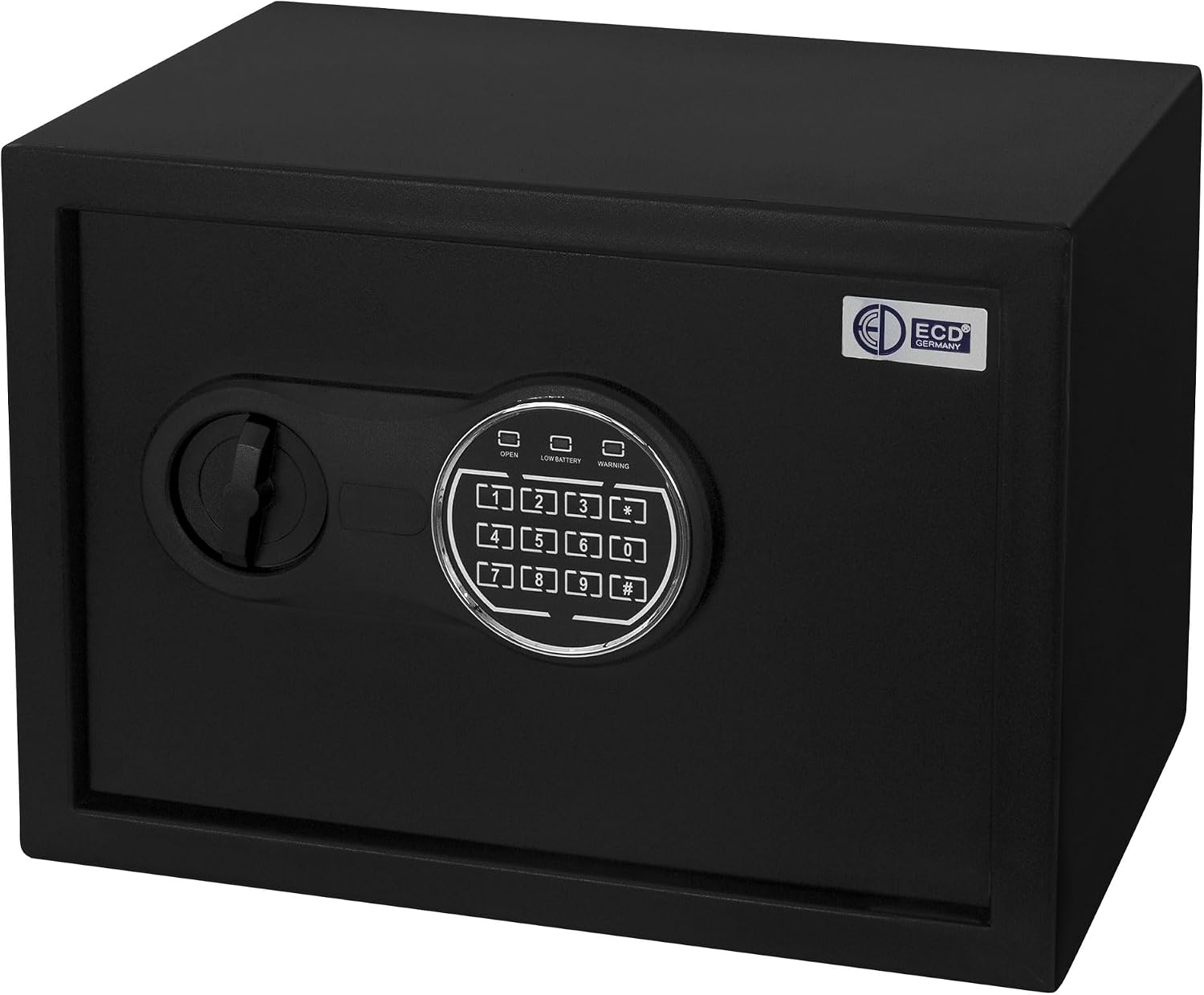

Obrázek: Přední strana view of the ECD Germany 16L Electronic Security Safe, showcasing its compact design and digital keypad.

Bezpečnostní informace

• Always store the emergency keys in a secure location away from the safe. Do not store them inside the safe.
• Ujistěte se, že je trezor bezpečně připevněn ke zdi nebo podlaze, aby se zabránilo jeho neoprávněnému odstranění.
• Nevystavujte trezor extrémním teplotám ani vlhkosti.
• Keep the digital keypad clean and dry.
• Jakmile se zobrazí indikátor slabé baterie, ihned vyměňte baterie, abyste předešli zablokování.
• Do not attempt to force the safe open if the mechanism is jammed. Use the emergency key or consult customer support.

Obsah balení

Pečlivě zkontrolujte obsah balení. Pokud některé položky chybí nebo jsou poškozené, obraťte se na prodejce.

• 1 x ECD Germany 16L Electronic Security Safe
• 2 x Emergency Security Keys
• 4 x AA baterie (pro první použití)
• 4 x Anchor Bolts (for mounting)
• 1 x Removable Intermediate Shelf
• 1 x Protective Felt Mat (pre-installed)
• 1 x Návod k obsluze (tento dokument)

Obrázek: Overview of the digital safe, highlighting its sturdy steel construction, included mounting material, security keys, and battery operation.

Nastavení

1. Instalace baterie

1. Najděte přihrádku na baterie na vnitřní straně dvířek trezoru.
2. Otevřete kryt baterie.
3. Vložte 4 baterie typu AA a dbejte na správnou polaritu (+/-).
4. Pevně ​​zavřete kryt baterie.

Obrázek: Podrobný view of the safe's interior, showing the battery compartment for 4x AA batteries and the two locking bolts.

2. Initial Opening and PIN Code Setup

Upon first use, the safe must be opened with the emergency key to set your personal PIN code.

1. Insert one of the emergency keys into the concealed keyhole, usually located behind a small cover on the keypad panel.
2. Trezor odemknete otočením klíče ve směru hodinových ručiček.
3. While the safe door is open, locate the red reset button on the inside of the door, near the hinge.
4. Press the red reset button. You will hear a beep, and the yellow indicator light on the keypad will illuminate.
5. On the keypad, enter your desired 3 to 8 digit PIN code.
6. Press the "A" or "#" button to confirm your new PIN code. You will hear a confirmation beep.
7. Test your new PIN code with the door open before closing it. Enter the PIN, then turn the knob to ensure the bolts retract.
8. Remove the emergency key and store it in a safe place outside the safe.

Image: Visual guide demonstrating how to access the safe using either the digital PIN code or the security key.

3. Mounting the Safe (Optional but Recommended)

The safe features pre-drilled holes on the back and bottom for secure mounting to a wall or floor. This significantly enhances security.

1. Choose a suitable location for mounting, such as inside a closet, cabinet, or directly to a wall stud or concrete floor.
2. Mark the drilling points through the pre-drilled holes on the safe's back or bottom onto the mounting surface.
3. Drill pilot holes into the marked locations using an appropriate drill bit for your surface (wood, concrete, etc.).
4. Zarovnejte trezor s vyvrtanými otvory.
5. Insert the provided anchor bolts through the safe's holes and into the drilled holes in the wall/floor.
6. Tighten the anchor bolts securely until the safe is firmly attached.

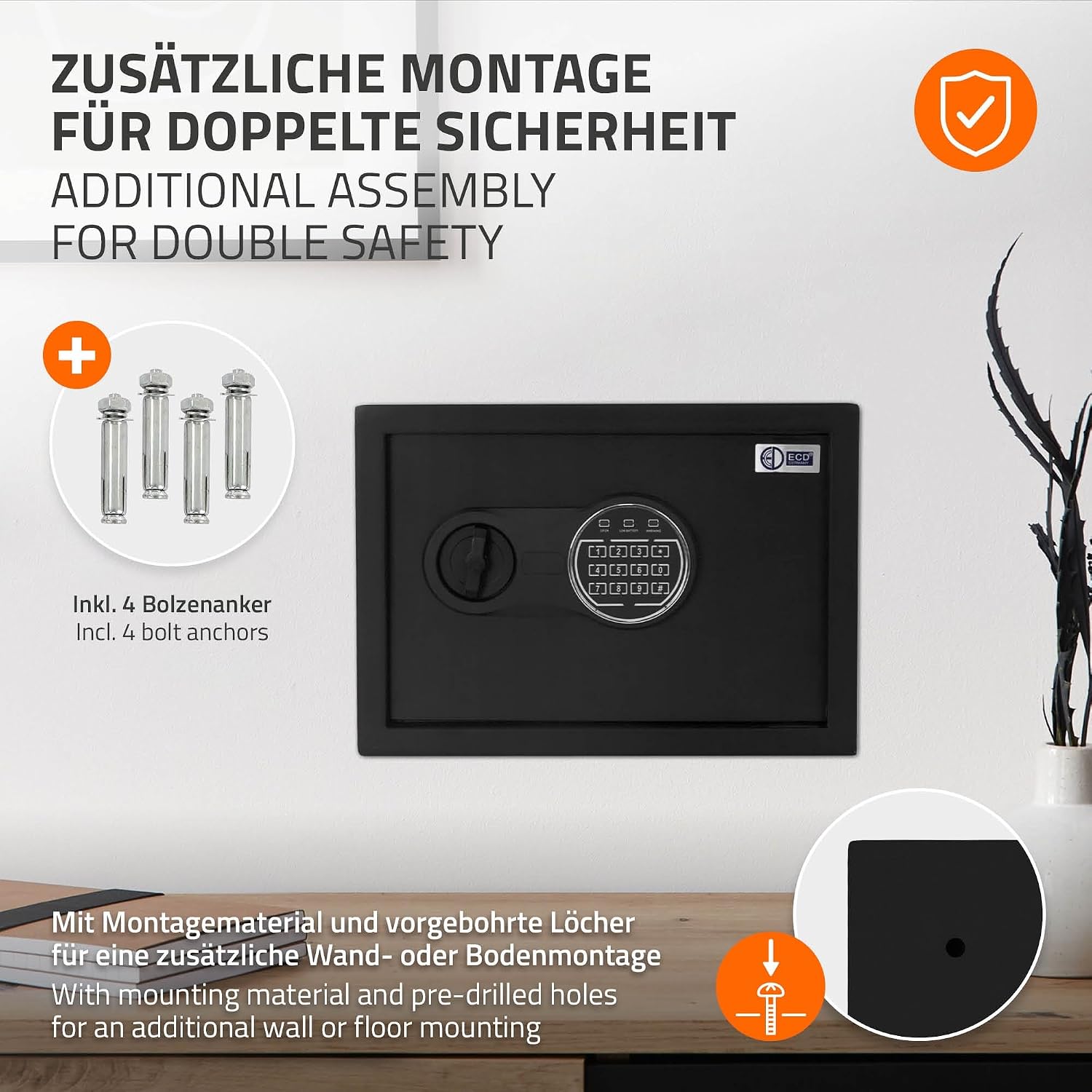

Image: Illustration of the safe with included bolt anchors and a diagram showing the pre-drilled holes for wall or floor mounting.

Návod k obsluze

1. Opening the Safe with PIN Code

1. Enter your 3 to 8 digit PIN code on the digital keypad.
2. Press the "A" or "#" button.
3. If the code is correct, the green indicator light will illuminate, and you will hear a beep.
4. Do 5 sekund otočte knoflíkem ve směru hodinových ručiček a otevřete dvířka trezoru.
5. If an incorrect code is entered three times consecutively, the keypad will lock for 20 seconds. Further incorrect attempts will increase the lockout time.

2. Otevření trezoru nouzovým klíčem

This method is for emergency access, such as forgotten PIN or dead batteries.

1. Locate the concealed keyhole on the keypad panel.
2. Vložte nouzový klíč a otočte jím ve směru hodinových ručiček.
3. Držte klíč otočený a otočte knoflíkem ve směru hodinových ručiček, abyste otevřeli dveře trezoru.
4. Once open, you can replace batteries or reset the PIN code if needed.

3. Zavření a uzamčení trezoru

1. Pevně ​​zavřete dveře trezoru.
2. Otočte knoflíkem proti směru hodinových ručiček, abyste zajistili zajišťovací šrouby. Trezor je nyní uzamčen.

4. Using the Internal Sensor Light

The safe is equipped with an internal sensor light that illuminates when the door is opened, providing visibility inside.

• The light automatically activates when the door is opened.
• It will turn off automatically after a short period or when the door is closed.

Image: The safe's interior, illustrating the removable intermediate shelf and internal dimensions for storing valuables.

Údržba

1. Čištění

Otřete vnější povrch trezoru měkkým hadříkemamp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or keypad.

2. Výměna baterie

When the low battery indicator (red light) illuminates on the keypad, it is time to replace the batteries. Follow the battery installation steps in the "Setup" section. Always use 4 new AA alkaline batteries.

Odstraňování problémů

Specifikace

Image: Visual representation of the safe's external dimensions and key features.

Záruka a podpora

For warranty information and customer support, please refer to the purchase documentation or contact ECD Germany directly through their official website or the retailer where the product was purchased. Please have your model number (3936a7bc-658f-4204-a37a-6443f0a7ed3e) and proof of purchase ready when contacting support.

You can visit the ECD Germany store on Amazon for more information: ECD Germany Store
