Návod k obsluze baterie MakerHawk 3.7 V 950 mAh LiPo

1. Konec produktuview

The MakerHawk 3.7V 950mAh LiPo Battery is a rechargeable lithium polymer battery designed for various electronic projects, including Arduino and ESP32 development boards. It features a built-in protection circuit to ensure safe operation and a Micro JST 1.25 plug for easy connectivity. This manual provides essential information for the safe and effective use of your battery.

Image 1.1: MakerHawk 3.7V 950mAh LiPo Batteries. Each battery is labeled with its capacity (950mAh), voltage (3.7V), and energy (3.5Wh), and includes a warning to use according to specifications.

2. Obsah balení

Váš balíček by měl obsahovat následující položky:

• MakerHawk 3.7V 950mAh LiPo Batteries (quantity as per purchase, e.g., 4 Pack)
• Insulated Rubber Tape (pre-applied or included)

3. Specifikace

Refer to the table below for detailed technical specifications of the MakerHawk 3.7V 950mAh LiPo Battery:

Image 3.1: Battery Specifications. This image visually presents the key electrical and physical specifications of the battery.

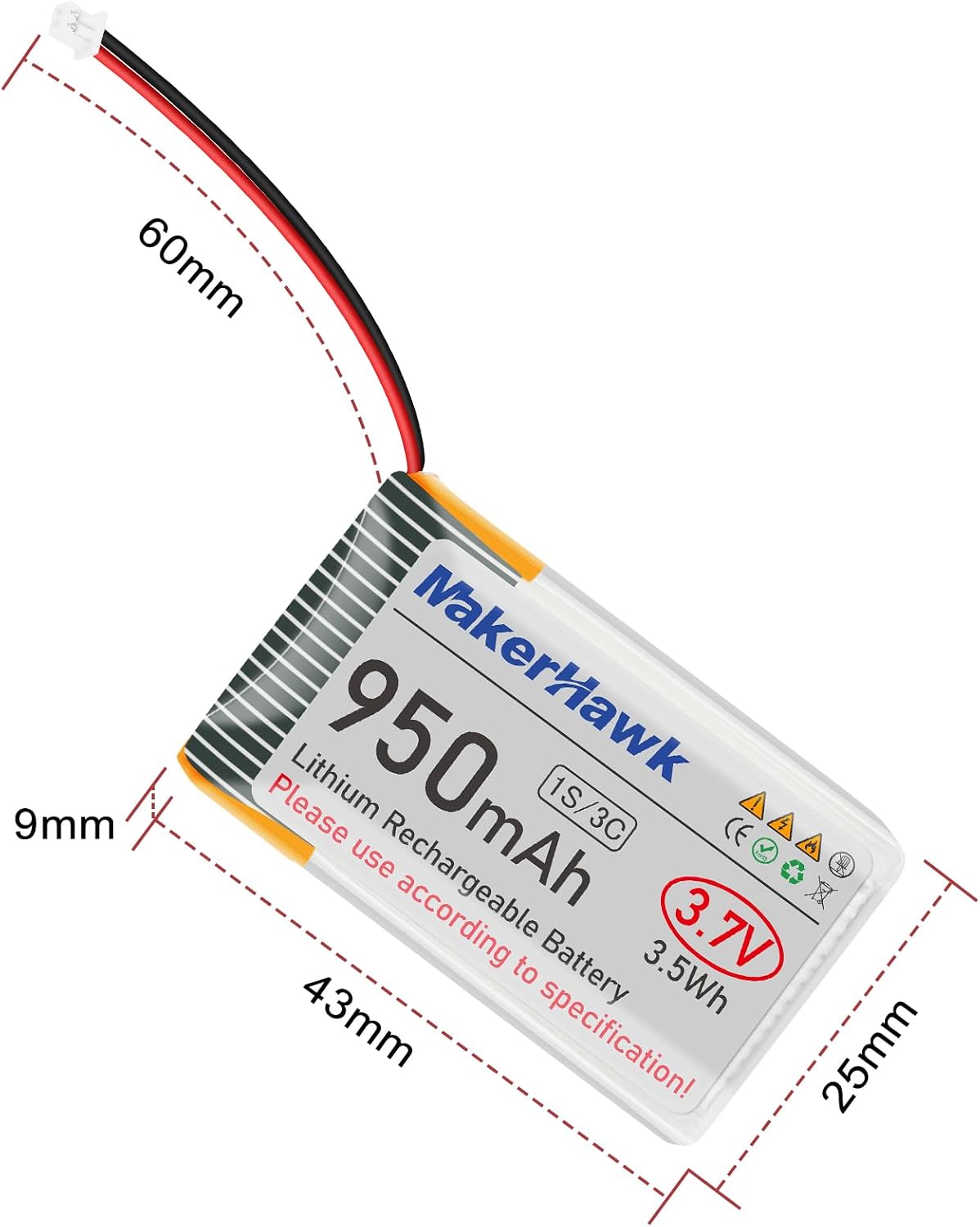

Image 3.2: Battery Dimensions. A diagram illustrating the physical measurements of the battery, including its length, width, thickness, and the length of its connecting wires.

4. Bezpečnostní pokyny

Lithium Polymer batteries require careful handling. Failure to follow these safety instructions can result in fire, personal injury, or property damage.

4.1 Obecná bezpečnostní opatření

• Do not puncture, disassemble, short circuit, or expose the battery to fire or high temperatures.
• Use only chargers specifically designed for LiPo batteries.
• Nenabíjejte bez dozoru.
• Udržujte baterie mimo dosah dětí a domácích zvířat.
• Pokud baterie vykazuje známky nabobtnání, úniku nebo poškození, okamžitě ji přestaňte používat a řádně ji zlikvidujte.
• Zabraňte pádu baterie na zem nebo jejímu vystavení silným nárazům.

4.2 Integrated Protection Features

This battery is equipped with a Protection Circuit Module (PCM) that includes the following safety functions:

• Ochrana proti přebití: Zabraňuje nabití baterie nad bezpečnou úroveňtaglimit e (4.2 V).
• Ochrana proti nadměrnému vybití: Zabraňuje vybití baterie pod bezpečnou úroveň napětítaglimit e (3.0 V).
• Nadproudová ochrana: Limits the current drawn from the battery to prevent damage. Instantaneous overcurrent protection is rated at 4.8A-6A.
• Ochrana proti zkratu: V případě zkratu automaticky vypne napájení.
• Ochrana proti přehřátí: Monitors battery temperature to prevent overheating during operation or charging.

Image 4.1: Battery Protection Features. This image highlights the key safety mechanisms integrated into the battery's protection board.

4.3 Important Note on Overcurrent Protection

While the battery's overcurrent protection feature is in place, it may not be entirely foolproof. It is advisable to avoid charging and discharging the battery at excessively high currents or at currents and voltages beyond the recommended range. Doing so could potentially damage the protection circuitry, rendering it ineffective.

Image 4.2: Overcurrent Protection Warning. This image emphasizes the importance of adhering to recommended current and voltage limits to prevent damage to the protection circuitry.

5. Nastavení a připojení

5.1 Connector Type

The MakerHawk LiPo battery features a Micro JST 1.25 plug. This connector is commonly used in small electronic devices and development boards.

Image 5.1: Micro JST 1.25 Plug. A detailed view of the connector, indicating the polarity (P- and P+).

5.2 Kompatibilita

This battery is designed for compatibility with various development boards that utilize a 1.25mm plug, such as Arduino and ESP32 boards. Ensure your device has a matching Micro JST 1.25 receptacle.

Image 5.2: Compatible Development Boards. This image illustrates the battery's compatibility with several common Arduino and ESP32-based development boards.

5.3 Postup připojení

1. Identify the Micro JST 1.25 port on your development board or device.
2. Align the battery's Micro JST 1.25 plug with the port, ensuring correct polarity. The red wire typically indicates positive (+), and the black wire indicates negative (-).
3. Gently insert the plug into the port until it is securely seated. Do not force the connection.
4. Verify the connection is firm before operating your device.

6. Provoz

6.1 Nabíjení baterie

To charge the MakerHawk LiPo battery:

• Use a compatible LiPo battery charger that supports 3.7V (1S) batteries.
• The recommended maximum charging current is 0.5C (approximately 475mA for a 950mAh battery).
• Doporučený objem nabíjenítagNastavení je 4.2 V.
• Charge the battery within the specified temperature range of 0-45°C.
• Always monitor the battery during charging.

6.2 Vybíjení baterie

The battery provides stable discharge characteristics across various temperatures and environmental conditions. It is suitable for powering devices such as GPS units, cameras, and microcontrollers.

• Operate the battery within the specified discharge temperature range of -10-60°C.
• Avoid drawing currents that exceed the battery's instantaneous overcurrent protection (4.8A-6A) to prevent triggering the protection circuit or damaging the battery.
• The protection board will automatically cut off power if the voltage drops below 3.0V (over-discharge protection) to prevent irreversible damage to the battery.

7. Údržba a skladování

7.1 Obecná údržba

• Keep the battery clean and free from dust and moisture.
• Regularly inspect the wires and connector for any signs of damage.

7.2 Skladování

For optimal longevity and safety, store the battery:

• In a cool, dry place.
• Away from direct sunlight, heat sources, and flammable materials.
• At a storage voltage of approximately 3.8V per cell for long-term storage. Do not store fully charged or fully discharged for extended periods.

8. Řešení problémů

If you encounter issues with your MakerHawk LiPo battery, consider the following:

• Baterie se nenabíjí: Ensure the charger is compatible with LiPo batteries and correctly connected. Check the charging temperature is within the 0-45°C range.
• Zařízení se nezapíná: Verify the battery is charged. Check the connection to the device. Ensure the device's power requirements do not exceed the battery's discharge capabilities or trigger its overcurrent protection.
• Battery swelling or overheating: Immediately discontinue use and safely dispose of the battery. This indicates a serious issue.
• Sudden power cut-off: This may indicate the battery's protection circuit has activated due to over-discharge, overcurrent, or short circuit. Recharge the battery or reduce the load on your device.

9. Záruka a podpora

For warranty information, technical support, or any inquiries regarding your MakerHawk 3.7V 950mAh LiPo Battery, please refer to the official MakerHawk website or contact MakerHawk customer service directly. Keep your purchase receipt for warranty claims.
