Andoer Wireless Security Camera DVR System (720P Camera, 7-inch LCD Monitor) User Manual

1. Konec produktuview

The Andoer Wireless Security Camera DVR System provides comprehensive surveillance with a 720P wireless camera and a 7-inch LCD monitor. This system supports photo capturing, manual or loop video recording, and offers night vision capabilities for 24/7 monitoring. It is designed for various applications including home, office, warehouse, and shopping mall security.

Obsah balení:

1 x Monitor with Battery
1 x Fotoaparát
2 x napájecí adaptéry
1 x Uživatelská příručka

Andoer Wireless Security Camera DVR System with 7-inch LCD monitor and camera

Obrázek 1.1: Konecview of the Andoer Wireless Security Camera DVR System, showing the 7-inch LCD monitor and the wireless camera.

2. Specifikace

Receiver (Monitor) Specifications:

Velikost LCD obrazovky: 7 inch TFT LCD Screen
Rezoluce: 1024*600
Přenosová frekvence: 2.4G Digital RF modulation
Citlivost příjmu: -85 dBm
Napájecí adaptér: DC 5V / 1A
Rozměry: 20 * 12 * 2 cm
Kapacita baterie: 1200mAh (BL-5C)
Vstup adaptéru: AC100 ~ 240V, 50 / 60Hz

Specifikace fotoaparátu:

Obrazový snímač: 1/4" Omni OV7725 Vision 720P
Pixely: 0.6 MP
Přenosová frekvence: 2.4G Digital RF modulation
Minimální osvětlení: 0Lux (Infrared LED ON) / 5LUX
Vzdálenost nočního vidění: 15 m
Napájecí adaptér: DC 5V / 1A
Vstup adaptéru: AC100 ~ 240V, 50 / 60Hz

Obecné specifikace:

Technologie připojení: Bezdrátový
Rozlišení záznamu videa: 720p
Speciální vlastnosti: Image Sensor, Night Vision, Wireless
Úložná kapacita paměti: Supports up to 32 GB TF memory cards (not included)
Zdroj napájení: Elektrický kabel
Hmotnost položky: 2.19 libry
Rozměry balení: 13.19 x 9.25 x 3.07 palce

3. Nastavení a instalace

The Andoer Wireless Security Camera System is designed for easy installation without complex wiring. Follow these steps to set up your system:

3.1 Napájení systému

Výkon fotoaparátu: Connect the camera to a continuous power source using the provided power adapter. The camera requires constant power for operation.
Výkon monitoru: Connect the monitor to a power source using its dedicated power adapter. The monitor includes a rechargeable battery (1200mAh BL-5C) for portable use, but it should be charged before first use and for extended operation.

Wireless camera connected to a power adapter

Image 3.1: The wireless camera connected to its power adapter, illustrating the continuous power requirement.

3.2 Montáž kamery

The camera features a mounting base for secure placement. Choose a suitable location for optimal surveillance coverage. Ensure the camera is within the 30M transmission range of the monitor for stable signal.

Zadní view of the wireless camera with its mounting base

Obrázek 3.2: Zadní strana view of the wireless camera, showing the mounting base for installation.

3.3 Umístění monitoru

The 7-inch LCD monitor comes with a backside stand for convenient tabletop placement. Position the monitor in a location where you can easily view the surveillance feed.

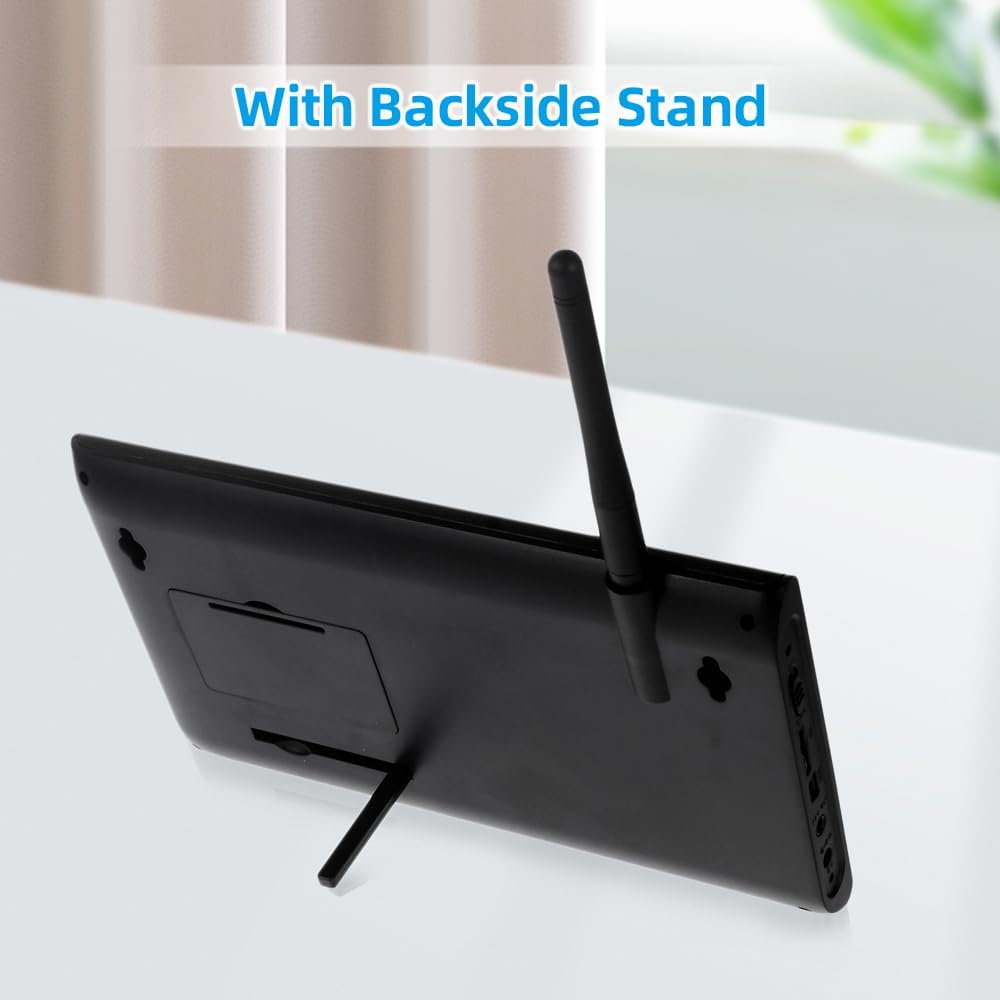

7-inch LCD monitor with its backside stand extended

Image 3.3: The 7-inch LCD monitor with its integrated backside stand, ready for desktop use.

4. Návod k obsluze

Once the system is powered on, the monitor will automatically connect to the camera(s). Familiarize yourself with the monitor controls for optimal use.

4.1 Monitor Controls and Display

7palcový LCD monitor poskytuje jasný obraz view of the camera feed. Use the buttons on the side of the monitor to navigate menus and control functions.

Close-up of the 7-inch LCD monitor displaying multiple camera feeds

Image 4.1: The 7-inch LCD monitor displaying a multi-view layout from connected cameras.

4.2 Video Recording and Photo Capturing

The system supports recording video and capturing photos. Insert a TF memory card (up to 32GB, not included) into the monitor's slot to enable storage. You can choose between manual recording or continuous loop recording modes via the monitor's menu.

4.3 Night Vision Functionality

The camera is equipped with IR lights for automatic night vision, providing clear surveillance even in low-light or complete darkness up to 15 meters. This ensures continuous protection for your property 24/7.

Wireless camera providing night vision surveillance of a backyard

Image 4.2: Illustration of the camera's night vision capability, showing infrared illumination in a dark environment.

4.4 Expandable Viewmožnosti

The system can support up to 4 cameras (additional cameras sold separately). The 7-inch LCD monitor offers flexible viewing modes: single camera view, split-screen view (2 cameras), or quad-view (4 cameras) to monitor multiple areas simultaneously.

5. Údržba

Správná údržba zajistí dlouhou životnost a optimální výkon vašeho bezpečnostního systému.

5.1 Čištění

Gently wipe the camera lens and monitor screen with a soft, dry cloth.
Avoid using harsh chemicals or abrasive cleaners, as they can damage the surfaces.

5.2 Ochrana proti povětrnostním vlivům

The camera features a weatherproof design, making it suitable for outdoor use. However, for extreme weather conditions, consider additional protective measures to extend its lifespan.

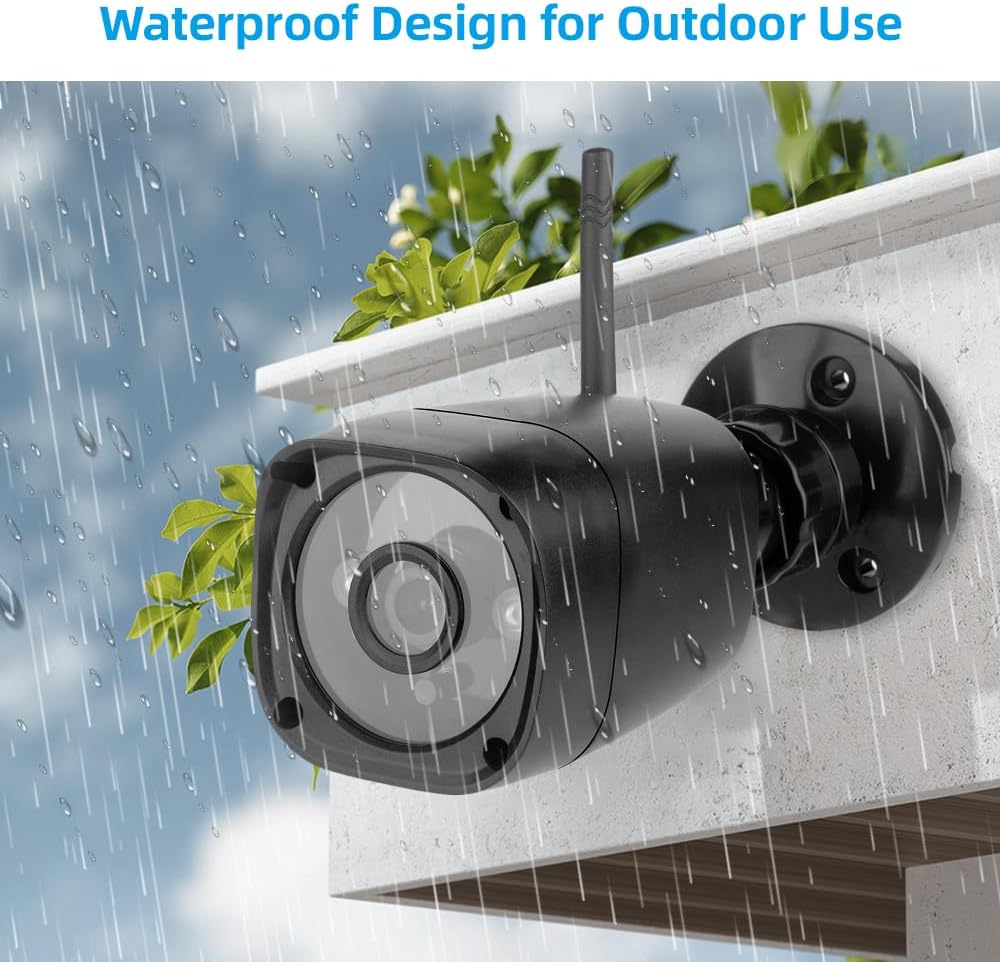

Weatherproof wireless camera under light rain

Image 5.1: The weatherproof design of the wireless camera, suitable for outdoor installation.

5.3 Skladování

If storing the system for an extended period, ensure both the camera and monitor are powered off and stored in a cool, dry place.

6. Řešení problémů

If you encounter issues with your Andoer Wireless Security Camera DVR System, refer to the following common troubleshooting steps:

Bez napájení: Ensure both the camera and monitor are properly connected to their respective power adapters and that the power outlets are functional. Check the monitor's battery level if operating wirelessly.
Žádný obraz na monitoru: Verify that the camera is powered on and within range of the monitor. If multiple cameras are used, cycle through the viewing modes (single, split, quad) to ensure the correct camera is selected.
Špatná kvalita obrazu: Check for obstructions in front of the camera lens. Ensure the camera lens is clean. Adjust the camera's position for better signal reception.
Problémy s nahráváním: Confirm that a compatible TF memory card is inserted and has sufficient free space. Check the recording settings in the monitor's menu.
Přerušovaný signál: Reduce the distance between the camera and the monitor. Remove any large metallic objects or other wireless devices that may cause interference.

7. Záruka a podpora

For warranty information or technical support, please refer to the documentation included with your purchase or contact Andoer customer service. You can also visit the official Andoer store for more product information and support resources.

Andoer Store: https://www.amazon.com/stores/Andoer/page/080F79BB-D5B8-4281-8969-5313BC4DDC64
