DEWIN Tuya Smart 1P 63A 230VAC WiFi DIN Rail Smart Circuit Breaker User Manual

1. Úvod

This user manual provides comprehensive instructions for the installation, operation, and maintenance of the DEWIN Tuya Smart 1P 63A 230VAC WiFi DIN Rail Smart Circuit Breaker. This device is designed to integrate with smart home systems via WiFi, offering remote control and monitoring capabilities. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

2. Konec produktuview

The DEWIN Tuya Smart Circuit Breaker is a versatile device for various applications, including current measurement systems, schools, markets, household appliances, industrial settings, and laboratories. It features robust construction and smart functionalities.

Klíčové vlastnosti:

• Vícenásobná ochrana: Equipped with colored indicator lights, providing clear operational status. Supports intelligent protection against overvoltage, podpaltage, overcurrent, and leakage.
• WiFi dálkové ovládání: Control and monitor the device's status via the Tuya Smart mobile application. Compatible with Amazon Alexa and Google Assistant for voice control.
• Monitorování v reálném čase: View various data such as total energy consumption, current, voltage, and power directly from your mobile phone.
• Technologie chytrého čipu: Features powerful chips and integrated circuits for precise smart meter measurement with an error margin of less than 0.3%.
• Odolná konstrukce: casing is made from high-quality PC flame-retardant material, offering high resistance to flame, impact, and shock for extended durability.
• Instalace na DIN lištu: Navrženo pro snadnou instalaci na standardní 35mm DIN lištu.

Součásti produktu:

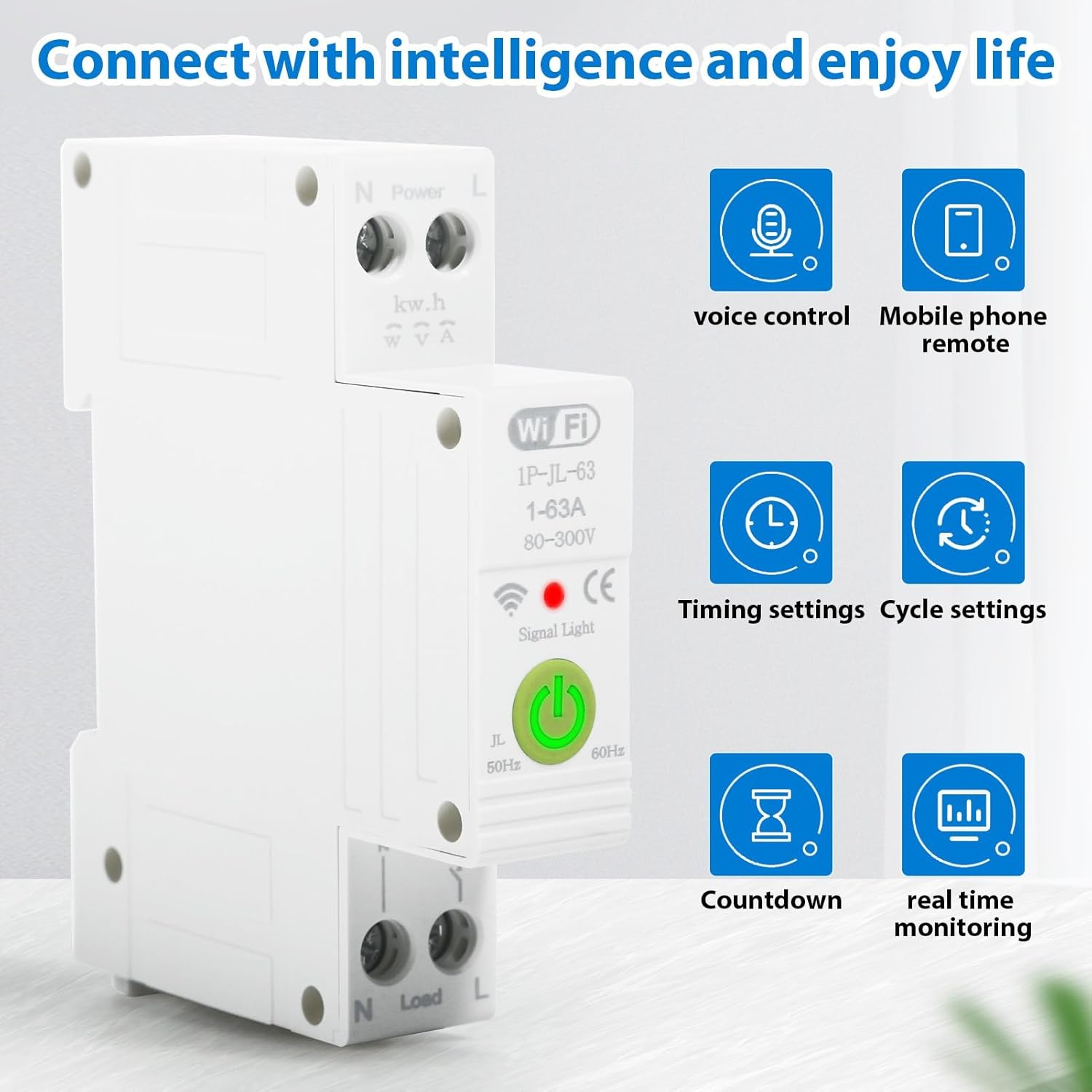

Obrázek 2.1: Nadview of the DEWIN Smart Circuit Breaker highlighting its smart features and compatibility.

Obrázek 2.2: Smart functionalities including voice control, remote access, and monitoring.

Obrázek 2.3: Detailní view of the power switch, LED indicator, and installation buckle.

Obrázek 2.4: Illustration of the product's flame-retardant material for enhanced safety.

3. Specifikace

The following table details the technical specifications of the DEWIN Tuya Smart Circuit Breaker:

Obrázek 3.1: Product dimensions and key electrical specifications.

4. Bezpečnostní informace

Dodržujte prosím následující bezpečnostní opatření, abyste předešli zranění nebo poškození zařízení:

• Instalaci a údržbu by měli provádět pouze kvalifikovaní elektrikáři.
• Před jakoukoli instalací nebo elektroinstalačními pracemi se ujistěte, že je hlavní napájení odpojeno.
• Ověřte, že svtage and current ratings of the circuit breaker match your electrical system requirements.
• Neprovozujte zařízení ve vlhku nebo damp podmínky.
• Nevystavujte zařízení extrémním teplotám nebo přímému slunečnímu záření.
• Do not attempt to disassemble or modify the circuit breaker.

5. Nastavení

5.1. Installation on DIN Rail

The DEWIN Smart Circuit Breaker is designed for quick and easy installation on a standard 35mm DIN rail. No screws are required for mounting.

1. Ensure the main power supply to the circuit is turned off.
2. Zarovnejte jistič s DIN lištou.
3. Press the positioning buckle (refer to Figure 2.3) and snap the device onto the DIN rail until it clicks securely into place.
4. Release the buckle to lock the device.

Obrázek 5.1: DIN rail installation process.

5.2. Zapojení kabeláže

Proper wiring is crucial for safe and correct operation. Refer to the wiring diagram below:

1. Identify the Live (L) and Neutral (N) input terminals for the power source.
2. Connect the incoming Live wire to the 'L' input terminal and the incoming Neutral wire to the 'N' input terminal.
3. Identify the Live (L) and Neutral (N) output terminals for the load.
4. Connect the outgoing Live wire to the 'L' output terminal and the outgoing Neutral wire to the 'N' output terminal.
5. Ensure all screw terminals are tightened securely to prevent loose connections.

Obrázek 5.2: Wiring diagram for Live and Neutral connections.

5.3. App Connection (Tuya Smart)

To enable smart features, connect the device to the Tuya Smart APP:

1. Download the 'Tuya Smart' app from your mobile device's app store (iOS or Android).
2. Zaregistrujte se nebo se přihlaste ke svému účtu Tuya Smart.
3. Ensure your mobile device is connected to a 2.4 GHz WiFi network.
4. Power on the circuit breaker. The signal light should blink, indicating it's in pairing mode. If not, press and hold the power switch button for 5-10 seconds until it blinks rapidly.
5. V aplikaci Tuya Smart klepněte na „+“ pro přidání nového zařízení.
6. Select 'Electrical' > 'Circuit Breaker (Wi-Fi)' or allow the app to auto-discover the device.
7. Follow the on-screen instructions to complete the pairing process, entering your WiFi network password when prompted.
8. Once connected, the signal light on the device will become solid.

6. Návod k obsluze

Once installed and connected to the Tuya Smart app, you can control and monitor your circuit breaker remotely.

6.1. Ruční provoz

Press the physical power switch button on the device to manually turn the circuit ON or OFF.

6.2. Ovládání aplikací

Open the Tuya Smart app and select your circuit breaker device. From the app interface, you can:

• Zapnout/vypnout: Toggle the power switch remotely.
• Monitorovací data: View real-time data such as total energy consumption, current, voltage a moc.
• Nastavit časovače: Schedule the circuit to turn ON or OFF at specific times.
• Create Cycle Timings: Set repetitive ON/OFF schedules.
• Configure Countdown: Set a countdown timer for the circuit to switch.
• Adjust Protection Settings: Modify overvoltage a podvoltage protection ranges as needed (refer to specifications for default ranges).

Obrázek 6.1: Remote control and monitoring via the Tuya Smart mobile application.

6.3. Hlasové ovládání

Integrate the Tuya Smart app with Amazon Alexa or Google Assistant for voice-activated control:

1. Enable the 'Tuya Smart' skill in your Alexa or Google Home app.
2. Propojte svůj účet Tuya Smart.
3. Objevte zařízení.
4. Používejte hlasové příkazy, jako například:
   • „Alexo, zapni [Název zařízení]“
   • „Hej Google, vypni [název zařízení]“

7. Údržba

The DEWIN Smart Circuit Breaker requires minimal maintenance. Follow these guidelines to ensure longevity:

• Regularly inspect the device for any visible damage or loose connections.
• Udržujte zařízení čisté a bez prachu a nečistot. K čištění používejte suchý, měkký hadřík.
• Nepoužívejte drsné chemikálie ani abrazivní čisticí prostředky.
• Zajistěte dostatečné větrání kolem zařízení, aby nedošlo k přehřátí.

8. Řešení problémů

If you encounter issues with your DEWIN Smart Circuit Breaker, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact DEWIN customer support.

9. Záruka a podpora

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. For technical support or further assistance, please reach out to DEWIN customer service through the contact information provided on the product packaging or the official DEWIN webmísto.
