Generic Replacement Pump Instruction Manual

1. Úvod

This manual provides instructions for the installation, maintenance, and troubleshooting of your new Generic replacement pump for various ice maker models. This pump is designed to restore proper water circulation within your ice maker, ensuring efficient ice production. Please read these instructions carefully before proceeding with installation or maintenance.

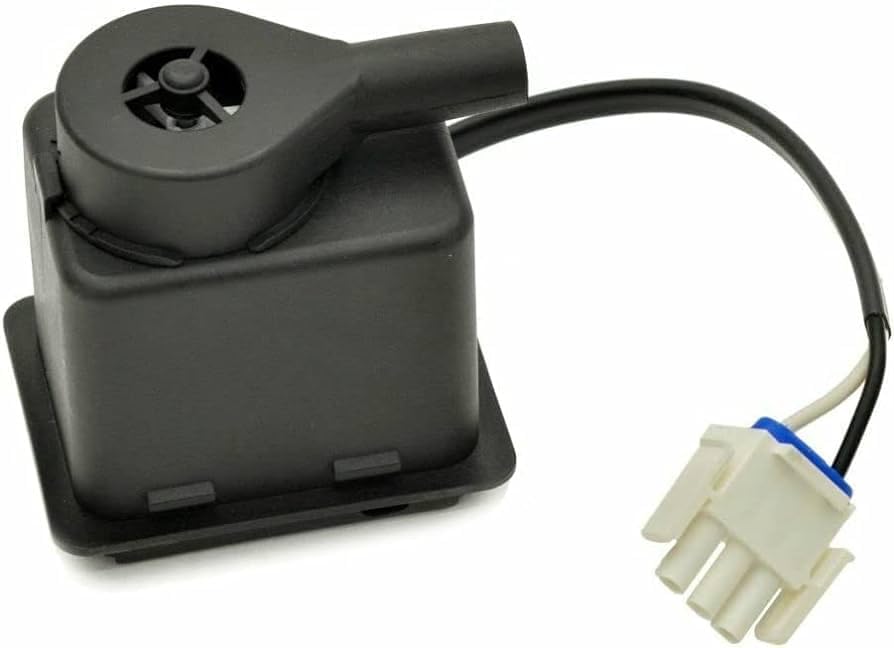

Image 1: Generic Replacement Pump. This image displays the black plastic pump unit with an attached electrical wire ending in a white connector. The pump features a small intake grate on its top surface.

2. Bezpečnostní informace

Při práci s elektrickými spotřebiči vždy dbejte na bezpečnost. Nedodržení těchto bezpečnostních pokynů může vést k úrazu elektrickým proudem, zranění nebo poškození spotřebiče.

• Odpojit napájení: Before attempting any installation, maintenance, or repair, always unplug the ice maker from its power source.
• Používejte ochranné pomůcky: Use appropriate personal protective equipment, such as gloves and safety glasses, if necessary.
• Odborná pomoc: Pokud si nejste jisti některým krokem nebo se při instalaci necítíte dobře, obraťte se na kvalifikovaného technika.
• Uzavření vody: Ensure the water supply to the ice maker is turned off before beginning work.

3. Kompatibilita

This replacement pump is compatible with a wide range of ice maker models from various brands. Please verify your ice maker's model number against the list below to ensure compatibility. The model number is typically located on a label inside the ice maker or on the back of the unit.

Kompatibilní modely Kenmore:

• 10689482700, 10689483700, 10689582700, 10689582701, 10689582702, 10689582703, 10689582704, 10689582705, 10689582706, 10689582707, 10689583701, 10689583702, 10689583703, 10689583704, 10689583706, 10689583707, 10689589700, 10689589702, 10689589703, 10689589704, 10689589705

Kompatibilní modely Whirlpool:

• GI15NDXTB0, GI15NDXTB1, GI15NDXTB2, GI15NDXTB3, GI15NDXTB4, GI15NDXTQ0, GI15NDXTQ1, GI15NDXTQ2, GI15NDXTQ3, GI15NDXTQ4, GI15NDXTQO, GI15NDXTS0, GI15NDXTS1, GI15NDXTS2, GI15NDXTS3, GI15NDXTS4, GI15NDXXB0, GI15NDXXB1, GI15NDXXB2, GI15NDXXQ0, GI15NDXXQ1, GI15NDXXQ2, GI15NDXXS0, GI15NDXXS1, GI15NDXXS2, GI15NFLTB0, GI15NFLTB1, GI15NFLTB2, GI15NFLTB3, GI15NFLTB4, GI15NFLTBO, GI15NFLTS0, GI15NFLTS1, GI15NFLTS2, GI15NFLTS3, GI15NFLTS4, GI15NFLXB0, GI15NFLXS0, GI15NFRTB0, GI15NFRTB1, GI15NFRTB2, GI15NFRTB3, GI15NFRTB4, GI15NFRTBO, GI15NFRTS0, GI15NFRTS1, GI15NFRTS2, GI15NFRTS3, GI15NFRTS4, GI15NFRXB0, GI15NFRXS0, JEACS50SLF1, JEACS50SLF2

Compatible Jenn-Air Models:

• JIM158XBCX0, JIM158XBCX1, JIM158XBCX2, JIM158XBCX3, JIM158XBRB0, JIM158XBRB1, JIM158XBRB2, JIM158XBRS0, JIM158XBRS1, JIM158XBRS2, JIM158XWRB0, JIM158XWRB1, JIM158XWRS0, JIM158XWRS1, JIM158XXCX0, JIM158XXCX1, JIM158XXCX2, JIM158XXRS0, JIM158XXRS1, JIM158XXRS2

Kompatibilní modely KitchenAid:

• KUIA15NLHS11, KUIA15NRHS11, KUIA15PLLS11, KUIA15PRLS11, KUIA18NNJS11, KUIA18PNLS11, KUIC15NLTS0, KUIC15NLTS1, KUIC15NLTS2, KUIC15NLTS3, KUIC15NLTS4, KUIC15NLXS0, KUIC15NLXS1, KUIC15NRTS0, KUIC15NRTS1, KUIC15NRTS2, KUIC15NRTS3, KUIC15NRTS4, KUIC15NRXS0, KUIC15NRXS1, KUIC15NRXS2, KUIC15PLTS0, KUIC15PLTS1, KUIC15PLTS2, KUIC15PLTS3, KUIC15PLTS4, KUIC15PLXS0, KUIC15PLXS1, KUIC15PLXS2, KUIC15PLXS3, KUIC15PRTS0, KUIC15PRTS1, KUIC15PRTS2, KUIC15PRTS3

If your model number is not listed, or if you are unsure about compatibility, please contact customer support for assistance.

4. Nastavení a instalace

This section outlines general steps for replacing an ice maker pump. Specific procedures may vary depending on your ice maker model. Refer to your appliance's original service manual for detailed instructions if available.

1. Připravte spotřebič:
   • Disconnect the ice maker from the electrical power supply.
   • Turn off the water supply valve to the ice maker.
   • Empty any ice from the ice bin and remove any standing water from the reservoir.
   • Carefully pull the ice maker away from the wall or cabinet to access the rear or bottom panel.
2. Přístup k čerpadlu:
   • Locate and remove the access panel(s) that cover the pump assembly. This may involve unscrewing panels or releasing klipy.
   • Identify the existing pump. Note its orientation and how it is connected.
3. Remove the Old Pump:
   • Disconnect the electrical connector from the old pump.
   • Carefully detach any hoses or tubing connected to the pump. Be prepared for residual water.
   • Unmount the old pump from its housing. It may be held by screws, clips, or a simple friction fit.
4. Instalace nového čerpadla:
   • Position the new replacement pump in the same orientation as the old one.
   • Secure the new pump into its housing using the original screws or clips.
   • Reconnect all hoses and tubing to the new pump, ensuring a snug and leak-free fit.
   • Connect the electrical connector to the new pump. Ensure it clicks securely into place.
5. Znovu sestavte a otestujte:
   • Replace all access panels and secure them.
   • Push the ice maker back into its original position.
   • Turn on the water supply valve to the ice maker. Check for any leaks around the pump and hose connections.
   • Plug the ice maker back into the electrical power source.
   • Initiate an ice-making cycle and observe the pump's operation and water flow.

If you encounter any difficulties during installation, refer to the troubleshooting section or contact customer support.

5. Návod k obsluze

This pump is a replacement component designed to integrate seamlessly with your ice maker's existing system. Once correctly installed, the pump operates automatically as part of the ice maker's normal cycle. There are no specific user-controlled operating functions for the pump itself.

• Ensure the ice maker is connected to a power source and water supply.
• The ice maker will automatically initiate the water filling and circulation process, activating the pump as needed.
• Monitor the ice maker for the first few cycles to ensure proper operation and ice production.

6. Údržba

Regular maintenance of your ice maker, including its pump, can extend its lifespan and ensure optimal performance. While the pump itself requires minimal direct maintenance, general ice maker care is important.

• Pravidelný úklid: Periodically clean your ice maker according to the manufacturer's instructions to prevent mineral buildup and mold growth, which can affect pump performance.
• Kontrola hadic: Occasionally check the water hoses connected to the pump for kinks, cracks, or leaks.
• Kvalita vody: Using filtered water can reduce mineral deposits that might clog the pump or other ice maker components.
• Zazimování (pokud existuje): If the ice maker is in an unheated area and will be shut down for an extended period, follow the manufacturer's winterization procedures to drain all water and prevent freezing damage to the pump and lines.

7. Řešení problémů

If your ice maker is not functioning correctly after pump replacement, consider the following common issues and solutions:

Pokud tyto kroky problém nevyřeší, kontaktujte prosím zákaznickou podporu.

8. Specifikace

• Typ dílu: Replacement Ice Maker Pump
• Výrobce: Obecný
• Číslo modelu (napřample): GI15NDXTS2 (Note: This is an example model number for a compatible ice maker, not the pump's specific part number.)
• ASIN: B0DC6H7YGG
• První k dispozici: 31. července 2024
• Kompatibilita: Refer to Section 3 for a comprehensive list of compatible ice maker models.

9. Záruka a podpora

This replacement pump comes with a satisfaction guarantee to ensure your peace of mind.

• Záruka vrácení peněz: A refund will be made within 90 days from the date of purchase if you are not satisfied with the product.
• Zákaznická podpora: If you have any questions regarding compatibility, installation, or performance, please contact our customer support team. We aim to resolve your problem within 24 hours.
• Kontaktní údaje: Please refer to your purchase documentation or the seller's contact details for support.
