Heayzoki Dash Cam 3K Ultra HD User Manual

1. Úvod

Thank you for choosing the Heayzoki Dash Cam. This 3K Ultra HD car camera is designed to provide clear and reliable recording of your journeys, offering features like a 140-degree wide angle lens, automatic loop recording, and convenient APP control. This manual will guide you through the setup, operation, and maintenance of your new dash cam.

Přední strana view of the Heayzoki Dash Cam, highlighting its compact design and circular display screen.

2. Obsah balení

Pečlivě zkontrolujte obsah balení. Pokud některé položky chybí nebo jsou poškozené, obraťte se na svého prodejce.

• 1 x Car Dash Cam
• 1 x Car Charger with Cable
• 1 x Návod k obsluze (tento dokument)

3. Klíčové vlastnosti

• 3K High Definition: Equipped with a professional image sensor, 6-piece full HD glass lens, and F1.6 large aperture, this dash cam provides clear and delicate image quality, even with automatic night fill light.

This image focuses on the dash cam's advanced imaging capabilities, featuring a professional image sensor and 6-piece full HD glass lens for clear 3K high-definition video.
• 140° široký úhel: The 140-degree wide angle lens is suitable for domestic road conditions, capturing more details and covering multiple lanes of traffic to help avoid disputes.


Vedlejší profesionálfile of the dash cam, illustrating its wide-angle lens that captures a 140-degree field of view, essential for comprehensive road coverage.

• Automatic Loop Recording: When the storage card is full, the dash cam automatically deletes earlier unlocked images, saving memory and ensuring continuous recording. Supports up to a 128GB memory card (not included).


A visual representation of the automatic loop recording function, where older, unlocked footage is automatically overwritten to save memory.

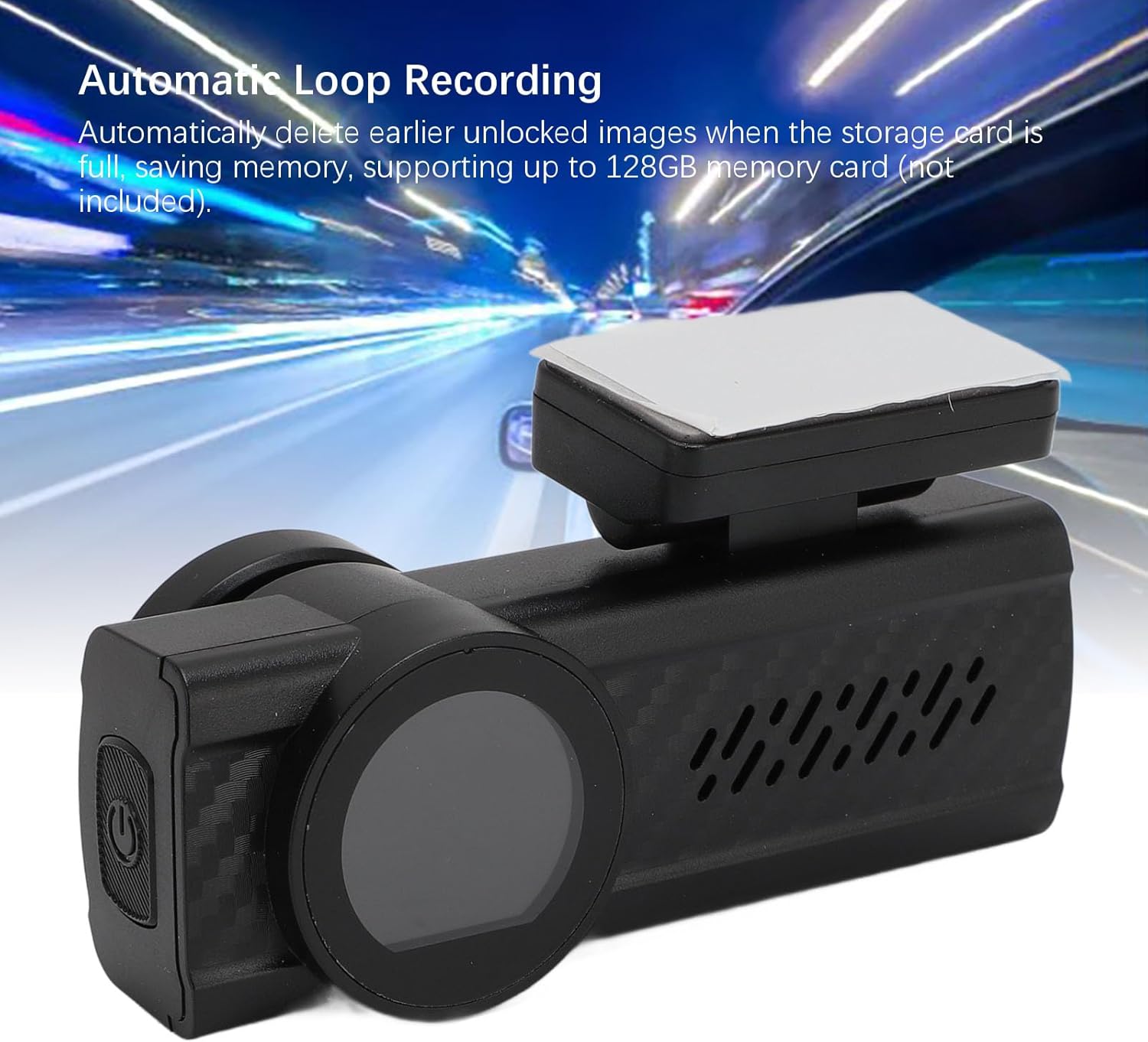

Shows the dash cam in a car setting, emphasizing its automatic loop recording capability which ensures continuous recording by managing storage space efficiently.
• Connection with Phone & Smart Control with APP: Connect the dash cam to the Viidure APP via Wi-Fi for easy setup, preview, and recording of image files. Download videos to your phone for real-time playback, accident evidence collection, and sharing beautiful scenery.


This image illustrates the real-time forensics and intelligent APP control feature, showing how the dash cam footage může být viewed and managed directly on a smartphone.



Highlights the dash cam's Wi-Fi connectivity, enabling easy pairing with the Viidure App for remote control and viewIng.

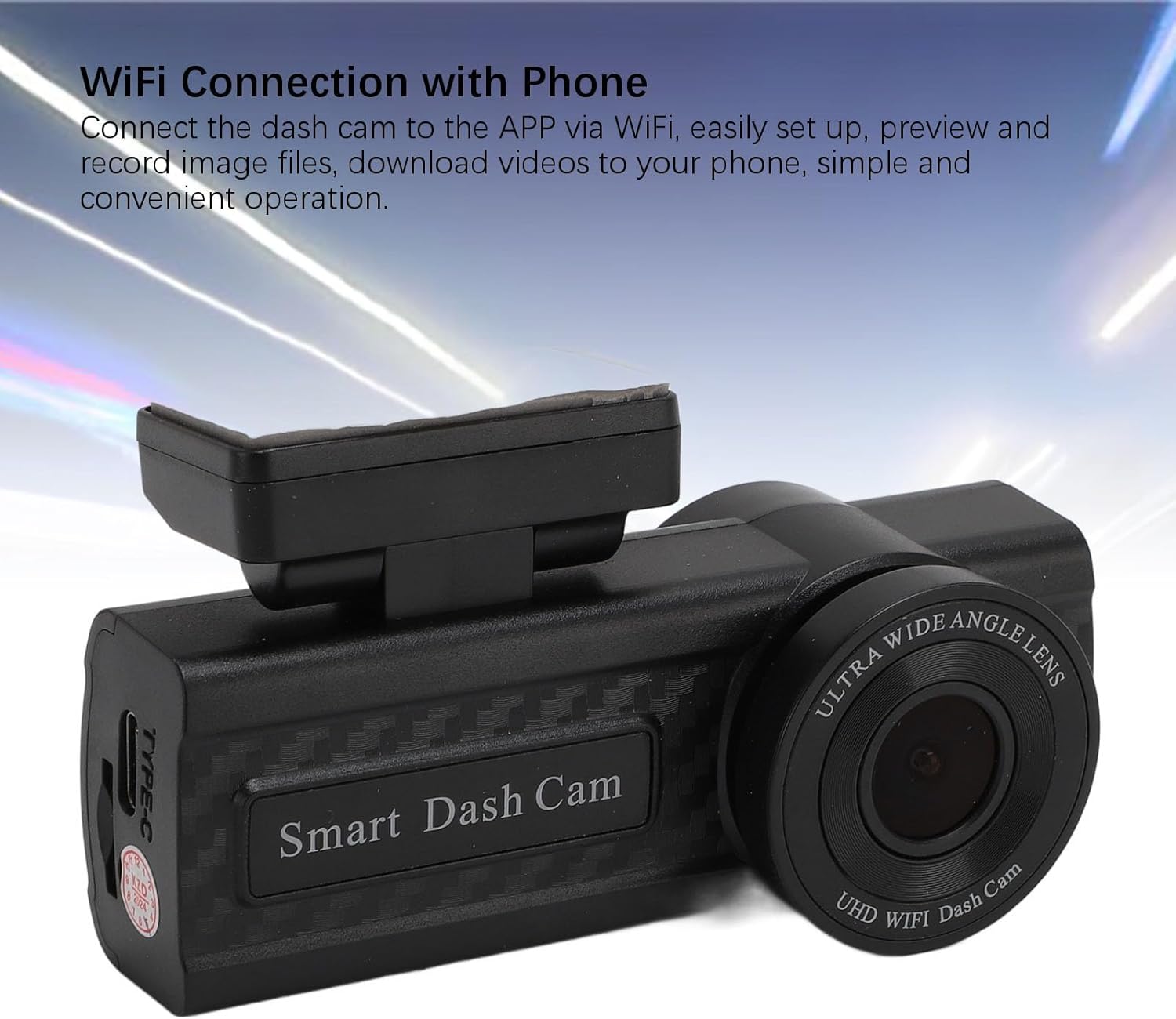

Detailní view of the dash cam, illustrating its Type-C port and lens, alongside text explaining the convenience of connecting the device to a smartphone via Wi-Fi for easy setup and file řízení.

4. Nastavení a instalace

Follow these steps to install your Heayzoki Dash Cam in your vehicle:

1. Prepare the Memory Card: Insert a compatible memory card (up to 128GB, not included) into the dash cam's memory card slot. Ensure it is inserted correctly.
2. Vyberte místo montáže: Vyberte si místo na čelním skle, které vám nebude překážet view, typically near the rearview mirror. The dash cam is designed for discreet installation to maintain the original appearance of your car.

Demonstrates the discreet and integrated installation of the dash cam, designed to blend seamlessly with the car's interior without obstructing the driver's view.
3. Namontujte Dash Cam: Securely attach the dash cam to the chosen location using the provided adhesive mount. Ensure it is firmly in place.
4. Připojte napájení: Connect the provided car charger cable to the dash cam's power input (Type-C port) and plug the other end into your car's cigarette lighter socket. The device will power on automatically when the car starts.

5. Návod k obsluze

5.1 Zapnutí/vypnutí

• Zapnutí: The dash cam will automatically power on and begin recording when connected to power and your vehicle's ignition is turned on.
• Vypnout: The dash cam will automatically power off when the power supply is disconnected (e.g., when the car is turned off).

5.2 Nahrávání

• The dash cam starts recording automatically upon power-on.
• Recordings are saved in segments (1, 3, or 5 minutes, configurable via APP) to the memory card.
• The automatic loop recording feature ensures continuous recording by overwriting the oldest unlocked files, když je paměťová karta plná.

6. APP Control (Viidure App)

The Heayzoki Dash Cam features built-in Wi-Fi for seamless connection to your smartphone via the Viidure App.

1. Stáhněte si aplikaci: Hledat "Viidure" in your smartphone's app store (iOS or Android) and download it.
2. Connect to Dash Cam Wi-Fi:
   • Zapněte palubní kameru.
   • On your smartphone, go to Wi-Fi settings and connect to the dash cam's Wi-Fi network (usually named something like "Smart Dash Cam" followed by numbers/letters). The default password is often "12345678" or similar, refer to the dash cam's screen or initial setup instructions if different.
3. Open Viidure App: Launch the Viidure App. It should automatically detect and connect to your dash cam.
4. Funkce aplikace: Po připojení můžete:
   • View živé footage z palubní kamery.
   • Access recorded videos and photos.
   • Stáhnout filepřímo do vašeho telefonu.
   • Upravte nastavení palubní kamery (např. rozlišení videa, dobu smyčky nahrávání, citlivost G-senzoru).
   • Sdílet jídlotage snadno.

7. Údržba

• Čištění: Use a soft, dry cloth to clean the dash cam lens and body. Do not use abrasive cleaners or solvents.
• Paměťová karta: Regularly format your memory card (at least once a month) via the APP or dash cam settings to ensure optimal performance and prevent data corruption. Back up important files před formátováním.
• Teplota: Avoid exposing the dash cam to extreme temperatures (very hot or very cold) for extended periods, as this can affect battery life and performance.

8. Řešení problémů

Pokud narazíte na jakékoli problémy s palubní kamerou, podívejte se prosím na následující běžné problémy a jejich řešení:

• Palubní kamera se nezapíná:
  • Ensure the car charger is properly connected to both the dash cam and the car's power outlet.
  • Check if the car's cigarette lighter socket is working.
• Nahrávání se zastaví nebo zamrzne:
  • Ensure you are using a high-speed memory card (Class 10 or higher recommended).
  • Format the memory card regularly.
  • The memory card might be full; loop recording should manage this, but manual formatting can resolve issues.
• Problémy s připojením Wi-Fi:
  • Ujistěte se, že je Wi-Fi zapnutá jak na palubní kameře, tak na smartphonu.
  • Zkuste restartovat palubní kameru i chytrý telefon.
  • Confirm you are connecting to the correct Wi-Fi network name and using the correct password.
• Špatná kvalita obrazu:
  • Vyčistěte čočku palubní kamery.
  • Ujistěte se, že z objektivu byla odstraněna ochranná fólie.
  • Check settings in the Viidure App to ensure video resolution is set to 3K.

9. Specifikace

10. Záruka a podpora

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Heayzoki webUschovejte si účtenku jako doklad o koupi pro případné reklamace.
