Instruction Manual: Compatible with Caterpillar 3126 Water Inlet Housing

Zavedení

This manual provides essential information regarding the installation, function, and maintenance of the Water Inlet Housing, compatible with Caterpillar 3126 engines. This component is crucial for the proper functioning of your engine's cooling system, ensuring optimal temperature regulation.

Popis produktu

The Water Inlet Housing (OEM Part# 101-3244, 1013244) is a direct replacement component designed for compatibility with Caterpillar 3126 diesel engines. It serves as a critical connection point within the engine's cooling system, facilitating the flow of coolant from the radiator into the engine block. Proper functioning of this housing is vital for preventing engine overheating and maintaining engine longevity.

• Číslo dílu výrobce: 101-3244
• Direct compatibility with Caterpillar 3126 engines.
• Ensures proper coolant circulation.

Specifikace

Nastavení a instalace

Installation of the Water Inlet Housing should be performed by a qualified mechanic or technician. Incorrect installation can lead to coolant leaks, engine damage, or other operational issues.

1. Bezpečnost především: Ensure the engine is cool and the cooling system is depressurized before beginning work. Disconnect the battery to prevent accidental starting.
2. Vypouštění chladicí kapaliny: Completely drain the engine's cooling system into an appropriate container.
3. Odstraňte staré pouzdro: Carefully disconnect any hoses or sensors attached to the old water inlet housing. Remove the mounting bolts and gently pry off the old housing. Be prepared for residual coolant.
4. Čistý montážní povrch: Thoroughly clean the engine block's mounting surface, removing all traces of old gasket material, corrosion, and debris. A clean surface is critical for a proper seal.
5. Nainstalujte nové těsnění: Place a new, appropriate gasket onto the clean mounting surface or directly onto the new water inlet housing, as specified by the engine manufacturer.
6. Position New Housing: Carefully position the new water inlet housing onto the engine block, aligning it with the bolt holes.
7. Bezpečné bydlení: Insert and hand-tighten the mounting bolts. Then, tighten them to the manufacturer's specified torque settings, typically in a crisscross pattern to ensure even pressure.
8. Znovu připojte komponenty: Reconnect all hoses and sensors that were removed. Ensure all clamps jsou bezpečné.
9. Doplnění chladicí kapaliny: Doplňte chladicí systém správným typem a množstvím chladicí kapaliny.
10. Odvzdušnění: Start the engine and allow it to reach operating temperature. Monitor the coolant level and bleed any trapped air from the system as per the engine manufacturer's recommendations. Check for leaks.

Always refer to your specific Caterpillar 3126 engine service manual for detailed, model-specific installation procedures and torque specifications.

Provozní principy

The water inlet housing is a passive component that directs the flow of cooled engine coolant from the radiator back into the engine. It typically houses the thermostat, which regulates the engine's operating temperature by controlling coolant flow. When the engine is cold, the thermostat remains closed, allowing the engine to warm up quickly. Once the engine reaches its optimal operating temperature, the thermostat opens, allowing coolant to circulate through the radiator for cooling. The housing ensures a sealed pathway for this critical circulation.

Údržba

Regular inspection of the water inlet housing and surrounding components is recommended as part of routine engine maintenance. Look for:

• Úniky chladicí kapaliny: Check for any signs of coolant weeping or dripping around the housing, hoses, or gasket.
• Koroze: Inspect the housing for signs of corrosion, especially around the gasket mating surfaces.
• Stav hadice: Ensure that hoses connected to the housing are pliable, free of cracks, bulges, or excessive hardness.
• Thermostat Function (if applicable): While the housing itself doesn't operate, a malfunctioning thermostat housed within it can lead to overheating or underheating.

Address any issues promptly to prevent more significant engine problems.

Odstraňování problémů

Issues related to the water inlet housing are typically associated with coolant leaks or thermostat problems (if the thermostat is housed within it). Common symptoms and potential causes include:

• Úniky chladicí kapaliny:
  • Příčina: Damaged or improperly installed gasket.
  • Příčina: Cracked or corroded housing.
  • Příčina: Uvolněná hadiceamps or damaged hoses.
  • Řešení: Inspect for visible leaks. Replace gasket, housing, or hoses as necessary. Tighten clamps.
• Engine Overheating (if thermostat is housed):
  • Příčina: Stuck closed thermostat.
  • Řešení: Vyměňte termostat.
• Engine Running Cold (if thermostat is housed):
  • Příčina: Stuck open thermostat.
  • Řešení: Vyměňte termostat.

If you suspect a problem with your cooling system, it is advisable to consult a professional mechanic.

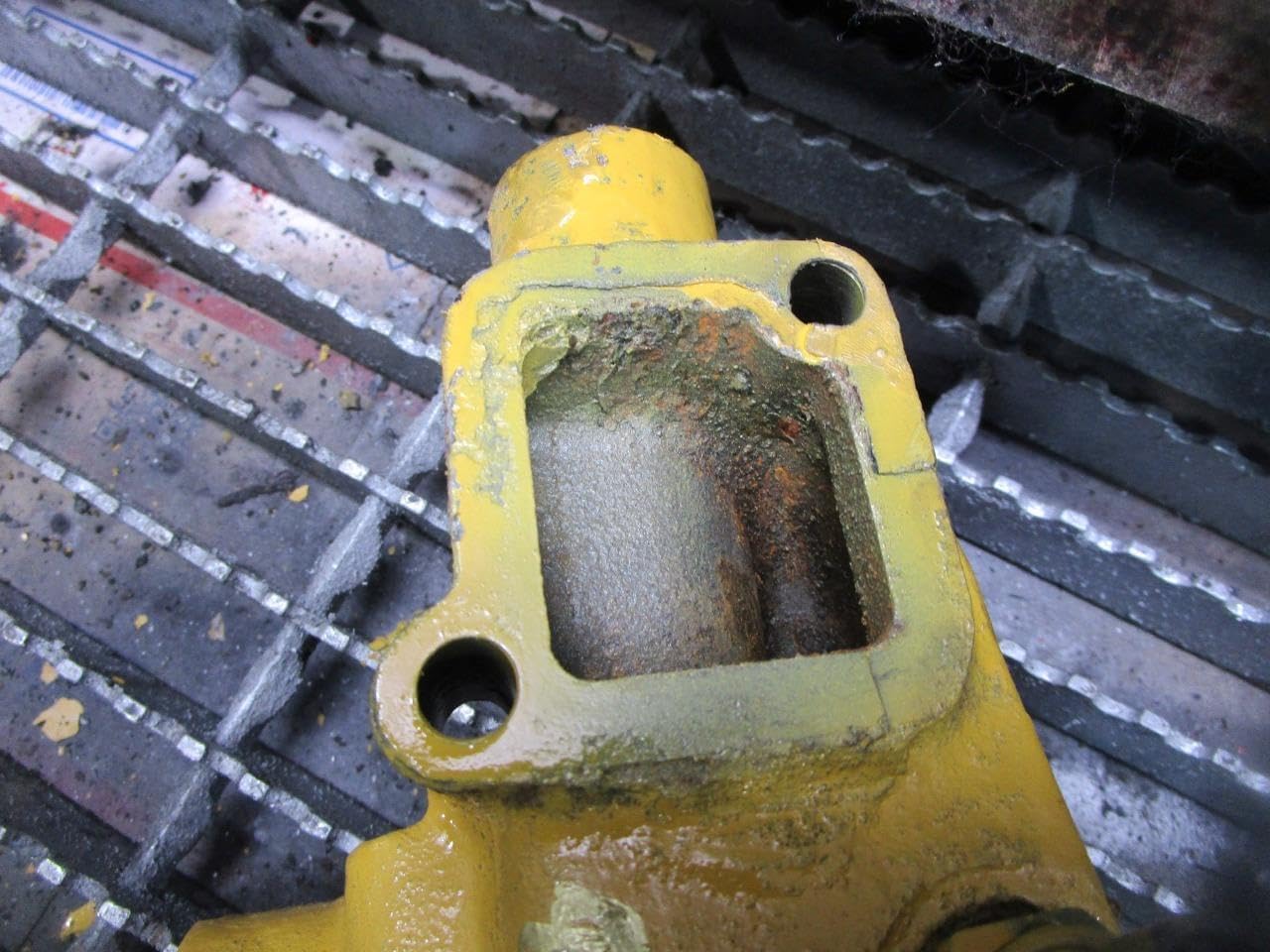

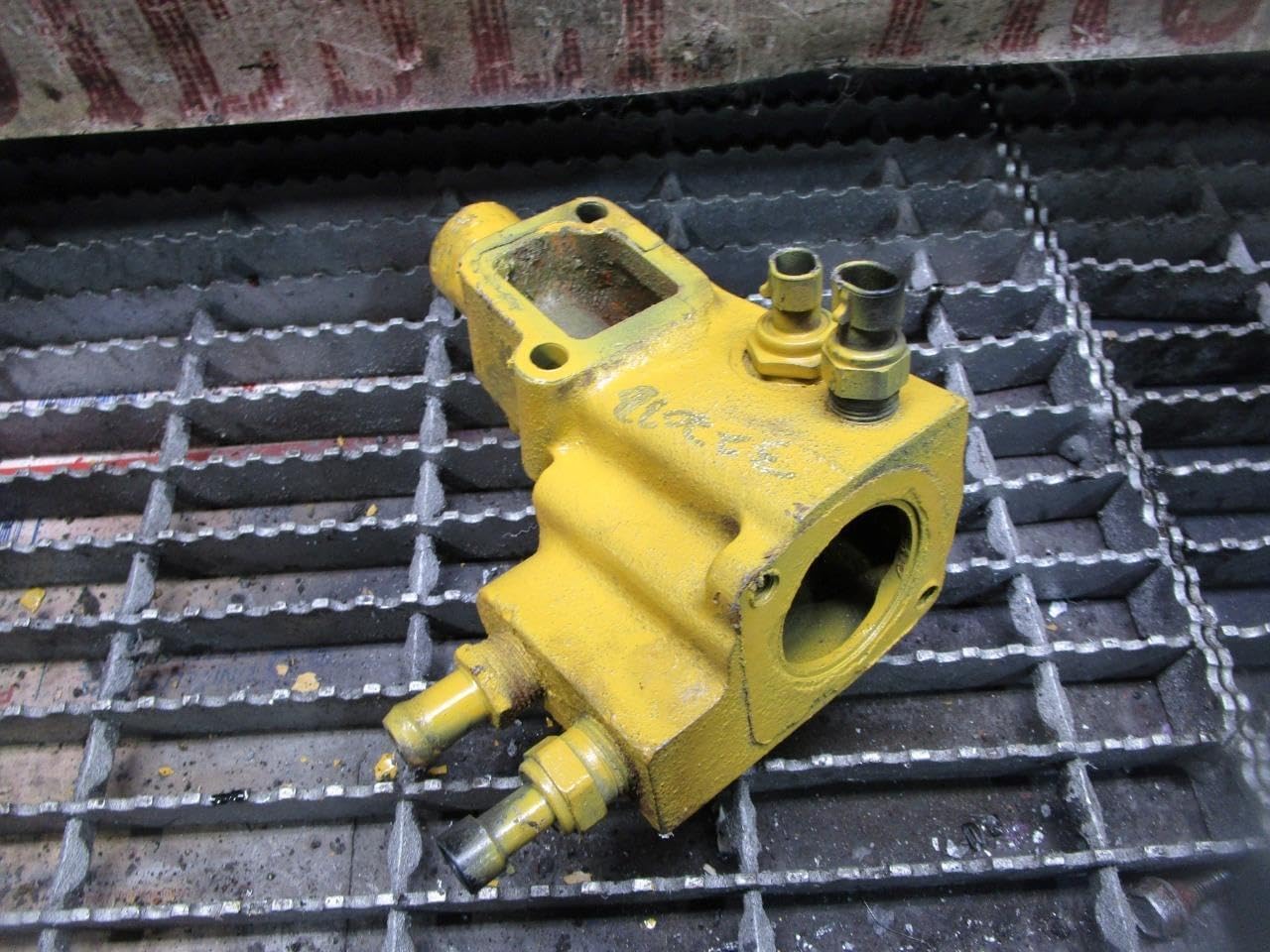

Obrázky produktů

Záruka a podpora

Specific warranty information for this product is not provided in the available documentation. For details regarding warranty coverage or technical support, please contact the seller, Machinery and Truck Parts, directly or refer to their official website if available. Always retain your proof of purchase for any warranty claims.
