Loboo CB20 Smart Battery Charger and Protector User Manual

1. Úvod

The Loboo CB20 Smart Battery Charger and Protector is designed to manage and protect your motorcycle's 12V battery system. It features intelligent voltage detection, multiple safety protection mechanisms, and three-way power output, allowing for the safe integration of additional electronic devices. This device is compatible with both 12V lead-acid batteries (including maintenance-free, AGM) and 12V lithium iron phosphate batteries.

2. Parametry produktu

Image: Detailed product parameters for the Loboo CB20, including model, working voltage, dimensions, weight, dustproof/waterproof grade, maximum output power, and applicable battery types.

3. Bezpečnostní informace

Always ensure proper installation and handling of the device to prevent damage to the product, battery, or vehicle. Disconnect the battery before installation. Do not attempt to open or modify the device. Ensure all connections are secure and insulated. The device is designed with multiple protection mechanisms, but proper installation is crucial for optimal safety and performance.

Built-in Protection Mechanisms:

Image: Visual representation of the CB20's multiple protection features, including low voltage, overload, short circuit, over-voltage, reverse connection, and over-current protection.

• Nízký objemtage ochrana: Prevents battery over-discharge.
• Ochrana proti přetížení: Ochranné prvky proti nadměrnému odběru proudu.
• Ochrana proti zkratu: Protects the system from short-circuit events.
• Voltage ochrana: Shields against voltage hroty.
• Ochrana proti zpětnému připojení: Prevents damage from incorrect polarity.
• Ochrana proti nadproudu: Omezuje proud na bezpečnou úroveň.

4. Nastavení a instalace

The Loboo CB20 is designed for straightforward installation. Follow these steps carefully:

4.1 Connecting the Main Unit to the Battery

1. Locate your motorcycle's 12V battery. Ensure the motorcycle is turned off and the ignition key is removed.
2. Connect the positive (+) wire (red) of the CB20 to the positive terminal of your battery.
3. Connect the negative (-) wire (black) of the CB20 to the negative terminal of your battery.
4. Všechna spojení pevně zajistěte.

Image: The Loboo CB20 unit installed and connected to a motorcycle battery, showing the main power leads.

4.2 Connecting Electronic Devices to Outputs

The CB20 features three independent outputs (OUT 1, OUT 2, OUT 3) for connecting various electronic accessories. Each output has a different maximum power rating:

• VÝSTUP 1: Up to 240W/20A (MAX) - Suitable for high-power devices.
• VÝSTUP 2: Up to 180W/15A (MAX) - Suitable for medium-power devices.
• VÝSTUP 3: Up to 120W/10A (MAX) - Suitable for low-power devices.

Connect your electronic devices to the appropriate output ports using compatible connectors. The ACC wire ensures that the outputs are powered only when the motorcycle's ignition is on, preventing battery drain when the vehicle is off.

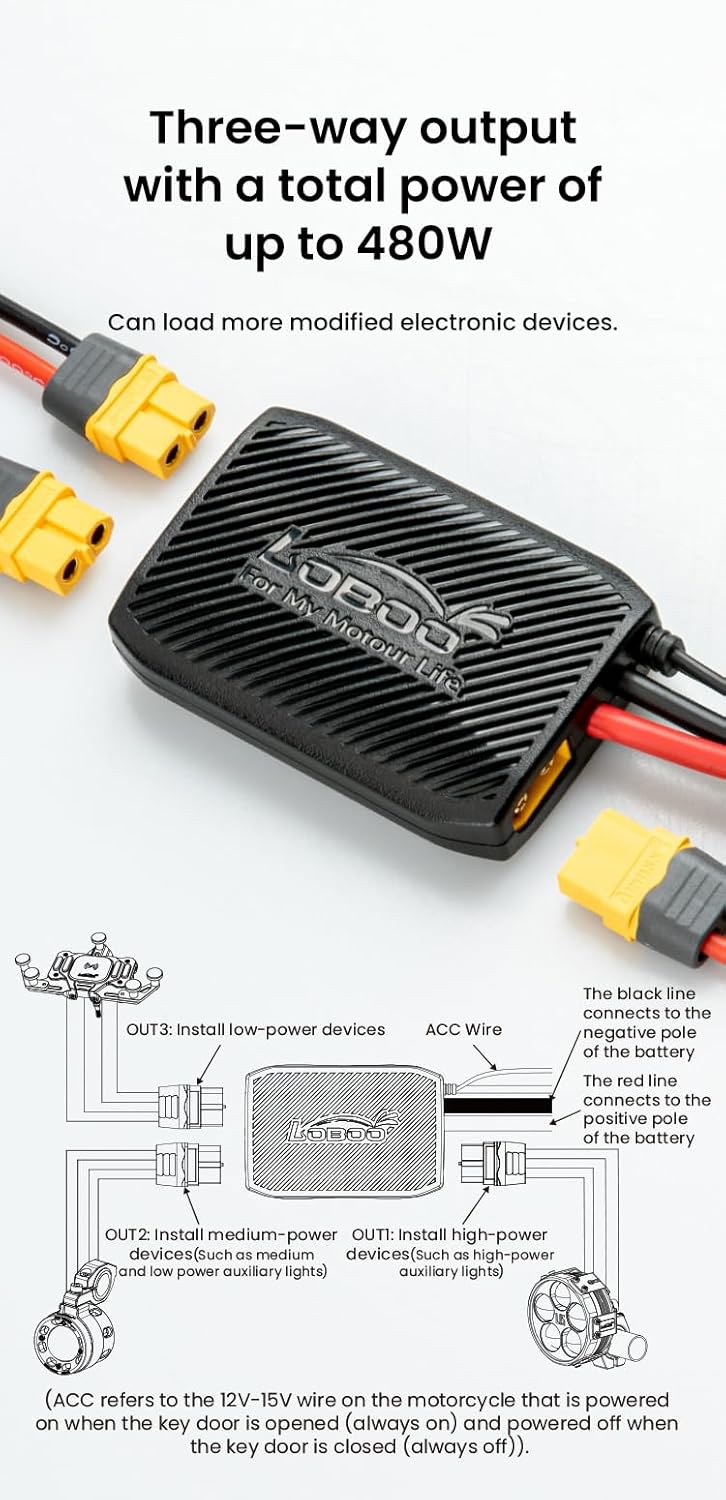

Image: A detailed diagram showing the main unit with its ACC wire, negative wire, positive wire, and three output ports (OUT 1, OUT 2, OUT 3) for connecting various electronic devices.

4.3 Instalační videoprůvodce

5. Návod k obsluze

The CB20 is designed for plug-and-use operation, requiring no complex settings. Once properly installed, its intelligent features activate automatically.

5.1 Kontrolky

The device features three indicator lights that correspond to the three outputs, providing a clear visual status of their operation.

Obrázek: Detailní záběr view of the Loboo CB20's indicator lights, showing their status for each output.

When the motorcycle ignition is on, and the outputs are active, the corresponding indicator lights will illuminate. If a protection mechanism is triggered (e.g., overload, short circuit), the relevant indicator might change color or flash to signal an issue.

5.2 Kompatibilita baterií

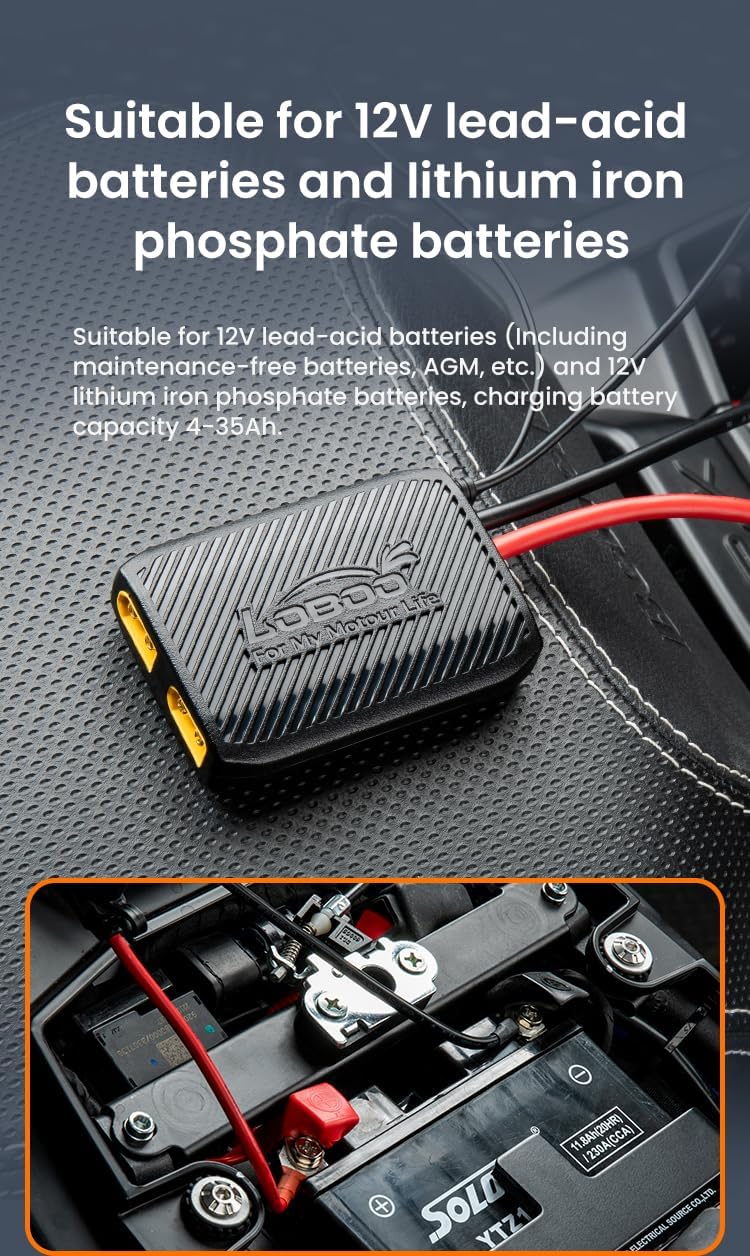

Image: The Loboo CB20 unit shown near a motorcycle battery, highlighting its compatibility with both 12V lead-acid and lithium iron phosphate battery types.

The CB20 is suitable for 12V lead-acid batteries (including maintenance-free batteries, AGM, etc.) and 12V lithium iron phosphate batteries, with a charging battery capacity of 4-35Ah.

6. Údržba

The Loboo CB20 is designed for durability and minimal maintenance. Its IP65 rating ensures protection against dust and water splashes.

• Čištění: Wipe the unit with a dry or slightly damp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky.
• Kontrola připojení: Periodically inspect all wire connections to ensure they remain secure and free from corrosion.
• Ochrana životního prostředí: While IP65 rated, avoid prolonged submersion in water or exposure to extreme temperatures.

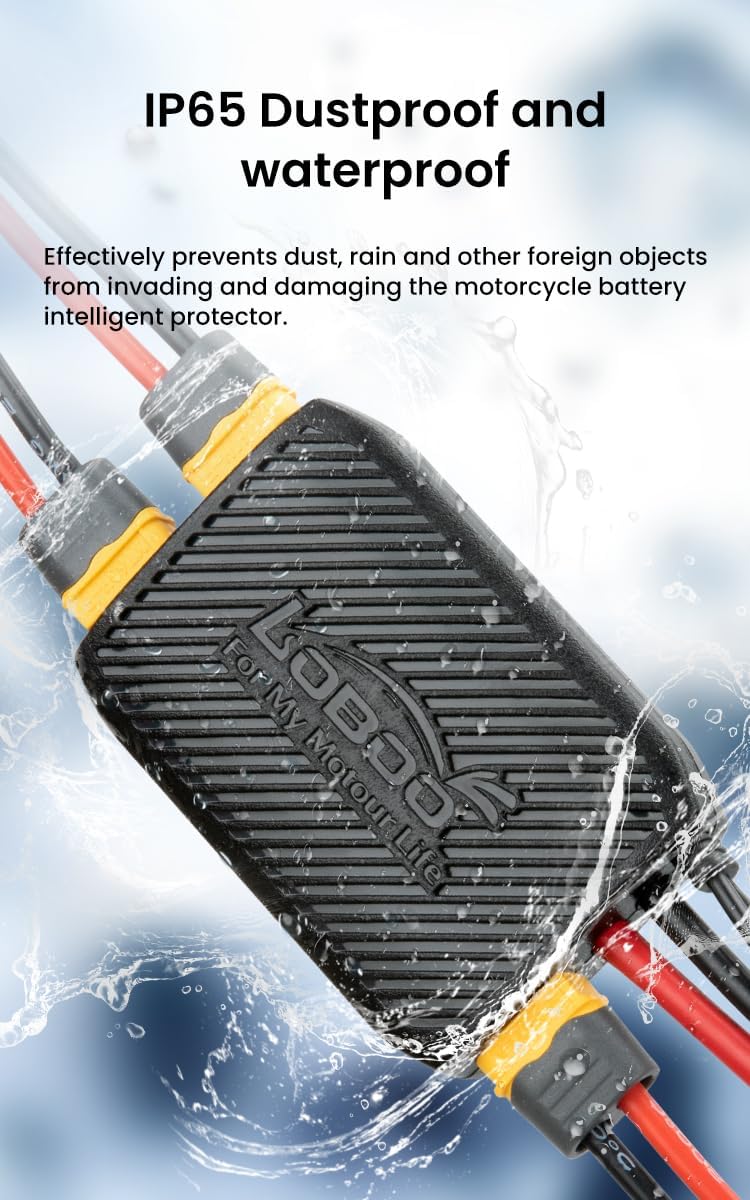

Image: The Loboo CB20 unit being splashed with water, illustrating its IP65 dustproof and waterproof rating, which protects it from environmental elements.

6.1 Battery Charging and Maintenance with SAE Cable

For convenient battery charging and maintenance, especially when the motorcycle is not ridden for extended periods, the SAE quick connection cable can be used. This allows for direct connection to a battery charger or a power bank for recharging.

7. Řešení problémů

If you encounter issues with your Loboo CB20, refer to the following common problems and solutions:

• Žádné napájení zařízení:
  • Check if the motorcycle ignition is on (ACC wire requires ignition).
  • Verify main battery connections are secure.
  • Ensure the device connected is within the power limits of the output port.
  • Check the indicator lights for any fault signals (e.g., flashing for overload).
• Indicator Light Flashing/Off Unexpectedly:
  • This may indicate a triggered protection mechanism (low voltage, overload, short circuit, over-voltage, reverse connection, over-current).
  • Disconnect all devices from the CB20.
  • Zkontrolujte objem baterietage.
  • Inspect wiring for any shorts or damage.
  • Reconnect devices one by one to identify the faulty accessory.
• Rychlé vybíjení baterie:
  • Ensure the ACC wire is correctly connected and the device powers off with the ignition.
  • Verify no devices are drawing power when the motorcycle is off.
  • Check the overall health of your motorcycle battery.

Pokud problémy přetrvávají, obraťte se na kvalifikovaného technika nebo kontaktujte zákaznickou podporu.

8. Záruka a podpora

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for warranty claims.

You can also visit the official Loboo store for more information: Loboo Store on Amazon
