1. Úvod
Thank you for choosing the Sujata Classic Gas Manual Ignition Stove. This manual provides essential information for the safe and efficient use, installation, and maintenance of your new 2-burner gas stove. Please read all instructions carefully before operating the appliance and retain this manual for future reference.
2. Bezpečnostní informace
Your safety and the safety of others are paramount. Please observe all safety precautions outlined below:
- Ensure proper ventilation in the kitchen area during operation.
- Do not store flammable materials near the gas stove.
- Během používání držte děti a domácí zvířata v dostatečné vzdálenosti od spotřebiče.
- Always use appropriate cookware that is stable on the pan supports.
- Do not leave the stove unattended while cooking.
- In case of a gas leak, immediately turn off the gas supply, open windows, and do not operate any electrical switches or ignite any flames. Contact your gas supplier or a qualified technician.
- Ensure the gas connection hose is in good condition and free from kinks or damage.
- Tento spotřebič je určen pouze pro domácí použití.
3. Konec produktuview
The Sujata Classic Gas Stove features a sleek design with durable components for efficient cooking.
Klíčové vlastnosti:
- 8mm Thick Toughened Glass Top: Poskytuje odolnost a snadné čištění.
- SABAF Gas Valve: Ensures longer life and consistent flame control.
- 5G Designed Forged Brass Burners: Includes one large and one small burner for versatile cooking, optimized for direct flame Indian style cooking.
- Rigid Pan Supports with Flame Guards: Offers stability for cookware and minimizes gas wastage.
- Ergonomic Knobs: Designed for comfortable and precise flame control.
- 360° Rotating Brass Gas Nozzle: Allows flexible connection from any direction.
- Stainless-Steel Drip Tray: Usnadňuje čištění a údržbu.
- ISI Certified: Meets Indian safety and quality standards.
Obrázek: Overview of Sujata Classic Gas Stove highlighting key features like the 8mm toughened glass, SABAF gas valve, direct flame, rigid pan supports, ergonomic knob, and flame guard.

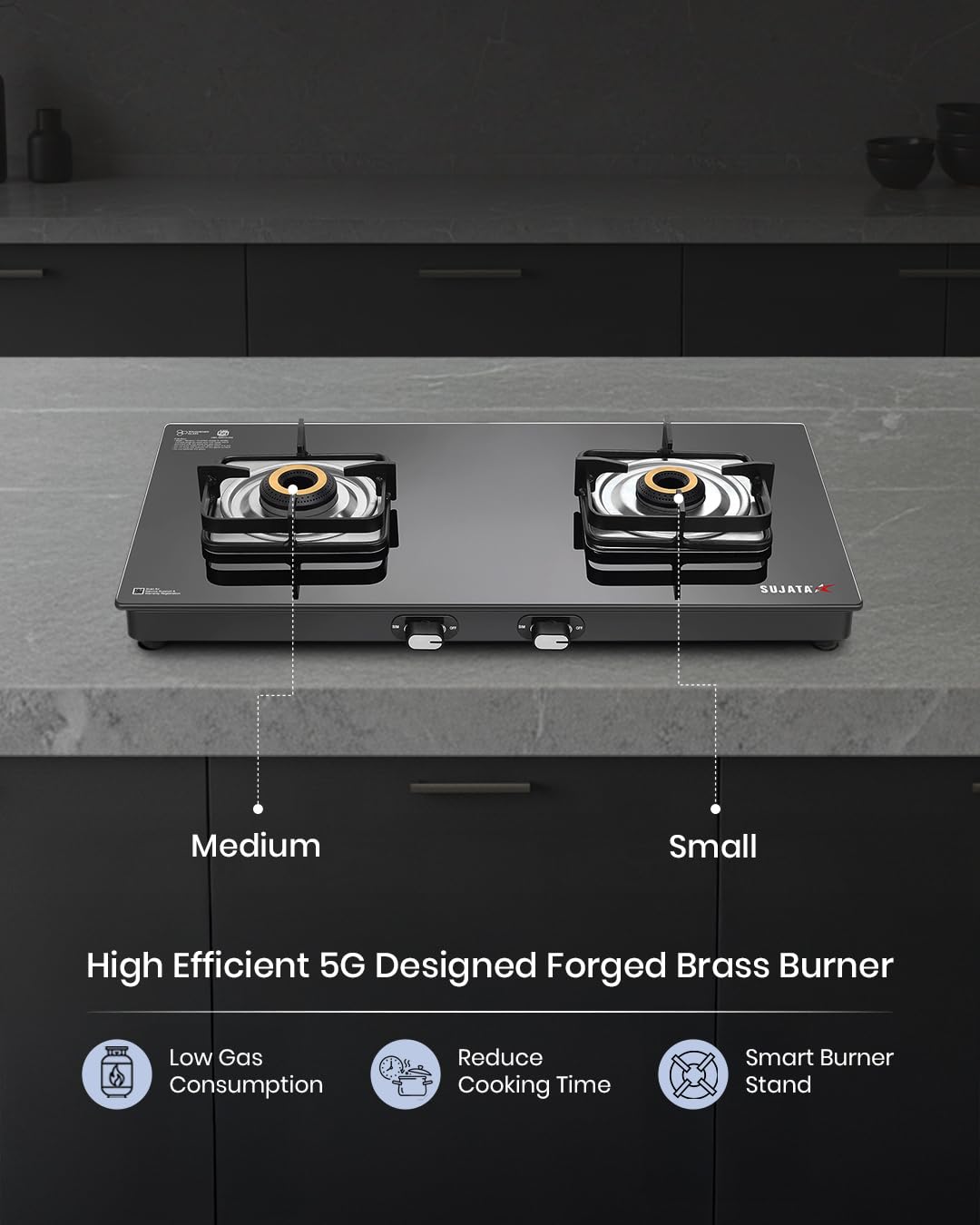

Image: Illustration showing the two burner sizes, one medium and one small, on the Sujata Classic Gas Stove.
Image: Detailed diagram illustrating the internal components and function of the Italian SABAF gas valve, emphasizing precision control and safety.
4. Nastavení a instalace
Proper installation is crucial for safety and performance. It is recommended that installation be performed by a qualified technician.
Rozbalení:
- Carefully remove the gas stove from its packaging.
- Zkontrolujte, zda nedošlo k poškození během přepravy. Pokud je výrobek poškozený, nepoužívejte jej.
- Ensure all included components are present: 1 Glass Top Gas Stove, 1 Mini Pan Support, 1 Baati / Tandoor Stand, 1 Burner Cleaning Pin, 1 Operating Manual Cum Warranty Card.
Umístění:
- Place the stove on a stable, flat, and heat-resistant surface.
- Ensure adequate clearance from walls and overhead cabinets for ventilation.
Připojení plynu:
- The stove is compatible with both LPG (Liquefied Petroleum Gas) and PNG (Piped Natural Gas).
- For LPG connection, use a certified rubber hose and regulator.
- For PNG conversion, a complimentary jet set is included. This conversion should be performed by an authorized service technician to ensure safety and proper functioning.
- Connect the gas hose to the 360° rotating brass gas nozzle at the back of the stove.
- Check for gas leaks using soapy water (bubbles indicate a leak). Never use an open flame to check for leaks.
5. Návod k obsluze
Lighting the Burner (Manual Ignition):
- Ujistěte se, že je přívod plynu otevřený.
- Umístěte nádobí na mřížku nad požadovaný hořák.
- Push and turn the corresponding knob counter-clockwise to the 'ON' position.
- Immediately bring a lit matchstick or gas lighter close to the burner to ignite the flame.
- Once the flame is lit, adjust the knob to achieve the desired flame intensity (low, medium, high).
- If the burner does not light within a few seconds, turn the knob to 'OFF', wait for a minute for the gas to disperse, and then repeat the process.
Vypnutí hořáku:
- Turn the knob clockwise to the 'OFF' position until the flame extinguishes completely.
- Always ensure all burners are turned off after cooking.
Video: A visual demonstration of the Sujata Classic Gas Stove, showcasing its features, dimensions, and ease of use. This video highlights the Italian SABAF gas valve, 5G designed brass burners, and the 360-degree rotating gas nozzle.
6. Údržba a čištění
Regular cleaning and maintenance will prolong the life of your gas stove and ensure safe operation.
Denní úklid:
- Před čištěním nechte sporák zcela vychladnout.
- Wipe the glass top with a soft cloth and mild detergent. Avoid abrasive cleaners that can scratch the surface.
- Remove and clean the stainless-steel drip tray with soap and water.
Čištění hořáku:
- Periodically remove the burners and pan supports.
- Clean the brass burners with a soft brush and warm soapy water to remove food residue. Ensure the burner holes are not clogged. Use the provided burner cleaning pin if necessary.
- Rinse thoroughly and dry completely before reassembling. Ensure burners are placed correctly to avoid uneven flames.
Obecná péče:
- Do not use harsh chemicals or steel wool, as they can damage the stove's finish.
- Regularly inspect the gas hose for cracks or wear. Replace if necessary.
7. Řešení problémů
If you encounter issues with your gas stove, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Hořák nesvítí | Gas supply off; clogged burner holes; faulty lighter/match. | Check gas supply valve; clean burner holes; use a working lighter/match. |
| Nerovnoměrný plamen | Burner not seated correctly; clogged burner holes. | Re-seat the burner properly; clean burner holes. |
| Zápach plynu | Gas leak from hose or connection. | Immediately turn off gas supply, ventilate area, do not use electrical switches. Contact technician. |
| Knob is stiff | Food residue or debris under the knob. | Ensure stove is cool. Gently remove knob and clean the area. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu.
8. Specifikace
| Funkce | Detail |
|---|---|
| Model | Klasický |
| Značka | Sujata |
| Hořáky | 2 (1 Large, 1 Small) |
| Typ zapalování | Manuál |
| Materiál | 8mm Toughened Glass Top, Brass Burners |
| Barva | Černý |
| Rozměry produktu (D x Š x V) | 41H x 70Š x 12V centimetrů |
| Hmotnost položky | 10.55 kg |
| Plynová kompatibilita | LPG & PNG (conversion kit included for PNG) |
| Speciální funkce | SABAF Gas Valve, Rigid Pan Supports, Flame Guards, 360° Rotating Gas Nozzle, ISI Certified |
| Zahrnuté komponenty | 1 Glass Top Gas Stove, 1 Mini Pan Support, 1 Baati / Tandoor Stand, 1 Burner Cleaning Pin, 1 Operating Manual Cum Warranty Card |
Image: Sujata Classic Gas Stove displaying its overall dimensions for installation planning.
9. Záruka
The Sujata Classic Gas Manual Ignition Stove comes with a 9-letá záruka on the complete product. Please refer to the warranty card included in your package for detailed terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.
Image: The Sujata Classic Gas Stove highlighting the 9-year warranty on the complete product.
10. Zákaznická podpora
For any queries, service requests, or assistance, please contact Sujata customer support:
- Bezplatné číslo: 1800-1022-758
- Mobilní: +91 9711322758
- Webmísto: www.houseofsujata.com
- E-mail: sujatacare@sujatamail.com
Provozní doba: 7 Days a week (8:00 AM to 8:00 PM), except on public and national holidays.
Image: Sujata Customer Support information with contact numbers, webweb a e-mailovou adresu.
