Longer RAY5 20W Laser Engraver Machine User Manual

1. Bezpečnostní informace

The Longer RAY5 20W Laser Engraver is a Class 2 laser product. Adherence to safety guidelines is crucial to prevent injury and ensure proper operation.

• Ochrana očí: Always wear appropriate laser safety glasses when operating the machine. The laser module is equipped with a protective shield that filters over 95% of laser light, but direct exposure should still be avoided.
• Větrání: Operate the laser engraver in a well-ventilated area to dissipate fumes and smoke produced during engraving and cutting.
• Bezpečnost materiálu: Ensure the material being processed is safe for laser engraving/cutting. Avoid materials that produce toxic fumes or are highly flammable.
• Motion Protection: The machine features motion protection. If the engraver is moved or experiences an accidental drop during operation, it will automatically shut down to prevent unintended laser firing.
• Tepelná ochrana: The system includes thermal protection, which automatically shuts down the laser if overheating is detected.
• Dozor: Nikdy nenechávejte laserový gravírovací stroj během provozu bez dozoru.
• Nouzové zastavení: Seznamte se s umístěním a funkcí tlačítka nouzového zastavení.

Figure 1.1: Eye Protection Design. The laser head includes a protective shield to filter laser light.

Figure 1.2: The 20W Diode Laser offers higher output power for cutting thicker materials.

2. Konec produktuview

The Longer RAY5 20W is an advanced laser engraver and cutter designed for precision and versatility. It features a powerful 20W laser module with compressed spot technology, enabling efficient engraving and cutting across a wide range of materials. The integrated 3.5-inch touch screen and multiple connectivity options enhance user experience and control.

Figure 2.1: Longer RAY5 20W Laser Engraver Machine.

3. Nastavení a montáž

The Longer RAY5 20W laser engraver is designed for straightforward assembly. Follow the included comprehensive installation guide for detailed steps. The process typically involves:

1. Vybalení všech součástí a jejich porovnání se seznamem dílů.
2. Assembling the frame structure.
3. Mounting the laser module and control box.
4. Connecting all necessary cables (motors, limit switches, laser module).
5. Performing initial power-on and calibration.

4. Návod k obsluze

4.1 Ovládací rozhraní

The machine features a built-in 3.5-inch color touch screen for convenient operation. Use the touch screen to monitor engraving progress, adjust settings, and execute commands directly.

4.2 Režimy připojení

The Longer RAY5 20W supports multiple connection methods for flexibility:

• USB: Connect directly to a computer via USB cable.
• TF karta: Load design files onto a TF card for offline operation.
• WiFi: Connect wirelessly to your network for remote control.
• APP: Utilize a dedicated mobile application for control and monitoring.

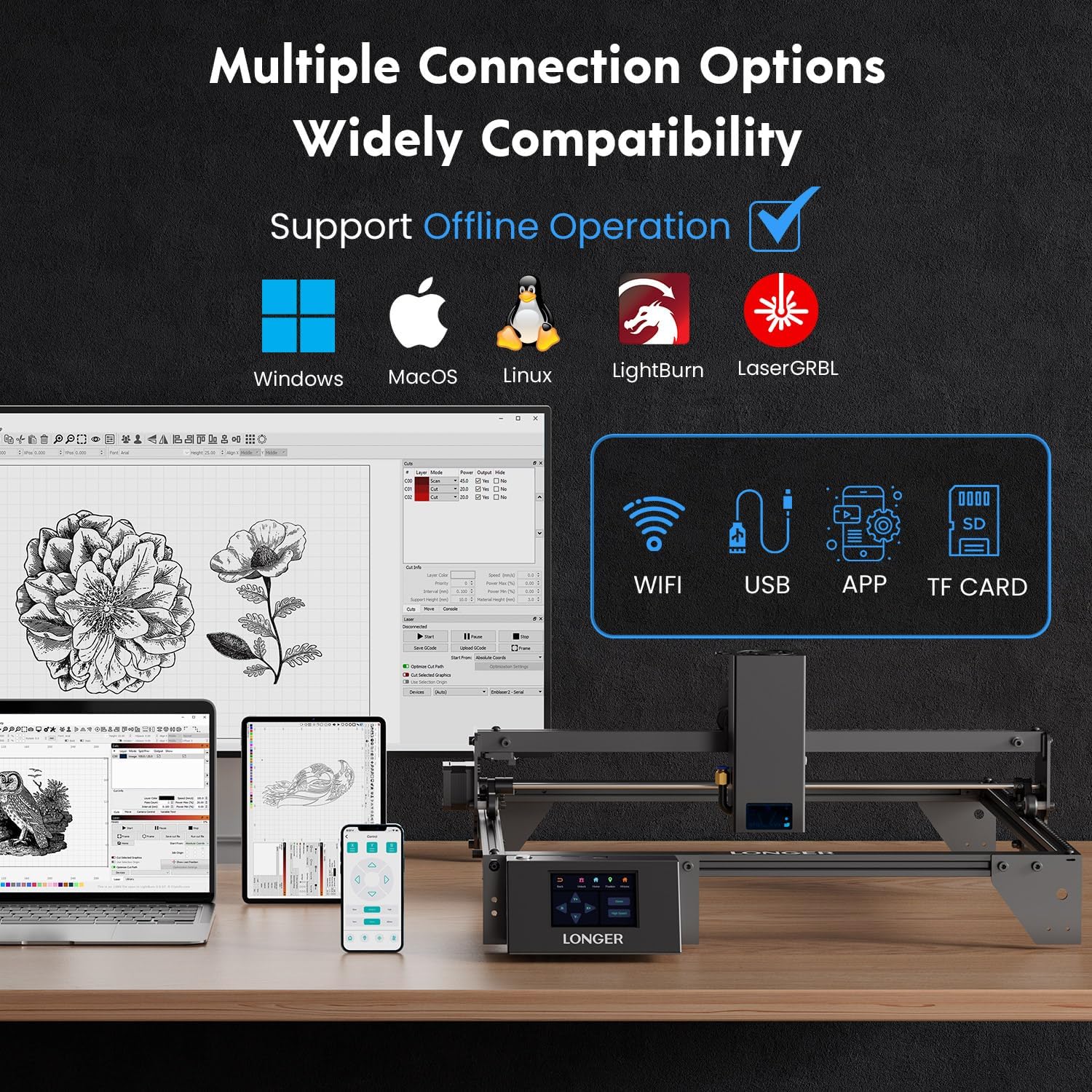

Figure 4.1: Multiple Connection Options. The engraver supports USB, TF card, WiFi, and APP connections, including offline operation.

4.3 Kompatibilita softwaru

The engraver is compatible with professional laser engraving software such as LaserGRBL and LightBurn, allowing for advanced design and control capabilities.

4.4 Možnosti gravírování a řezání

The 20W laser module with a 0.08x0.1mm compressed beam offers high precision and speed.

• Rychlost gravírování: Up to 10000mm/min for intricate and precise designs.
• Engraving Precision: Achieves precision up to 0.01mm.
• Hloubka řezu: Capable of cutting 25mm wood and 35mm acrylic. It can also cut 0.05mm stainless steel.
• Všestrannost materiálu: Suitable for metal coloring, acrylic, wood, glass, leather, paper, and various plastics.
• Color Engraving: Supports color engraving for enhanced artistic results.

Figure 4.2: RAY5 20W Upgrade Compressed Spot Technology. Demonstrates cutting capabilities for various materials.

Figure 4.3: Ultra-Fast Engraving Speed. The RAY5 20W engraver can engrave at up to 10,000mm/min.

Figure 4.4: Rare Color Engraving Performance. Achieve new experiences and better engraving results.

4.5 Continuous Working Capacity

The RAY5 20W Engraving Machine supports multi-machine operation and can work continuously for extended periods (7*24 hours), making it suitable for high-volume projects.

Figure 4.5: Powerful Continuous Working Capacity. The machine supports multi-machine operation for improved efficiency.

5. Údržba

Regular maintenance ensures optimal performance and longevity of your Longer RAY5 20W laser engraver.

• Cleaning the Laser Module: Periodically clean the laser lens and protective shield to maintain laser beam quality. Use a soft, lint-free cloth and appropriate cleaning solution.
• Kontrola kolejnic a pásů: Check the precise rails and belts for any debris or wear. Keep them clean and properly tensioned for smooth movement.
• Air Pump Recommendation: An air pump is recommended for better engraving and cutting effects, especially when processing materials that produce significant smoke or debris. Ensure the air pump is clean and functioning correctly.
• Aktualizace firmwaru: Check the official Longer webNa webu najdete všechny dostupné aktualizace firmwaru, abyste zajistili, že váš počítač bude mít nejnovější funkce a opravy chyb.

6. Řešení problémů

If you encounter issues with your Longer RAY5 20W, refer to the following common troubleshooting steps:

• Stroj nereaguje: Check all power connections and ensure the machine is properly plugged in. Verify that the emergency stop button is not engaged.
• Laser nesvítí: Ensure the laser module is correctly installed and all cables are securely connected. Check software settings for laser power and frequency.
• Movement Protection Triggered: If the machine stops unexpectedly with a movement protection alert, ensure the engraver is on a stable surface and has not been bumped. Restart the machine as indicated on the screen.
• Přehřívání: If thermal protection activates, allow the machine to cool down. Ensure proper ventilation and clear any obstructions around the laser module's cooling fins.
• Problémy s připojením: For WiFi or APP connection problems, verify your network settings and ensure the machine is within range. For USB or TF card issues, try a different cable or card.
• Špatná kvalita gravírování/řezání: Adjust laser power, speed, and focus settings in your software. Ensure the material is clean and properly secured. Consider using an air assist pump for cleaner cuts.

7. Specifikace

8. Záruka a podpora

Longer is committed to providing excellent customer service and support for its products.

• Zákaznická podpora: Our customer service team is available 24/7 to provide professional assistance for any product issues.
• Technická podpora: Lifelong technical support is provided for the Longer RAY5 20W laser engraver.
• Kontaktní údaje:
  Telefon: +1 888-575-9099
  Operating Hours: Mon-Fri: 9:00am-6:00pm (EST, UTC-5)
  Sun-Thu: 8:30pm-7:00am (EST, UTC-5)

Figure 8.1: Strong After-Sales Support. Longer provides dedicated customer and technical support.
