100A Solar Charge Controller User Manual

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Generic 100A Solar Charge Controller. Designed to efficiently manage power from solar panels to charge 12V or 24V lead-acid, AGM, or Gel batteries, this controller utilizes PWM technology for optimal performance and battery longevity. It features dual USB ports for convenient device charging and comprehensive protection mechanisms to ensure safe and reliable operation of your solar system.

Image 1.1: The 100A Solar Charge Controller and its accompanying USB extension cable.

2. Bezpečnostní pokyny

Please read and understand all safety instructions before installing or operating the solar charge controller. Failure to follow these instructions may result in electric shock, fire, or severe injury.

• Always connect the battery to the charge controller first. This allows the controller to recognize the system voltage.
• Connect the solar panel to the charge controller next.
• Connect the DC load to the charge controller last.
• To disconnect, follow the reverse order: disconnect load, then solar panel, then battery.
• Zajistěte dostatečné větrání kolem regulátoru, aby nedošlo k jeho přehřátí.
• Use appropriate wire gauges for all connections to handle the expected current.
• Avoid short circuits at all times.
• Keep the controller away from water, moisture, and flammable materials.
• This device is not waterproof; install it in a dry, protected environment.

3. Vlastnosti produktu

The 100A Solar Charge Controller offers a range of features designed for efficient and safe solar power management:

• Auto-Rated Current: Supports various capacities from 10A up to 100A.
• Max. vstupní výkon FV panelů: Handles up to 1200W for 12V battery systems (with 18V-23V solar panels) and up to 2400W for 24V battery systems (with 24V-42V solar panels).
• Dual Voltage Podpora: Automaticky detekuje a přizpůsobuje se bateriovým systémům 12V nebo 24V.
• Kompatibilita baterie: Designed for optimal charging and discharging of Lead-Acid, Gel, Flooded, and AGM batteries.
• PWM Technology: Utilizes Pulse Width Modulation for efficient charging, maximizing battery life and performance.
• Vylepšená ochrana: Features dual MOSFET reverse current protection and low heat production.
• 3-Stage Charging Management: Provides complete and optimized charging for your battery.
• Vestavěné ochrany: Includes overcurrent, short circuit, open circuit, and reverse connection protection. All protections are self-recovery, preventing damage to the controller.
• Duální USB výstup: Two USB ports with a maximum current of 2.5A, supporting charging for various devices, including Apple phones. A USB Male to Female Extension Cable is included.

Image 3.1: Visual representation of the comprehensive security protection features of the solar charge controller.

4. Komponenty přesview

Familiarize yourself with the main components of your solar charge controller:

• LCD displej: Shows real-time data such as battery voltage, charging current, discharge current, and various settings.
• Ovládací tlačítka: Three buttons (MENU, UP, DOWN/ON/OFF) for navigating the display and adjusting parameters.
• Duální USB porty: Located on the front panel for charging external USB devices.
• Svorkovnice: Six screw terminals at the bottom for connecting the battery, solar panel, and DC load. These are clearly marked with symbols.

Image 4.1: Product dimensions of the solar charge controller.

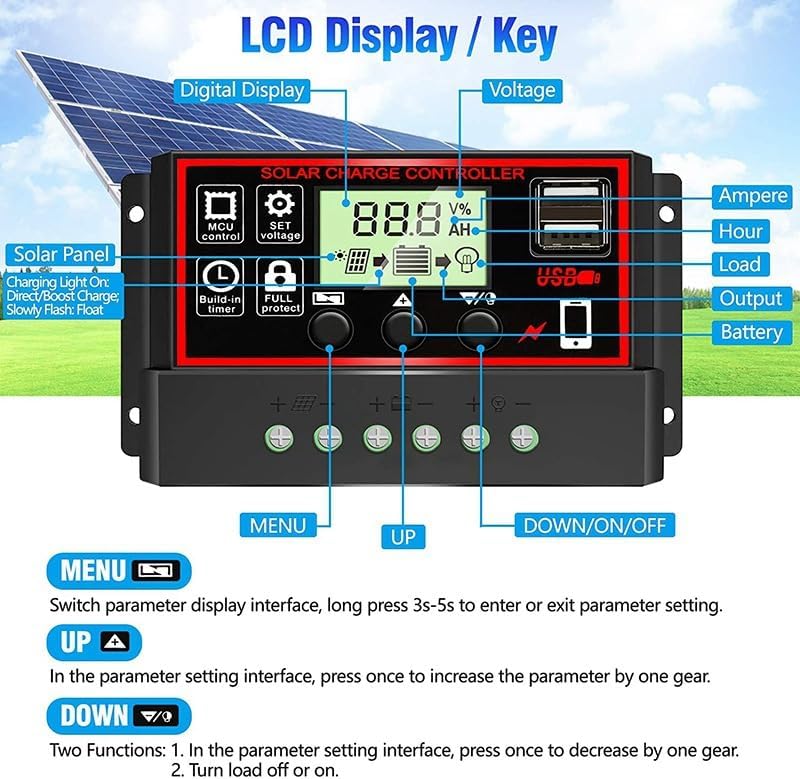

Obrázek 4.2: Detailní view LCD displeje a ovládacích tlačítek.

5. Nastavení a instalace

Follow these steps carefully to install your solar charge controller. Incorrect wiring can damage the device or your system components.

1. Připravte dráty: Ensure you have appropriate wire gauges for your system's current. Strip about 8-10mm of insulation from the ends of all wires.
2. Připojte baterii: Connect the battery to the controller's battery terminals (marked with a battery symbol). Connect the positive (+) wire to the positive terminal and the negative (-) wire to the negative terminal. The LCD display should light up, indicating the controller has power.
3. Připojte solární panel: Connect the solar panel to the controller's solar panel terminals (marked with a sun symbol). Connect the positive (+) wire to the positive terminal and the negative (-) wire to the negative terminal.
4. Connect DC Load: Connect your DC load (e.g., lights, fan) to the controller's load terminals (marked with a light bulb symbol). Connect the positive (+) wire to the positive terminal and the negative (-) wire to the negative terminal.
5. Zabezpečená připojení: Ensure all terminal screws are tightened securely to prevent loose connections and potential arcing.

Image 5.1: Wiring diagram for the solar charge controller.

Instalační video průvodce

Video 5.1: A step-by-step guide demonstrating how to properly wire the solar charge controller to your solar panel and battery system.

6. Návod k obsluze

The LCD display provides real-time information and allows you to adjust various parameters.

Zobrazit navigaci

Stiskněte tlačítko MENU button to cycle through the different display interfaces:

• Hlavní displej: Zobrazuje aktuální stav nabití baterietage.
• Float Voltage: Voltage at which the battery is maintained after charging.
• Znovu připojit vybití: Voltage at which the load will reconnect after being disconnected due to low battery.
• Typ baterie: Displays the selected battery type (B01 for Lead-Acid, B02 for AGM, B03 for Gel).
• Pracovní režim: Controls the load output (e.g., 24H for continuous output, 01-23H for timed output, 00H for dusk-to-dawn).
• Zastávka vypouštění: Voltage at which the load will be disconnected to protect the battery from over-discharge.

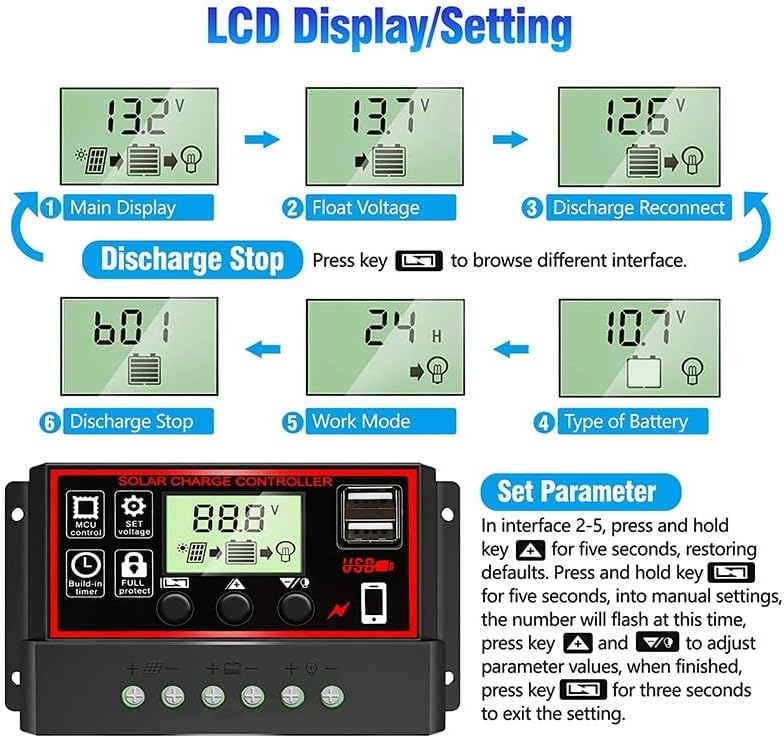

Obrázek 6.1: Příkladamples of LCD display screens and settings.

Nastavení parametrů

To enter manual settings for parameters (interfaces 2-5):

1. Stiskněte a podržte MENU button for 5 seconds. The number on the display will flash.
2. Použijte UP a DOLŮ buttons to adjust the parameter values.
3. Once finished, press and hold the MENU button for 3 seconds to exit the setting mode.

To restore default settings, press and hold the UP button for 5 seconds while on interfaces 2-5.

7. Údržba

Pravidelná údržba zajišťuje dlouhou životnost a optimální výkon vašeho solárního regulátoru nabíjení:

• Čistota: Udržujte ovladač čistý a bez prachu a nečistot. K čištění používejte suchý hadřík.
• Kontrola připojení: Pravidelně kontrolujte všechna zapojení, abyste se ujistili, že jsou pevná a bez koroze. Volná spojení mohou vést ke ztrátě napájení nebo přehřátí.
• Větrání: Ensure that the controller's ventilation openings are not blocked to allow for proper heat dissipation.
• Podmínky prostředí: Verify that the controller is installed in a dry, well-ventilated area, protected from direct sunlight, rain, and extreme temperatures.

8. Řešení problémů

Pokud narazíte na problémy se solárním regulátorem nabíjení, podívejte se na následující běžné problémy a jejich řešení:

• Žádný displej na LCD:
  • Check the battery connection. Ensure the positive and negative terminals are correctly connected and secure.
  • Verify that the battery has sufficient charge (above 8V for 12V systems, 16V for 24V systems) to power the controller's display.
• Žádné nabíjení ze solárního panelu:
  • Check the solar panel connections to the controller.
  • Ensure there is sufficient sunlight reaching the solar panel.
  • Verify the solar panel's open-circuit voltage (Voc) is within the controller's acceptable range (e.g., 18V-23V for 12V systems, 24V-42V for 24V systems).
• Načtení nefunguje:
  • Check the load connections to the controller.
  • Ensure the battery has enough charge; the load will disconnect if the battery voltage drops below the discharge stop voltage.
  • Check the 'Work Mode' setting on the controller to ensure the load output is enabled (e.g., 24H for continuous output).
  • Verify the load current does not exceed the controller's rated load current.
• Přehřátí regulátoru:
  • Zajistěte dostatečné větrání kolem regulátoru.
  • Check if the load or charging current exceeds the controller's maximum rating.

9. Specifikace

10. Záruka a podpora

For warranty information and technical support, please refer to the seller's contact details on your purchase platform or the product packaging. Keep your proof of purchase for any warranty claims.
