Oceanlend Electric Wind Instrument User Manual

1. Úvod

Welcome to the user manual for your new Oceanlend Electric Wind Instrument. This versatile digital instrument combines the functionality of a flute and saxophone, offering a rich musical experience with modern features. Please read this manual carefully to understand the instrument's operation and ensure optimal performance.

2. Vlastnosti produktu

• LED Screen and Dual Voice Function: The instrument features a clear LED screen and is equipped with a dual voice function, allowing you to easily switch between two different tones.
• MIDI výstup: This electric wind instrument supports MIDI output, enabling connection to a computer or tablet for expanded creative possibilities.
• 15-Level Blowing Sensitivity and Transposition Function: With 15 levels of blowing sensitivity adjustment, you can customize the instrument's responsiveness to your playing style. The transposition function allows shifting the pitch up or down by 6 steps.
• Supports External Speakers and Headphones: You can connect external speakers or headphones to the instrument for a more immersive playing experience.
• Long Battery Life and Power Saving Mode: The instrument is powered by an 800 mAh rechargeable lithium-ion battery, providing lasting performance. It also features a power-saving mode that automatically shuts down after 10 minutes of inactivity to conserve energy.

3. Co je v krabici

Po vybalení se prosím ujistěte, že jsou přítomny všechny následující položky:

• 1 x Oceanlend Electric Wind Instrument
• 2 x Replaceable Mouthpieces
• 1 x úložný sáček
• 1 x napájecí adaptér
• 1 x Uživatelská příručka (tento dokument)

Obrázek 3.1: Obsah balení

4. Nastavení

4.1 Nabíjení přístroje

Before first use, fully charge the instrument. Connect the provided power adapter to the DC 5V port on the instrument and plug it into a power outlet. The LED display will indicate charging status.

Figure 4.1: DC 5V Charging Port

4.2 Installing the Mouthpiece

Gently insert one of the provided mouthpieces into the top opening of the instrument until it is securely in place. Ensure it is firmly attached to prevent air leakage during play.

Figure 4.2: Mouthpiece Installation

4.3 Připojení externích zařízení

The instrument supports external audio output and MIDI connectivity:

• Sluchátka/reproduktory: Plug your headphones or external speakers into the 3.5mm audio jack for private practice or ampzesílený zvuk.
• MIDI výstup: Use a compatible USB cable to connect the instrument's USB port to a computer or tablet for MIDI control. This allows you to use the instrument as a MIDI controller with various music software.

Figure 4.3: Audio and MIDI Ports

5. Obsluha přístroje

5.1 Zapnutí/vypnutí

Press and hold the power button (usually located near the LED screen) for a few seconds to turn the instrument on or off. The LED screen will light up upon activation.

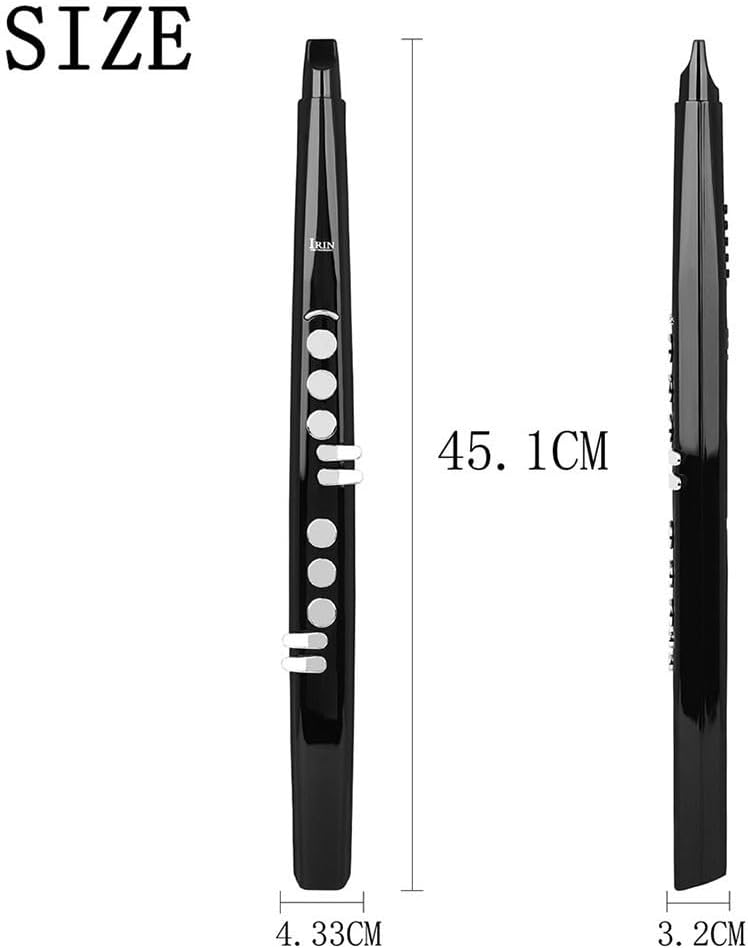

Figure 5.1: Instrument Overview (Front and Back)

5.2 Tone Selection and Dual Voice Function

The instrument comes with 13 built-in tones. Use the designated buttons (often labeled with arrows or 'Tone'/'Voice') to cycle through the available sounds. The dual voice function allows you to layer two tones simultaneously for a richer sound.

5.3 Nastavení citlivosti foukání

The instrument offers 15 levels of blowing sensitivity. This setting determines how responsive the instrument is to your breath. Adjust it to match your playing style and comfort level using the sensitivity adjustment buttons.

5.4 Transpozice

The transposition function allows you to shift the pitch of the instrument up or down by up to 6 semitones. This is useful for playing in different keys without changing your fingering. Refer to the LED screen for the current transposition setting.

Figure 5.2: Control Buttons and Keys

5.5 MIDI Connectivity and App Learning

Once connected via MIDI (as described in Section 4.3), you can use the instrument with various digital audio workstations (DAWs) or music learning applications on your computer or tablet. Some apps may also support wireless connection for learning purposes.

6. Údržba

6.1 Čištění přístroje

• Náustek: Regularly remove and clean the mouthpiece with mild soap and water. Rinse thoroughly and allow it to air dry completely before reattaching.
• Tělo: Wipe the body of the instrument with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish.

6.2 Péče o baterii

• Vyhněte se častému úplnému vybíjení baterie.
• If storing the instrument for an extended period, charge the battery to about 50% and store in a cool, dry place.
• K nabíjení používejte pouze dodaný napájecí adaptér.

6.3 Skladování

When not in use, store the instrument in its provided storage bag to protect it from dust, scratches, and impacts. Keep it away from extreme temperatures and direct sunlight.

7. Řešení problémů

8. Specifikace

9. Záruka a podpora

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Oceanlend customer service through the retailer where you purchased the product. Please retain your proof of purchase for warranty claims.
