XSTO LFC170F3 Electric Lifter Hand Truck User Manual

1. Úvod

This user manual provides comprehensive instructions for the safe and effective operation, setup, and maintenance of your XSTO LFC170F3 Electric Lifter Hand Truck. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage. Keep this manual for future reference.

2. Bezpečnostní informace

Adhering to safety guidelines is crucial for preventing accidents and ensuring the longevity of your equipment.

• Always operate the hand truck on stable, level ground when loading or unloading.
• Ensure the load is securely fastened to the loading plate using appropriate straps before moving or lifting.
• Nepřekračujte maximální nosnost 375 kg.
• Keep hands and feet clear of moving parts, especially during lifting and lowering operations.
• Use caution when operating on slopes or uneven surfaces. The hover brake function is designed to prevent slipping on inclines.
• Baterii vždy nabíjejte v dobře větraném prostoru, mimo dosah hořlavých materiálů.
• Před prováděním jakékoli údržby nebo čištění odpojte baterii.
• Do not modify the hand truck or its components. Use only genuine XSTO replacement parts.

3. Konec produktuview

3.1 Komponenty

The XSTO LFC170F3 Electric Lifter Hand Truck is designed for both lifting and transporting heavy loads. Refer to the diagram below for an overview jeho klíčových součástí.

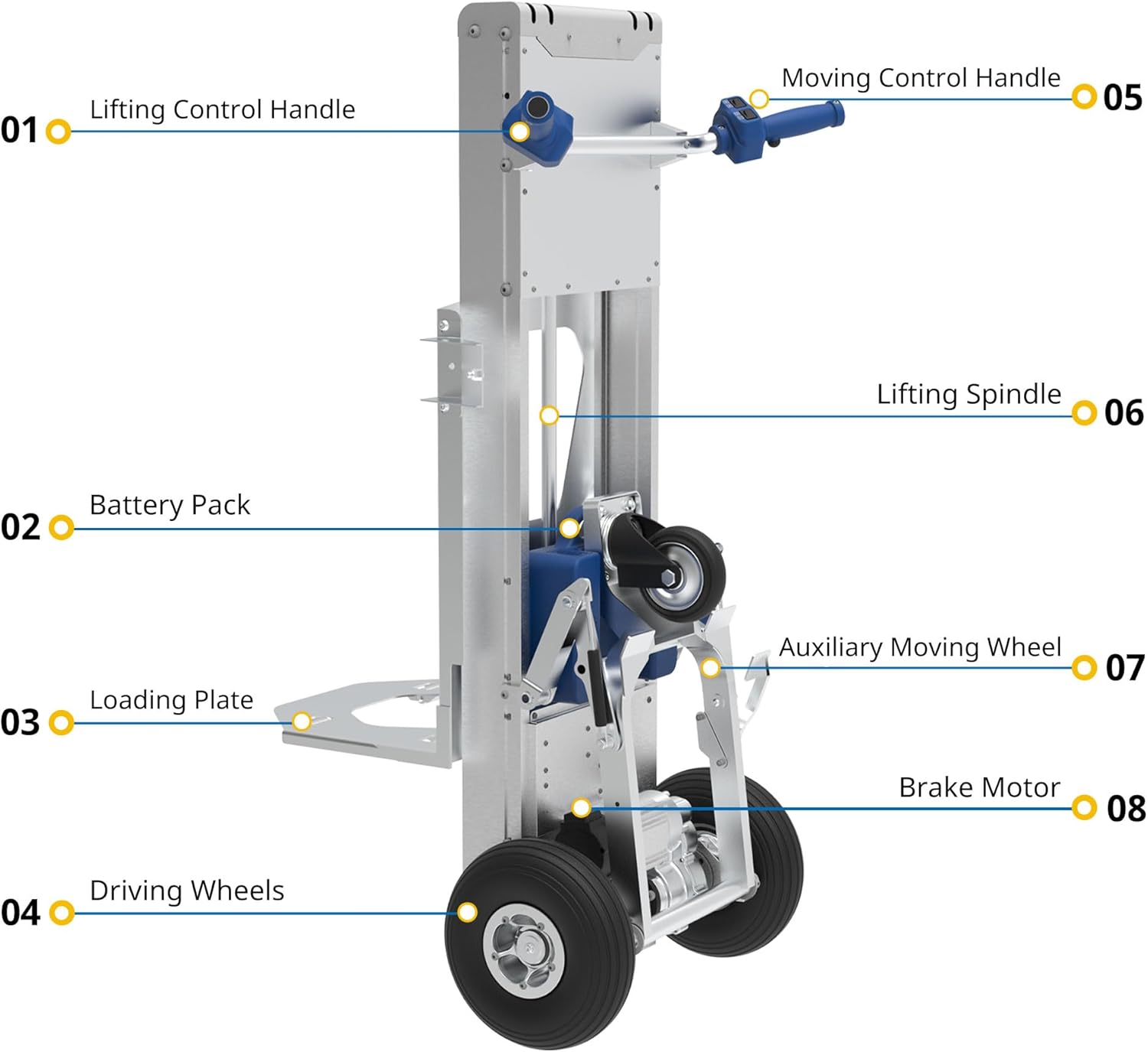

Obrázek: Podrobný view of the XSTO LFC170F3 Electric Lifter Hand Truck, highlighting its main components: 01 Lifting Control Handle, 02 Battery Pack, 03 Loading Plate, 04 Driving Wheels, 05 Moving Control Handle, 06 Lifting Spindle, 07 Auxiliary Moving Wheel, 08 Brake Motor.

3.2 Control Handles

The hand truck features dual control handles for precise operation of movement and lifting functions.

Image: Close-up of the dual control handles. The left handle controls lifting (Rising/Falling), and the right handle controls movement (Forward/Backward, Fast/Slow speeds).

3.3 Podrobné komponenty

Further details on critical components for operation and stability.

Obrázek: Detail views showing the robust loading plate, the brake motor for secure stops, and the removable battery pack.

4. Nastavení

4.1 Vybalení

Opatrně vyjměte všechny součásti z obalu. Zkontrolujte, zda nejsou viditelné poškození. Uschovejte obal pro budoucí skladování nebo přepravu.

4.2 Instalace a nabíjení baterie

The XSTO LFC170F3 is powered by a 48V lithium-ion battery. Proper battery management is essential for performance.

1. Ensure the battery pack (02 in component diagram) is securely installed in its designated compartment.
2. Connect the charger to the battery pack's charging port and then to a standard power outlet.
3. Allow the battery to fully charge before its first use. The battery level indicator will display the charging status.
4. A fully charged battery provides approximately 3 hours of continuous operation on flat ground or 1 hour on an inclined surface.

4.3 Počáteční kontroly

Before each use, perform the following checks to ensure safe operation:

• Verify all bolts, fasteners, and connections are tight and secure.
• Test the lifting and movement controls to ensure they respond correctly.
• Confirm the hover brake engages properly when the motor is disengaged.
• Check the condition of the wheels for any damage or excessive wear.

5. Provoz

5.1 General Movement

To move the hand truck, use the right-side Moving Control Handle (05). Push forward for forward movement, pull back for backward movement. Adjust speed using the fast/slow buttons as needed.

Image: A person operating the XSTO LFC170F3 Electric Lifter Hand Truck on flat ground, demonstrating ease of movement with a heavy load.

5.2 Zvedání a spouštění břemen

The left-side Lifting Control Handle (01) is used to raise and lower the loading plate.

1. Position the loading plate (03) securely under the item to be lifted.
2. Secure the item to the hand truck using appropriate straps to prevent shifting during movement.
3. Press the "Rising" button on the Lifting Control Handle to raise the load to the desired height.
4. Press the "Falling" button to lower the load.

5.3 Using the Hover Brake

The integrated hover brake function automatically activates when the motor is disengaged, preventing the hand truck from sliding on slopes. This feature ensures stability and safety during temporary stops on inclines, allowing the operator to pause without the load moving.

5.4 Loading and Unloading from Vehicles

The XSTO LFC170F3 simplifies loading and unloading heavy items from vehicles, reducing manual effort and risk of injury. The following video demonstrates various operational scenarios, including vehicle loading and unloading, navigating obstacles, and using the hand truck in confined spaces.

Video: This video demonstrates the XSTO LFC170F3 Electric Lifter Hand Truck in action, showing safe loading and unloading of a washing machine from a van, electric lifting, use of the ground support device for stability, navigating obstacles, and maneuvering through narrow aisles and elevators for efficient delivery.

5.5 Navigating Obstacles and Slopes

The hand truck is designed to overcome minor obstacles and navigate slopes. The auxiliary moving wheel (07) and driving wheels (04) provide stability and traction. When traversing slopes, ensure the load is balanced and utilize the hover brake as needed for controlled movement. Do not exceed the maximum recommended slope of 15°.

5.6 Use in Narrow Aisles and Elevators

The compact design and maneuverability of the XSTO LFC170F3 allow it to be easily guided through narrow aisles and into elevators, facilitating deliveries and material handling in various indoor environments.

6. Údržba

Regular maintenance ensures optimal performance and extends the lifespan of your electric lifter hand truck.

6.1 Péče o baterii

• Fully charge the battery after each use to maximize its cycle life.
• If storing the hand truck for an extended period (more than one month), charge the battery every 3 months to prevent deep discharge and maintain its lifespan.
• Do not expose the battery to extreme temperatures (below 0°C or above 40°C).

6.2 Čištění

• Clean the hand truck regularly with a damp cloth. Avoid using abrasive cleaners, solvents, or high-pressure water jets.
• Ensure no water enters electrical components or the battery compartment.

6.3 inspekcí

• Periodically inspect the lifting spindle (06), brake motor (08), and all wheels for signs of wear, damage, or loose connections.
• Check all moving parts for smooth operation and lubricate pivot points as necessary with a suitable lubricant.
• Ensure the loading plate (03) is free from deformation, cracks, or other structural damage.

7. Řešení problémů

This section provides solutions to common issues you might encounter with your XSTO LFC170F3.

8. Specifikace

Key technical specifications for the XSTO LFC170F3 Electric Lifter Hand Truck.

9. Záruka a podpora

XSTO products are manufactured to high-quality standards. For detailed warranty information, please refer to the documentation included with your purchase or visit the official XSTO webmísto.

For technical support, spare parts, or service inquiries, please contact XSTO customer service. XSTO is committed to resolving all customer issues promptly.

• Online podpora: Visit the XSTO Store on Amazon
• Customer service aims to resolve all problems within 12 hours.
