Zavedení
This manual provides essential information for the assembly, operation, maintenance, and care of your Tangkula Outdoor Chaise Lounge. Please read these instructions carefully before use to ensure proper function and longevity of your product.

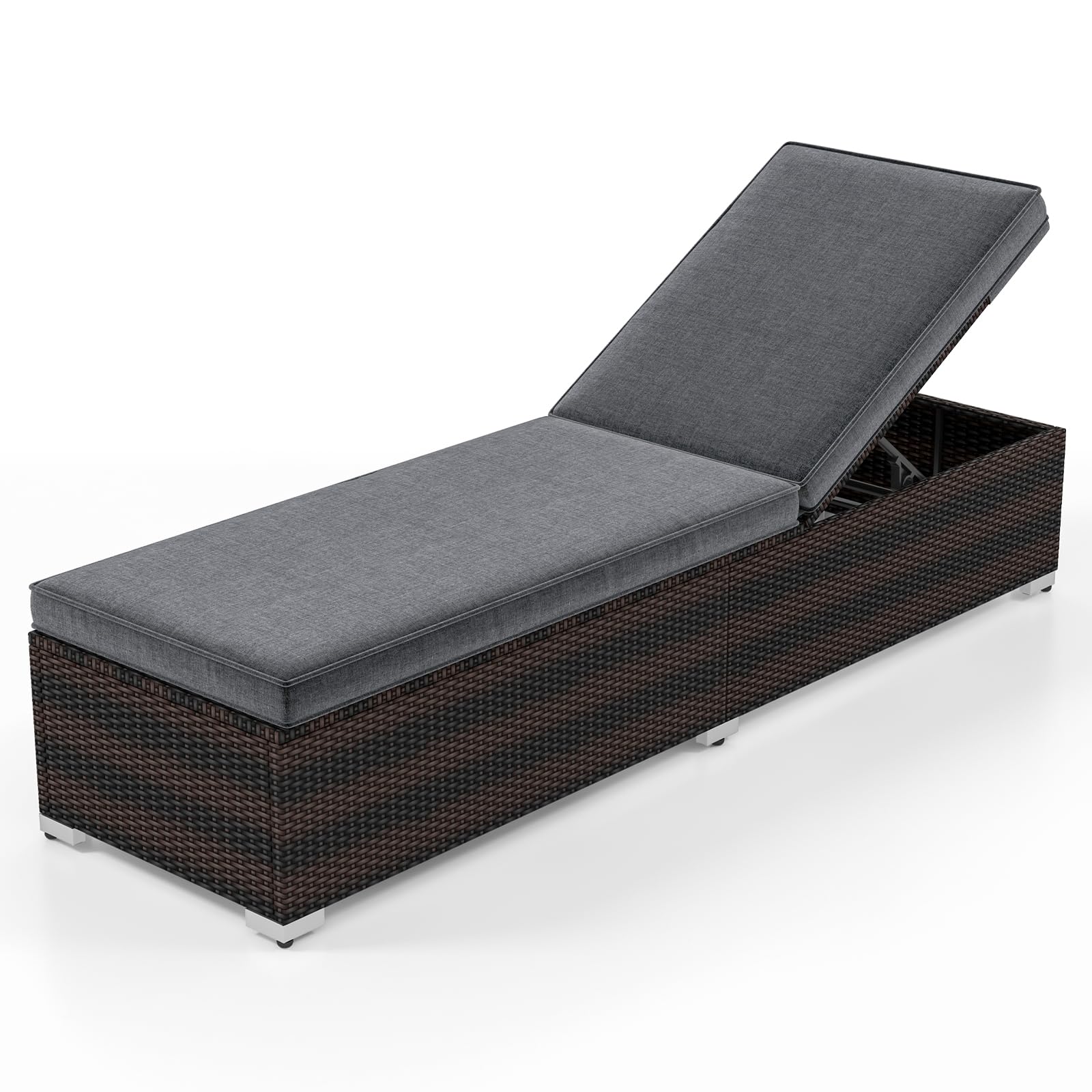

Image: The Tangkula Outdoor Chaise Lounge, featuring a brown wicker base and a gray cushion, positioned on a patio.
Bezpečnostní informace
- Avoid prolonged exposure to rain to maintain the product's longevity and performance.
- Před použitím se ujistěte, že jsou všechny součásti bezpečně upevněny.
- Nepřekračujte maximální nosnost 150 kg (330 liber).
- Během montáže držte děti a domácí zvířata mimo dosah.
Obsah balení
Před zahájením montáže se prosím ujistěte, že jsou všechny díly přítomny.
- 1 x Patio Chaise Lounge Frame
- 1 x Long Seat Cushion
- 1 x Návod k obsluze (tento dokument)
- Hardware Pack (screws, washers, tools if included)
Nastavení a montáž
Assembly is required for this chaise lounge. It is recommended that two adults perform the assembly. Do not fully tighten screws until all components are loosely fitted.
- Vybalte všechny součásti a rozložte je na měkký, čistý povrch, abyste zabránili poškrábání.
- Identify the main frame sections. Attach the side panels to the base frame using the provided hardware.
- Secure the backrest frame to the main lounge body, ensuring the adjustable mechanism is correctly aligned.
- Once all parts are loosely assembled, gradually tighten all screws and bolts until secure. Do not overtighten.
- Place the long seat cushion onto the chaise lounge. The cushion features a snug design to prevent slipping.
Image: An illustration showing the various components of the chaise lounge before assembly, including the frame, backrest, and cushion.
Image: Detail of the chaise lounge's robust metal frame and adjustable L-shaped legs, highlighting structural stability.
Návod k obsluze
Nastavení opěradla
The Tangkula Outdoor Chaise Lounge features a 4-position adjustable backrest, allowing you to customize your comfort level.
- To adjust, gently lift the backrest to disengage it from its current position.
- Move the backrest to your desired angle. There are four distinct positions, including a fully flat option.
- Ensure the backrest mechanism locks securely into place before applying full weight.
Image: A visual guide demonstrating how to adjust the backrest to its four different positions, from upright to fully flat.
Using the Cushion
The included long seat cushion provides enhanced comfort. Its design helps keep it in place during use.
Údržba
Čištění
- Polštář: The cushion features a zippered cover for easy removal and cleaning. Hand wash with mild soap and water, or machine wash on a gentle cycle with cold water. Air dry only.
- Ratan a rám: Otřete PE ratan a kovový rám reklamouamp cloth and mild soap. Rinse thoroughly with clean water and dry completely to prevent water spots or corrosion.
Obrázek: Podrobný view of the cushion's features, including its soft filling, zippered cover for easy cleaning, and design to prevent slipping.
Skladování a ochrana
- To prolong the service life of the chaise lounge, avoid prolonged exposure to rain and harsh weather conditions.
- During off-seasons or inclement weather, store the chaise lounge in a dry, covered area or use a protective outdoor furniture cover.
Odstraňování problémů
If you encounter any issues with your Tangkula Outdoor Chaise Lounge, please refer to the following common solutions:
- Vrátivý rám: Check all bolts and screws to ensure they are tightened securely. If the issue persists, disassemble and reassemble, ensuring all parts are correctly aligned before tightening.
- Backrest Adjustment Difficulty: Ensure no obstructions are preventing the mechanism from moving freely. Apply a small amount of silicone lubricant to moving parts if necessary.
- Polštář se uklouzá: Verify the cushion is correctly positioned and its snug design features are engaged.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | 11667CF-NP |
| Celkové rozměry (D x Š x V) | 75" x 24" x 12.5"/27.5"/31.5"/35"/38" (adjustable height) |
| Výška sedu | 12.5" |
| Rozměry polštáře (D x Š x Tloušťka) | 76 cm x 24.5 cm x 3 cm |
| Hmotnostní kapacita | 330 lb (150 kg) |
| Čistá hmotnost | 31.5 lb (14 kg) |
| Materiály | PE Rattan, Metal, Polyester, Sponge |
| Color (Rattan/Cushion) | Mix Brown / Gray |
| Polohy opěradla | 4 (including flat) |
| Montáž Vyžadována | Ano |
Image: A detailed diagram showing the length, width, and adjustable height measurements of the chaise lounge.
Záruka a podpora
For specific warranty information or technical support, please refer to the documentation included with your purchase or contact Tangkula customer service.
You can visit the official Tangkula store for more information: Tangkula Store
