FALCAM TreeRoot T00A4301 Quick Lock Travel Tripod Kit

1. Úvod

Thank you for choosing the FALCAM TreeRoot T00A4301 Quick Lock Travel Tripod Kit. This tripod is designed for photographers and videographers seeking extraordinary hardness, stability, and portability. Its carbon fiber construction, F38 Pro quick release system, and versatile ball head make it suitable for various shooting environments, from travel to professional outdoor recording. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Bezpečnostní informace

• Před montáží vybavení nebo nastavením stativu se vždy ujistěte, že jsou všechny zajišťovací mechanismy bezpečně utaženy.
• Do not exceed the maximum load capacity of 20 kg (with low center column) or 10 kg (with high center column) to prevent damage to the tripod or attached equipment.
• Nevystavujte stativ extrémním teplotám nebo korozivním látkám.
• When operating in windy conditions, consider adding weight to the central hook for increased stability.
• Během nastavování držte ruce a prsty v dostatečné vzdálenosti od pohyblivých částí, abyste zabránili jejich skřípnutí.
• After use in sandy, dusty, or saltwater environments, clean the tripod thoroughly to prevent corrosion and ensure smooth operation.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• FALCAM TreeRoot T00A4301 Tripod with F38 Pro Quick Release Ball Head
• F38 Quick Release Plate
• Přepravní taška
• Allen Keys for maintenance
• Replacement locking rings for leg segments

4. Komponenty přesview

Familiarize yourself with the main components of your FALCAM TreeRoot tripod:

• Nohy stativu: Four-section carbon fiber legs with twist-lock mechanisms.
• Leg Angle Adjusters: Buttons at the top of each leg to set different leg angles.
• Středový sloupec: Extendable and reversible column for height adjustment and low-angle shooting. Features a quick-release mechanism.
• Kulová hlava: Integrated F38 Pro quick release ball head with damping control, panoramic rotation, and level indicator.
• F38 Quick Release Plate: Compatible with Arca-Swiss systems for fast camera attachment.
• Držáky příslušenství: F22 and 1/4-inch interfaces for attaching accessories.
• Central Hook: Located at the bottom of the center column for adding stability weight. Doubles as a flat-head tool and Allen key.
• Gumové nožičky/hroty: Přestavitelné nohy pro různé terény.

Obrázek 4.1: The FALCAM TreeRoot T00A4301 Tripod in its fully extended configuration, showcasing its carbon fiber legs and central column.

Obrázek 4.2: The FALCAM TreeRoot T00A4301 Tripod folded to a compact 473mm, demonstrating its portability.

5. Nastavení

5.1 Unfolding the Tripod Legs

1. Grasp the tripod head and gently pull the legs outwards until they click into their initial locked position.
2. To adjust the leg angle, press the leg angle adjuster button at the top of each leg and move the leg to the desired position (e.g., wider for lower angles or increased stability).
3. To extend the leg sections, twist the quick-lock rings on each leg section approximately 1/3 of a turn counter-clockwise to unlock. Pull the leg sections to the desired length, then twist the rings clockwise to lock them securely.

Obrázek 5.1: Illustrates the 1/3 quick-lock mechanism on the tripod legs for rapid deployment and adjustment.

5.2 Připojení fotoaparátu

1. Ensure the F38 quick release plate is securely attached to the bottom of your camera or lens collar. The plate features anti-rotation teeth for added security.
2. Align the F38 quick release plate with the F38 Pro quick release base on the tripod head.
3. Press the plate firmly into the base until you hear a click, indicating it is securely locked. Verify by gently attempting to lift the camera.
4. To remove the camera, press the release lever on the F38 Pro base and lift the camera.

Obrázek 5.2: The F38 Pro quick release system, demonstrating compatibility with 90% of Arca-Swiss quick release plates for fast camera mounting.

6. Ovládání stativu

6.1 Nastavení výšky stativu

• Prodloužení nohou: Extend the leg sections as described in Section 5.1.
• Center Column Extension: To extend the center column, unlock the central column quick release mechanism. Pull the column upwards to the desired height, then lock the mechanism.

Obrázek 6.1: Illustrates the maximum working height of 1552mm with the center column extended and 1305mm without the center column extended.

6.2 Low-Angle Shooting and Reversible Center Column

The quick-release center column allows for versatile low-angle shooting and macro photography.

1. To remove the center column, unlock the quick release mechanism at the base of the column.
2. Pull the entire center column assembly upwards and out of the tripod chassis.
3. For extremely low angles, you can re-insert the center column upside down.
4. Alternatively, the column can be partially removed to achieve a minimum height of 168mm.

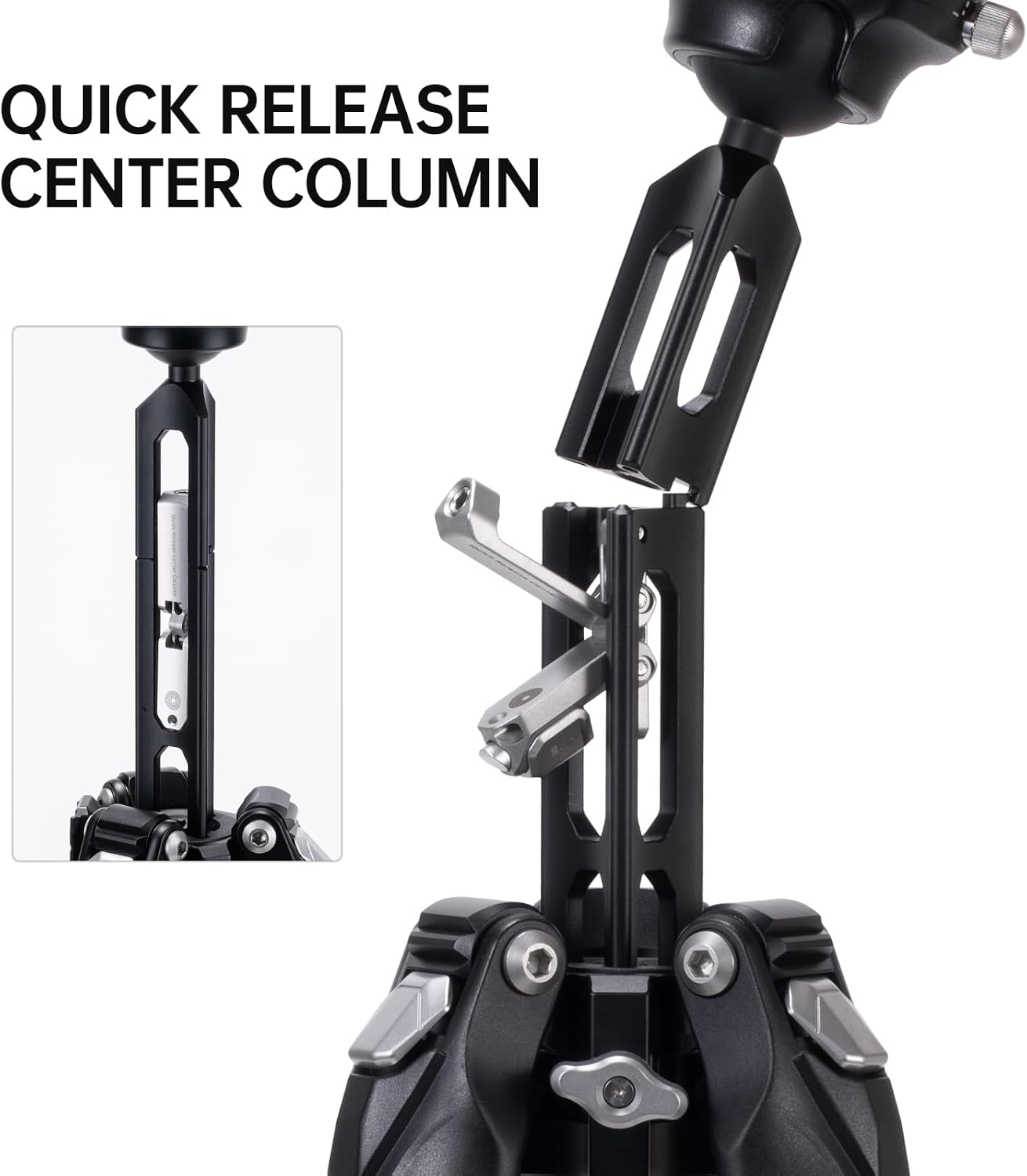

Obrázek 6.2: The quick release center column mechanism, allowing for easy removal and reversal for low-angle shots.

Obrázek 6.3: The tripod configured for minimum height (168mm), ideal for macro and low-angle photography.

6.3 Použití kulové hlavy

• Ball Head Lock: Use the main locking knob to secure or release the ball head for tilting and panning.
• Dampovládání: The ball head features a damping control knob to adjust the friction, allowing for smooth, controlled movements even when unlocked. This is particularly useful for videography.
• Panoramatická rotace: Unlock the panoramic base knob to rotate the camera 360 degrees independently of the ball head tilt. The base has degree markings for precise adjustments.
• Ukazatel úrovně: Použijte integrovanou vodováhu, abyste se ujistili, že je fotoaparát v perfektní vodorovné poloze.

6.4 Using Accessory Mounts

The tripod includes F22 and 1/4-inch interfaces for attaching external accessories like monitors, microphones, or LED lights. Ensure accessories are securely fastened and do not exceed the tripod's stability limits.

7. Údržba

• Čištění: Po každém použití otřete stativ měkkým, suchým hadříkem. Na odolné nečistoty použijte lehceamp hadříkem a jemným mýdlem, poté důkladně osušte.
• Post-Saltwater Use: If used in saltwater environments, rinse the tripod thoroughly with fresh water and dry completely to prevent corrosion.
• Mazání: Periodically check the leg locks and ball head for smooth operation. If necessary, apply a small amount of silicone-based lubricant to moving parts, avoiding excessive application.
• Skladování: Stativ skladujte v přepravní brašně na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.
• Náhradní díly: Use the provided Allen keys for minor adjustments. Replacement locking rings are included for future maintenance.

8. Řešení problémů

9. Specifikace

Obrázek 9.1: The net weight of the FALCAM TreeRoot T00A4301 Tripod is 1.5KG, highlighting its lightweight design.

10. Záruka a podpora

FALCAM provides a manufacturer's warranty for this product. Please refer to the warranty card included in your package or visit the official FALCAM webpodrobné záruční podmínky naleznete na webu.

For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact FALCAM customer service through their official webnebo kontaktní informace poskytnuté při nákupu.
