Rintuf Portable Air Conditioner User Manual

Zavedení

Thank you for choosing the Rintuf Portable Air Conditioner. This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

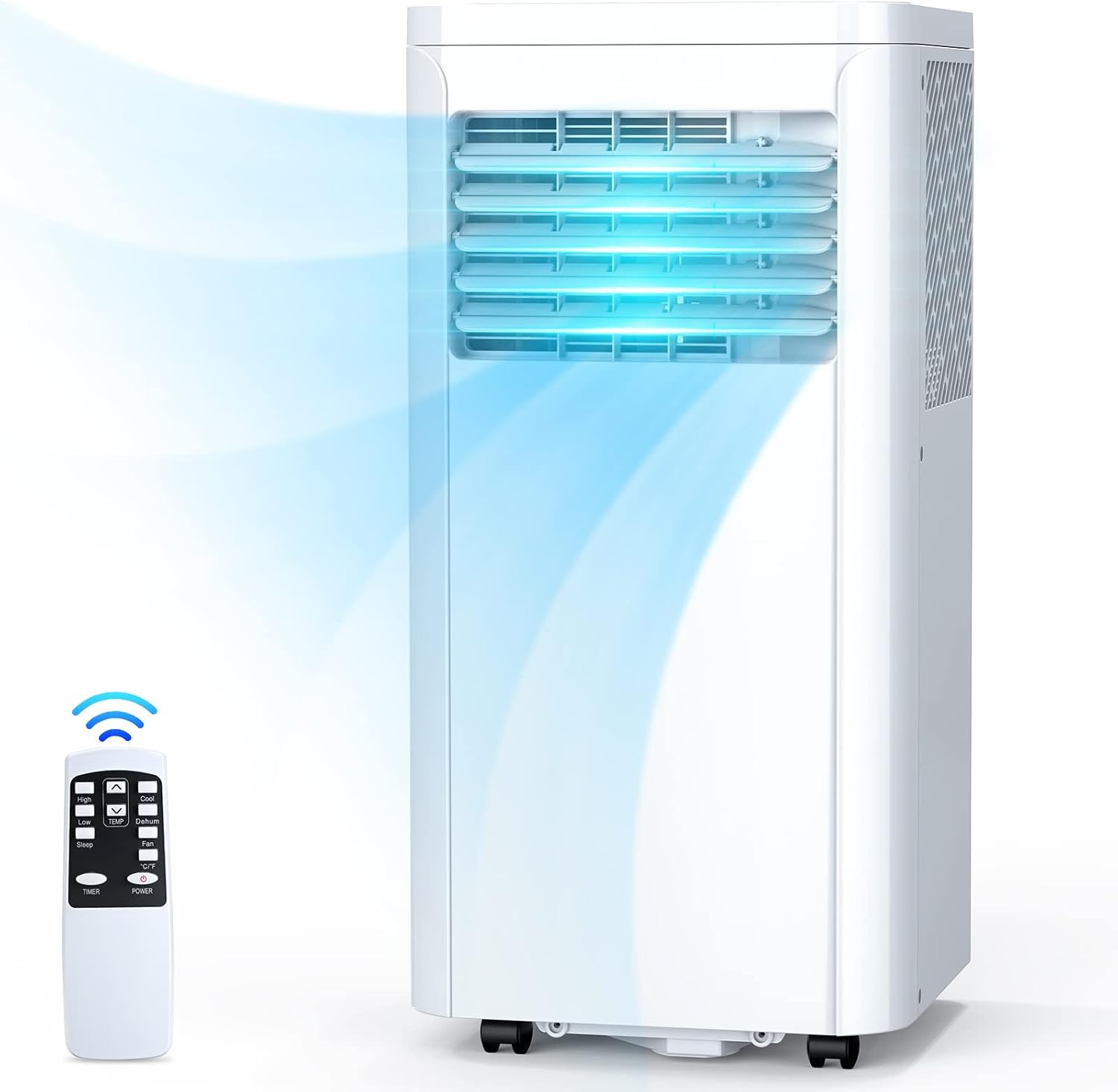

Image: The Rintuf Portable Air Conditioner unit with its remote control, illustrating cool air being emitted.

Klíčové vlastnosti

• Výkonné chlazení: 10000 BTU capacity, effectively cools rooms up to 450 sq. ft. with a temperature range of 62°F-86°F.
• Funkce 3 v 1: Offers Cooling, Dehumidifying (17.1 pints/day), and Fan modes (2-speed fan).
• Quiet Operation & Sleep Mode: Designed for comfortable night use with a sleep mode and 24-hour on/off timer for energy efficiency.
• Snadná instalace: Tool-free setup compatible with hanging/sliding windows. Includes window kit (fits 25"-50" windows) and 4.92 ft exhaust hose.
• Pohodlné ovládání: Features a digital control panel and remote control for easy adjustment of modes, temperature, timer, and fan speed.
• Bezproblémová mobilita: Compact and lightweight design with universal wheels and a built-in handle for easy movement between rooms.
• Omyvatelný vzduchový filtr: Ensures fresh and clean air by effectively filtering incoming air.

Image: An overhead diagram illustrating the Rintuf Portable AC's cooling coverage of up to 450 square feet, with key specifications like 10000 BTU and 62-86°F temperature range.

Nastavení a instalace

Follow these steps for proper installation of your Rintuf Portable Air Conditioner:

1. Check Your Window Type

The included window kit is compatible with both hanging (vertical) and sliding (horizontal) windows.

Image: Illustrations of a hanging window and a sliding window, indicating compatibility.

2. Measure Your Window Size

Ensure your window opening is between 25 inches and 50 inches to properly fit the window sealing kit.

Image: A diagram showing how to measure a window, indicating the compatible range of 25 to 50 inches.

3. Install with the Included Kit

All necessary accessories, including the exhaust hose, adapter, connector, drain hose, and window kits, are provided for a quick and tool-free installation.

Image: The portable air conditioner connected to a window using the exhaust hose and window kit, with an illustration of the included components.

4. Maintain Proper Clearance

Ensure there is a minimum clearance of 19.7 inches (50 cm) around the air conditioner for optimal airflow and performance.

Image: A diagram illustrating the required minimum clearance of 19.7 inches from the back of the portable air conditioner to a wall or obstruction.

Návod k obsluze

Your Rintuf Portable Air Conditioner offers multiple modes and easy controls for personalized comfort.

Ovládací panel a dálkové ovládání

Jednotku lze ovládat pomocí digitálního ovládacího panelu na horní straně nebo pomocí dodaného dálkového ovladače.

Obrázek: Detailní záběr view of the portable air conditioner's top control panel and the remote control, highlighting various function buttons.

• Vypínač: Zapíná nebo vypíná jednotku.
• Výběr režimu: Cyklujte mezi režimy Chlazení, Odvlhčování a Ventilace.
• Nastavení teploty: Use the up/down arrows to set your desired temperature between 62°F and 86°F (17°C and 30°C).
• Rychlost ventilátoru: Adjust between two fan speeds (Low/High) for optimal airflow.
• Časovač: Set the 24-hour on/off timer for energy-efficient operation.
• Režim spánku: Activates a quiet operation mode for undisturbed sleep.
• Přepínač °C/°F: Přepínání mezi zobrazením teploty ve stupních Celsia a Fahrenheita.

Provozní režimy

The Rintuf Portable Air Conditioner offers three distinct operating modes:

1. Režim chlazení: Poskytuje výkonné chlazení pro místnosti do 450 čtverečních stop.
2. Režim odvlhčování: Removes up to 17.1 pints of moisture per day, keeping your space fresh and dry.
3. Režim ventilátoru: Circulates air with two adjustable speeds without cooling or dehumidifying.

Image: An illustrative diagram highlighting the three functions of the portable AC: Dehumidifies, Cools, and Circulates air.

Image: A person sleeping peacefully with the Rintuf Portable AC operating in sleep mode, emphasizing its quietness (50 dB) and 24-hour timer feature.

Údržba

Pravidelná údržba zajistí optimální výkon a dlouhou životnost vaší klimatizace.

Čištění vzduchového filtru

The Rintuf Portable Air Conditioner features a washable air filter. Regularly clean the filter to maintain air quality and unit efficiency.

• Před čištěním jednotku vypněte a odpojte ze zásuvky.
• Vyhledejte a vyjměte vzduchový filtr ze zadní strany jednotky.
• Filtr jemně omyjte teplou vodou a jemným čisticím prostředkem.
• Důkladně opláchněte a nechte jej před opětovným vložením zcela uschnout na vzduchu.
• It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality.

Image: A close-up of the washable air filter being rinsed under running water, demonstrating the ease of cleaning.

Odstraňování problémů

If you encounter issues with your Rintuf Portable Air Conditioner, refer to the common problems and solutions below. If the problem persists, contact customer support.

Specifikace produktu

Záruka a podpora

For warranty information and customer support, please refer to the documentation included with your product or visit the official Rintuf store.
