Uživatelská příručka k výrobníku ledu JINJUNYE Nugget (model BS-301B)

Zavedení

Thank you for choosing the JINJUNYE Nugget Ice Maker. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before first use and retain it for future reference.

Image: The JINJUNYE Nugget Ice Maker, showcasing its compact design and the type of nugget ice it produces, alongside a refreshing beverage.

Důležité bezpečnostní pokyny

• Před použitím spotřebiče si přečtěte všechny pokyny.
• Ujistěte se, že je spotřebič umístěn na stabilním, rovném povrchu.
• Neponořujte spotřebič, napájecí kabel ani zástrčku do vody ani jiných kapalin.
• Udržujte spotřebič mimo zdroje tepla a přímého slunečního záření.
• Allow the unit to stand upright for at least 24 hours before first use if it has been tilted or inverted during transport. This allows the refrigerant to settle.
• Do nádržky na vodu používejte pouze pitnou vodu.
• Do not add water above the MAX water level indicator.
• Před čištěním nebo pokud spotřebič delší dobu nepoužíváte, odpojte jej ze zásuvky.
• Během provozu udržujte děti mimo dosah spotřebiče.

Průvodce nastavením

1. Rozbalení a umístění:

   Carefully remove the ice maker from its packaging. Place the unit on a flat, stable surface, ensuring adequate ventilation around the appliance. Allow the unit to stand upright for at least 24 hours before plugging it in. This is crucial for the refrigerant to settle properly after transport.
2. Secure the Drain Plug:

   Before adding water, ensure the bottom drain plug is firmly in place to prevent any water leakage.



   Image: A close-up showing a finger pressing the drain plug firmly into the bottom of the ice maker, illustrating the first step of setup.
3. Přidat vodu:

   Open the lid and fill the water reservoir with potable water. Do not exceed the "MAX" water level indicator. The water tank capacity is 1.5 liters.



   Image: A hand pouring water into the ice maker's reservoir, with a clear indication not to exceed the maximum water level.

4. Initial Cleaning (Recommended):

   It is recommended to perform a self-cleaning cycle before first use. Refer to the "Maintenance" section for instructions on how to activate the self-cleaning function.

Návod k obsluze

Konec ovládacího paneluview

Obrázek: Podrobný view of the ice maker's control panel, showing indicators for Ice Making, Cleaning, Add Water, Ice Full, Activate Self-Cleaning, and On/Off button.

• Ice Making Indicator: Illuminates when the machine is actively producing ice.
• Indikátor čištění: Illuminates when the self-cleaning cycle is active.
• Přidejte indikátor vody: Illuminates when the water reservoir needs refilling. The machine will pause operation until water is added.
• Indikátor plného ledu: Illuminates when the ice basket is full. The machine will pause operation until ice is removed.
• Tlačítko Clean: Press to activate the self-cleaning function.
• Tlačítko zapnutí/vypnutí: Stisknutím zapnete nebo vypnete výrobník ledu.

Výroba ledu

1. Zapnutí: After ensuring the drain plug is secure and water is added, plug the ice maker into a grounded electrical outlet. Press the Zapnuto/Vypnuto tlačítko pro spuštění procesu výroby ledu.
2. First Batch: The first batch of ice may take slightly longer to produce. It is recommended to discard the first few batches of ice to ensure optimal taste and hygiene.
3. Výroba ledu: The machine will automatically produce nugget ice. The Ice Making indicator will be lit. The JINJUNYE Nugget Ice Maker can produce up to 38 lbs of ice per day, with a 1.5L water tank and 1.8 LB ice basket capacity.
4. Sledování: The Přidejte vodu a Led plný indicators will alert you when action is required. The machine will automatically pause when the ice basket is full or when water is low.
5. Užijte si led: Once ice is produced, use the provided scoop to retrieve it. For softer, more chewable ice, allow the ice to sit in a small amount of water in the basket.

Image: An illustration detailing the internal components of the ice maker, highlighting the 1.5L water tank and the 1.8 LB ice basket capacity, emphasizing efficient ice production.

Údržba a čištění

Funkce samočištění

The JINJUNYE Nugget Ice Maker features a convenient self-cleaning function to maintain hygiene and ensure fresh ice production.

1. Aktivace čištění: Ensure there is water in the reservoir. Press the Čistý button on the control panel. The Cleaning indicator will illuminate.
2. Cyklus čištění: The machine will automatically perform a 5-minute cleaning cycle, circulating water to remove impurities.
3. Vypustit vodu: After the cleaning cycle is complete, place a container under the drain plug at the bottom of the unit. Remove the drain plug to empty the dirty water. Re-insert the drain plug firmly once drained.

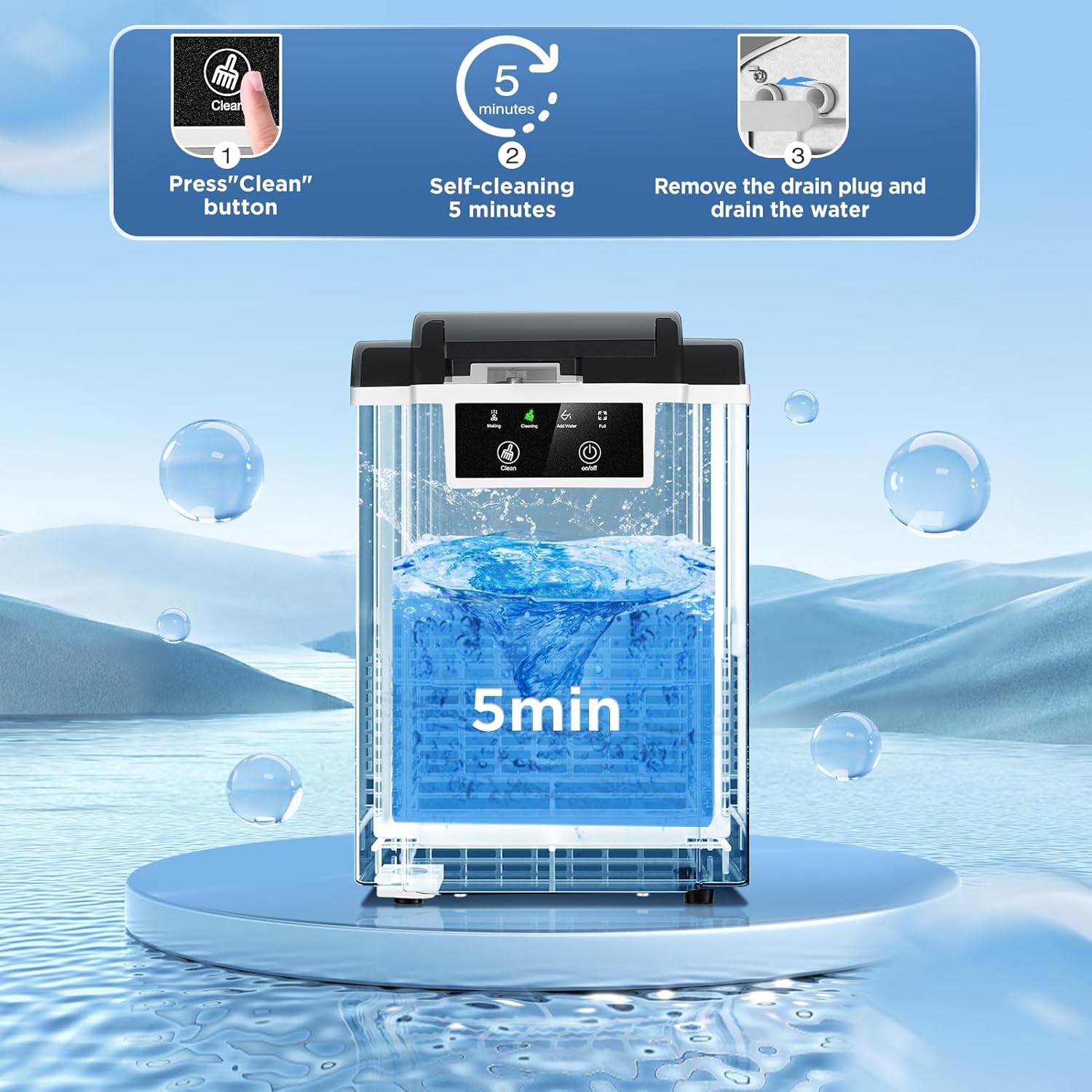

Image: A visual guide illustrating the three steps of the self-cleaning function: pressing the "Clean" button, the 5-minute cleaning cycle, and finally, removing the drain plug to empty the water.

Poznámka: For optimal cleaning, the water temperature should be between 44°F (6.7°C) and 32°F (0°C). Do not add water above the MAX water level during cleaning.

Pravidelný úklid

• Vnější: Otřete vnější povrch výrobníku ledu měkkým hadříkem.amp cloth. For stainless steel surfaces, use a stainless steel cleaner if necessary.
• Interiér: Periodically clean the interior of the water reservoir and ice basket with a mild detergent and warm water. Rinse thoroughly with clean water.
• Vypouštění: Always drain any remaining water from the reservoir if the unit will not be used for an extended period.

Odstraňování problémů

Specifikace

Záruka a zákaznická podpora

Specific warranty information is not provided within this manual. For details regarding your product's warranty, please refer to the documentation included with your purchase or visit the official JINJUNYE website. For customer support, technical assistance, or to report any issues, please contact JINJUNYE customer service through their official channels.
